Offroad: 2-Pod Power Harness

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-2HARNESS-TRS

$82.50

PRODUCT OPTIONS

PART #: 1 x BAF000H



Easy Return

DESCRIPTION

Introducing the Morimoto 4Banger LED Pods Wiring Harness – the ultimate power solution for your off-road lighting needs! Elevate your driving experience with unrivaled quality and performance. Designed to set a new industry standard, this harness leaves no detail overlooked. Crafted for perfection, the Morimoto 4Banger harness features a triple-sealed 4-pin relay, over-molded inline fuse holder, and DT06-2S female outputs with dual seals. With stainless steel power and ground terminals, it guarantees durability. The proprietary M-Spec push-button switch with Yellow-LED backlight adds style and convenience. Experience flicker-free, reliable power delivery with properly sized wiring and relays. The 16 AWG copper wiring is protected with black mesh insulation, ensuring longevity. Installation is a breeze with logically laid-out connections and an in-line barrel connector for the in-cabin push-button switch. Not just for Morimoto LEDs, this harness is compatible with various off-road lighting setups.

FEATURES & BENEFITS

  • Reliable Power: Triple-sealed relay for flicker-free delivery.
  • Durable Build: Stainless steel terminals, heat shrink protection.
  • Easy Setup: Logical connections, in-line barrel connector.

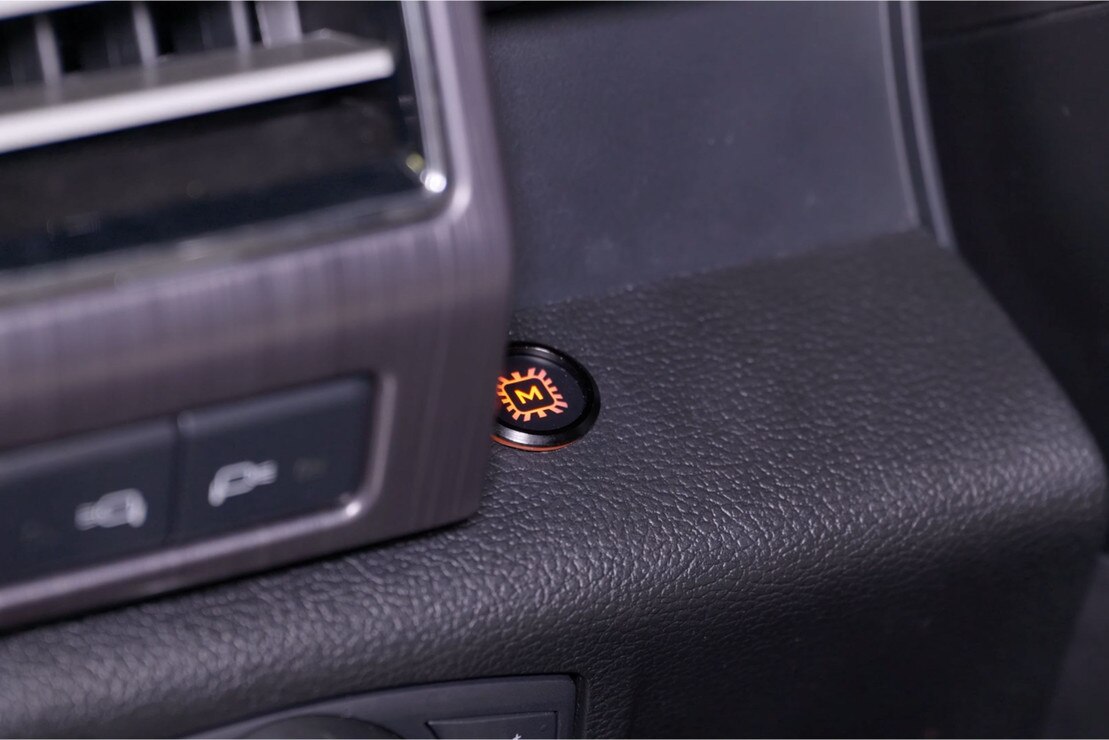

  • Stylish Control: M-Spec push-button switch with Yellow-LED.
  • Universal Use: Compatible with various off-road lighting setups.

WHAT’S INCLUDED

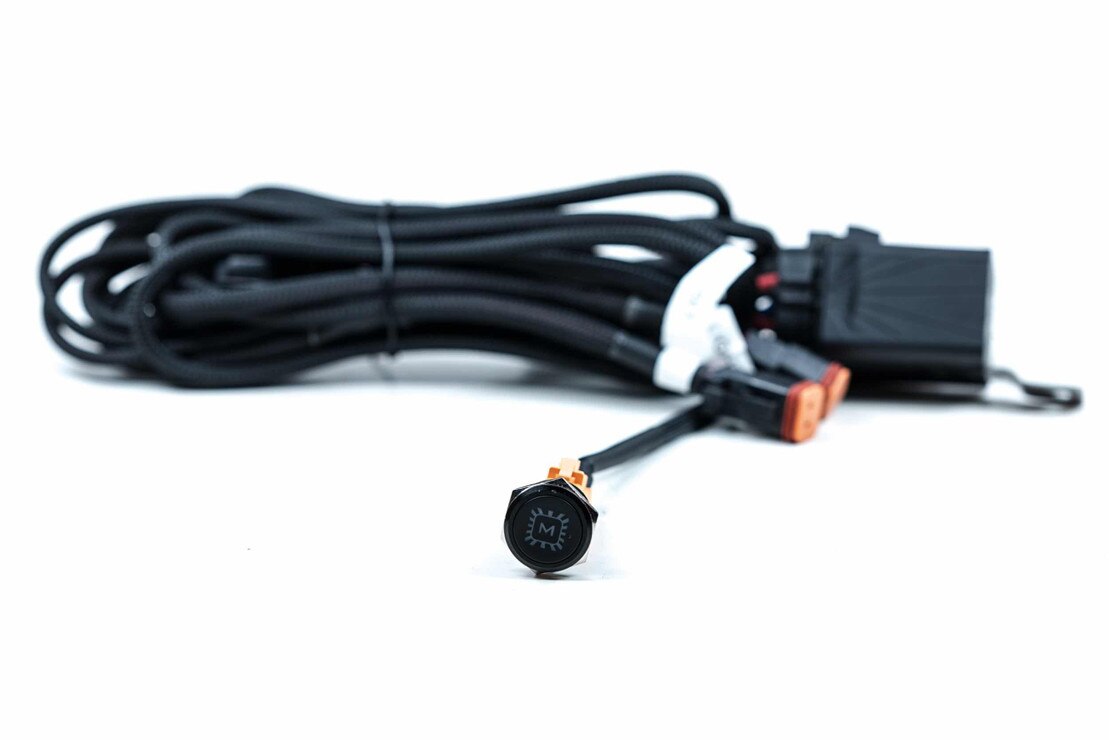

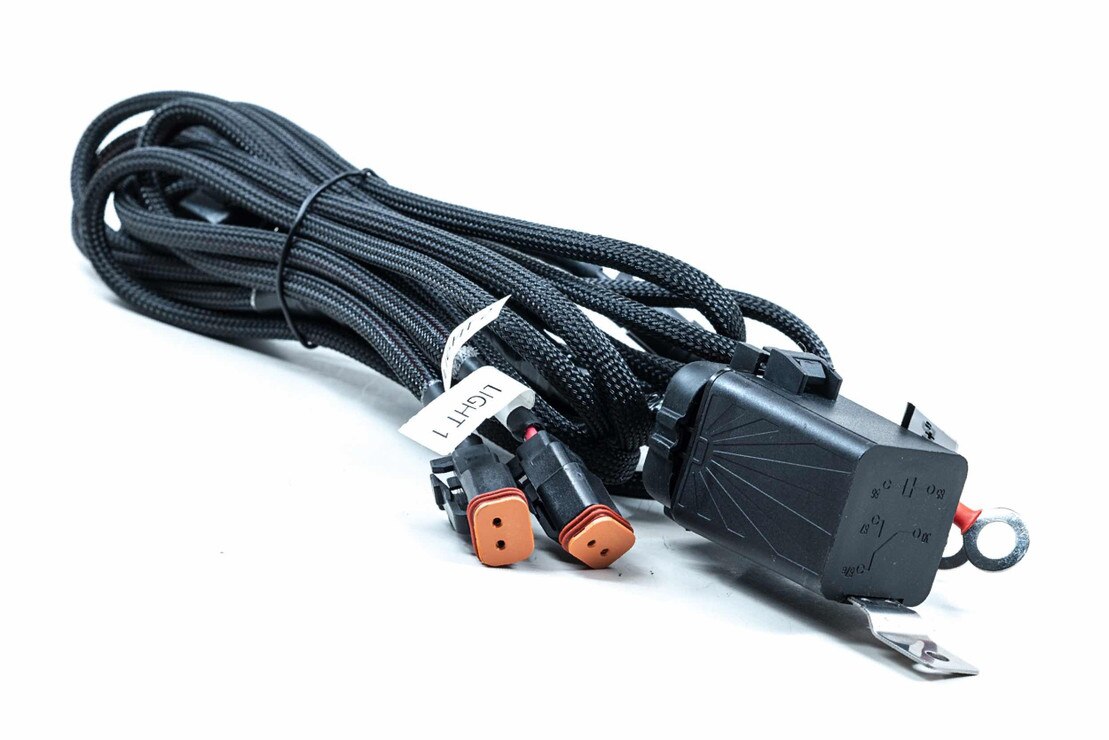

  • Harness: 1x Morimoto Two Pod Power Harness

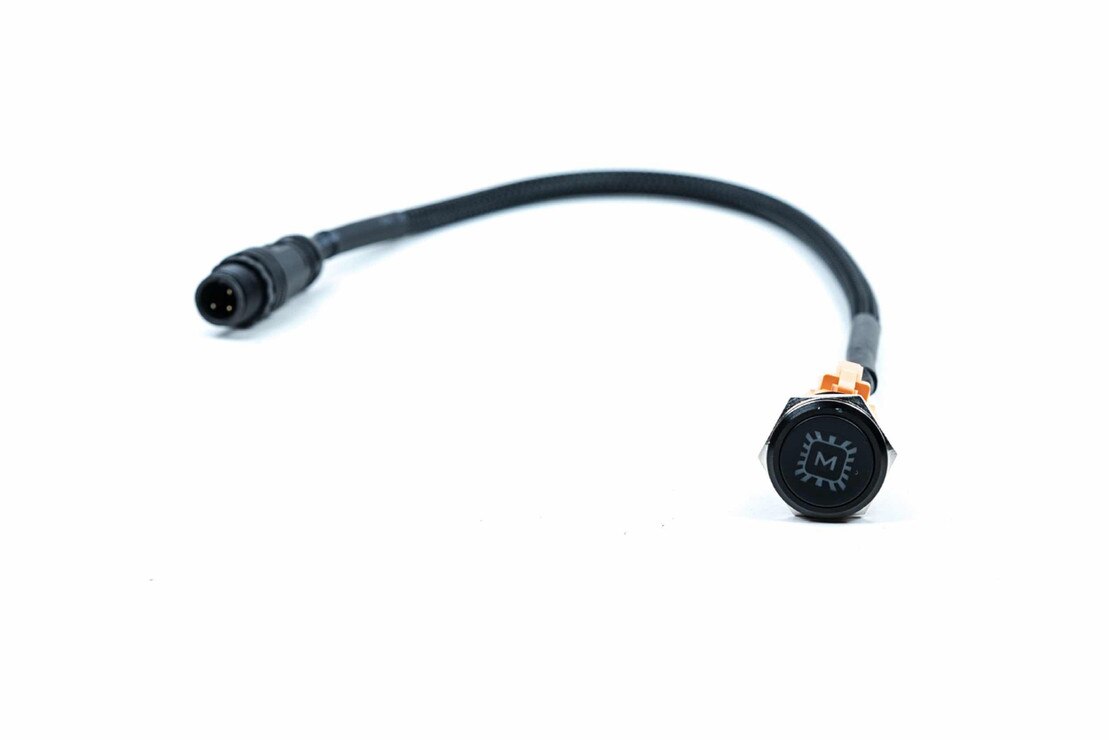

  • Switch Subharness 1: 1x M-Spec Push Button Switch

  • Switch Subharness 2: Upfitter Switch Input (35cm 20AWG)

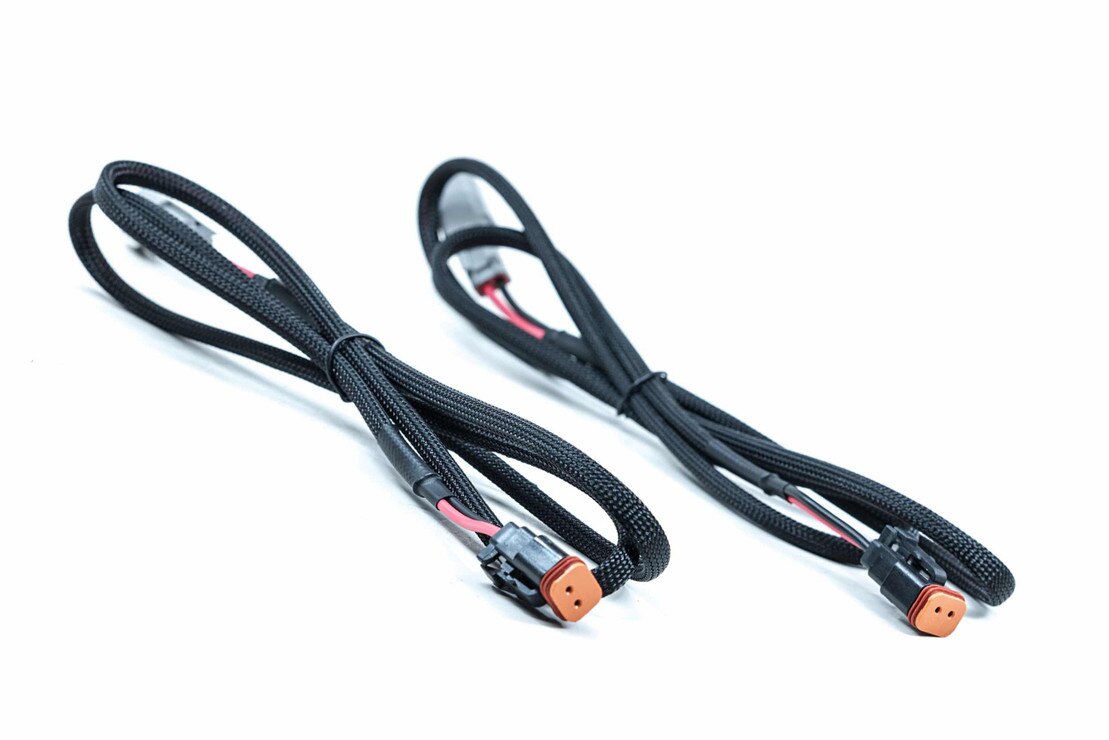

  • Output Extension: 1x 1.25m/49.2in Extension

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

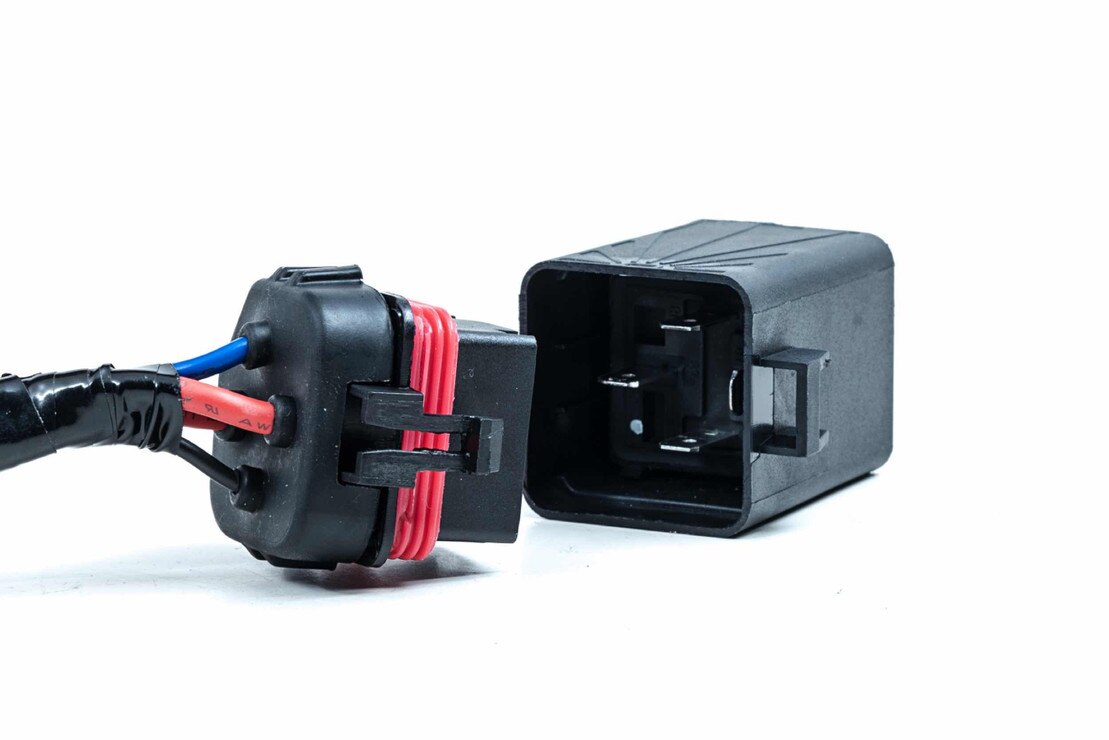

  • Relays: 2x Triple-Sealed 40A M-Spec

  • Switch: Normally-Off M-Spec w/ Amber backlight

  • Outputs: 2x Deutsch DT 2-Pin Female

  • Main Input: 12V+/- Battery Ring Terminals (8.5mm ID / 15mm OD)

  • Wiring: 16AWG-20AWG Copper Stranded

  • Insulation: Black Tech Flex Braided Mesh

COMPATIBILITY

  • Morimoto Pods: 1Banger, 2Banger, and 4Banger

  • Other Pods: With Deutsch DT 2-Pin inputs

  • BangerBar System: Yes

  • Pod Quantity: 2

Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. If you want the best, bingo. If you want cheap, you'll want to look for an alternative (and sadly, that wont be hard to find -- because until now, everybody has overlooked the importance of quality cables).


OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.


Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery. Every line of the 16 awg copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing.

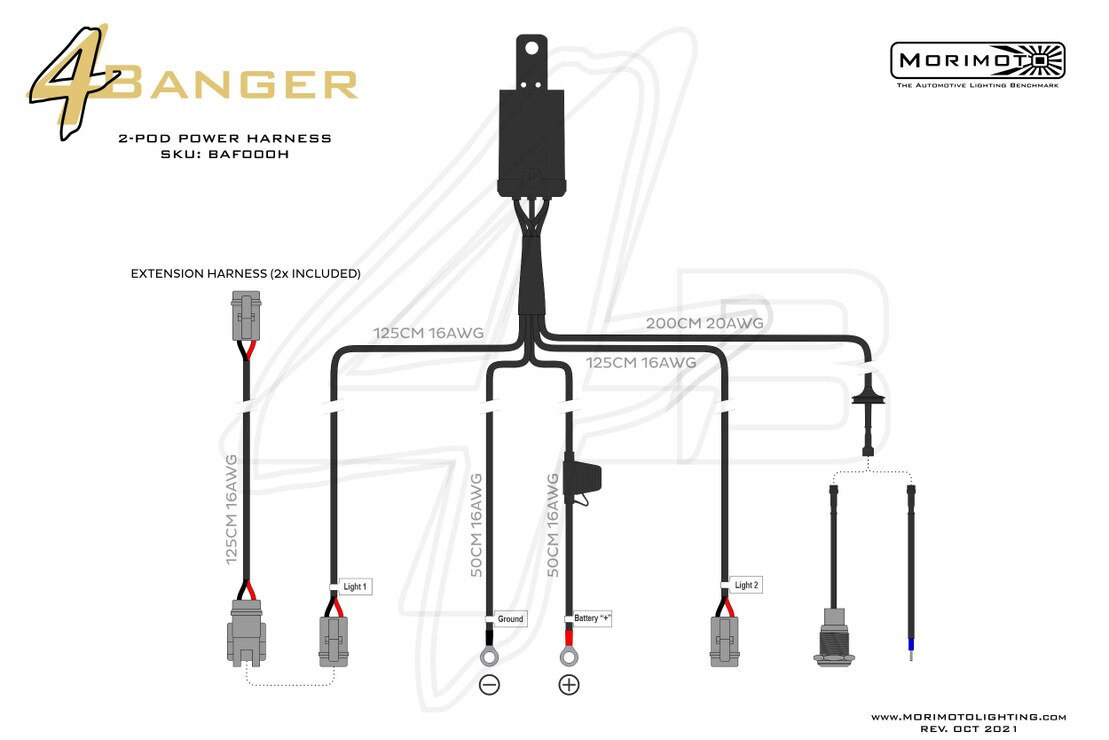

Plug n Play: The connections on the harness have been laid out in a logical way to power an LED pod on each side of your vehicle. There are two deutsch outputs. A positive battery terminal, and ground terminal, and a switch. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall.


Compatible: While this harness is a perfect match for the Morimoto 4Banger LED pods, you can make good use of it with any other off-road lighting setup that takes a DT-style two-pin input (which is basically the industry standard).
