DESCRIPTION
Features: Compatible with Prinsu and Sherpa roof racks with a 40-inch lightbar cutout. Allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar. Included support brackets provide extra stabilization and load distribution. Does not require removal of wind deflector. Durable stainless steel construction. Simple installation; no modification needed.

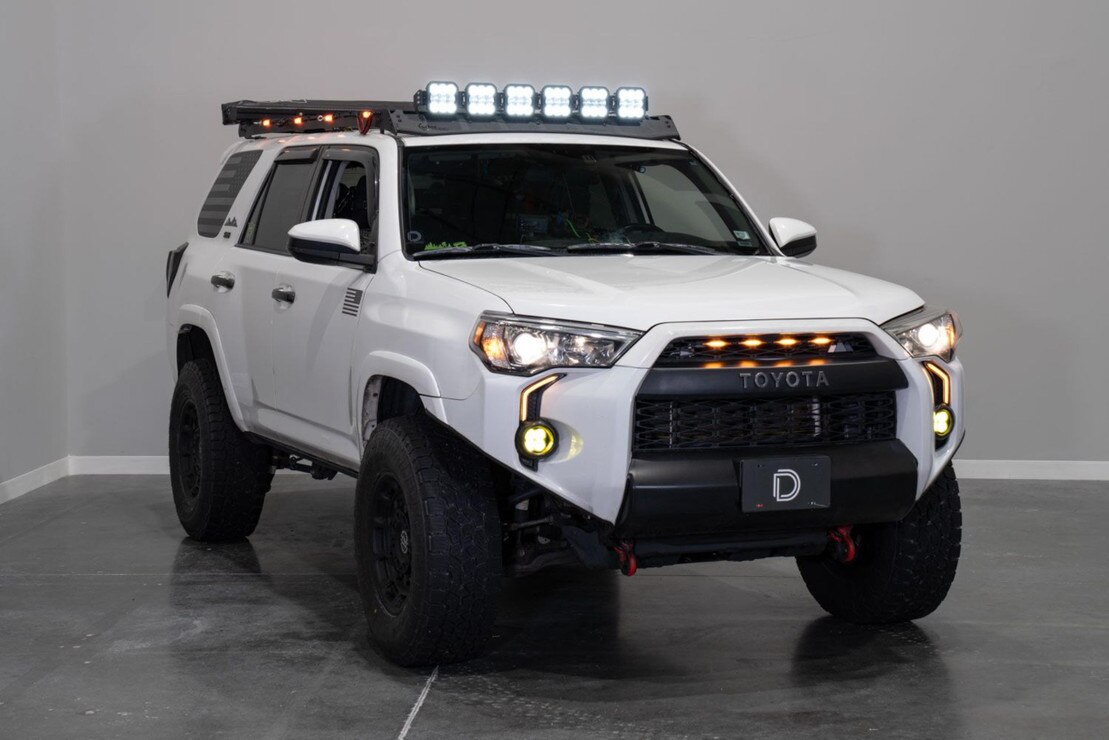

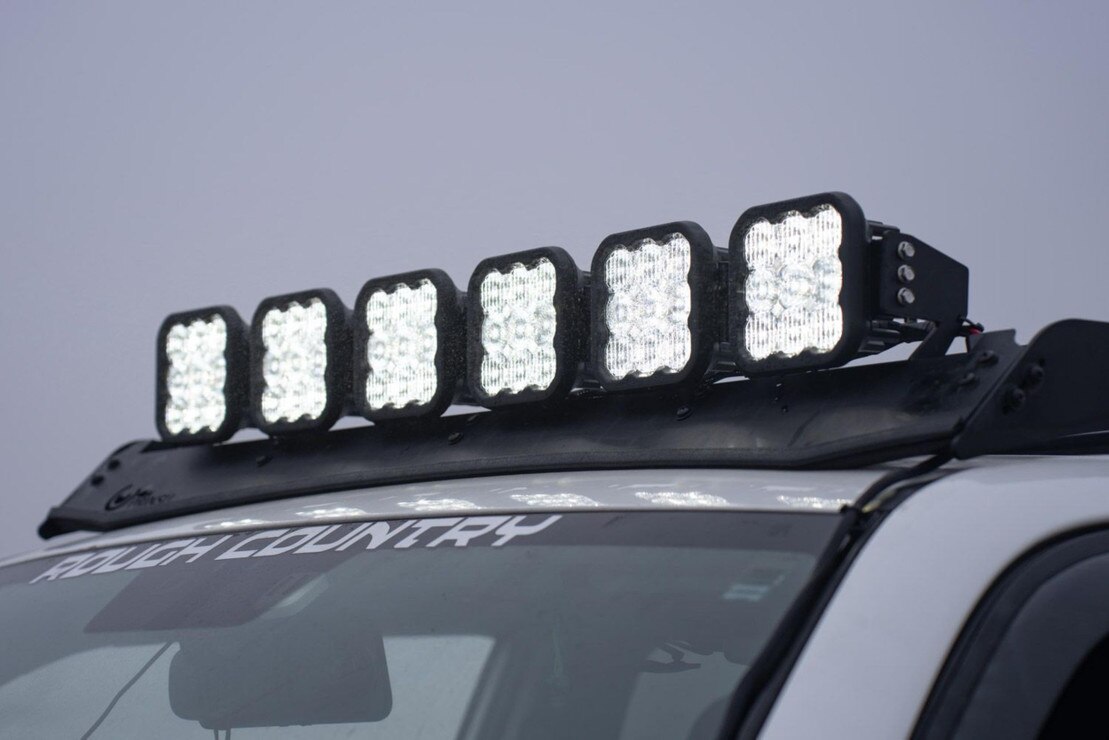

Overview: Have you wanted to mount an SS5 CrossLink Lightbar to your roof rack but didn't want to fabricate custom brackets or remove the wind deflector? If the answer is yes this new kit is for you! This kit allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar directly to your roof rack without having to remove the wind deflector. Unlike other options on the market, the kit includes support brackets for additional stabilization and load distribution reducing excessive vibration.
Bolt-On Installation: The application-specific brackets included in this kit were CAD-designed to bolt into existing mounting points. No cutting or drilling required! This kit is compatible with Prinsu roof racks with a cutout for a 40-inch lightbar and Sherpa roof racks with the half-height wind deflector.
Focused: The custom-engineered TIR optic in the SS5 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

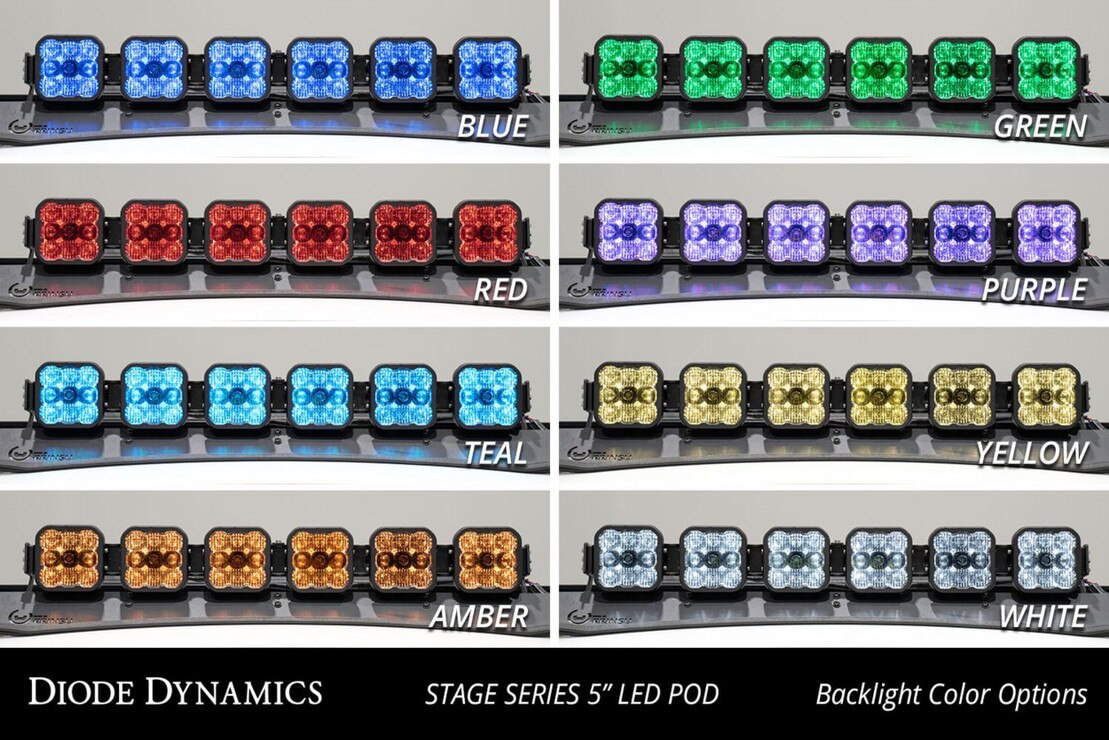

Selectable Backlight: The SS5 LED Pods included in this kit feature a selectable backlight with eight different color options. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

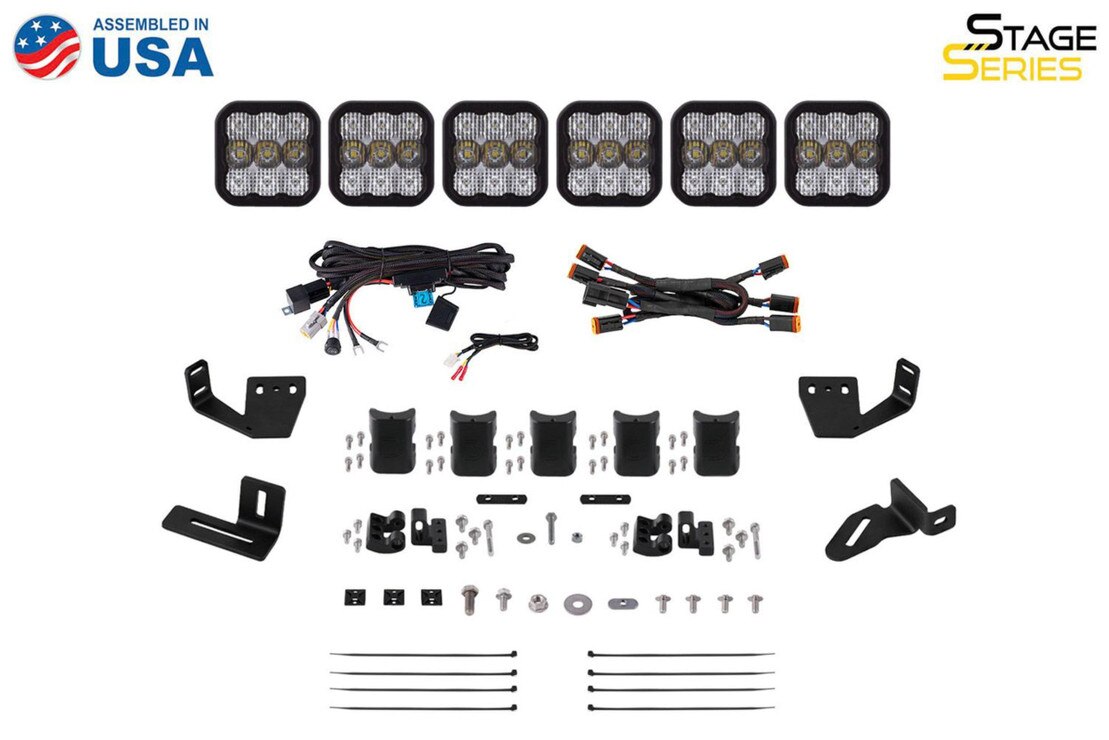

WHAT’S INCLUDED
Brackets: One (1) Pair
Optional Light Pods: 6x or 7x SS5 Pods
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note: These specifications are per pod / each!
Intensity (Combo White Sport): 81,600cd
Intensity (Combo Yellow Sport): 75,700cd
Intensity (Combo White Pro): 58,500cd
Intensity (Combo Yellow Pro): 75,000cd
Raw Lumens (Combo White Sport): 4,800lm
Raw Lumens (Combo Yellow Sport): 9,700lm
Raw Lumens (Combo White Pro): 4,800lm
Raw Lumens (Combo Yellow Pro): 8,900lm
Main Beam Power (watts): Sport - 40w, Pro - 90w
Backlight Power (watts): White - 3.17w, Yellow - 3.07w
Main Beam Current (amps @ 12.8V): Sport White - 2.75, Sport Yellow - 2.8, Pro - 6
Backlight Current (amps @ 12.8V): White - 0.25, Yellow - 0.24
Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo (Driving and Flood)
Operating Voltage: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
COMPATIBILITY
DD7815P: SS5 CrossLink Bracket Kit
DD7894P: SS5 CrossLink Mounting Bracket Kit
DD7832: SS5 CrossLink Support Bracket Kit
DD7820: SS5 6-Pod CrossLink Mounting Kit Pro White Combo
DD7822: SS5 6-Pod CrossLink Mounting Kit Pro White Driving
DD7821: SS5 6-Pod CrossLink Mounting Kit Pro Yellow Combo
DD7823: SS5 6-Pod CrossLink Mounting Kit Pro Yellow Driving
DD7816: SS5 6-Pod CrossLink Mounting Kit Sport White Combo
DD7818: SS5 6-Pod CrossLink Mounting Kit Sport White Driving
DD7817: SS5 6-Pod CrossLink Mounting Kit Sport Yellow Combo
DD7819: SS5 6-Pod CrossLink Mounting Kit Sport Yellow Driving
DD7828: SS5 7-Pod CrossLink Mounting Kit Pro White Combo
DD7830: SS5 7-Pod CrossLink Mounting Kit Pro White Driving
DD7829: SS5 7-Pod CrossLink Mounting Kit Pro Yellow Combo
DD7831: SS5 7-Pod CrossLink Mounting Kit Pro Yellow Driving
DD7824: SS5 7-Pod CrossLink Mounting Kit Sport White Combo
DD7826: SS5 7-Pod CrossLink Mounting Kit Sport White Driving
DD7825: SS5 7-Pod CrossLink Mounting Kit Sport Yellow Combo
DD7827: SS5 7-Pod CrossLink Mounting Kit Sport Yellow Driving
