Ram Rebel/TRX (2019+) Flush LED Light Bar

(0) No Reviews yet
Questions?

Brand: Oracle Lighting

3P-ORC59-TRS

$0.00

PRODUCT OPTIONS

PART #:



DESCRIPTION

Introducing the cutting-edge ORACLE RAM 1500 Light Bar System! Elevate your 2019+ RAM 1500 TRX or Rebel with this sleek and high-performance LED lighting solution. With its 100W LED light bar seamlessly integrated into a factory-style housing, you'll enjoy both functionality and factory aesthetics. Customization is at your fingertips with the choice of pure white or yellow LED emitters. The RAM Light Bar offers unmatched durability, built to withstand any condition. Experience superior illumination with a mixed beam projection, featuring 8 flood and 12 spot LEDs for a wide field of vision and long-range focus. Installation is a breeze using rivet nuts, and wiring effortlessly connects to factory AUX switches. Upgrade your RAM's lighting game today with ORACLE's innovative Light Bar System!

FEATURES & BENEFITS

  • Seamless Integration: Fits perfectly in your 2019+ RAM 1500 TRX or Rebel.
  • Custom Lighting: Choose white or yellow LEDs for your unique style.
  • Rugged Durability: Built tough for all conditions, ensuring longevity.
  • Optimal Illumination: 8 flood and 12 spot LEDs for wide vision and long-range focus.
  • Easy Install: Quick setup with rivet nuts; connects to factory AUX switches.

WHAT’S INCLUDED

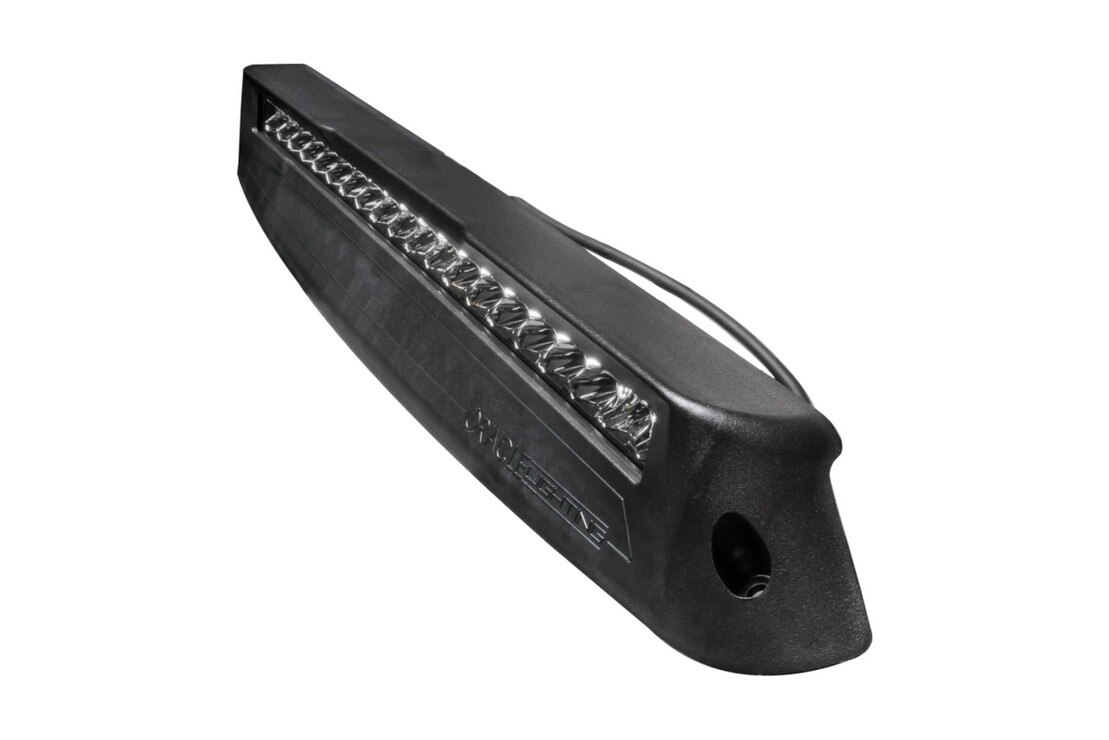

  • Light Bar: 1x Oracle Flush Grille Light Bar

  • Hardware: Mounting Hardware

WARRANTY INFORMATION

This product is covered by a 1 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Output: 12,000lm (Raw)

  • Power: 100w

  • Current: 7.5A @ 12V DC

  • Input Voltage: 9-36V DC

  • Material: Polycarbonate Lens

COMPATIBILITY

  • Ram 1500 Rebel: 2019-2024

  • Ram 1500 TRX: 2021-2024

COMPLIANCE

IP69K

New from Oracle: Looking for a 2019+ RAM 1500 light bar system with a seamless look? This unique new lighting system from ORACLE provides functional forward LED lighting while maintaining a factory appearance. Our high-powered 100W LED light bar is fitted into a housing that is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel.


Options: Choose between pure white LED emitters or yellow LED emitters for a custom lighting solution. The rugged construction of the RAM light bar provides durability in any condition, and the expertly designed system exhibits high-performance illumination with a seamless appearance.

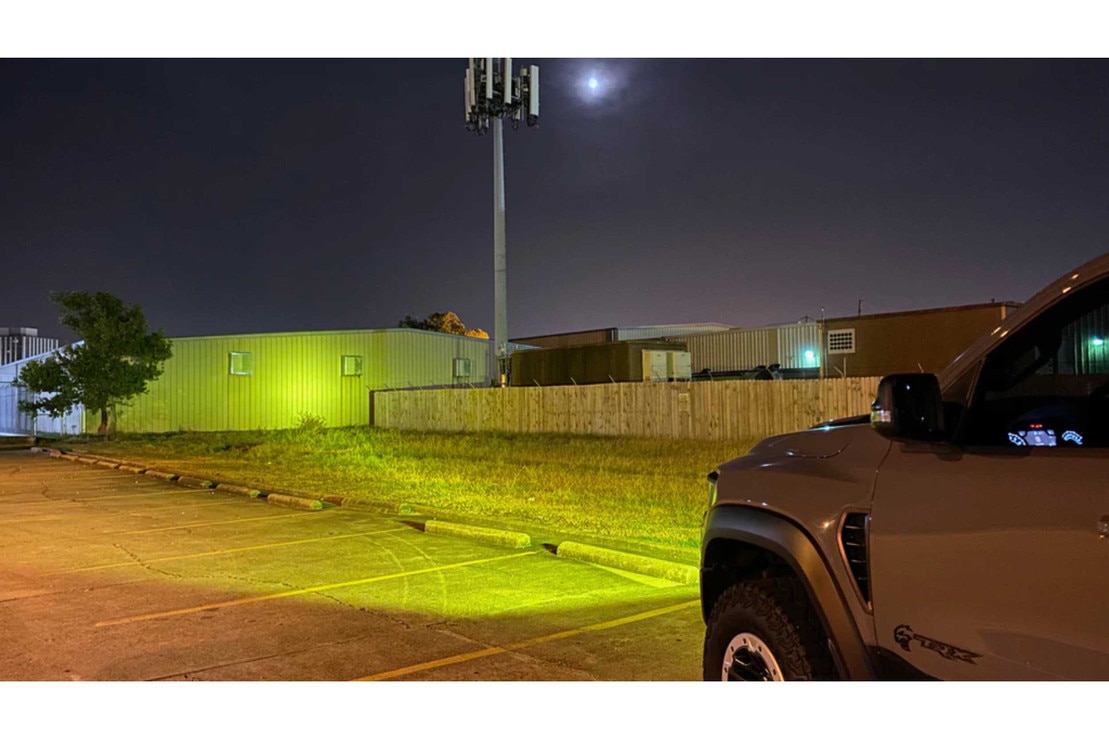

Output: The projection of the RAM light bar is a mixed beam with 8 of the LEDs using a flood (45° angle) beam and 12 of the LEDs using a spot (25° angle) beam so the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33° (8x45° + 12x25°) and calculating based on 14000Lm, the total candela of the light is 54107.70cd.


Installation: The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches. If your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504.
