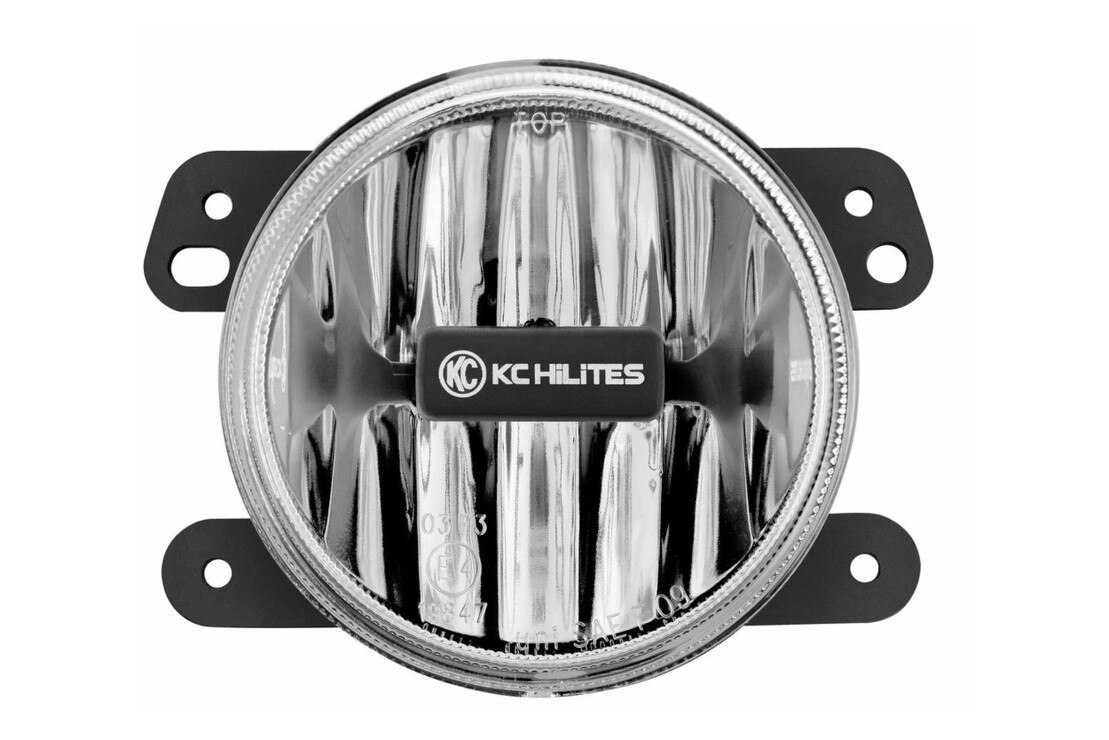

Gravity G4 LED Pods

(0) No Reviews yet

Brand: KC HiLites




PART #: 1 x KC1493


Illuminate the path ahead with KC HiLiTES 4in Gravity LED G4 Universal LED Fog Light, a fusion of advanced technology and design. Fitted with high-intensity CREE LEDs, it casts a legal fog beam, enhancing visibility in challenging conditions. The light's groundbreaking Gravity Reflective Diode (GRD) system, complemented by optical reflectors, ensures an astounding 150 lx @ 10m output with minimal energy consumption. Its fog beam pattern is tailored to provide a broad light spread close to the ground, optimal for fog, snow, and rain. With its adjustable mount, you can fine-tune the light direction. Crafted with an IP69-rated magnesium casing and a robust polycarbonate lens, it promises longevity. A product of American ingenuity, it stands for unmatched quality.


  • Advanced GRD System Optimizes LED light projection for superior brightness.
  • Specialized Fog Beam Ensures expansive and effective illumination in low visibility.
  • Precision Mounting Allows users to tailor the light's direction for best results.
  • Sturdy Construction Combines IP69-rated magnesium housing with a resilient polycarbonate lens.
  • Genuine USA Make Reflects excellence in American design and craftsmanship.

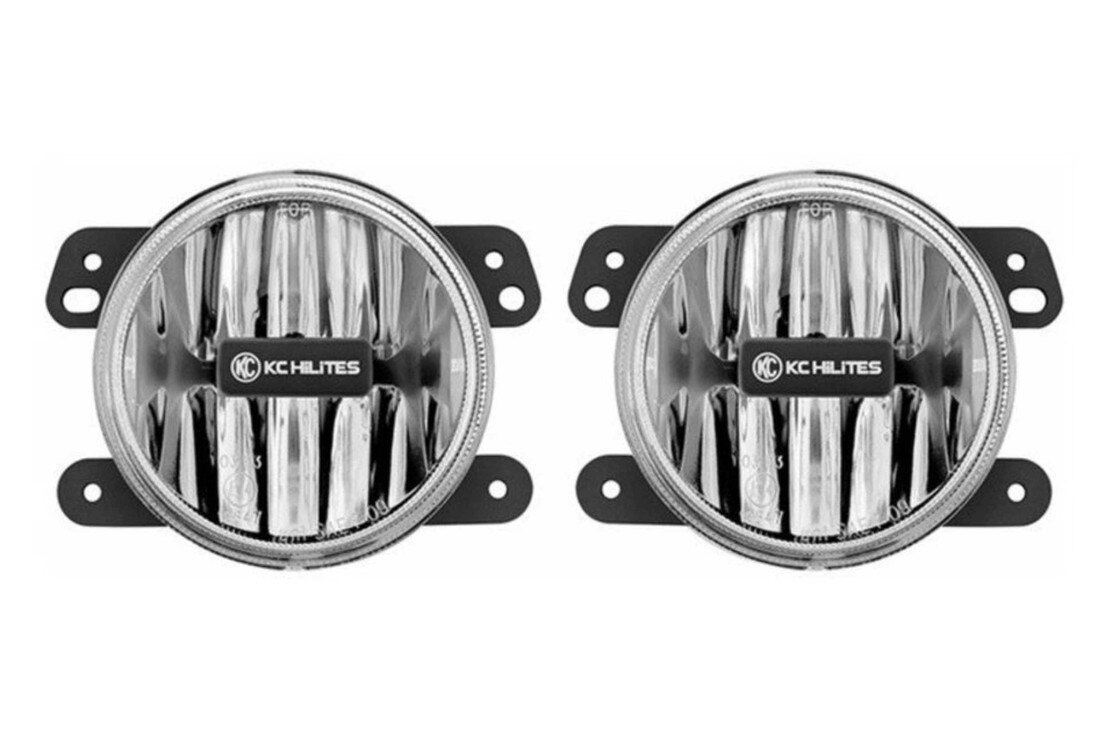

  • Fog Lights: 2x (One Pair) Gravity G4 LED Fog Lights


This product is covered by a 23 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 866 lm

  • Power: 10w

  • Current: 0.74A @ 12V DC

  • Material: Magnesium (Housing), Polycarbonate (Lens)

  • Light Source: CREE LED 5000K (Pure White)


  • KC1493: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Each

  • KC1494: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Each - For 07-09 Jeep JK

  • KC1495: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Amber / Each

  • KC1497: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Each - For 10-18 Jeep JK

  • KC1498: 4in Gravity LED G4 - 10w SAE/ECE Fog Beam / Amber / Each - For 10-18 Jeep JK


SAE J583, ECE-R19, IP69

OVERVIEW: KC HiLiTES 4in Gravity LED G4 Universal LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Lightweight magnesium housing with optical reflectors, polycarbonate lens and universal adjustable bracket for easy mounting.

Gravity EXTREME OUTPUT AND EFFICIENCY: 4in Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74A per light. KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES: Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION: KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle.

STRENGTH AND DURABILITY Constructed from an IP69 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.

MADE IN THE USA: The Retrofit Source is a proud distributor for the best brands in automotive lighting, and all KC Hi-Lites products are Designed, Engineered, and Made in the USA! If you're looking for most advanced, modern lighting gear for your truck, backed by the best people in the lighting business, we've got you covered.
