All Lengths & Beam Patterns Available

KC Hi-Lites Gravity LED Pro6 Light Bars

KC56-TRS

PART #: 1 x KC91318


[ In Stock: 0 pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

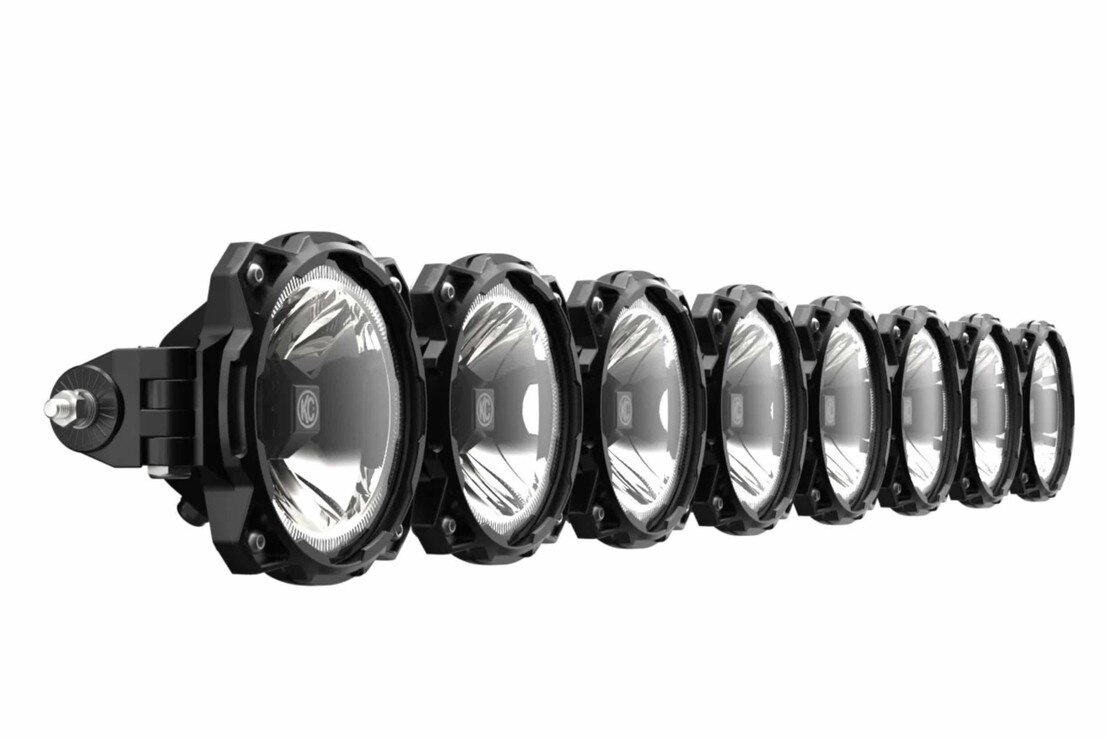

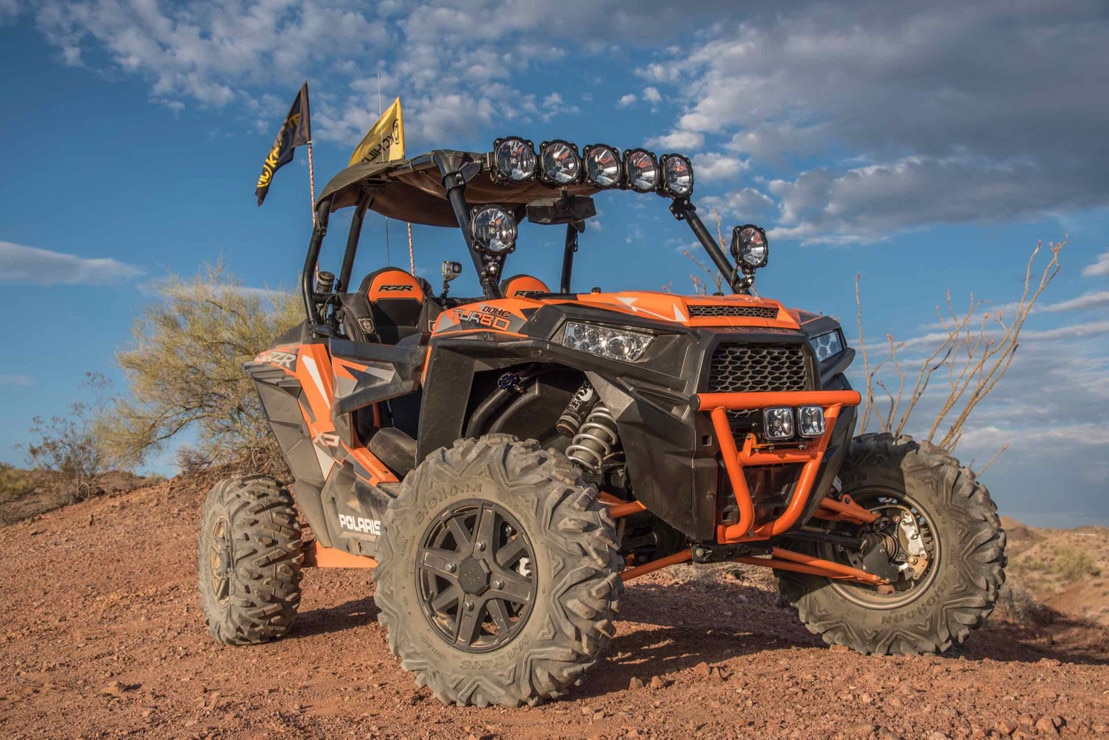

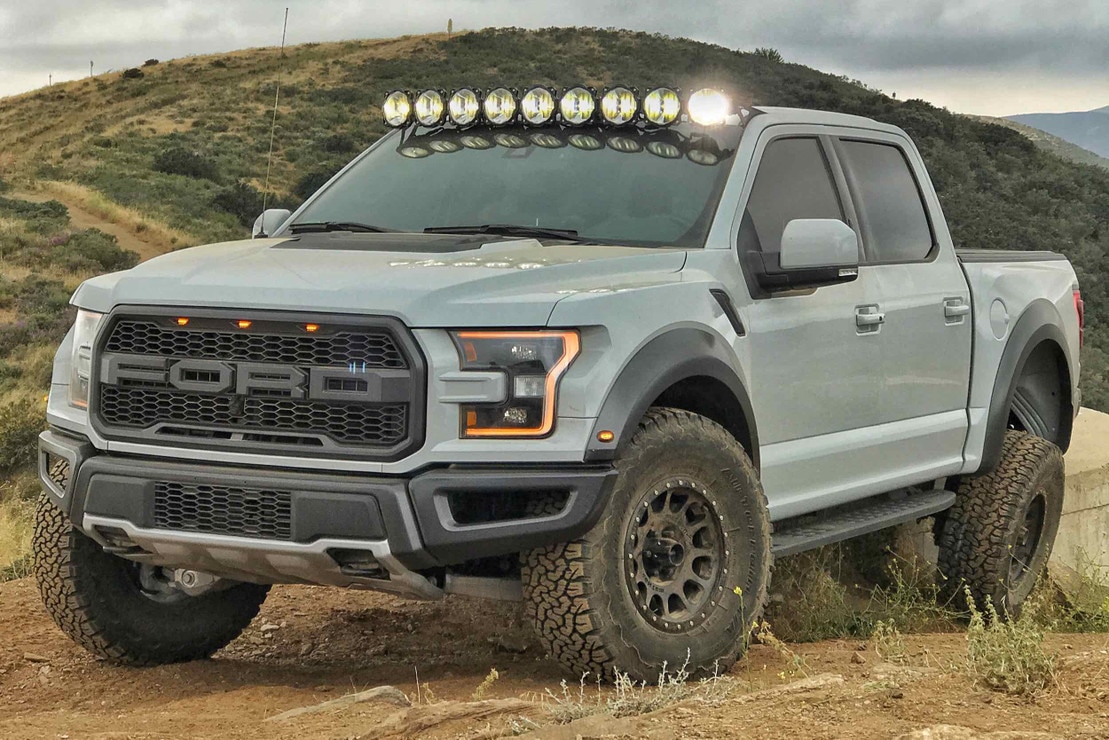

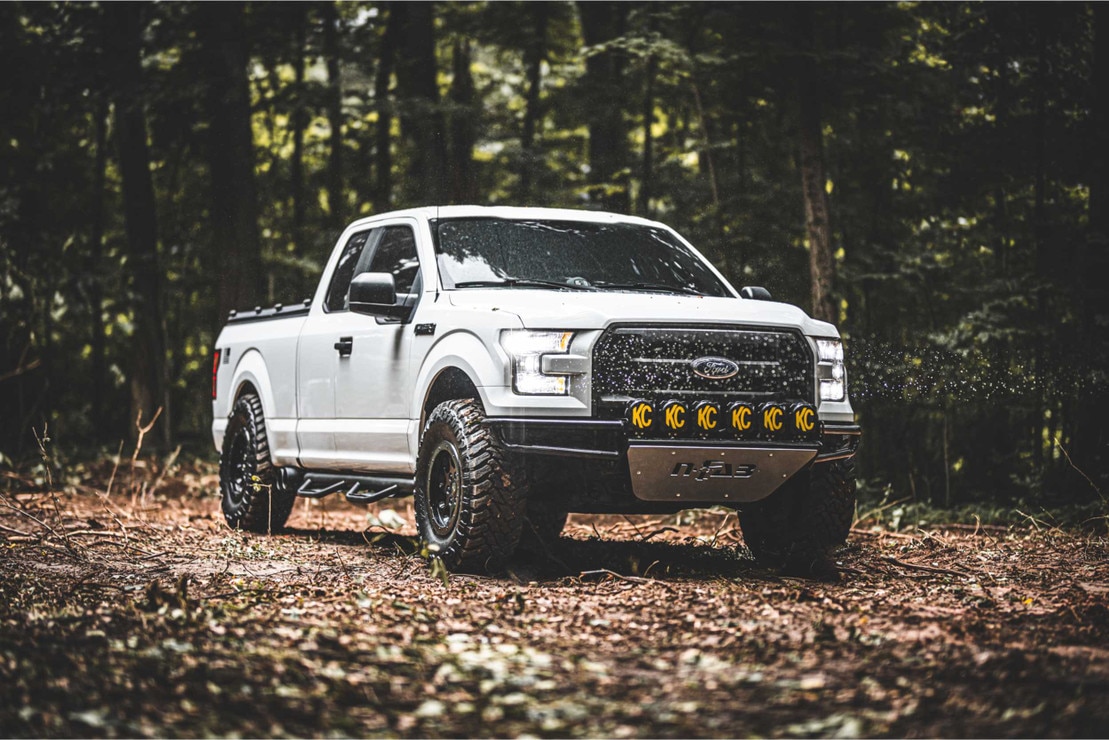

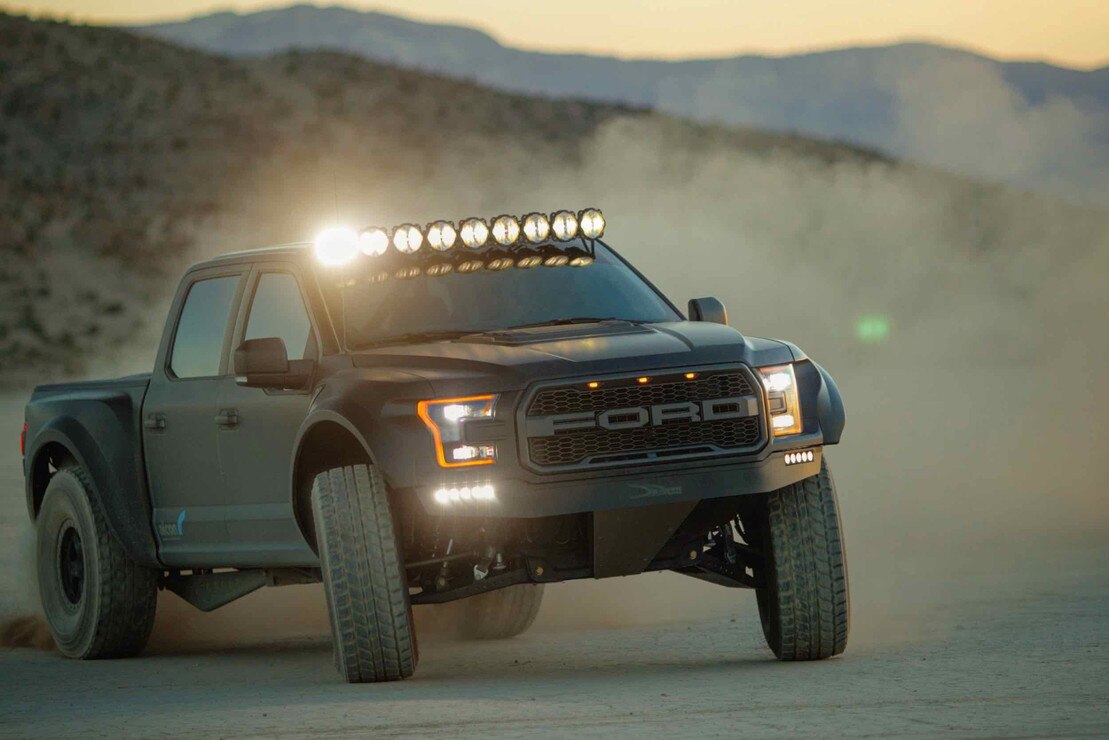

The KC GravityLED Pro6 Light Bar is an industry first, allowing users to be in full control of their lighting needs. Featuring KC's patented Infinity Ring System, the Pro6 LED light bar is modular, expandable, and adjustable. The Infinity Ring system via it's unique hinge design allows users to easily transform the Pro6 light bar between a straight and curved orientation, with adjustable widths between 20"- 57". Every Pro6 system is powered by a chain of individual, 20W Gravity LED Pro6 inserts which take advantage of KC's patented Gravity Reflective Diode technology. This translates to unparalleled light clarity,output, low amp draw and an usable beam pattern. If you are looking for the ultimate performance led light bar for your Jeep, Truck or UTV, KC's Pro6 LED light bar system has you covered. All Pro6 LED Light Bars are priced with vehicle specific mounting kits (Pro6 Universal LED Light Bars do not come with mounts)

Product Specs

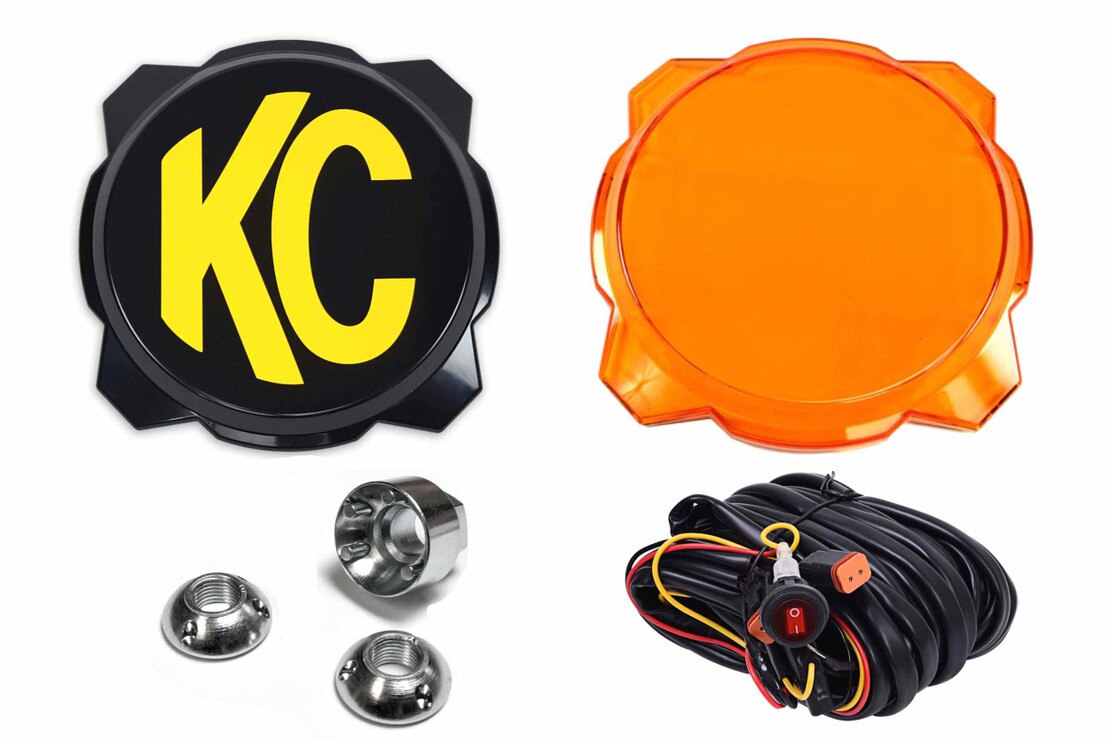

  • What's Included

  • 1x: Gravity Pro6 LED Light Bar

  • Light Covers: Black with Yellow KC Logo

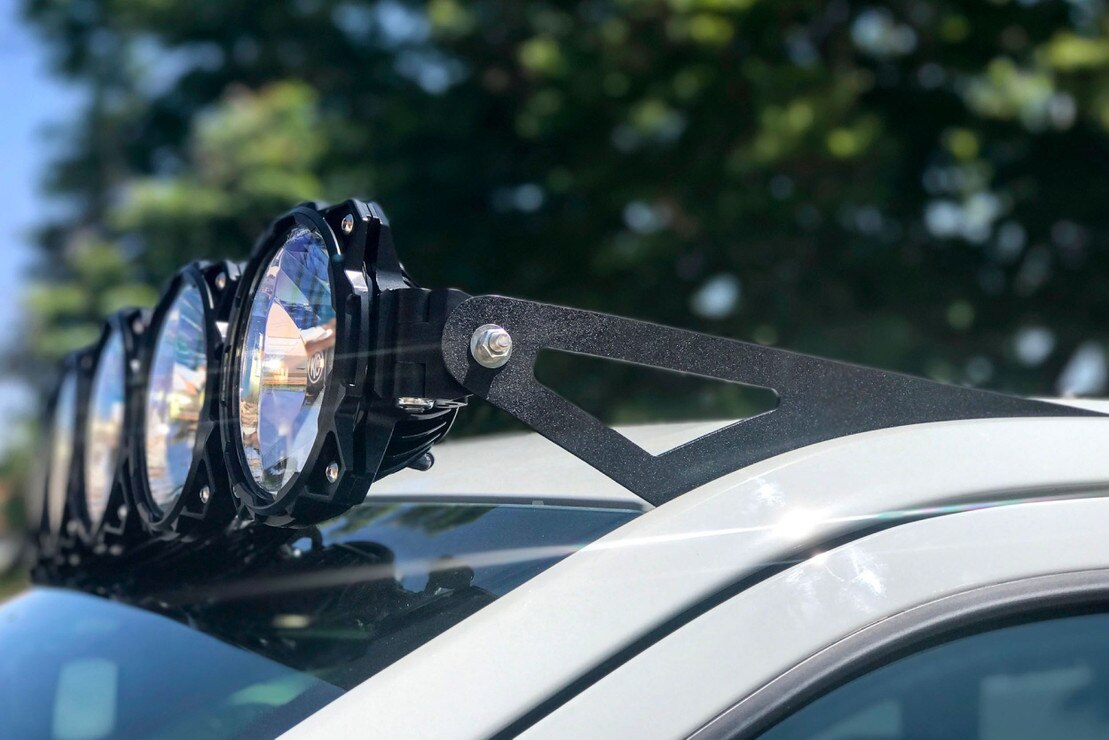

  • Mounting: Brackets and Hardware in Vehicle specific kits

  • Note: Light Bar Mounting Brackets not included with Universal Light Bar Systems

  • Performance: Plug-N-Play Wiring Harness with Illuminated LED Switch

  • Compatibility

  • 91318: Gravity LED Pro6 Light Bar: 3 Pods (20" / Spot + Flood Beam)

  • 91319: Gravity LED Pro6 Light Bar: 4 Pods (26" / Spot + Flood Beam)

  • 91306: Gravity LED Pro6 Light Bar: 5 Pods (32" / Spot + Flood Beam)

  • 91307: Gravity LED Pro6 Light Bar: 6 Pods (39" / Spot + Flood Beam)

  • 91314: Gravity LED Pro6 Light Bar: 7 Pods (45" / Spot + Flood Beam)

  • 91308: Gravity LED Pro6 Light Bar: 8 Pods (50" / Spot + Flood Beam)

  • 91315: Gravity LED Pro6 Light Bar: 9 Pods (57" / Spot + Flood Beam)

  • Tech Specs

  • Raw Lumens: 20" = 6,900 lm, 26" = 9,200 lm, 32" = 11,500 lm, 39" = 13,800 lm, 45" = 16,100 lm, 50" = 18,400 lm, 57" = 23,009 lm

  • Lux @ 10 Meters: 20" = 2,794 lx, 26" = 3,425 lx, 32" = 4,200 lx, 39" = 5,150 lx, 45" = 6,100 lx, 50" = 6,700 lx, 57" = 7,500 lx

  • Candela: 20" = 279,400 cd, 26" = 342,500 cd, 32" = 420,000 cd, 39" = 515,000 cd, 49" = 610,000 cd, 50" = 670,000 cd, 57" = 750,000 cd

  • Beam Distance (Meters): 20" = 1,057m, 26" = 1,170m, 32" = 1,296m, 39" = 1,435m, 45" = 1,562m, 50in= 1,637m, 57in= 1,732m

  • Wattage: 20" = 60W, 26" = 80W, 32" = 100W, 39" = 120W, 45" = 140W, 50" =160W, 57" = 180W

  • Amp Draw: 5.0-14.67A

  • LED Source: Cree XPL HD LED

  • LED Color: 5000K

  • Voltage: 9-32V

  • IP Rating: IP68

  • 20inÂ�: 3-Light = H - 6.06" x D - 3.33" x W - 20.325" (Straight) / 20.301" (Curved)

  • 26inÂ�: 4-Light = H - 6.06" x D - 3.33" x W - 26.575" (Straight) / 26.556" (Curved)

  • 32inÂ�: 5-Light = H - 6.06" x D - 3.33" x W - 32.875" (Straight) / 32.708" (Curved)

  • 39inÂ�: 6-Light = H - 6.06" x D - 3.33" x W - 39.125" (Straight) / 38.871" (Curved)

  • 45inÂ�: 7-Light = H - 6.06" x D - 3.33" x W - 45.38" (Straight) / 44.999" (Curved)

  • 50inÂ�: 8-Light = H - 6.06" x D - 3.33" x W - 51.625" (Straight) / 51.086" (Curved)

  • 57inÂ�: 9-Light = H - 6.06" x D - 3.33" x W - 57.625" (Straight) / 57.128" (Curved)

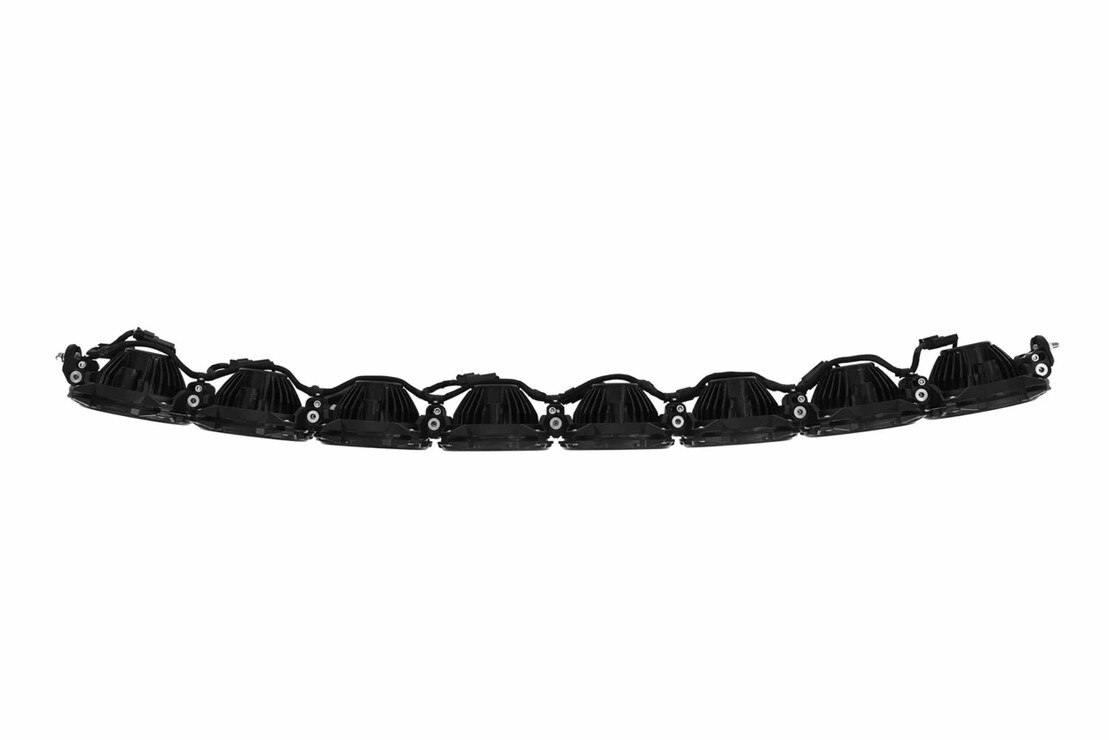

  • Patented: Pro6 Infinity Ring System: Easily transform the Pro6 light bar between straight or curved light orientations

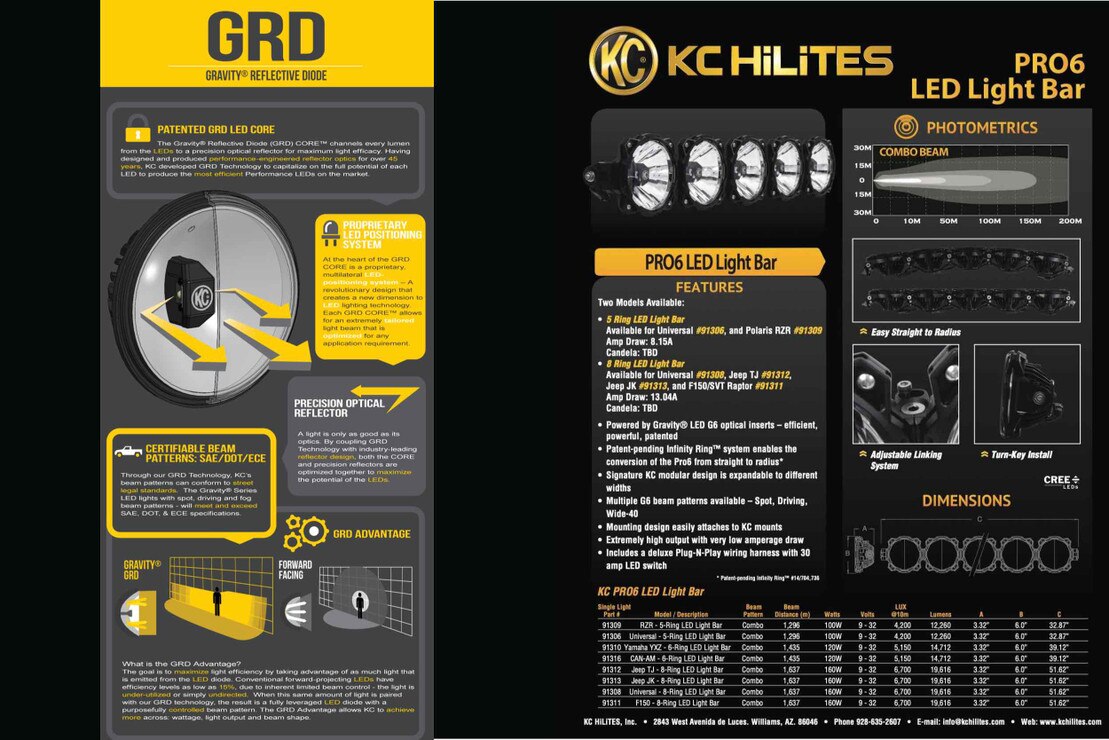

  • Every: Pro6 is powered by KC patented Gravity Reflective Diode(GRD) technology for unparalleled beam shape, light performance and clarity

  • Gravity G6: LED reflector optics utilizing a combination of Driving and Wide-40 Beam pattern lights for optimal lighting balance and performance

  • Modular: Design is expandable to different size widths and beam patterns to suit specific applications

  • Light Bar: Systems Available in 20" 3-Ring, 26" 4-Ring, 32" 5-Ring, 39" 6-Ring, 45" 7-Ring, 50" 8-Ring, and 57" 9-Ring widths (Vehicle specific kits also available)
