Vehicle Specific from KC Hi-Lites
KC Hi-Lites Gravity G4 Fog Lights: Toyota Trucks (12-20)3P-KC46-TRS
[ In Stock: 0 pieces ]
KC's GravityG4 Toyota LED fog light system mounts directly to your Toyota, Lexus or Scion's OEM fog lamp locations. Give your vehicle an LED upgrade and a clean, factory installed look without having to drill or cut your bumper.
TOYOTA, LEXUS AND SCION OE FOG LIGHT MOUNTING:Toyota arguably makes some of the toughest and most dependable vehicles on the road today, offering versatile performance and unrivaled durability, much like our Gravity G4 LED. Our G4 LED's pair perfectly with various 2006-2019 Toyota, Lexus and Scion models, mounting directly to factory OEM bolt holes delivering extremely powerful and balanced fog beam output.
KC's GravityG4 Tacoma kit also works with various factory Toyota, Lexus, and Scion vehicles equipped with OE Fog Light Systems: 2012-2019 Toyota Tacoma, 2010-2019 Toyota 4Runner (Base/SR5 Only), 2014-2019 Toyota Tundra, 2006-2012 Toyota Rav4, 2013-2014 Scion TC, 2013-2015 Lexus: IS,ES,GS,RX,LX.

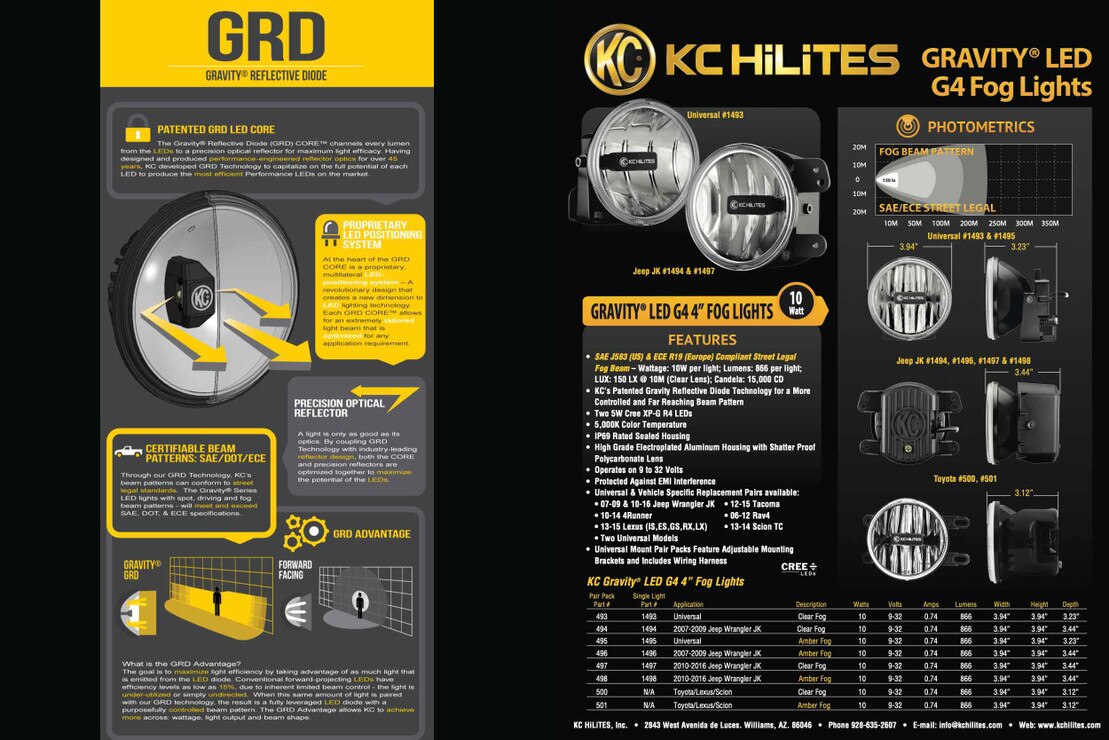

Gravity 'inšÃ‚Â®EXTREME OUTPUT AND EFFICIENCY:The 4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern.
STREET LEGAL FOG BEAM PATTERN AND ADVANTAGES:Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain. Also taking advantage of Amber LEDs, our fog lights produce the ideal color wavelength, creating greater visual contrast to penetrate through thick fog and misty conditions.
STRENGTH & DURABILITY:Designed from high quality, light weight magnesium housing and UV treated shatter resistant polycarbonate lens in a self contained IP69 rated light housing, impermeable to dust and moisture.
Available Part Numbers:Gravity LED G4 TOYOTA/LEXUS LED FOG PAIR PACK SYSTEM - #500, Gravity LED G4 TOYOTA/LEXUS AMBER LED FOG PAIR PACK SYSTEM - #501.

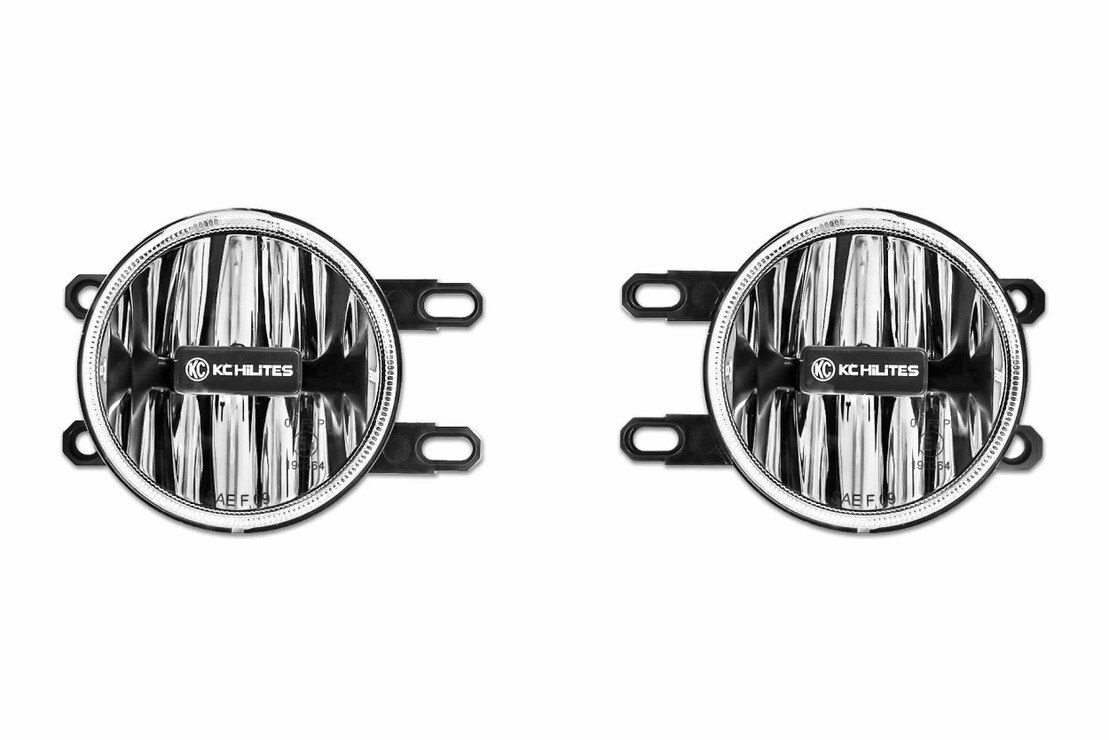

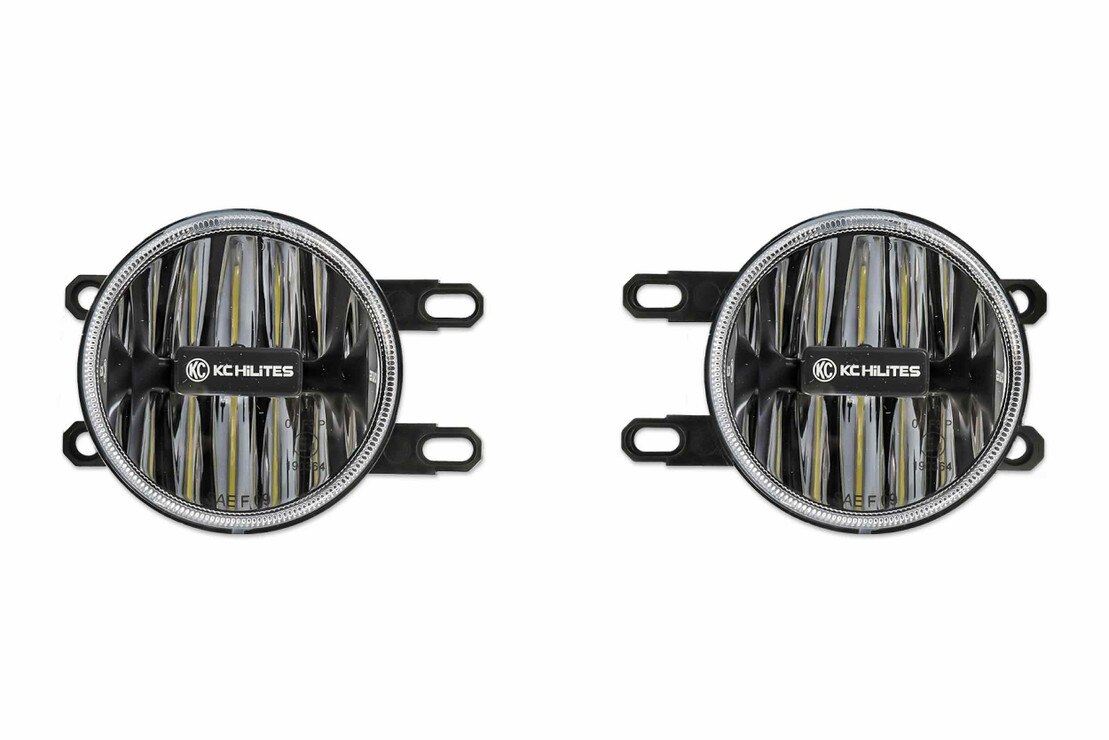

2x: 10W 4" Gravity G4 LED Fog Lights
2x: Toyota Fog Light Mounting Brackets
Factory Plug-n-Play Connector: For OE Toyota Wiring Harness and Switch
501: Gravity G4 Fogs: Toyota Tacoma Tundra/4Runner/Tacoma (14-18) (Set / Amber)
500: Gravity G4 Fogs: Toyota Tacoma Tundra/4Runner/Tacoma (14-18) (Set / White)
NOTE: Plug-n-Play kit for Tacoma's fitted with factory fog lights or switch.
Factory: OE Toyota parts needed for compatible operation: Toyota Switch: 2012-19 Tacoma OE #84160-04020, Toyota Relay: 2012-19 Tacoma OE #9008087026.
Raw Lumens: 866 lm
Compliance: Fog beam meets SAE J583 & ECE-R19 Street Legal
Lux @ 10 Meters: 150 lx
Candela: 15,000 cd
Beam Distance (Meters): 245m
LED Source: CREE XP-G R4 LED
Color Temperature: 5000K
Amp Draw: .7.4A
IP Rating: IP69
Lightweight Magnesium: Housing for Maximum Heat Dissipation
Designed: To fit various 2006-2019 Toyota, Lexus and Scion Vehicles
Color: Clear or Amber LED
Shatter Resistant: Polycarbonate Lens
Pattern: Fog Beam Pattern (SAE & ECE Street Legal)
Product Dimensions: W - 3.94" x H - 3.94" x D - 3.23"
