Jeep Wrangler JK Gravity 7in LED Headlights

(0) No Reviews yet

Brand: KC HiLites




PART #: 1 x KC42351

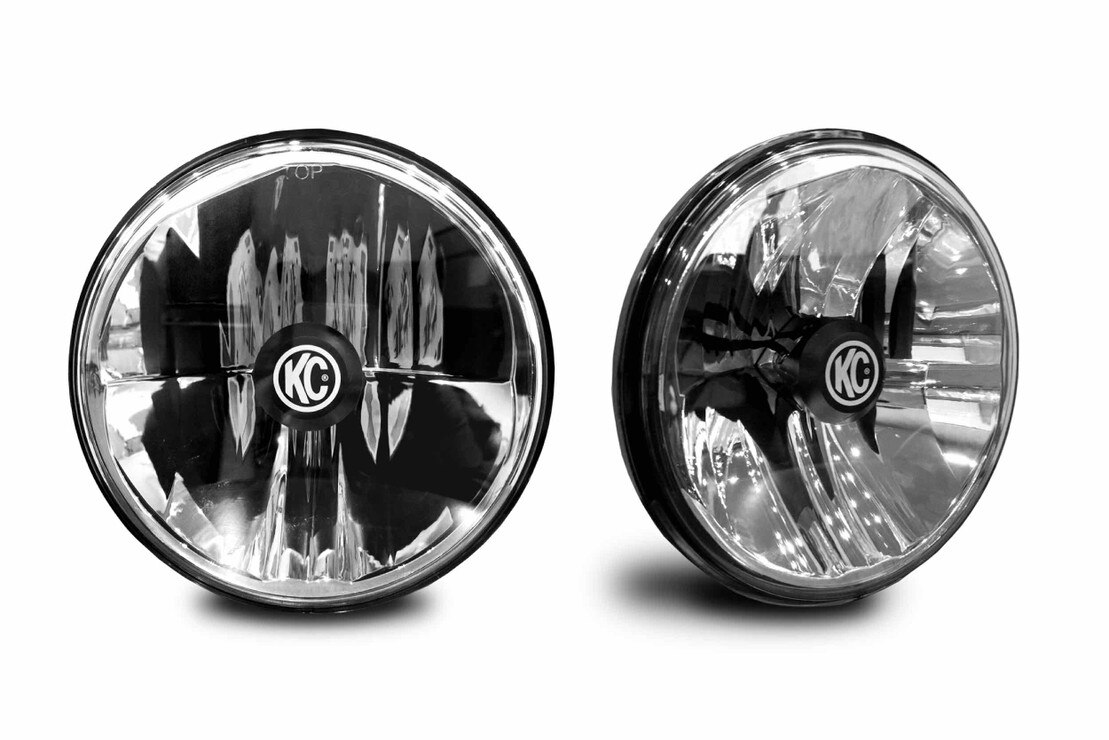

Introducing the KC Gravity LED 7in Headlights - the ultimate lighting upgrade for your vehicle! These headlights are fully DOT compliant, featuring patented GRD LED technology, High/Low beams with built-in DRL, and anti-flicker capacitors for a glare-free, crystal-clear vision on the road. Designed for maximum performance and affordability, these headlights outshine stock options, ensuring optimal visibility in any driving conditions. Plus, they come ready for easy installation with H13 plug-and-play connectors, including built-in DRL functionality. Upgrade your classic vehicle's appearance with modern LED technology, backed by the trusted quality of KC Hi-Lites, proudly Made in the USA. Don't miss out on the most advanced, street-legal, and D.O.T. compliant headlights that will revolutionize your driving experience. Illuminate your journey with KC Gravity LED 7in Headlights today!


  • DOT Compliant: Fully compliant with DOT regulations for safe road use.
  • GRD LED Technology: Patented Gravity Reflective Diode technology for unmatched visibility.
  • Easy Installation: Comes with H13 plug-and-play connectors for a hassle-free setup.
  • Built-in DRL: Includes Daytime Running Light functionality for added safety.
  • Made in the USA: Engineered and manufactured in the USA for superior quality.

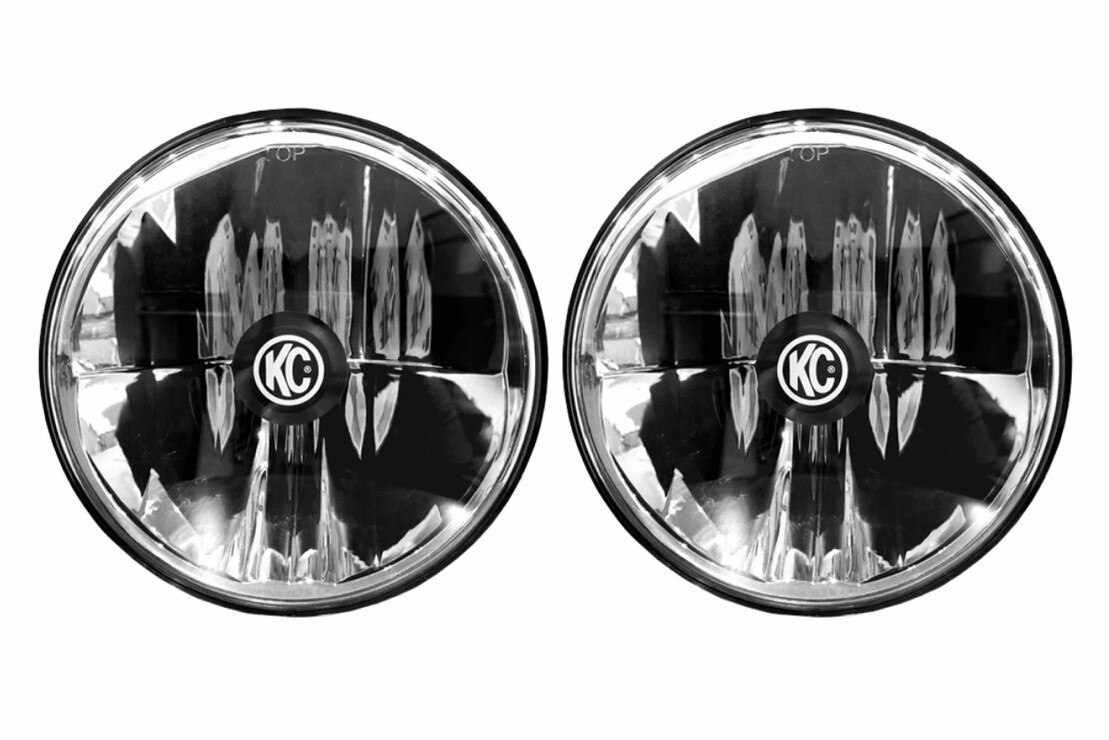

  • Headlights: 2x (One Pair) Gravity LED 7in Headlights


This product is covered by a 23 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 1,260lm (Low), 3,666lm (High)

  • Power: 18w (Low), 22w (High)

  • Current: 1.88A @ 12V DC

  • Light Source: CREE XHP35 HI and Nichia


  • KC #42351: Gravity LED 7in Headlight DOT Jeep Wrangler JK 07-18 H13 (pr)

  • KC #42361: Gravity LED 7in Headlight DOT Jeep Wrangler TJ 97-06 H4 (pr)

  • KC #42361: Gravity LED 7in Headlight DOT Universal H4 (pr)



DOT / ECE Compliant:KC Gravity LED 7in Headlights are fully DOT compliant and feature patented GRD LED technology, High/Low beams with built-in DRL, and anti-flicker capacitors. KC's patented optics produce visibility and clarity second to none. NOTE: Gravity LED 7in Headlights do not meet ECE regulations at this time and are intended for off road use only in European countries that have adopted ECE regulations.

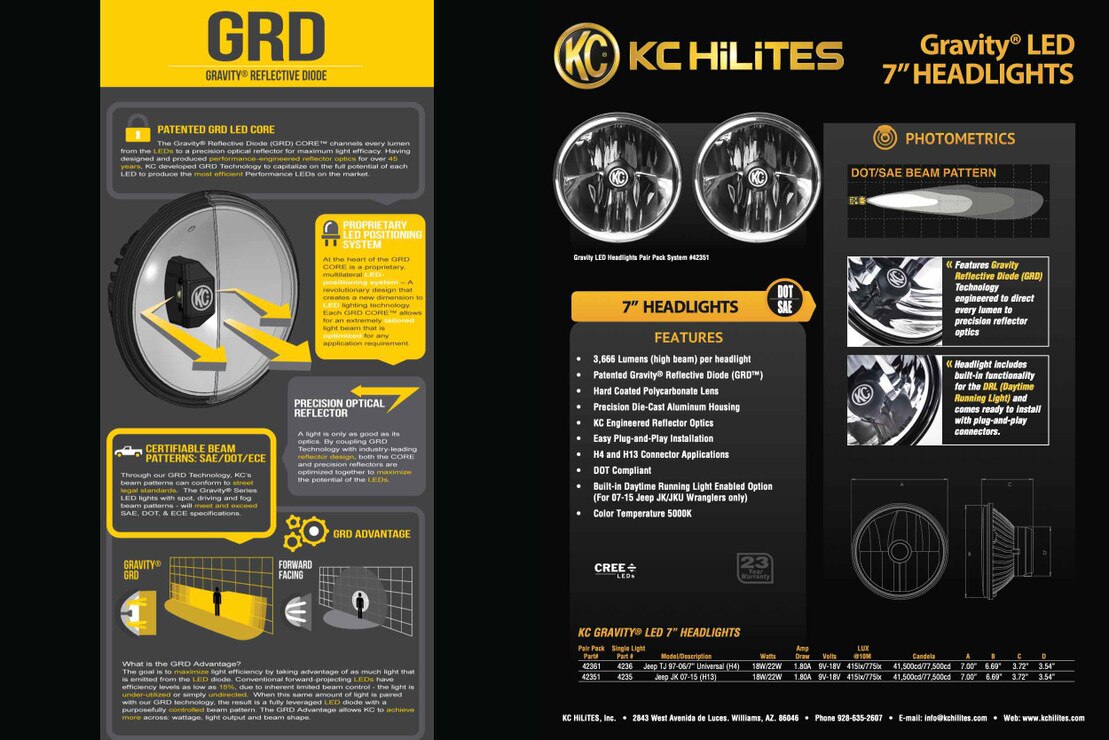

PERFORMANCE OUTPUT AND CLARITY: At the center of KC's new Gravity LED 7in Headlight is our patented Gravity Reflective Diode (GRD) technology, which is engineered for the driver to see every lumen emitted from the headlight by directing the LEDs to precisely engineered reflector optics at the most ideal angles. This proprietary technology provides a highly functional beam shape with extraordinary beam distance.

HIGH PERFORMANCE MEETS AFFORDABILITY: Gravity LED 7in Headlights are engineered to perform at the highest standards, no matter the road conditions, while also being an affordable upgrade that greatly outperforms stock headlights.

HIGH/LOW/DRL FUNCTIONS BUILT IN FOR JEEP JK: The Gravity LED 7in Headlight includes built-in functionality for the DRL (Daytime Running Light) and comes ready to install with H13 plug-and-play connectors.

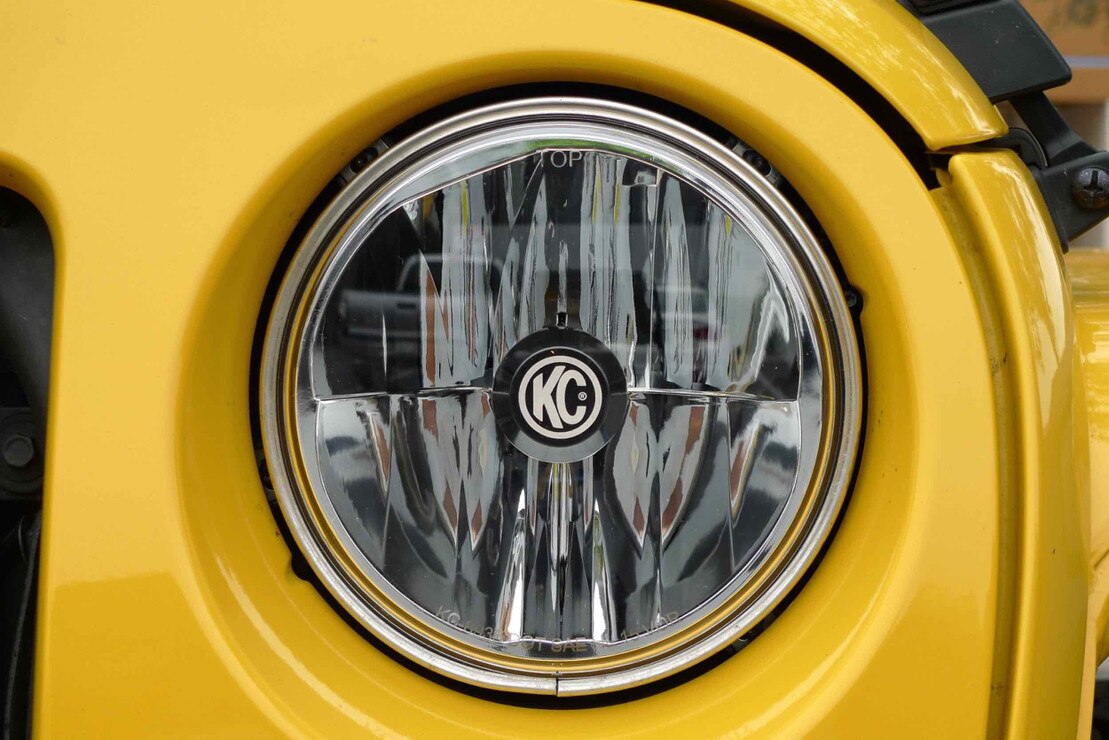

RETROFIT UNIVERSAL 7in H4 HEADLIGHT APPLICATION (KC 42361) : Update your classic vehicle's appearance with modern LED technology using KC's 7in Gravity LED Headlights, featuring easy plug-n-play installation in vehicles equipped with factory 7in H4 Headlights. Not to mention these are completely SAE street legal, D.O.T. compliant headlights with Low and High Beam function.

Made in the USA: The Retrofit Source is a proud distributor for the best brands in automotive lighting, and all KC Hi-Lites products are Designed, Engineered, and Made in the USA! If you're looking for most advanced, modern lighting gear for your truck, backed by the best people in the lighting business, we've got you covered.
