DESCRIPTION
FEATURES & BENEFITS
- Versatile Use From off-road trails to engine bays, it's fit for all lighting needs.
- Efficient Illumination Compact design emitting 600 lumens of LED brilliance.
- Easy Installation Centrally located universal mounting hole with provided hardware.
- Adaptive Mounting Surface, angled, flush, and magnetic solutions for perfect placement.
- Rugged Construction Die-cast aluminum base with an impact-resistant lens for durability.
WHAT’S INCLUDED
Rock Light: 1x Cyclone V2 LED Rock Light
Wiring: 1x Input Pigtail
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 600lm (Each)
Power: 5w
Current: 0.40A @ 12V DC

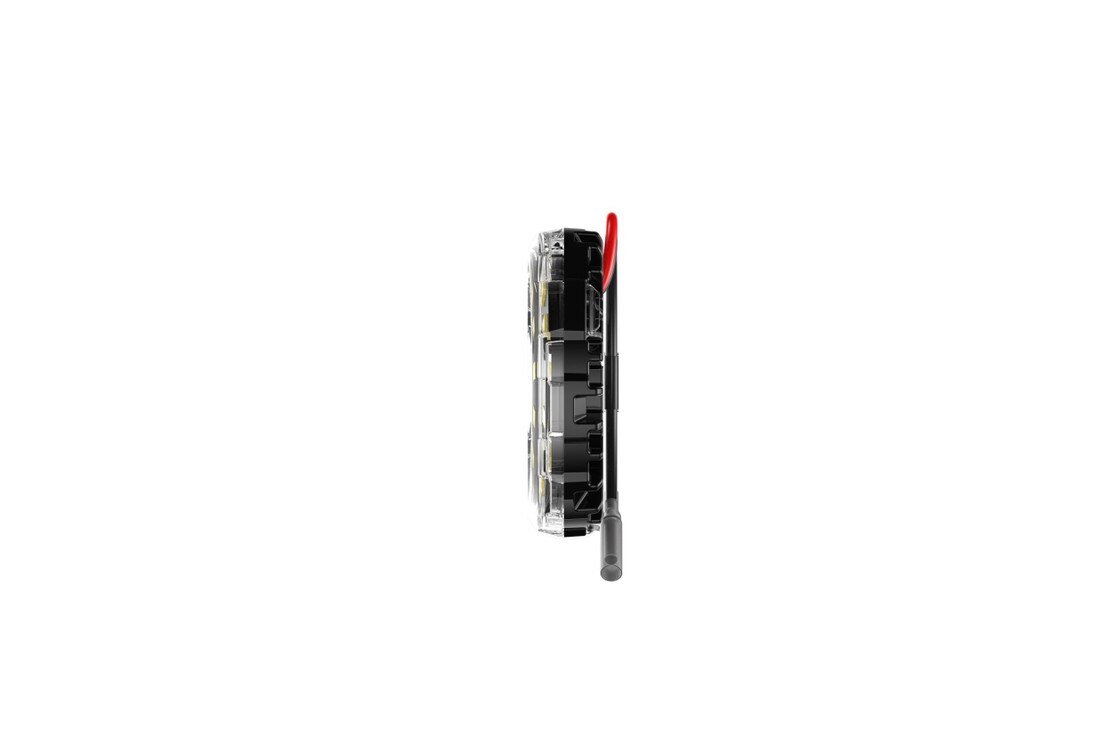

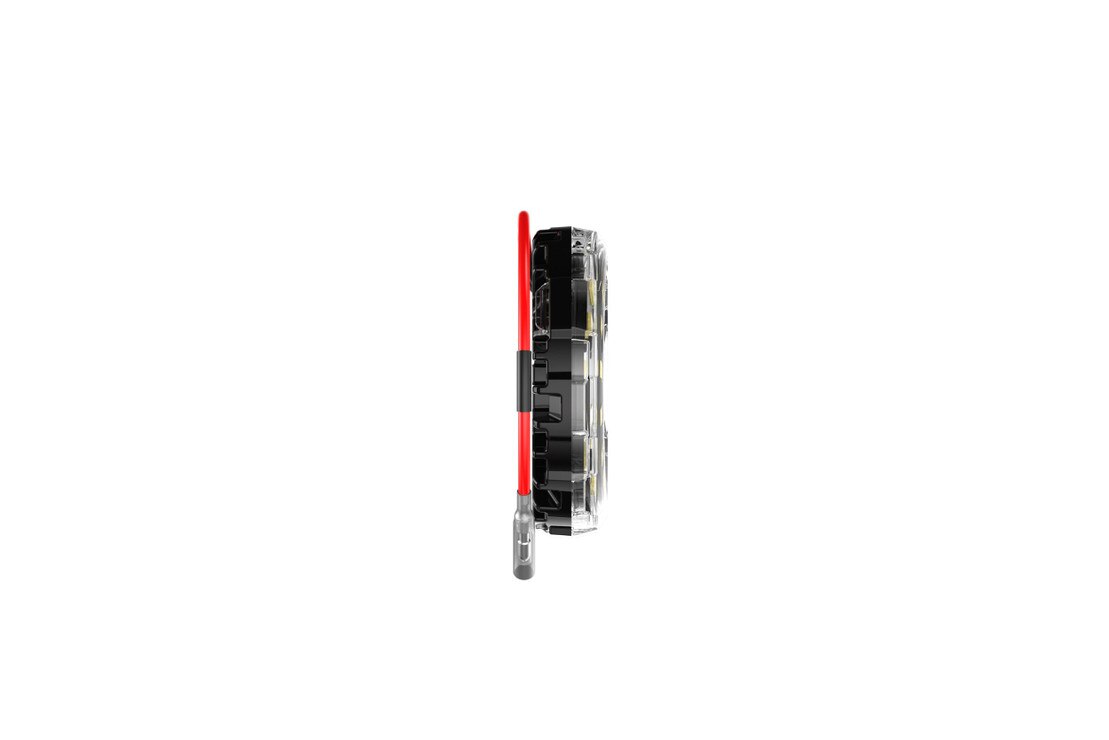

Dimensions: 2.2in DIA, 0.53in D

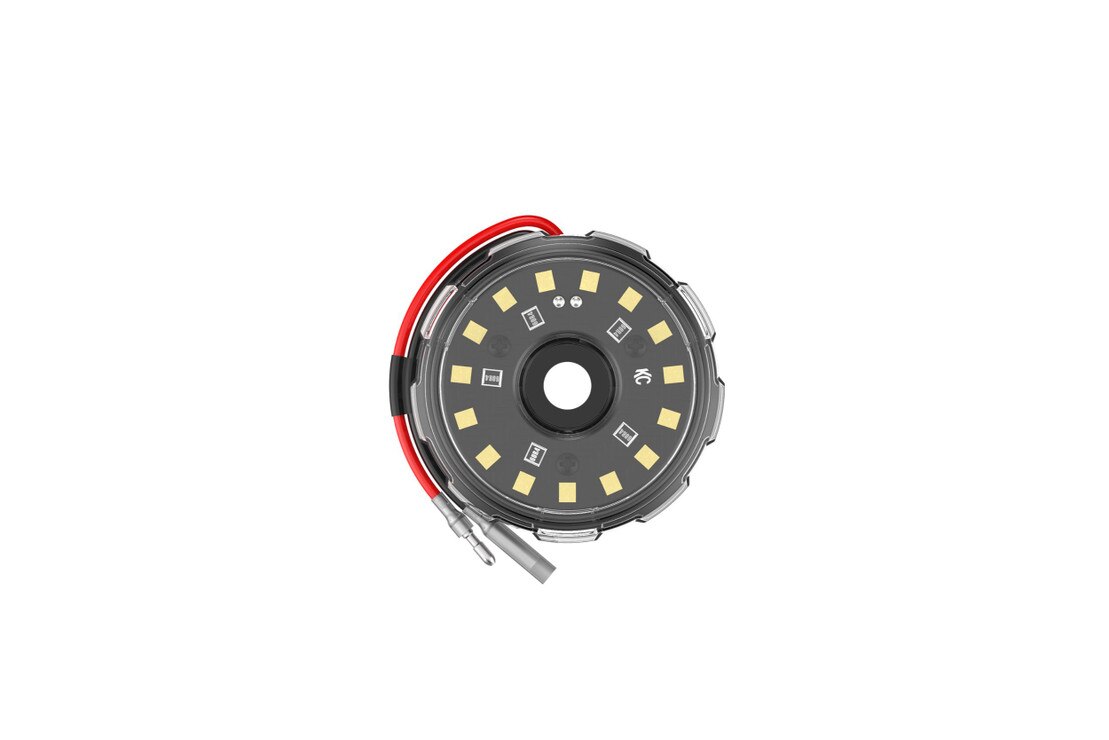

Light Source: 15x Samsung 3035
COMPATIBILITY
KC #1358: Cyclone V2 LED - Single Light - Clear Lens - 5W Flood Beam
KC #1359: Cyclone V2 LED - Single Light - Diffused Lens - 5W Flood Beam
KC #1360: Cyclone V2 LED - Single Light - Amber Lens - 5W Flood Beam

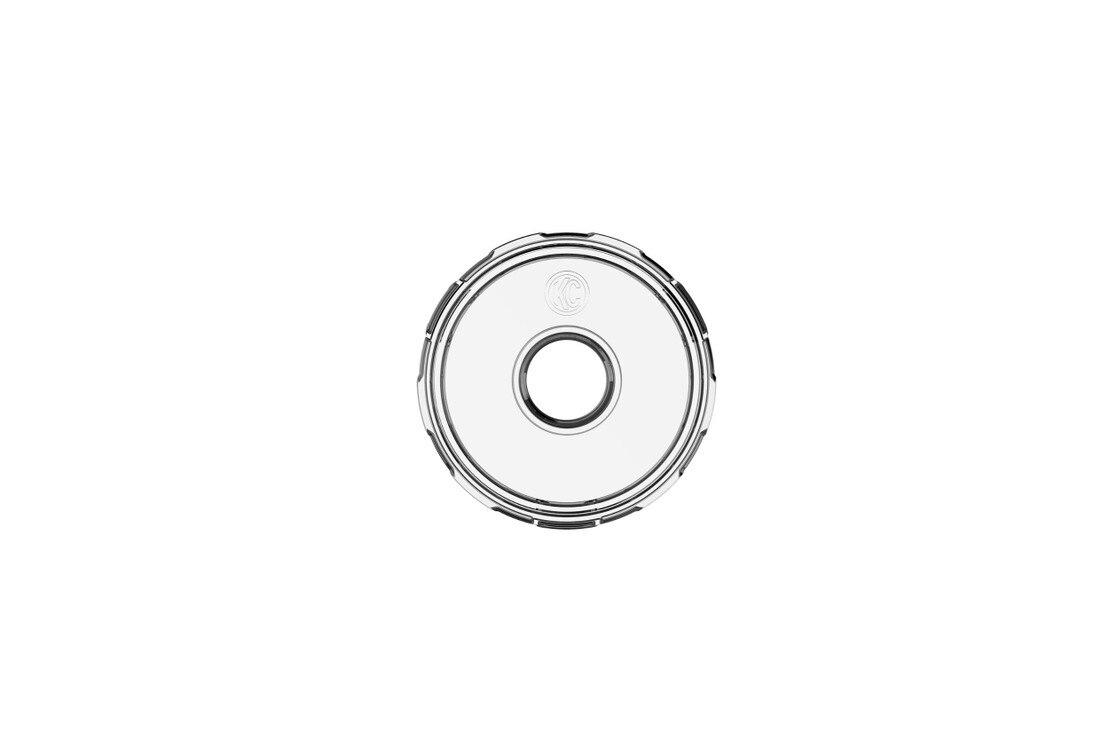

KC #4400: Cyclone V2 LED - Replacement Lens - Clear - Single
KC #4401: Cyclone V2 LED - Replacement Lens - Diffused - Single

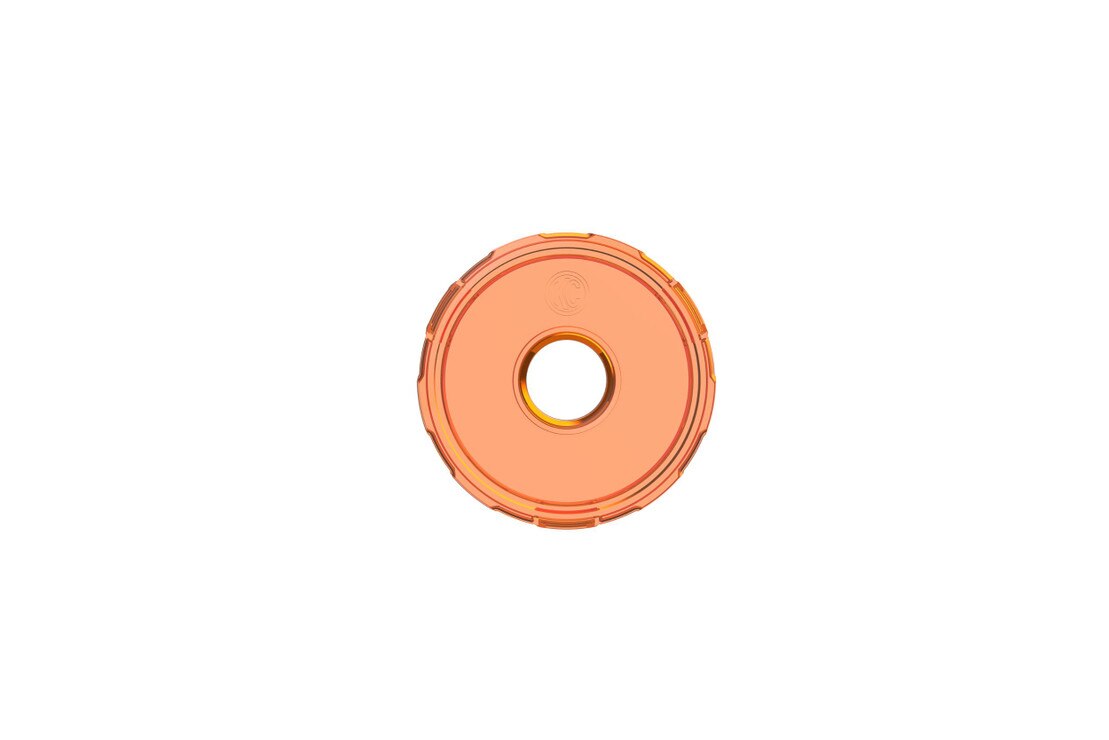

KC #4402: Cyclone V2 LED - Replacement Lens - Amber - Single
KC #4403: Cyclone V2 LED - Replacement Lens - Red - Single

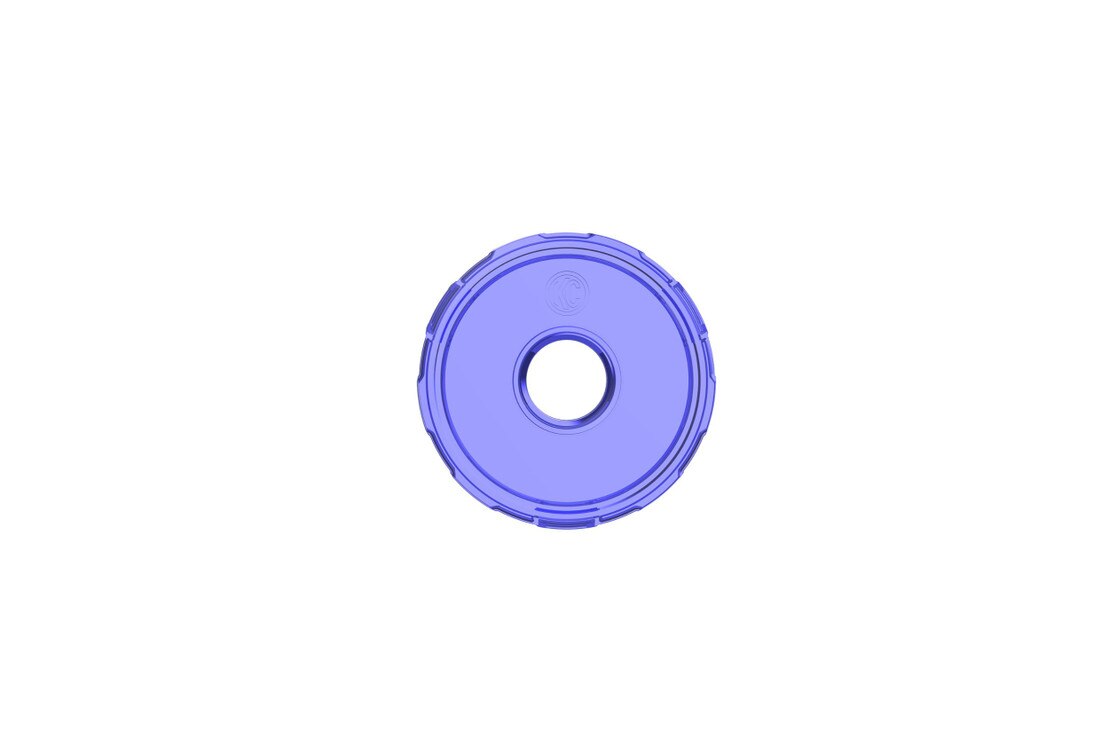

KC #4404: Cyclone V2 LED - Replacement Lens - Blue - Single
KC #4405: Cyclone V2 LED - Replacement Lens - Green - Single
KC #4410: Cyclone V2 LED - Replacement Lens - Clear - 6-PK
KC #4411: Cyclone V2 LED - Replacement Lens - Diffused - 6-PK
KC #4412: Cyclone V2 LED - Replacement Lens - Amber - 6-PK
KC #4413: Cyclone V2 LED - Replacement Lens - Red - 6-PK
KC #4414: Cyclone V2 LED - Replacement Lens - Blue - 6-PK
KC #4415: Cyclone V2 LED - Replacement Lens - Green - 6-PK

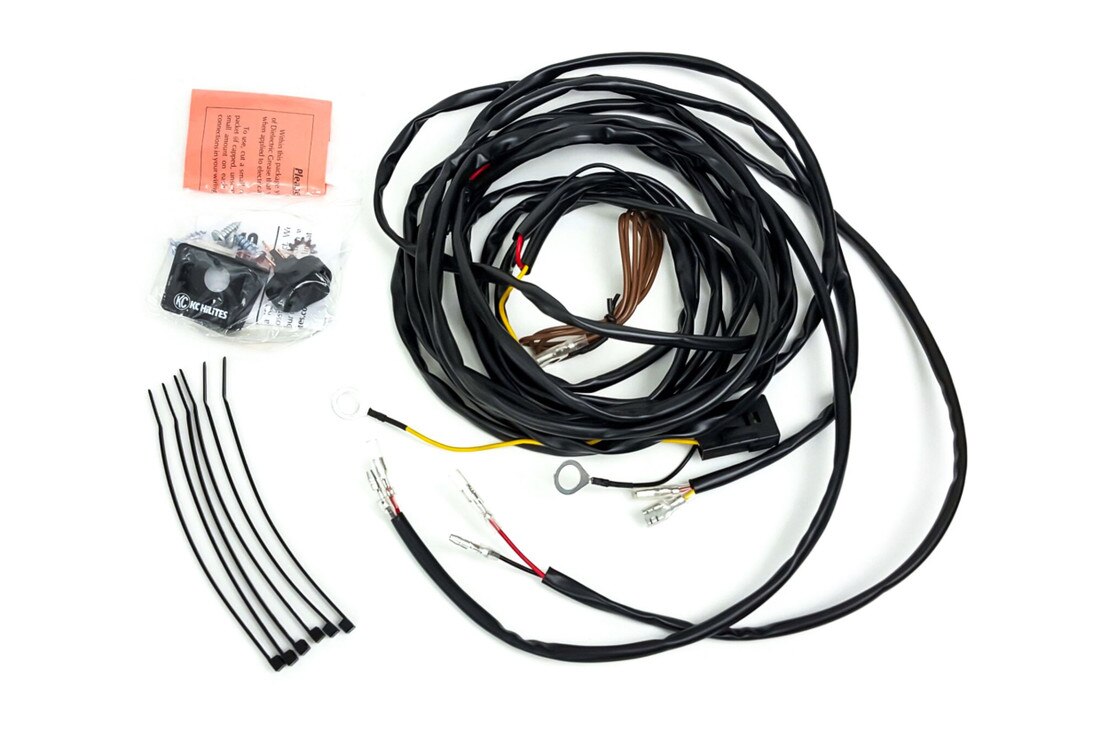

KC #63082: Cyclone LED - Universal Wiring Harness for 2 Lights
COMPLIANCE
COMPACT, VERSATILE & EASY TO INSTALL: The 5W Cyclone V2 LED light uses a multi-functional compact design delivering 600 lumens of LED output and is incredibly bright. Originally designed for Off-Road Racers as an interior dome light, the Cyclone LED light has evolved into an all-purpose light for rock crawling, engine bays, wheel wells, truck beds, grills, bumpers, and an infinite amount of lighting applications. This is due to its compact 2.2" diameter, flat .53" height, and bright flood pattern.
Low Draw: Offering an efficient high-output to draw, it's not uncommon to see over a dozen Cyclones installed on a rig. Everywhere from the under the hood, wheel wells, the underbelly, to the interior of your cabin - it's never been easier, to put light where it's needed.
UNIVERSAL MOUNTING OPTIONS: Cyclone V2 LED lights feature a die-cast aluminum housing with a centrally located universal mounting hole. These Cyclone kits come with the necessary hardware to attach your Cyclone LED light(s) under the hood of your vehicle with minimal installation time, effort, or fuss.
WHEREVER YOU WANT THEM: KC has focused on mounting solutions for popular applications such as surface, angled, and flush mounts. While still utilizing the signature center mounting hole, the Cyclone V2 now features a provision to integrate a magnetic mounting solution for more ways to customize your nighttime adventure experience.
RACE TO ADVENTURE DURABILITY: Cyclone V2 LEDs use a die-cast aluminum base that provides strength, rigidity while providing great heat dissipation. The impact-resistant polycarbonate hard-coated lens will survive the toughest of terrains. Rated at IP68, the Cyclone V2 LED is sealed and water-resistant giving you the flexibility to traverse into the most demanding trails.
