Round LED OffRoad Lights

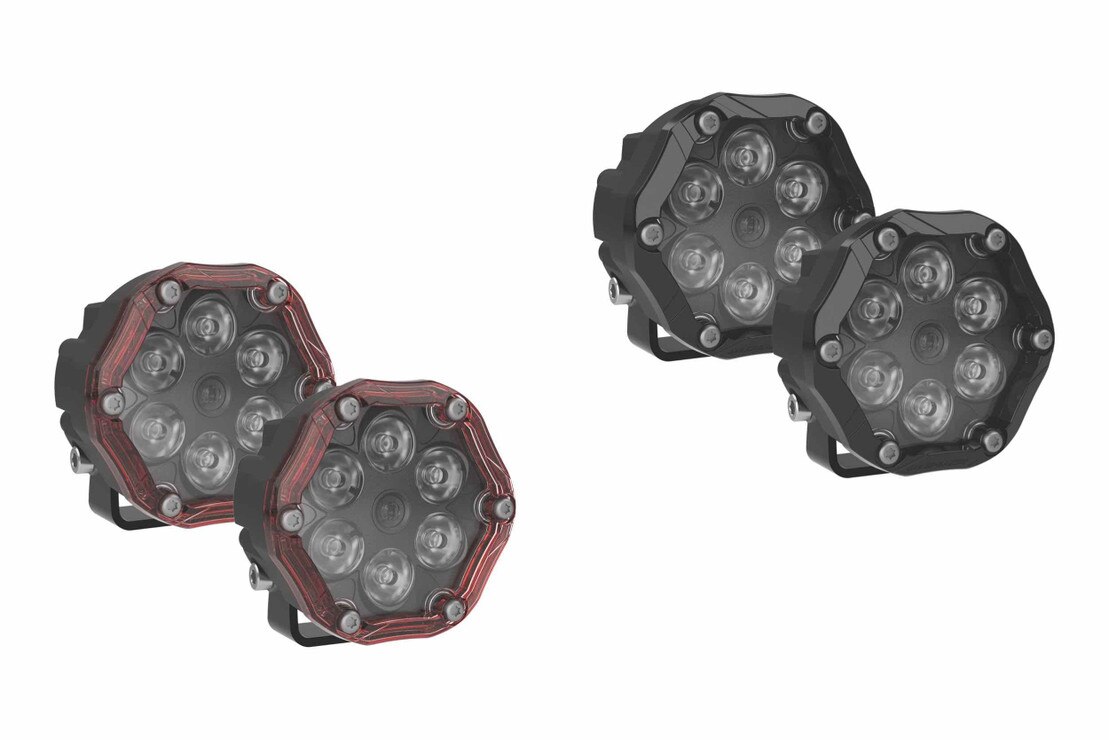

JW Speaker Trail 6

JW52-TRS

PART #: 1 x 555363


[ In Stock: pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

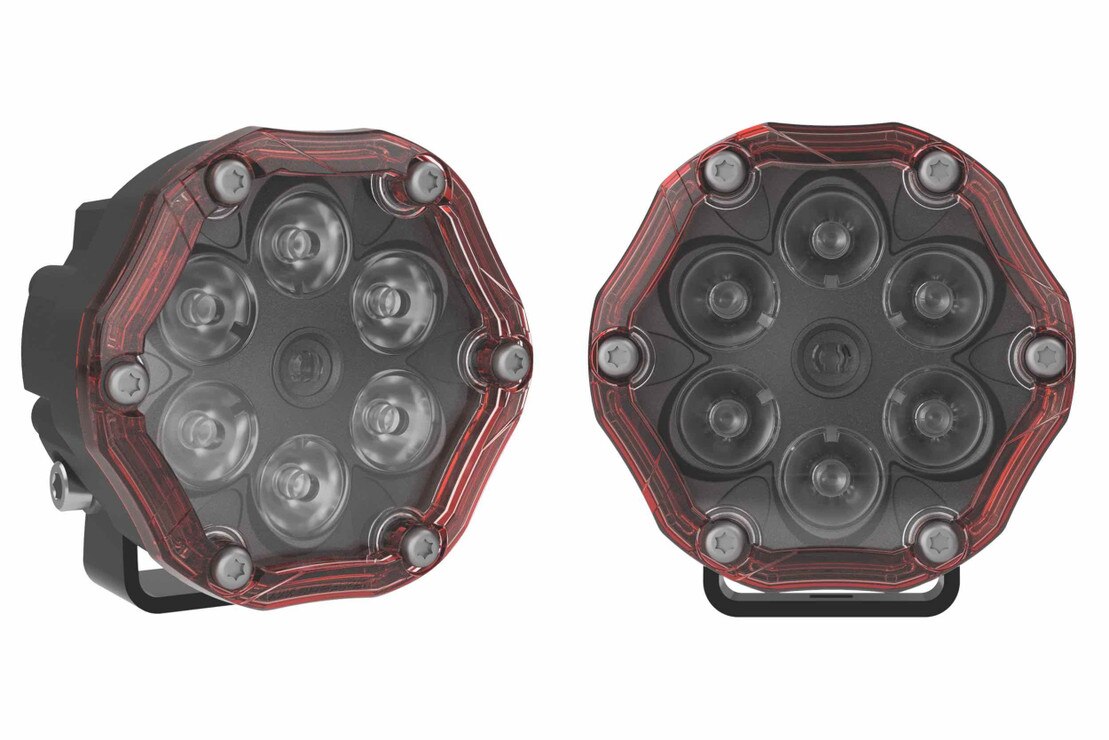

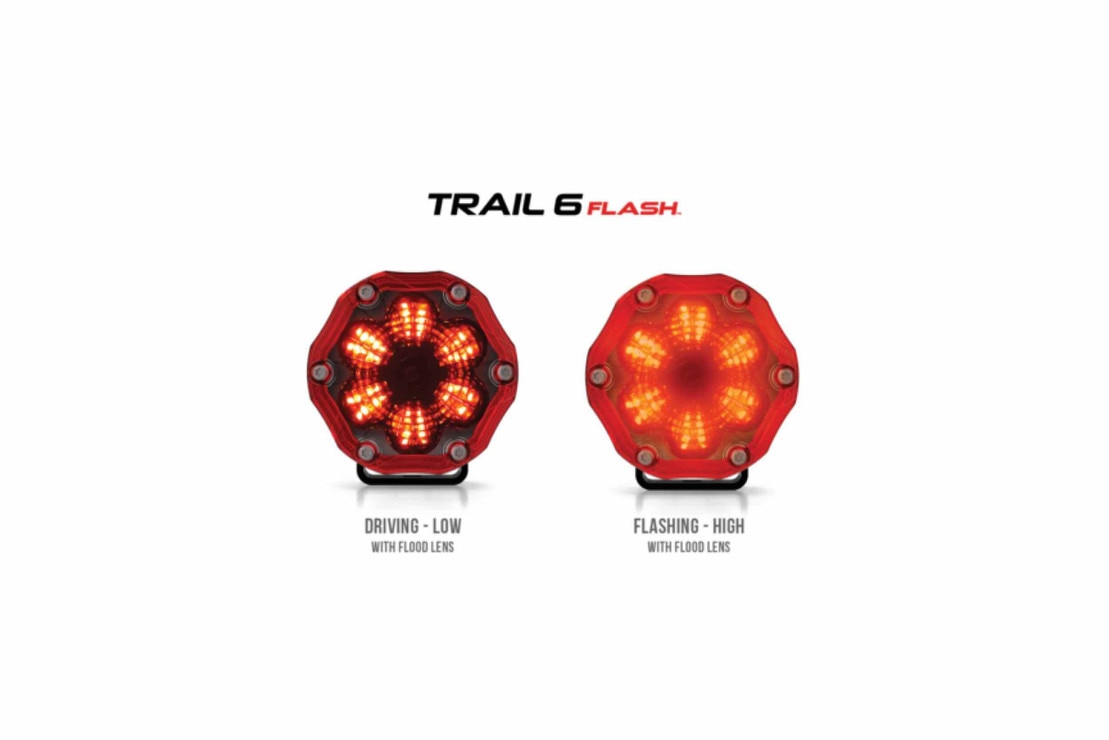

Experience the Science with the new Trail 6 Flash from J.W. Speaker. This deceleration-sensing LED light is ideal for off-road, 4 x4, UTV, & ATV application. Stand out from the crowd : install the Trail 6 Flash on your UTV or ATV application and enjoy added style and safety on your next adventure.

When you're blazing the trails and conditions get dark or dusty, you need a light to tell others when you're slowing down '¢â‚¬ï¿½before you even touch the brakes. Experience the science of the deceleration-sensing Trail 6 Flash.

Features: Automatically detects when the vehicle is slowing down and flashes to give advanced warning to other drivers. Stand out for style and safety with added seconds of warning and bright red LEDs. Program the speed sensitivity (Low to high) based on your vehicle: Low for vehicles that quickly decelerate, like a UTV, High for vehicles that slowly decelerate, like a tractor, Medium for vehicles in the middle. Wire the Trail 6 Flash in with the vehicle's brake and tail lights for added visibility. Build a custom lighting system for any vehicle using the bracket, hanging, or panel mounting configurations. The Trail 6 Flash designed for off-road use only. Complete kit of 2 lamps with brackets, 3 sets of interchangeable lenses (spot, flood, & wide flood), mounting hardware, and a daisy chain harness for 2 lights.

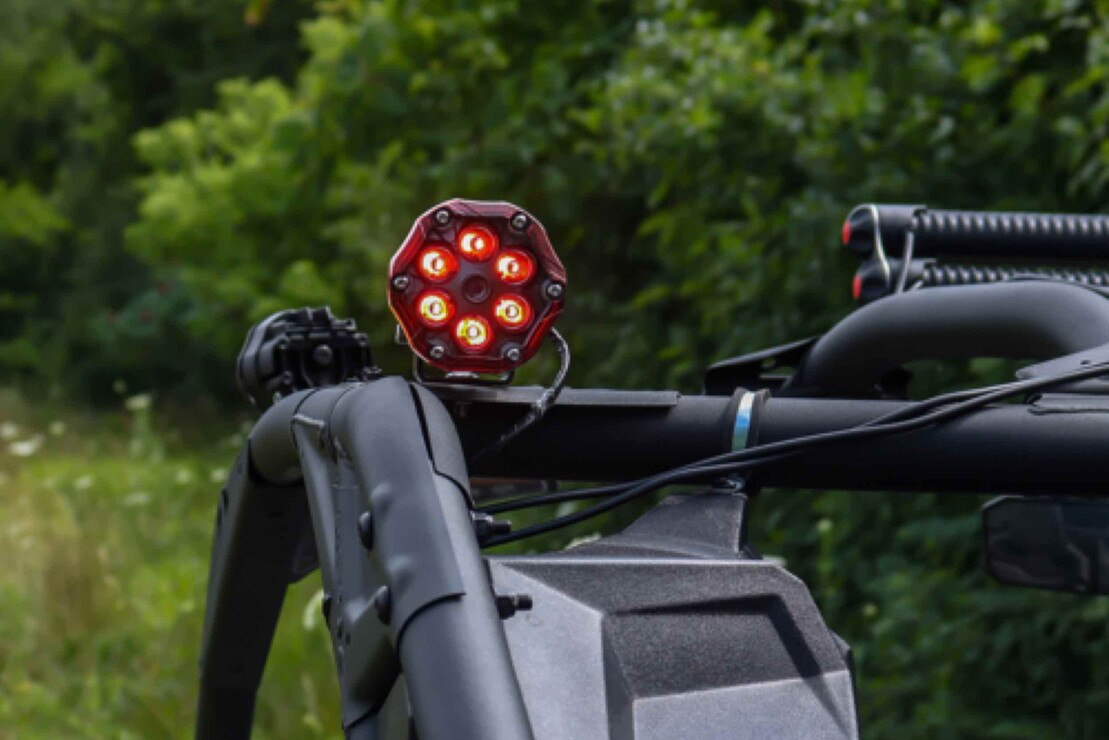

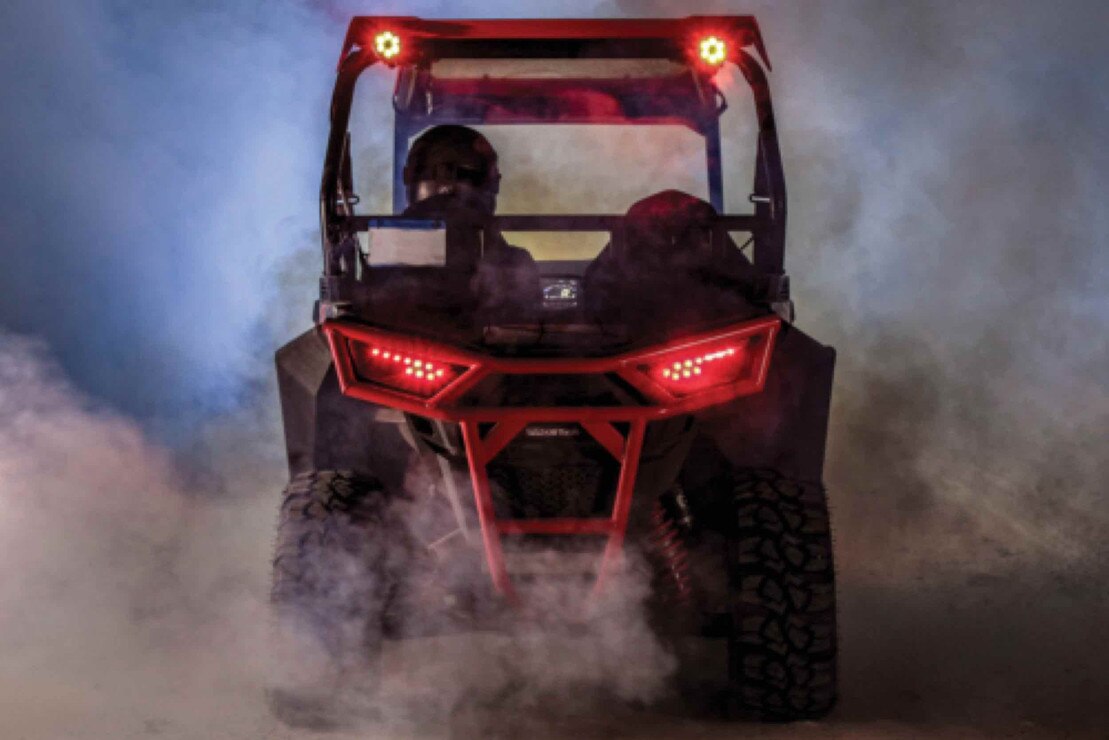

Application: The Trail 6 Flash round LED off road light is intended for off-road use only, and is not street-legal. The Trail 6 Flash is ideal for off-road applications including ATVs & UTVs.

Product Specs

  • What's Included

  • HOUSINGS: 2x

  • WIRING: Plug-and-play Harness

  • BRACKETS: 2x Universal w/ Hardware

  • LENSES: 6x (3 sets)

  • BT APP: Free Download (J-Link)

  • WARRANTY: 3 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 555363: JW Speaker: TRAIL 6 FLASH (SET)

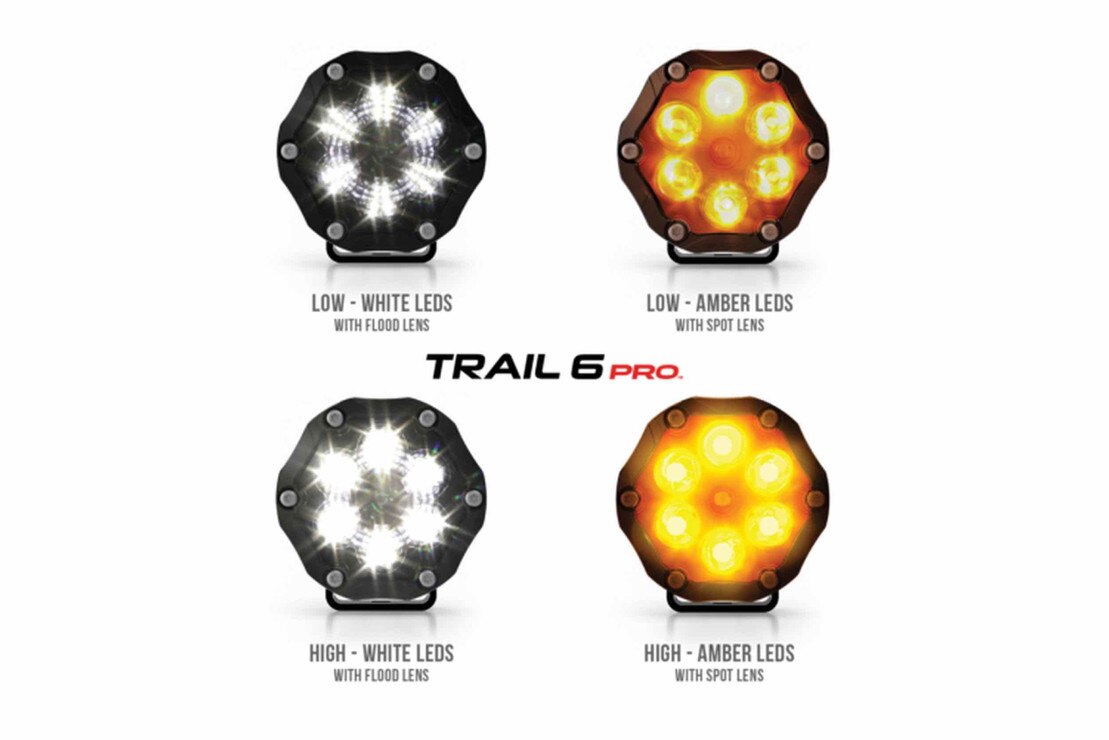

  • 555373: JW Speaker: TRAIL 6 PRO (SET)

  • 8200573: JW Speaker: TRAIL6 JK TURN MountING (SET)

  • 555353: JW Speaker: TRAIL6 SPORT (SET)

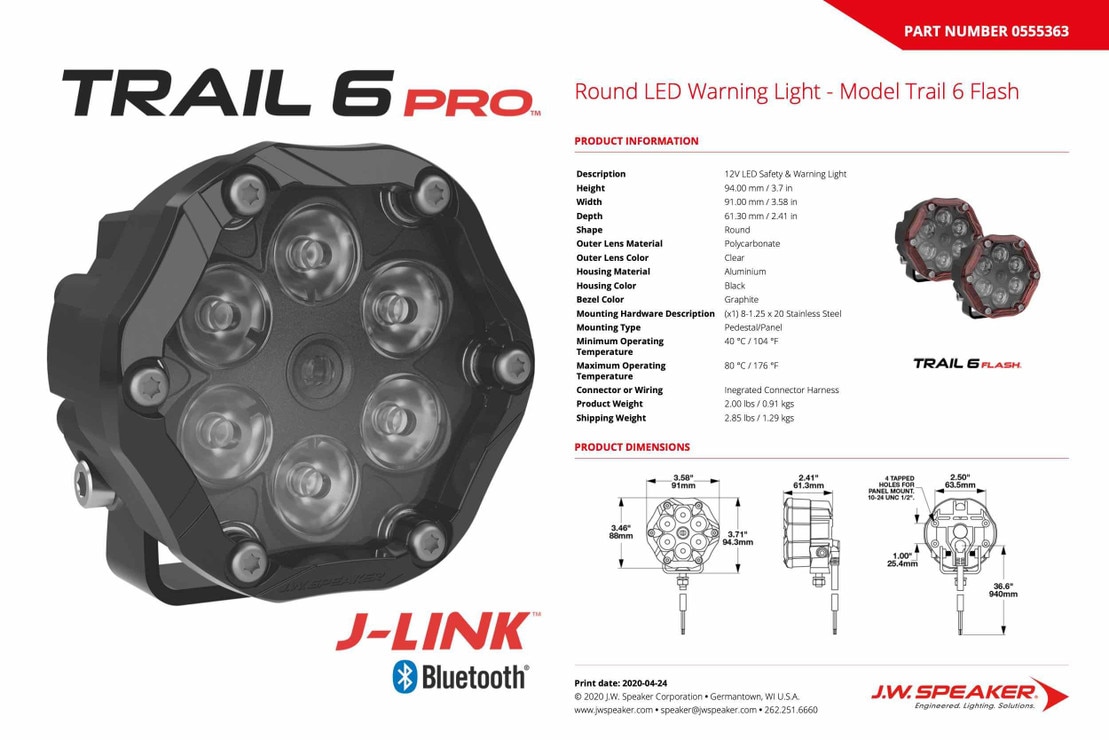

  • Tech Specs

  • Height: 94.00 mm / 3.7 in

  • Width: 91.00 mm / 3.58 in

  • Depth: 61.30 mm / 2.41 in

  • Shape: Round

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Aluminium

  • Housing Color: Black

  • Bezel Color: Graphite

  • Mounting Hardware Description: (x1) 8-1.25 x 20 Stainless Steel

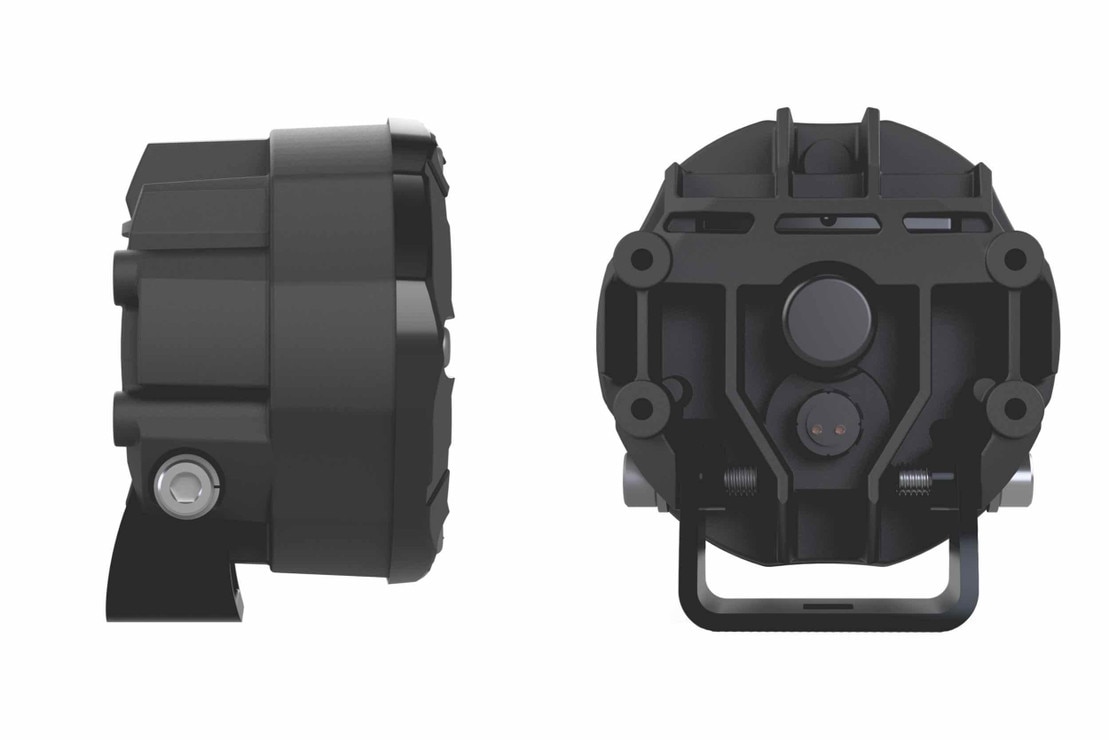

  • Mounting Type: Pedestal/Panel

  • Minimum Operating Temperature: 40 degC / 104 degF

  • Maximum Operating Temperature: 80 degC / 176 degF

  • Connector or Wiring: Integrated Connector Harness

  • Product Weight: 2.00 lbs / 0.91 kgs

  • Shipping Weight: 2.85 lbs / 1.29 kgs

  • Input Voltage: 12V DC

  • Operating Voltage: 10-15V DC

  • Red Wire: Power

  • White Wire: Over-Ride

  • Black Wire: Ground

  • Green Wire: Sensitivity

  • Current Draw: 0.87A @ 12V DC
