DESCRIPTION
FEATURES & BENEFITS
- Bright Illumination: Sets the standard for 90mm headlights and upfitter lights.
- Easy Install: Hassle-free mounting options for various vehicles.
- Durable & Reliable: IP67/IP69K rated, built for tough conditions.
- Legal Compliance: 100% ECE & DOT compliant with clear etching.
- Customizable: Individually packaged with mounting options.
WHAT’S INCLUDED
Housing: 1x Model 93 LED Headlight
WARRANTY INFORMATION

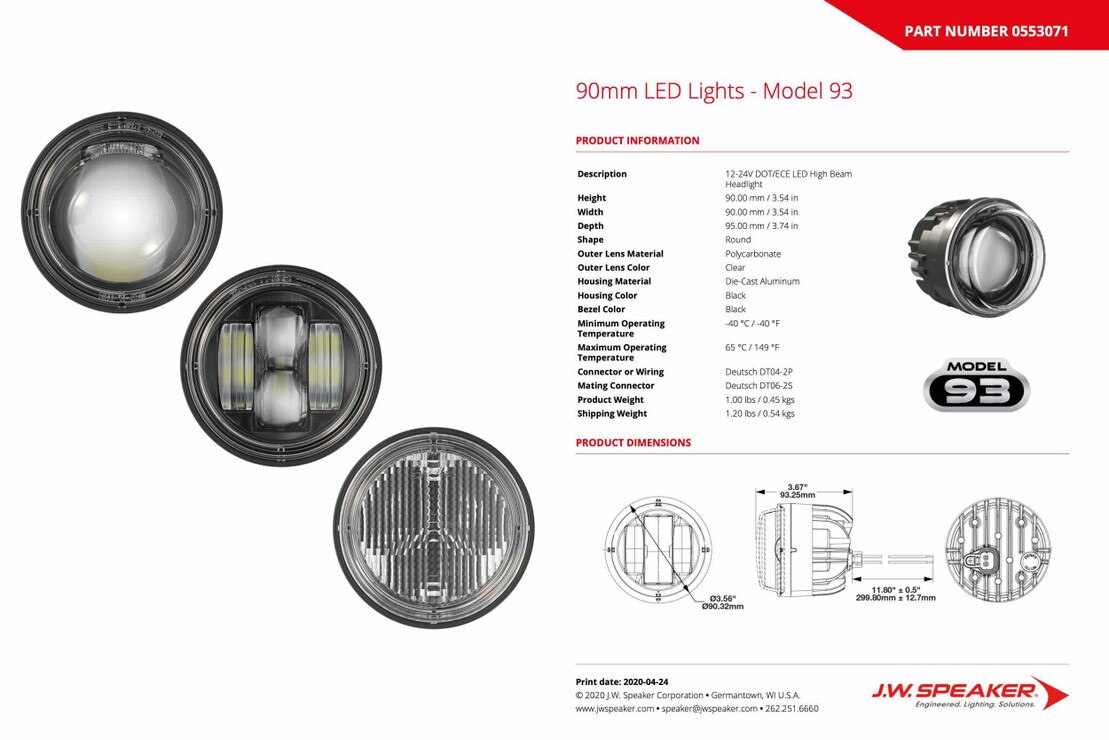

TECHNICAL SPECIFICATIONS
Current: 0.4A (Low), 0.8A (High) @ 12V DC
Input Voltage: 10-31V DC
Input: Deutsch 2-Pin
Dimensions: 3.54in,3.54in W, 3.74in D
Pinout: Black - Ground, Red - Power
COMPATIBILITY
553071: JW Speaker: 93 - 12/24V LED Highbeam
554381: JW Speaker: 93 - 12/24V LED Highbeam w/front position
553091: JW Speaker: 93 - 12/24V LED Lowbeam LHT R112
553081: JW Speaker: 93 - 12/24V LED Lowbeam R113
553101: JW Speaker: 93 - 12/24V LED Lowbeam RHT DOT R112
8001471: JW Speaker: 93 - 3 PT Mount 3 MM PANEL
8001461: JW Speaker: 93 - 3-PT Mount 1.5 MM PANEL
8001621: JW Speaker: 93 - DOUBLE LAMP Pedestal Mount (SET)
8001601: JW Speaker: 93 - Each Pedestal Mount (SET)
556701: JW Speaker: 93-12/24V SAE/ECE FOG
347941: JW Speaker: 93-12/24V SAE/ECE Turn/DRL
555911: JW Speaker: 93M-12/24V REG 113 Highbeam/Lowbeam W/Front-Position
INSTALLATION DOCUMENTS
THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

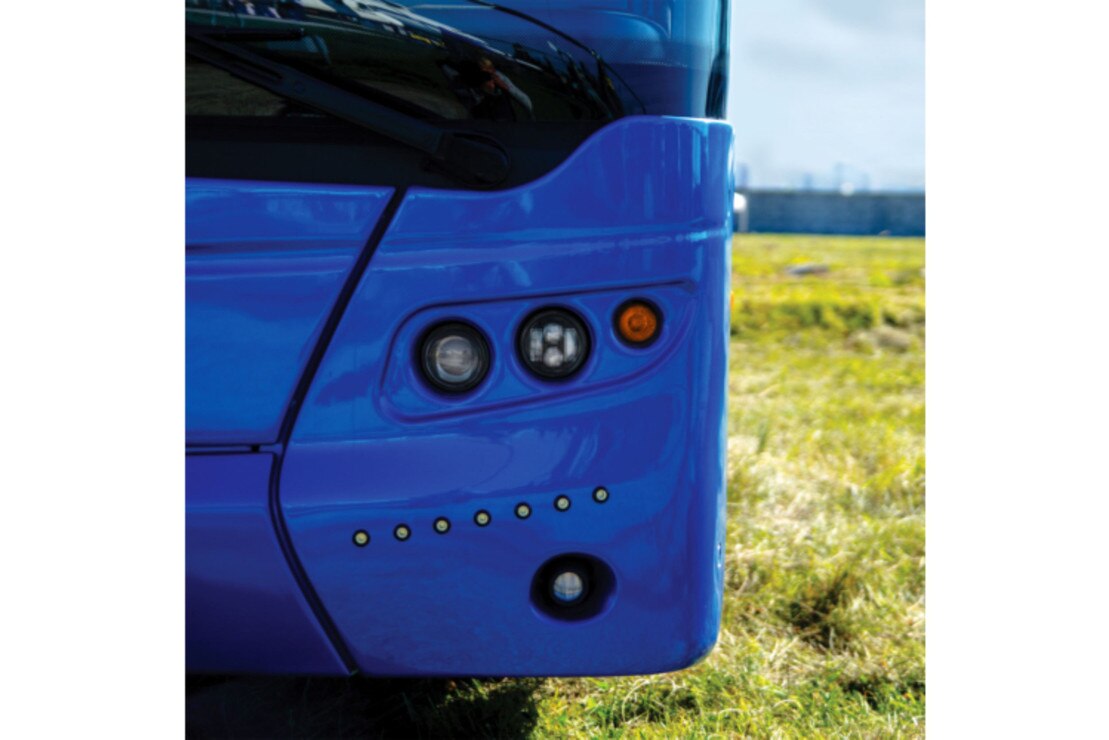

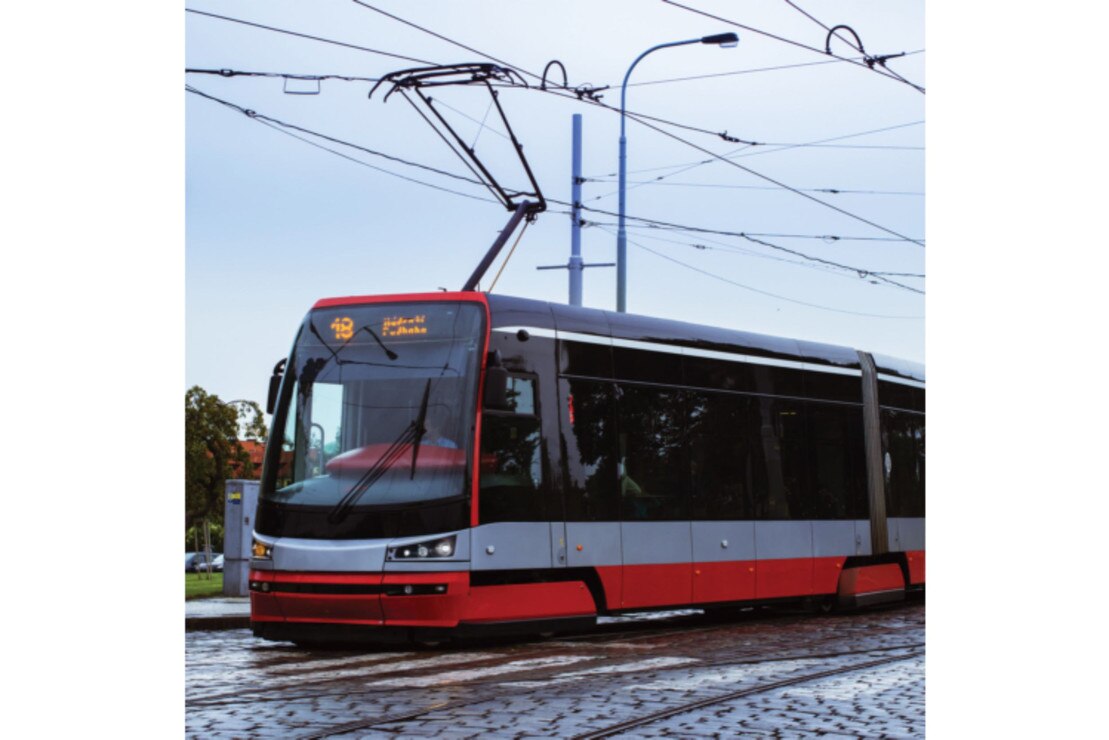

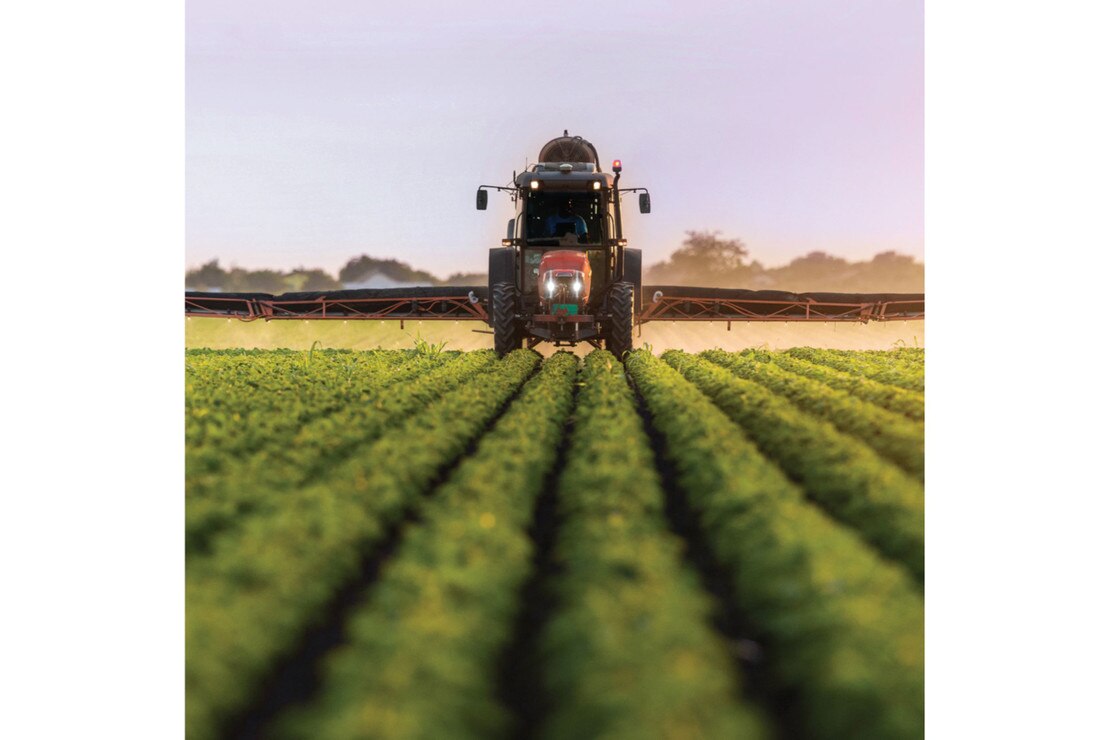

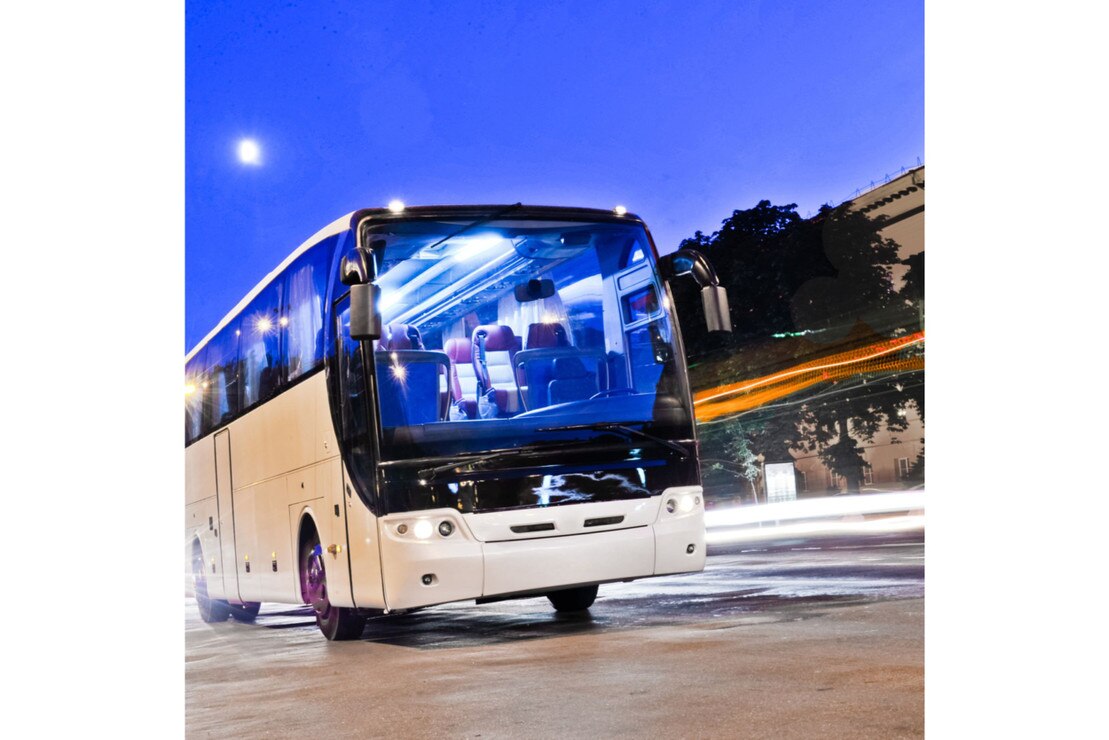

J.W. Speaker's LED Model 93 sets a new standard for 90mm headlights & upfitter turn/DRL and fog lights. This upfitter light is design to be a drop-in replacement for buses, RVs, tractors, trams, motor coaches, motorcycles, and custom cars. Single, double, and 3-point mounting options are available for easy installation.

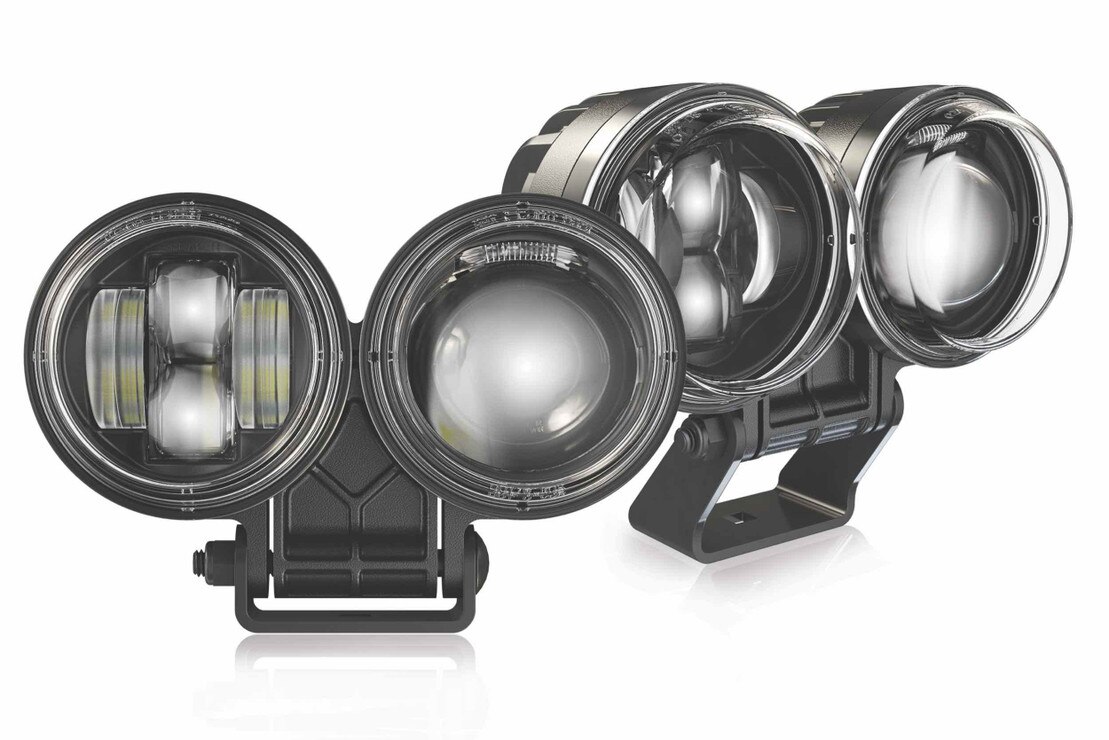

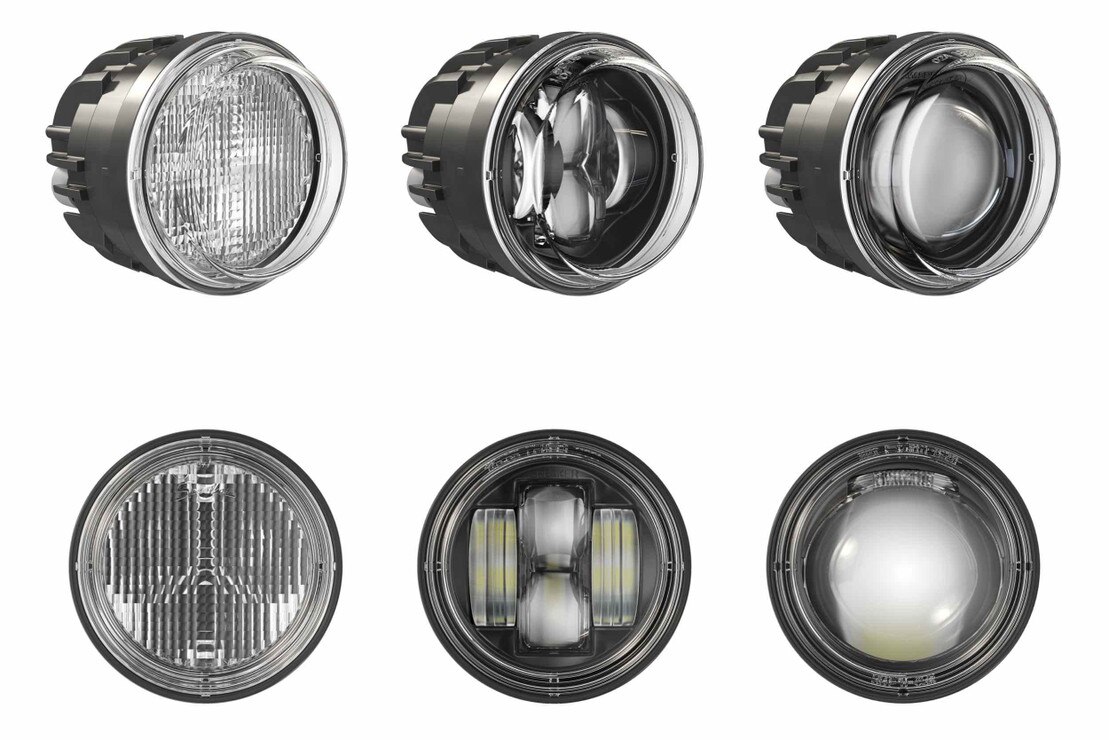

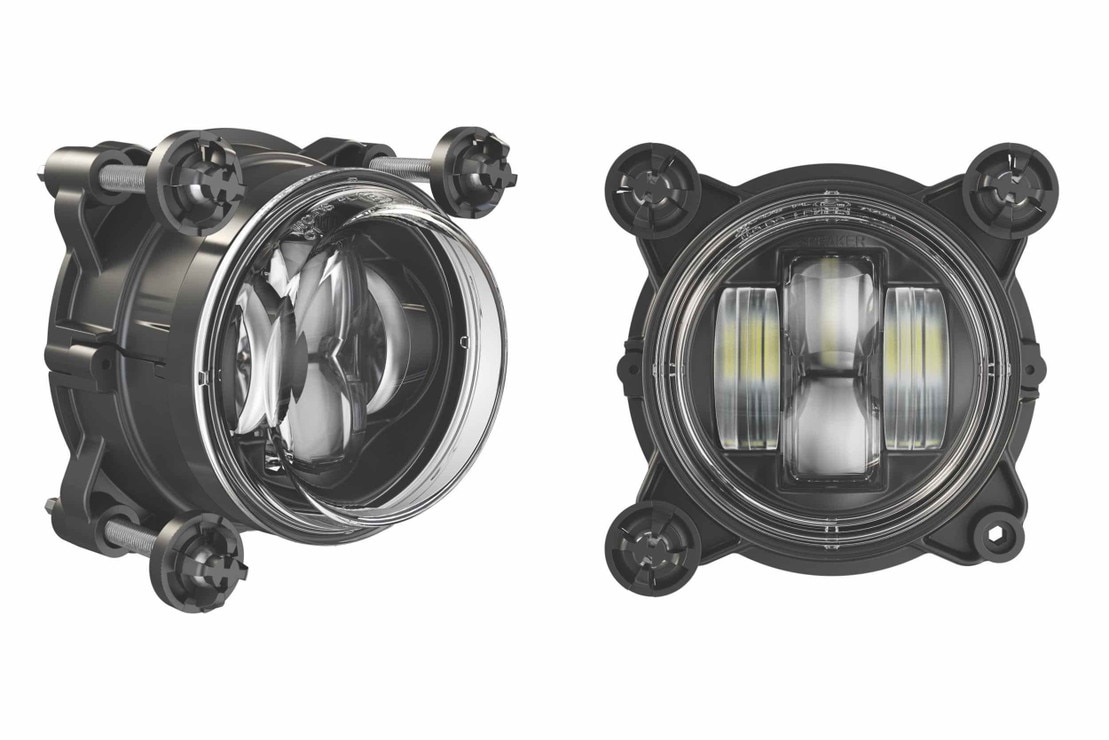

The model 93 is designed as an upfitter light for 90mm headlights, fog lights, and turn/DRL lights. Each model 93 is individually packaged, and a variety of mounting brackets are sold separately including single and double pedestal lamp mounting brackets as well as 3-point mounting brackets for 1.5mm and 3mm thick mounting frames.

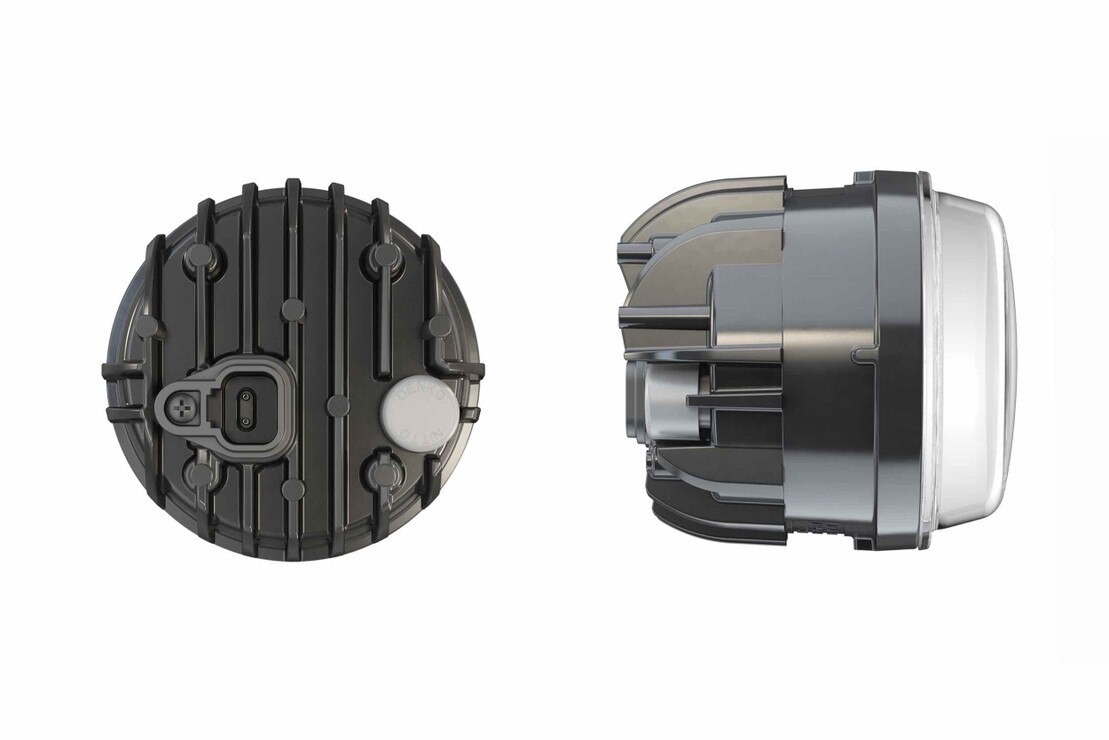

Offering a light that outlasts the job, the model 93 is sealed to IP67 and IP69K, protecting it from dust and water ingress. The re-designed die-cast aluminum housing is is made to meet the harsh demands of the job.

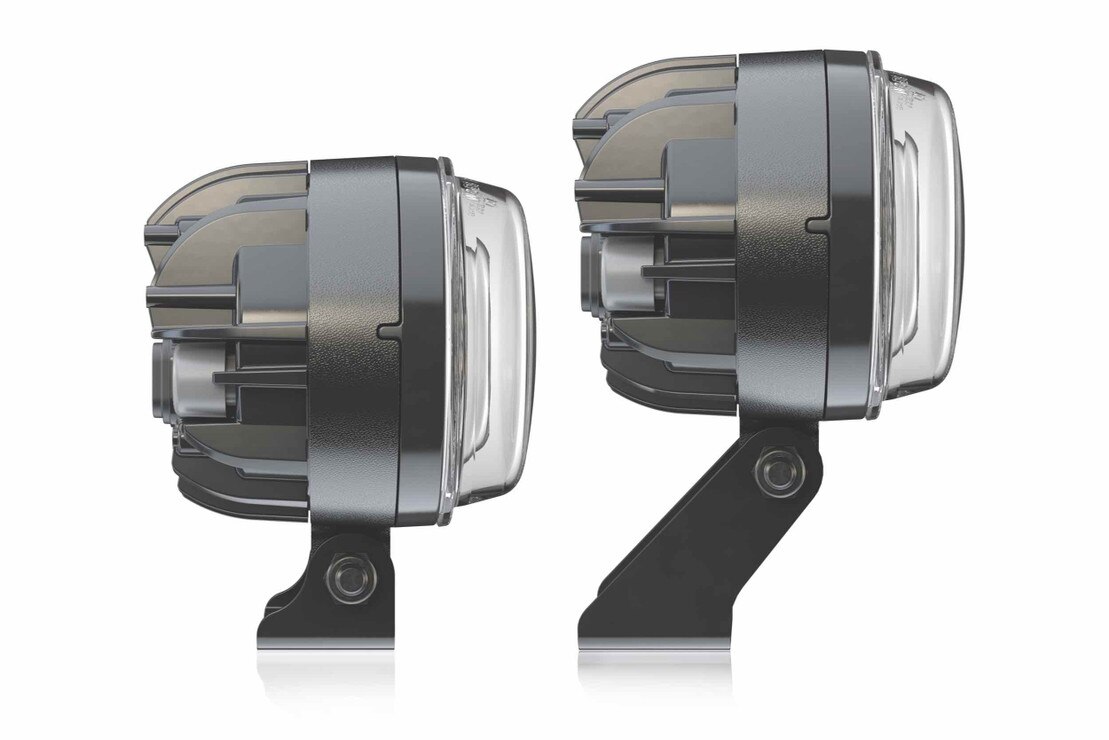

Features: Drop-in replacement for standard 90mm lights, 100% ECE & DOT compliant 90mm lights for legal on-road use, Individually packaged with mounting options sold separately, Complete flexibility to choose the correct light and mounting configuration for every application, Choose from 3-point mounts for 1.5mm or 3mm thick mounting plates, and single or double light mounting brackets (each sold separately), Meets the tough criteria for IP67 and IP69K for the best protection from dust and water ingress, Re-designed die cast aluminum housing features a sealed integrated connector to meet the harsh demands of transportation and other on-road applications, Pedestal mount brackets can be positioned at 90 degree intervals while maintaining pattern integrity and legality.
Street legal supporting DOT & ECE standards: DOT-compliance for legal on-road use requires that the Model 93 high beam be used in conjunction with your stock headlights, turning off the high beam when faced with oncoming traffic. Your DOT-compliance is clearly etched on the lens of the light. ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.
