Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

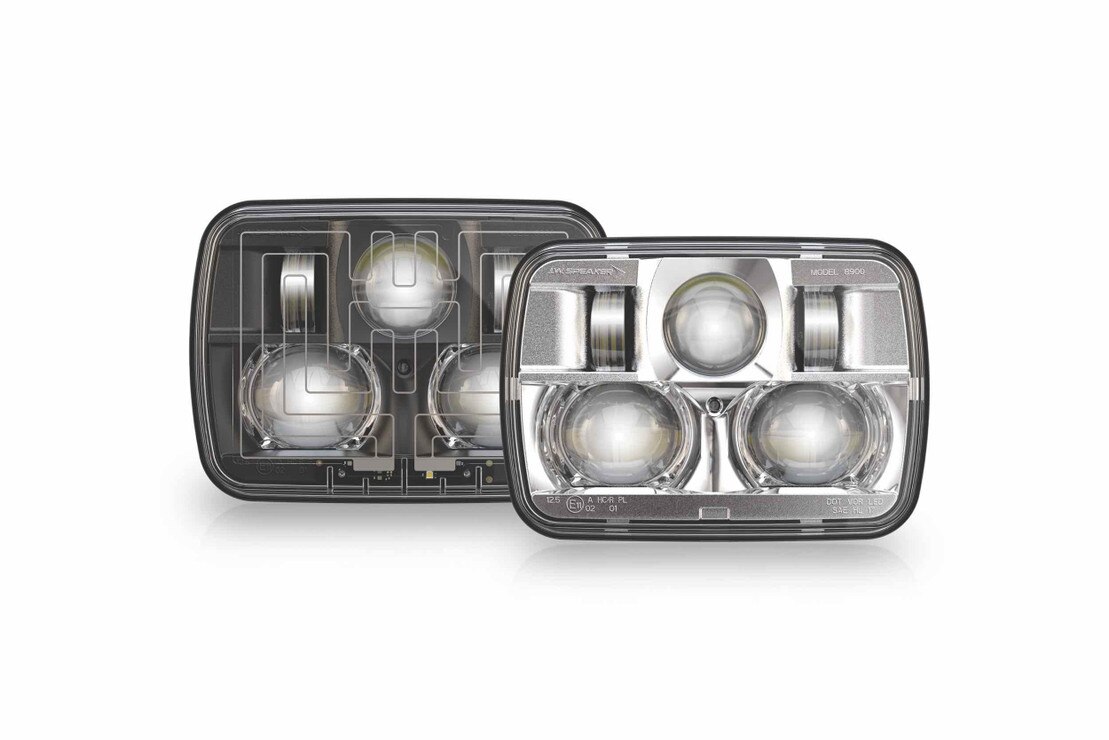

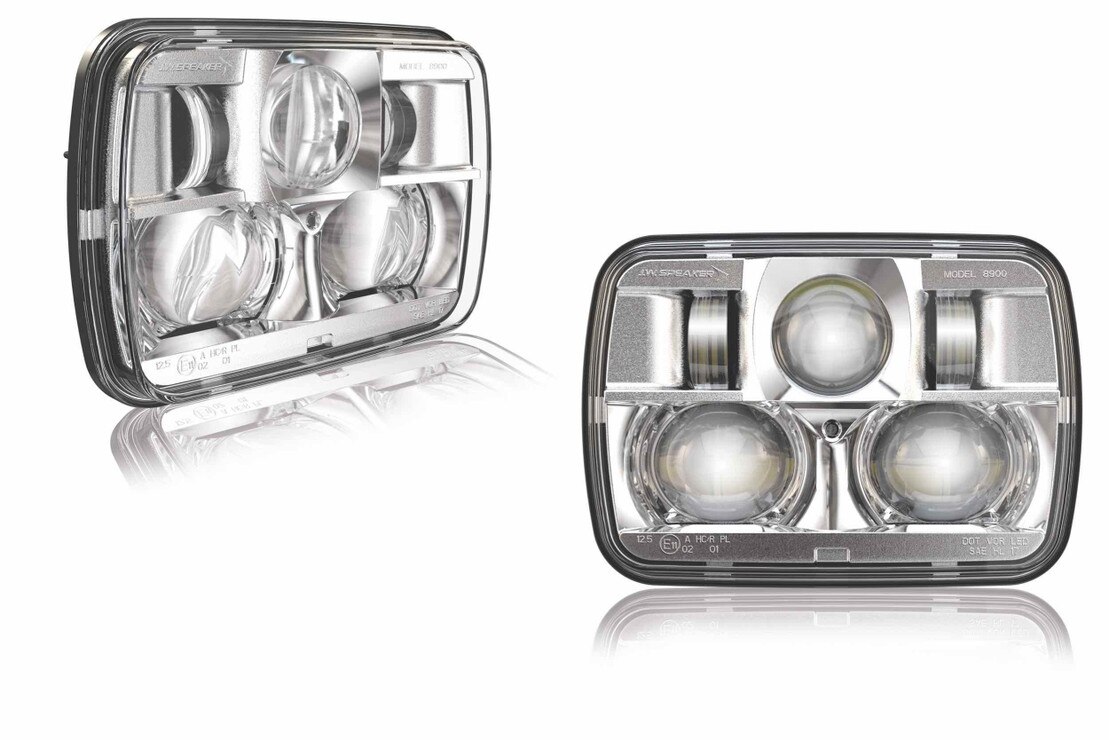

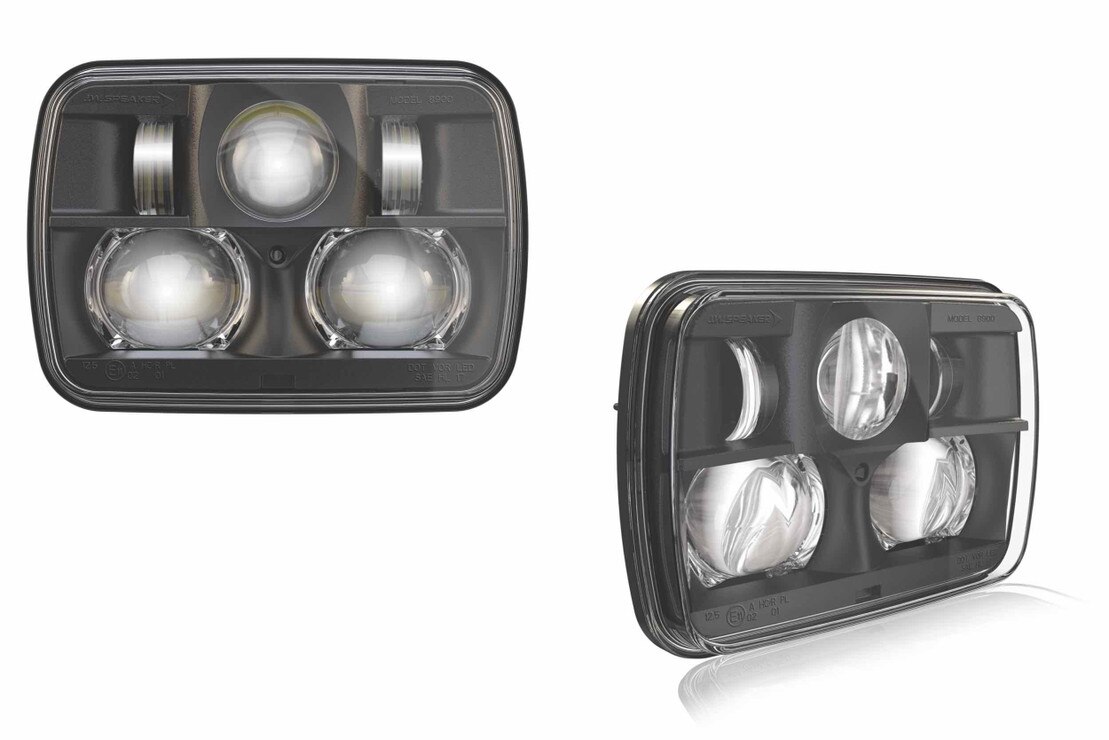

The 8900 Evolution 2 provides high performance 5 x7in LED headlights. This headlight complies to meet the proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight, when installed on vehicles at gross weight with headlights at 0.8 '¢â‚¬ï¿½1.2m off the ground.

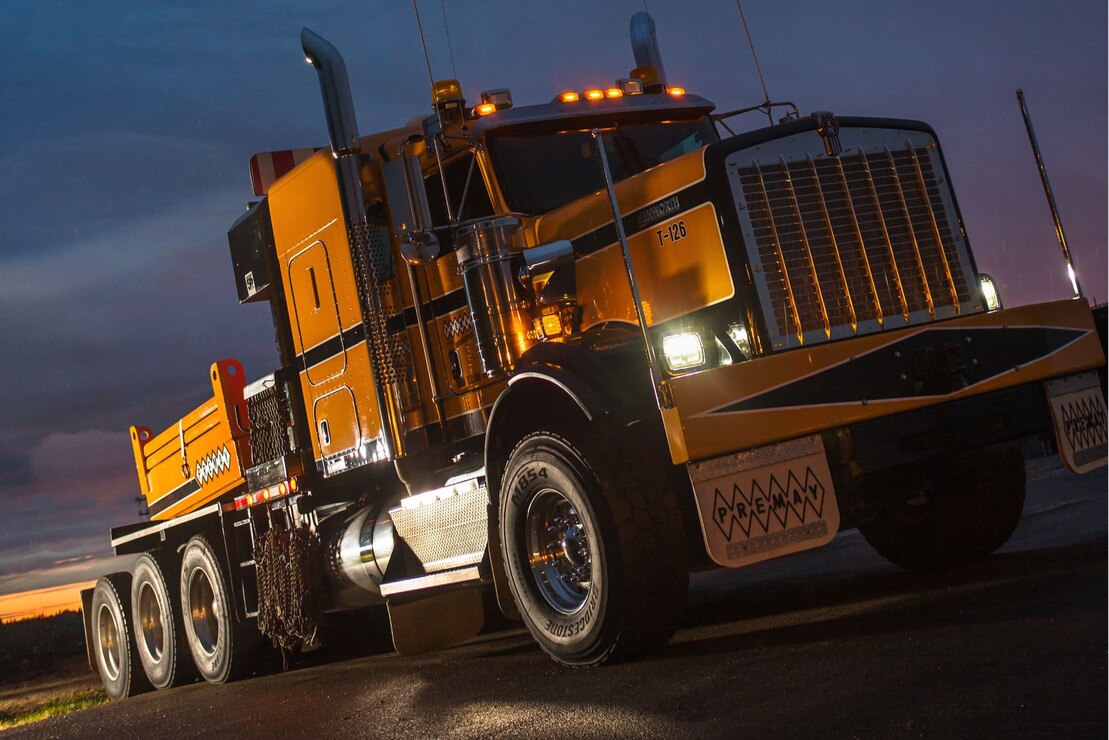

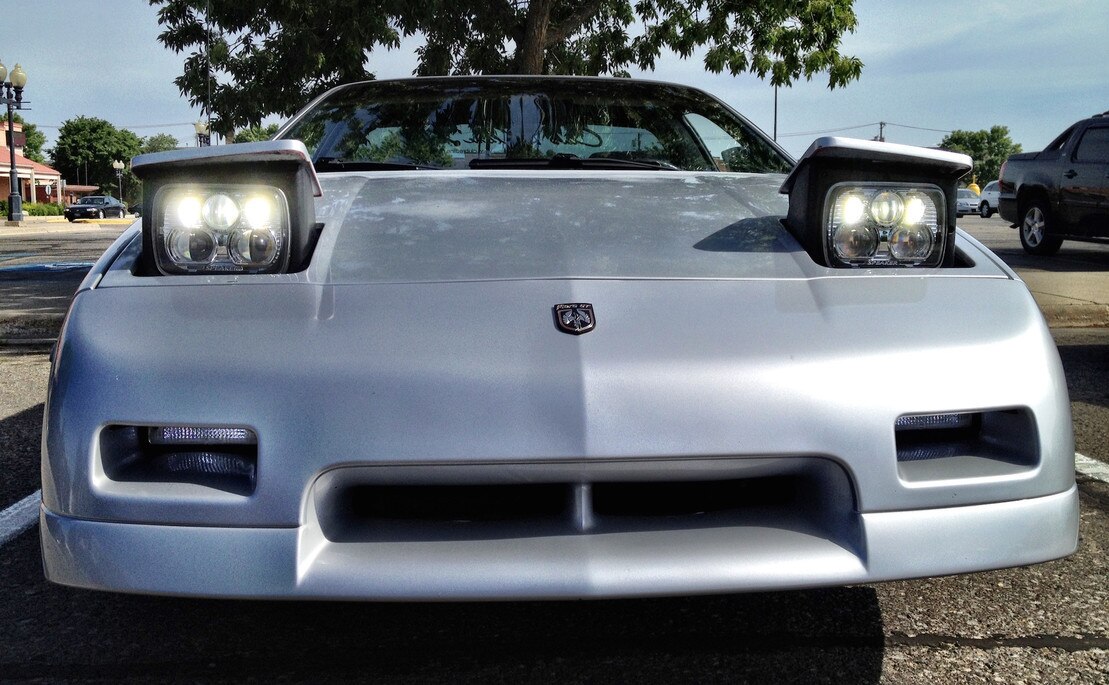

The Model 8900 Evolution 2 5 x7in LED headlights offer a safety solution with improved light output, glare reduction, and light placement for heavy-duty trucking on-road.

Features: Meets proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight, Improved LED technology delivering more light output and less glare, Anti-fog and hard-coated polycarbonate lens to prevent cracking and formulated to resist UV or chemical damage, Drop-in 5 x7 LED headlight replacements for typical buckets/panels used in heavy-duty trucks, mining, logging, and waste disposal, Superior condensation management, Street legal supporting DOT, Transport Canada ECE and Military standards & requirements, Also offering a heated version (Model 8910 Evolution 2).

5-Star NCAP-compliant Technology: The Model 8900 Evolution 2 will exceed the proposed FMVSS 108 standard in at least these three criteria, meeting 5-Star compliance: 1. Light output, measured in lux, 2. Beam pattern, resulting in minimal glare, 3. Light placement, as dictated by mounting locations prescribed for vehicles.

Street legal supporting DOT, ECE and Military standards: DOT versions are for use in the U.S. DOT-compliant guarantees that your lights are legal on the road, meeting section 108 requirements of the Federal Motor Safety Standards. Your DOT-compliance is clearly etched on the lens of the light. ECE versions are for use outside of the U.S. ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.

Product Specs

  • What's Included

  • HEADLIGHT: 1x JW Speaker 8900 Evo 2 LED

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

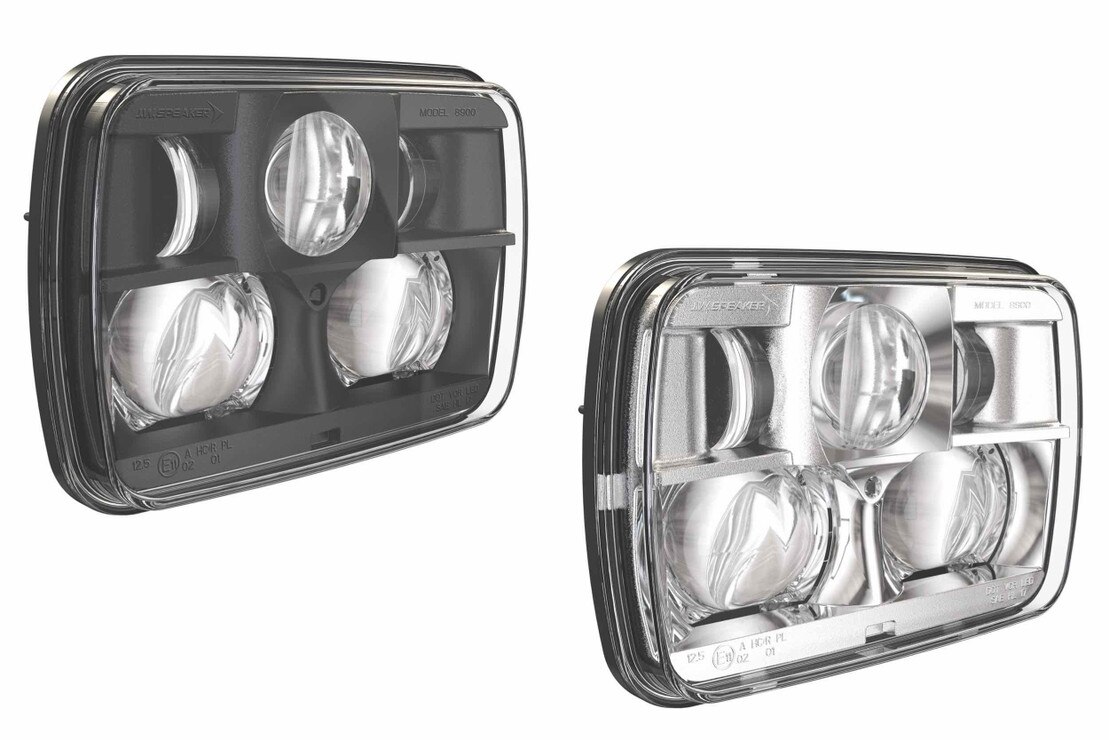

  • 554491: JW Speaker: 8900 EV2 DOT/ECE RHT NON-Heated BLK

  • 554471: JW Speaker: 8900 EV2 DOT/ECE RHT NON-Heated (Chrome)

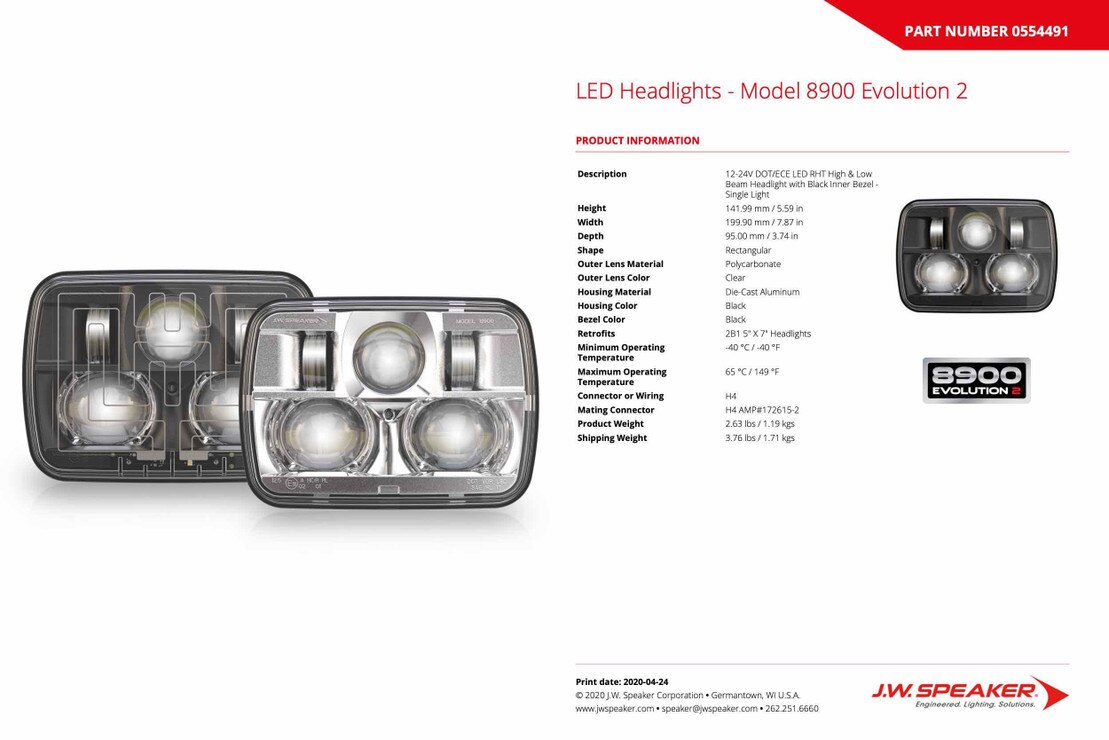

  • Tech Specs

  • Height: 141.99 mm / 5.59 in

  • Width: 199.90 mm / 7.87 in

  • Depth: 95.00 mm / 3.74 in

  • Shape: Rectangular

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

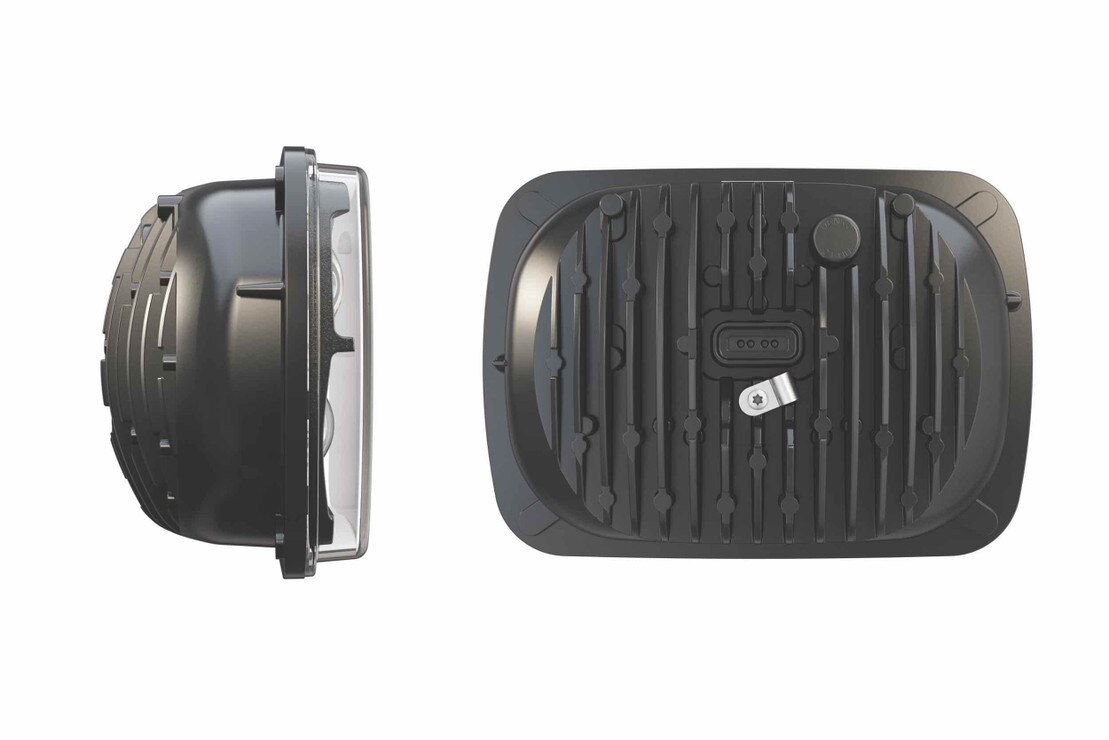

  • Housing Material: Die-Cast Aluminum

  • Housing Color: Black

  • Bezel Color: Black

  • Retrofits: 2B1 5" X 7" Headlights

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: H4

  • Mating Connector: H4 AMP#172615-2

  • Product Weight: 2.63 lbs / 1.19 kgs

  • Shipping Weight: 3.76 lbs / 1.71 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 10-32V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses

  • Black Wire: Ground

  • Yellow Wire: Low Beam

  • White Wire: High Beam

  • Red Wire: Front Position*

  • Current Draw: 1.94A @ 12V DC (High Beam)

  • Current Draw: 1.67A @ 12V DC (Low Beam)

  • Current Draw: 0.22A @ 12V DC (Front Position)

  • Current Draw: 1.03A @ 24V DC (High Beam)

  • Current Draw: 0.87A @ 24V DC (Low Beam)

  • Current Draw: 0.16A @ 24V DC (Front Position)
