Universal LED Headlights

JW Speaker Model 8801

JW40-TRS

PART #: 1 x 549231


[ In Stock: pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

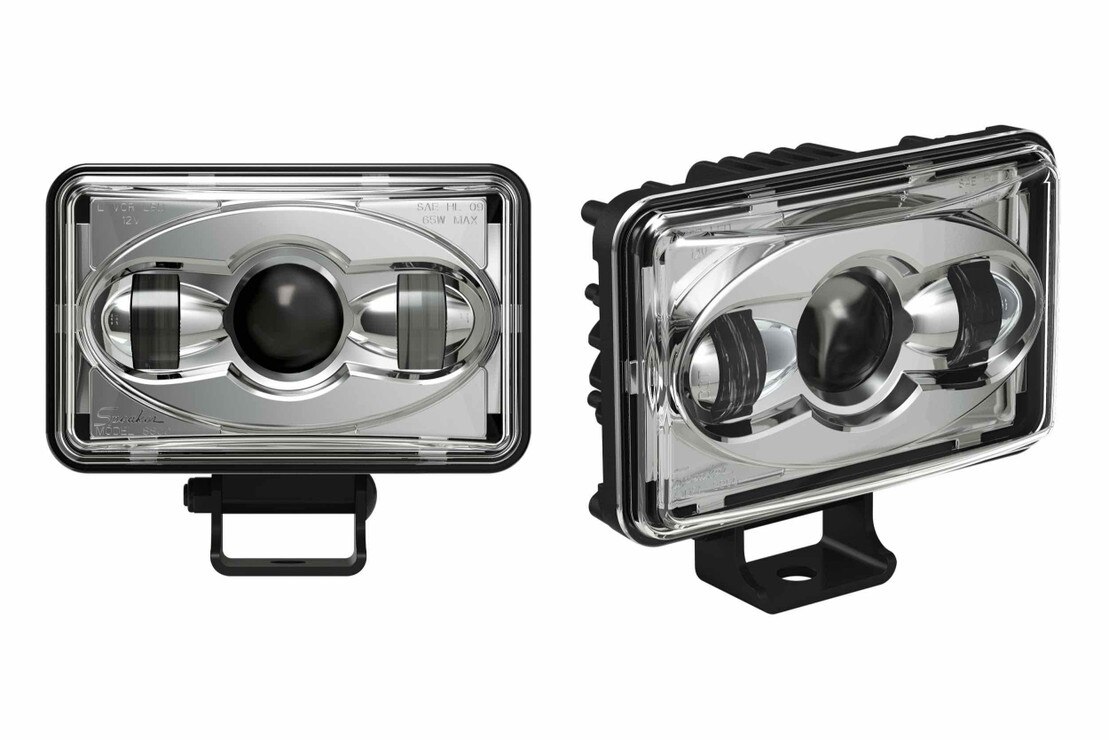

Similar to our Model 8800, our Model 8801 provides superior visibility, extreme durability, and unmatched longevity for 1A1 and 2A1 sealed beam replacement. Pedestal mount included for added flexibility.

Features: UV-resistant polycarbonate lens, Die-cast aluminum housing provides maximum protection.

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker 8801 LED Headlight

  • PART NUMBER: 549231 or 549211

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 549231: JW Speaker: 8801-12V Pedestal Highbeam SAE/ECE

  • 549211: JW Speaker: 8801-12V PED Pedestal SAE/ECE RHT

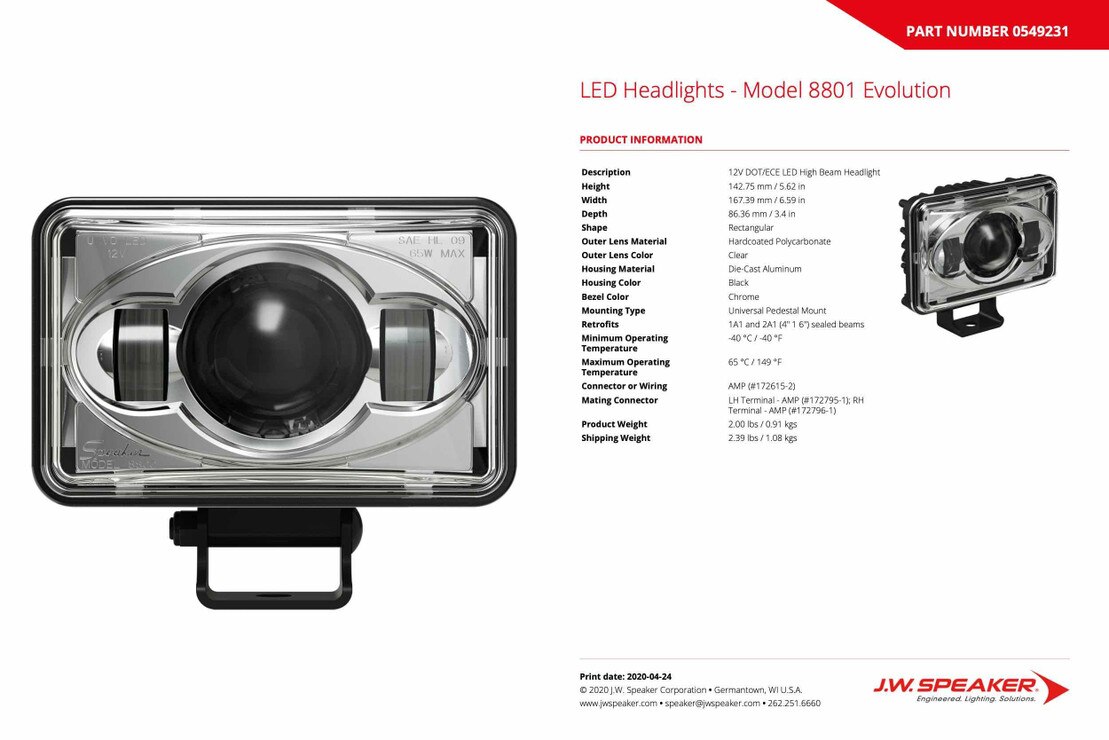

  • Tech Specs

  • Height: 142.75 mm / 5.62 in

  • Width: 167.39 mm / 6.59 in

  • Depth: 86.36 mm / 3.4 in

  • Shape: Rectangular

  • Outer Lens Material: Hardcoated Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Die-Cast Aluminum

  • Housing Color: Black

  • Bezel Color: Chrome

  • Mounting Type: Universal Pedestal Mount

  • Retrofits: 1A1 and 2A1 (4" 1 6") sealed beams

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: AMP (#172615-2)

  • Mating Connector: LH Terminal - AMP (#172795-1); RH Terminal - AMP (#172796-1)

  • Product Weight: 2.00 lbs / 0.91 kgs

  • Shipping Weight: 2.39 lbs / 1.08 kgs

  • Input Voltage: 12V DC

  • Operating Voltage: 10-15V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses

  • Red Wire: Positive

  • Black Wire: Negative

  • Current Draw: 2.25A @ 12V DC
