Universal 5.75" Round LED Headlights

JW Speaker Model 8631

JW29

PART #: 1 x 551631


[ In Stock: pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

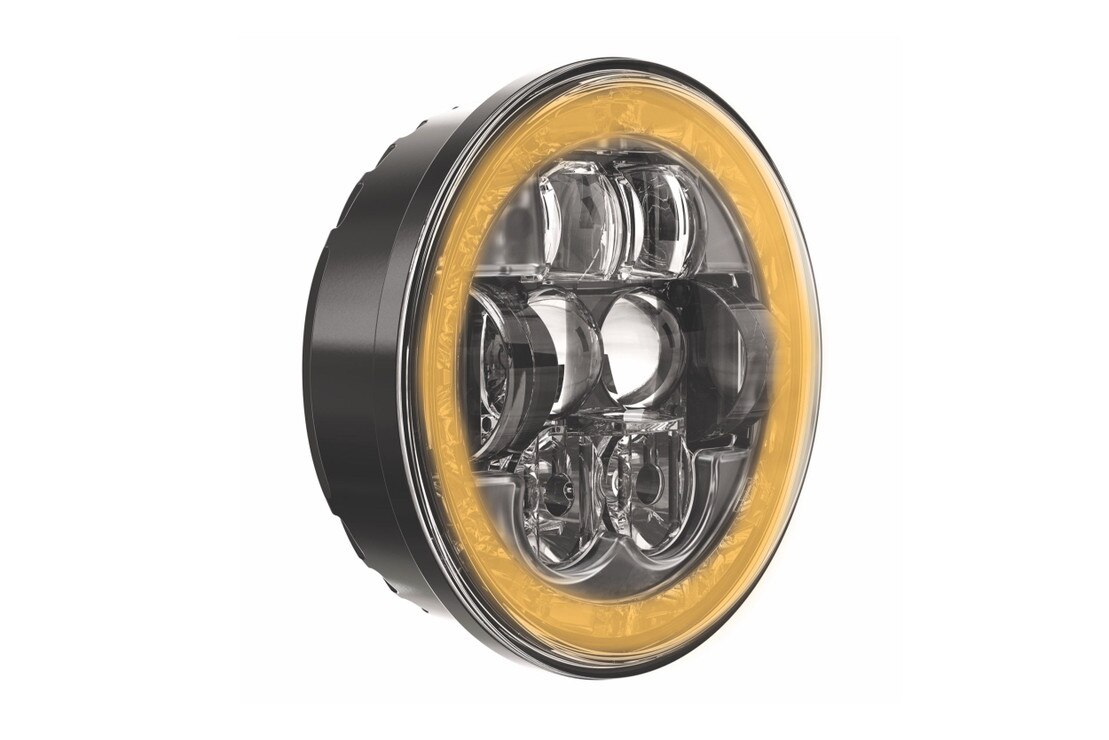

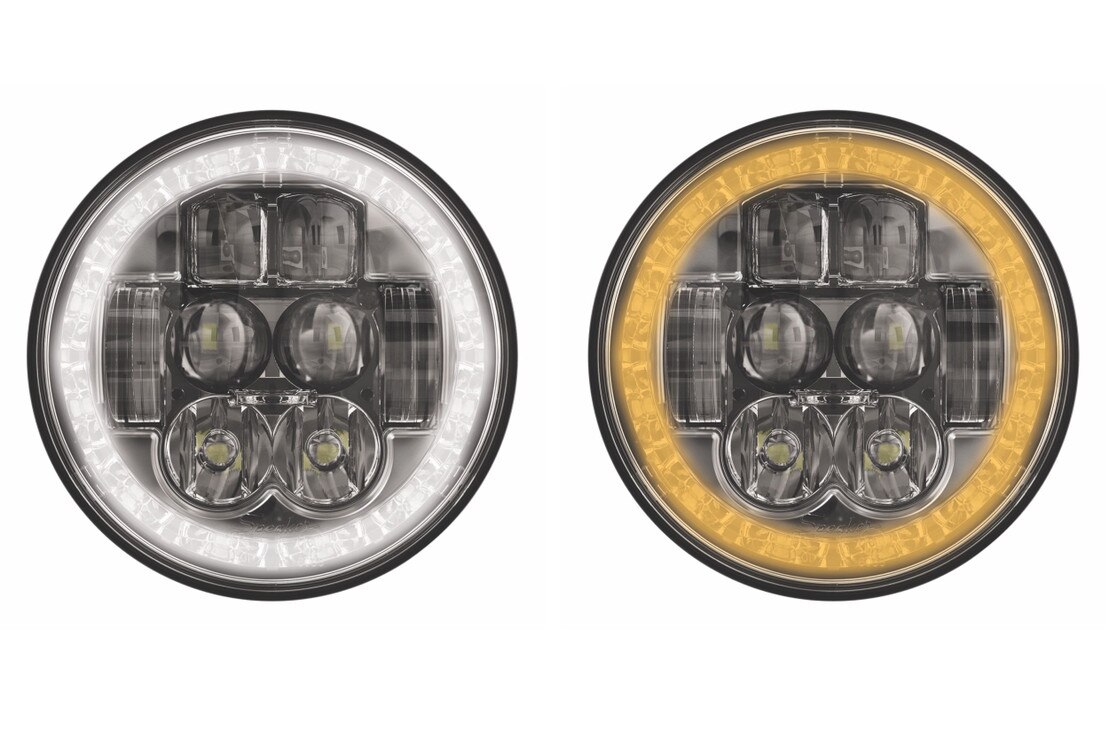

8631 is the 8630 Evo with More! The new Model 8631 Evolution LED headlight brings you all of the same great features found in our Model 8630 Evolution headlight, with the addition of a turn signal. Ideal for Classic car headlights, motorcycle headlight replacement, or anything that fits 5.75in (PAR46) specifications.

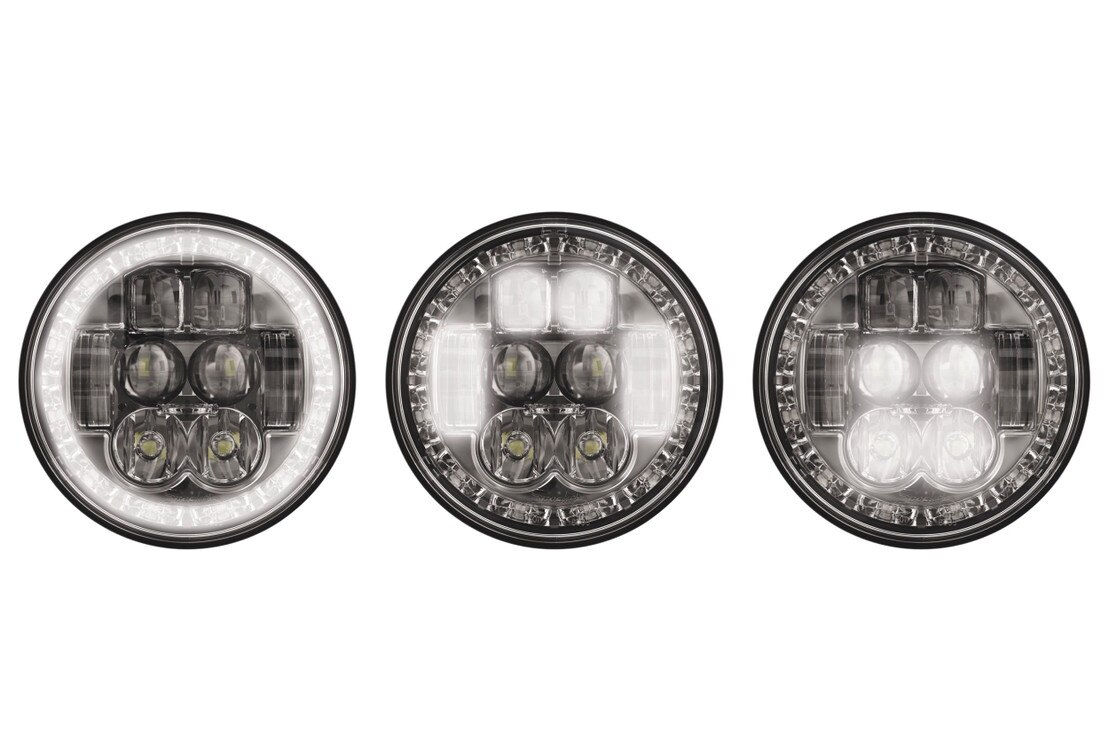

Using high-quality LEDs to provide superior output levels, the Model 8630 Evolution delivers improved performance over our original Model 8630 LED headlight. This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions.

Features: Combined high and low beam functions, Newer design boasts a 50% increase in high beam intensity, Easy plug and play installation with Delphi wire connector, Front position and DRL functions utilize a new outer ring at high intensities, ECE versions (not for use in the U.S.) feature DRL & FP functions.

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 8631 Universal LED Headlight

  • PART NUMBER: 551631 or 551641

  • WARRANTY: Lifetime Limited

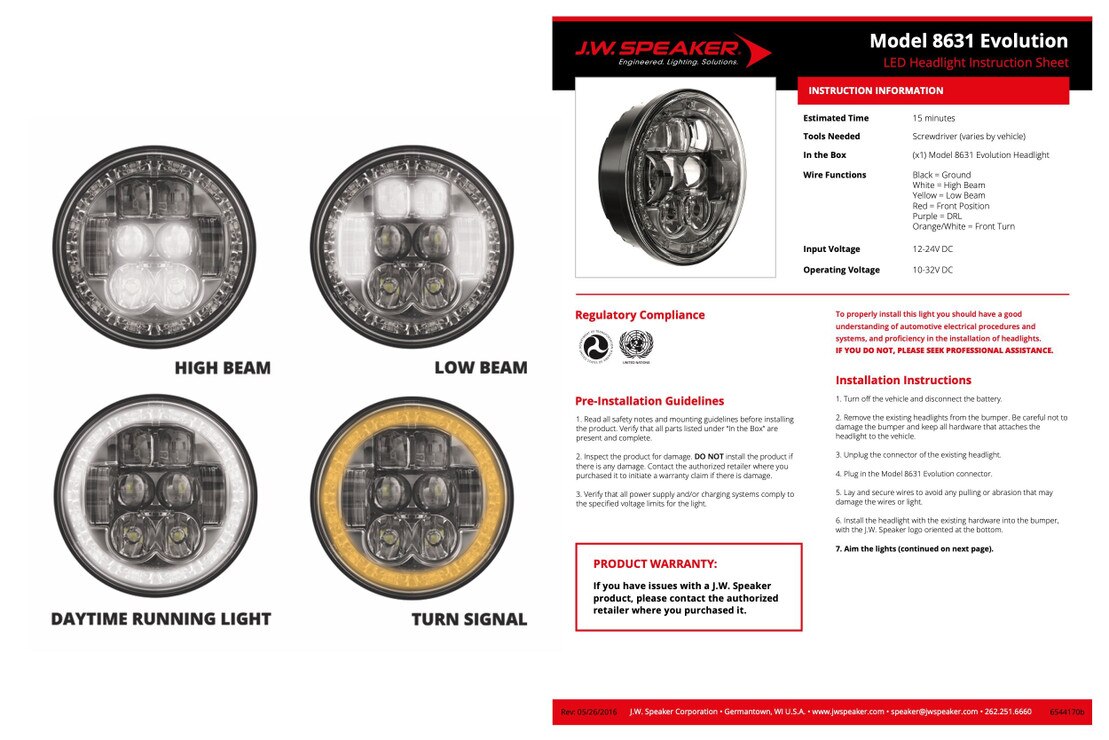

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 0551631: 12-24V DOT/ECE LED RHT High & Low Beam Headlight with Turn Signal, FP & DRL

  • 0551641: 12-24V ECE LED LHT High & Low Beam Headlight with Turn Signal, FP & DRL

  • Tech Specs

  • Height: 142.24 mm / 5.6 in

  • Width: 142.24 mm / 5.6 in

  • Depth: 86.36 mm / 3.4 in

  • Shape: Round

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Die Cast Aluminum

  • Housing Color: Black

  • Bezel Color: Black

  • Minimum Operating Temperature: -34 degC / -29.2 degF

  • Maximum Operating Temperature: 49 degC / 120.2 degF

  • Connector or Wiring: Integral Connector in Housing simulating Delphi 12124107

  • Mating Connector: Delphi 12052848

  • Product Weight: 1.86 lbs / 0.84 kgs

  • Shipping Weight: 1.80 lbs / 0.82 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 10-32V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pul

  • Yellow Wire: Low Beam

  • White Wire: High Beam

  • Black Wire: Ground

  • Current Draw: 2.20A @ 12V DC (Low Beam)

  • Current Draw: 1.70A @ 14V DC (Low Beam)

  • Current Draw: 1.10A @ 24V DC (Low Beam)

  • Current Draw: 3.50A @ 12V DC (High Beam)

  • Current Draw: 2.70A @ 14V DC (High Beam)

  • Current Draw: 1.70A @ 24V DC (High Beam)
