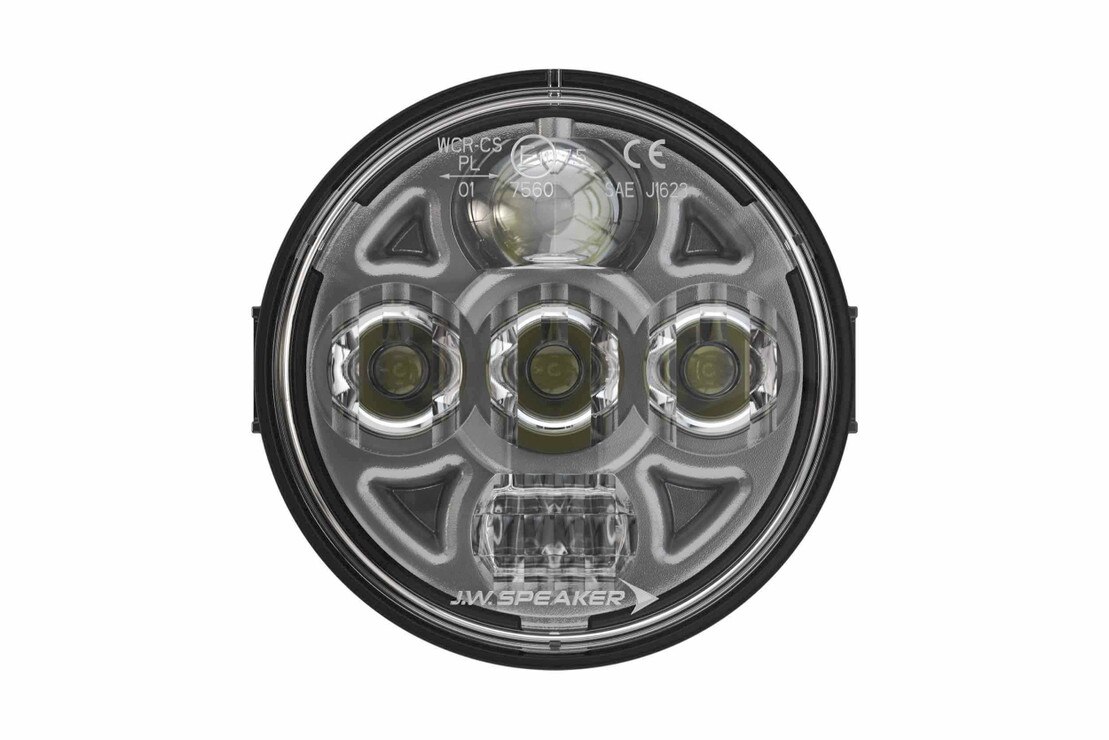

Universal 4.5" Round LED Headlights

JW Speaker Model 8415


PART #: 1 x 551761

Some products is out of stock and requires a special order from J.W. Speaker. Delivery may take up to 4-8 weeks.

[ In Stock: 0 pieces ]


Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

Our Model 8415 has been updated to an Evolution Series solution, delivering even better performance with a new, lightweight yet durable platform.

Designed for OEMs and aftermarket customers alike, these powerful round LED headlights include a custom version that meets UL standards for industrial use.

Features: High performance optics with increased high beam intensity, New high-impact, corrosion-resistant XENOY housing, Custom version with polycarbonate housing designed for industrial applications needing UL requirements, Improved thermal management using thermoplastic technology found in our XD work light series, Adjustable or fixed mounting options, This new version was designed to retrofit ATV and snowmobile applications.

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 8415 Universal LED Headlight

  • PART NUMBER: 551761, 552031, or 551191

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 551761: JW Speaker: 8415-EV 12/24V Highbeam/Lowbeam Rigid Mount

  • 552031: JW Speaker: 8415-EV 12/24V Highbeam/Lowbeam Universal Mount

  • 551191: JW Speaker: 8415-EV 12/24V Highbeam/Lowbeam Universal Mount

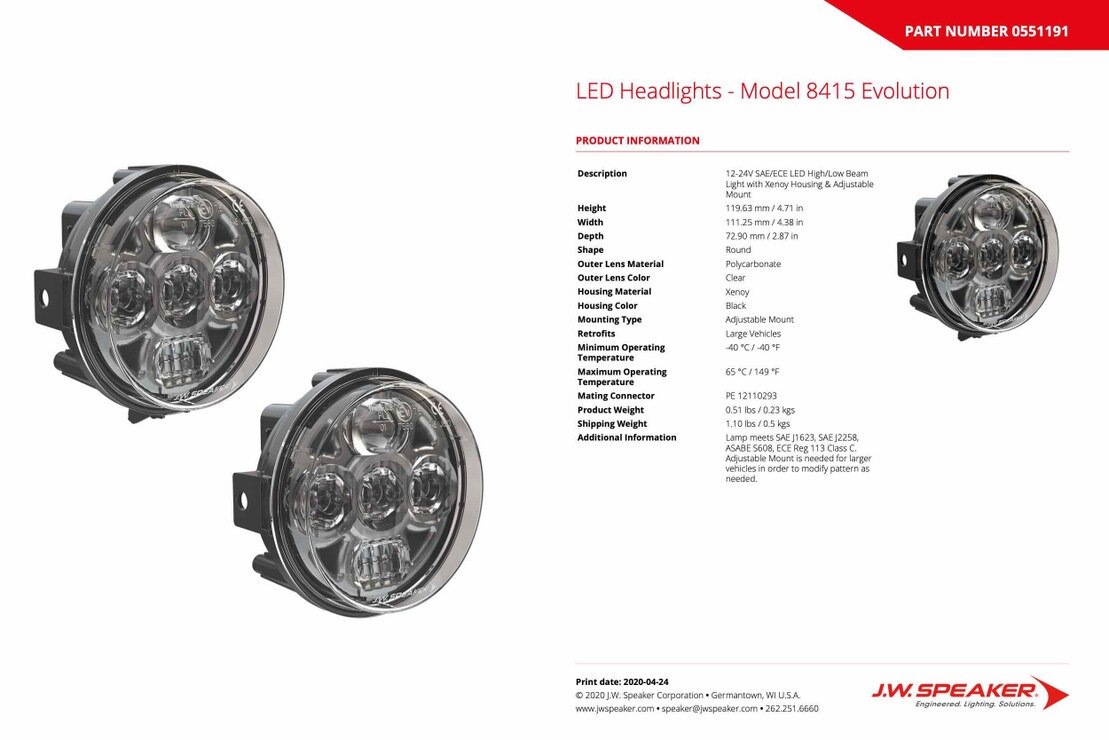

  • Tech Specs

  • Height: 119.63 mm / 4.71 in

  • Width: 111.25 mm / 4.38 in

  • Depth: 72.90 mm / 2.87 in

  • Shape: Round

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Xenoy

  • Housing Color: Black

  • Mounting Type: Adjustable Mount

  • Retrofits: Large Vehicles

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

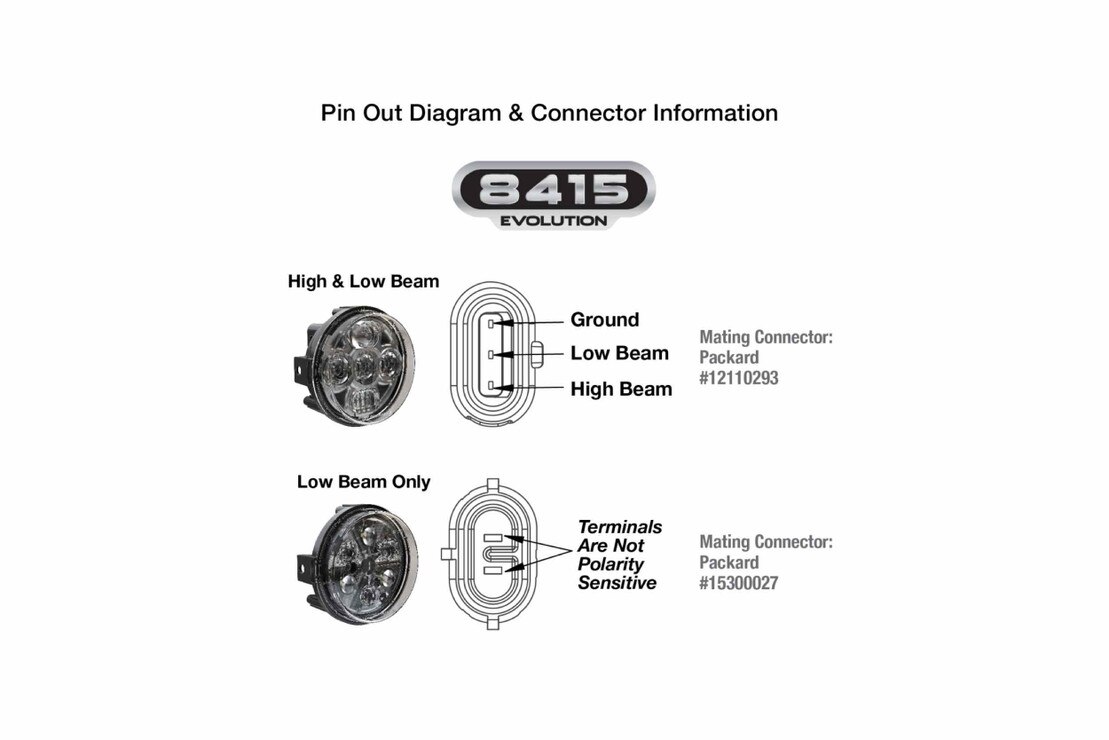

  • Mating Connector: PE 12110293

  • Product Weight: 0.51 lbs / 0.23 kgs

  • Shipping Weight: 1.10 lbs / 0.5 kgs

  • Additional Information: Lamp meets SAE J1623, SAE J2258, ASABE S608, ECE Reg 113 Class C.

  • Adjustable Mount: Needed for larger vehicles in order to modify pattern as needed.

  • Input Voltage: 12-24V DC

  • Operating Voltage: 10-30V DC

  • Current Draw: 1.14A @ 12V DC (High Beam)

  • Current Draw: 0.41A @ 12V DC (Low Beam)

  • Current Draw: 0.57A @ 24V DC (High Beam)

  • Current Draw: 0.22A @ 24V DC (Low Beam)
