LED Work Light

JW Speaker Model 783

JW24-TRS

PART #: 1 x 1603391


[ In Stock: pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

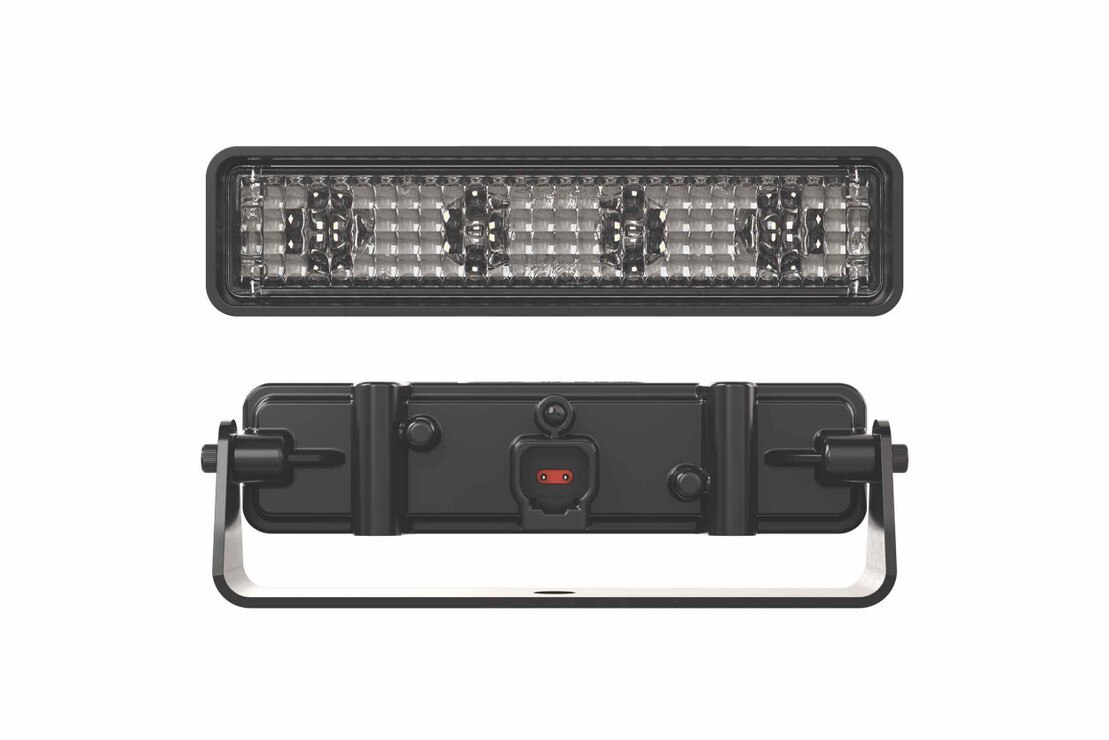

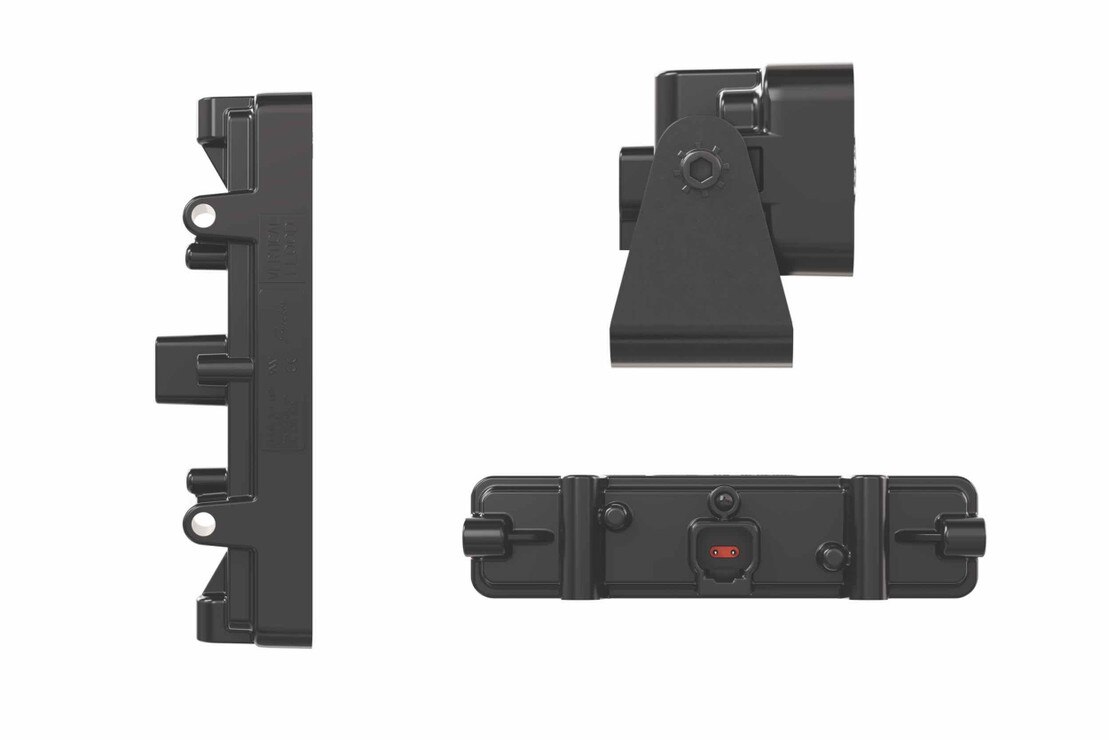

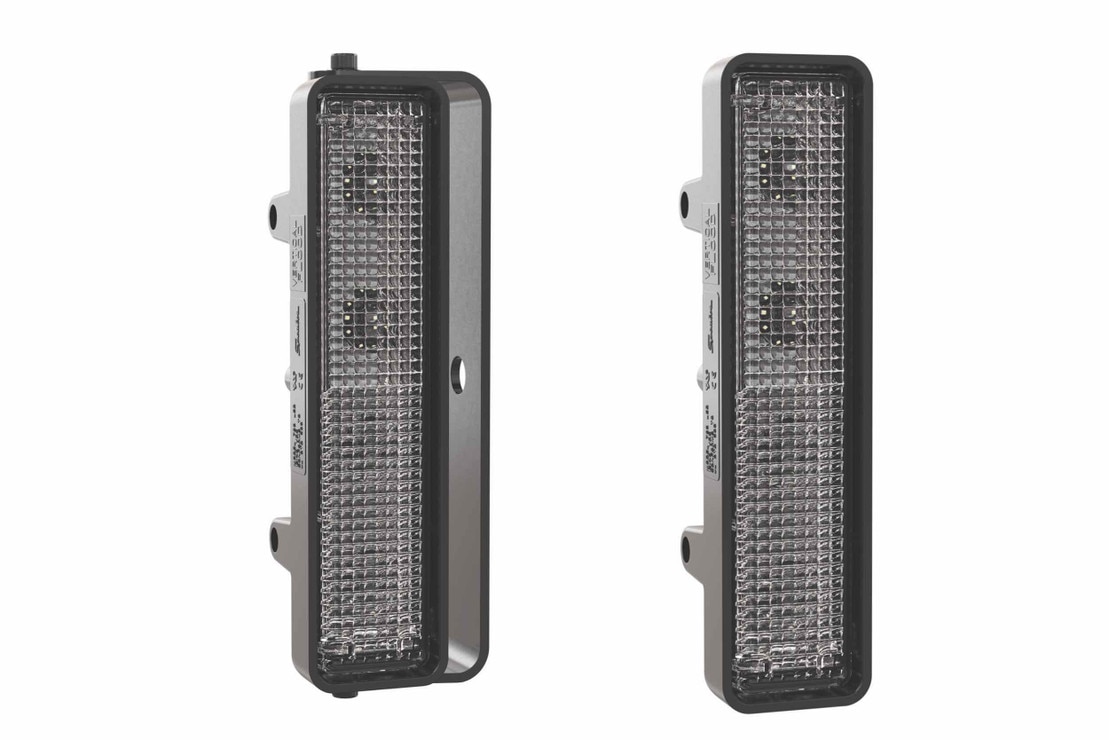

Get your heavy-duty LED light bar with easy installation in our model 783 XD. Designed with a thermally-conductive polycarbonate housing and upgraded electronics, this model provides maximized LED performance.

Materials & construction make the Model 783 XD both impact- and corrosion-resistant while the low-profile design allows for easier mounting. Get enhanced performance, simplified installation and improved durability with this model 783 XD!

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 783 LED Work Light

  • PART NUMBER: 1603391 or 1603451

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 1603391: JW Speaker: 783F-12/48V Worklamp - Flood Beam

  • 1603451: JW Speaker: 783VF-12/48V Vert Flood Beam w/Wire Harness

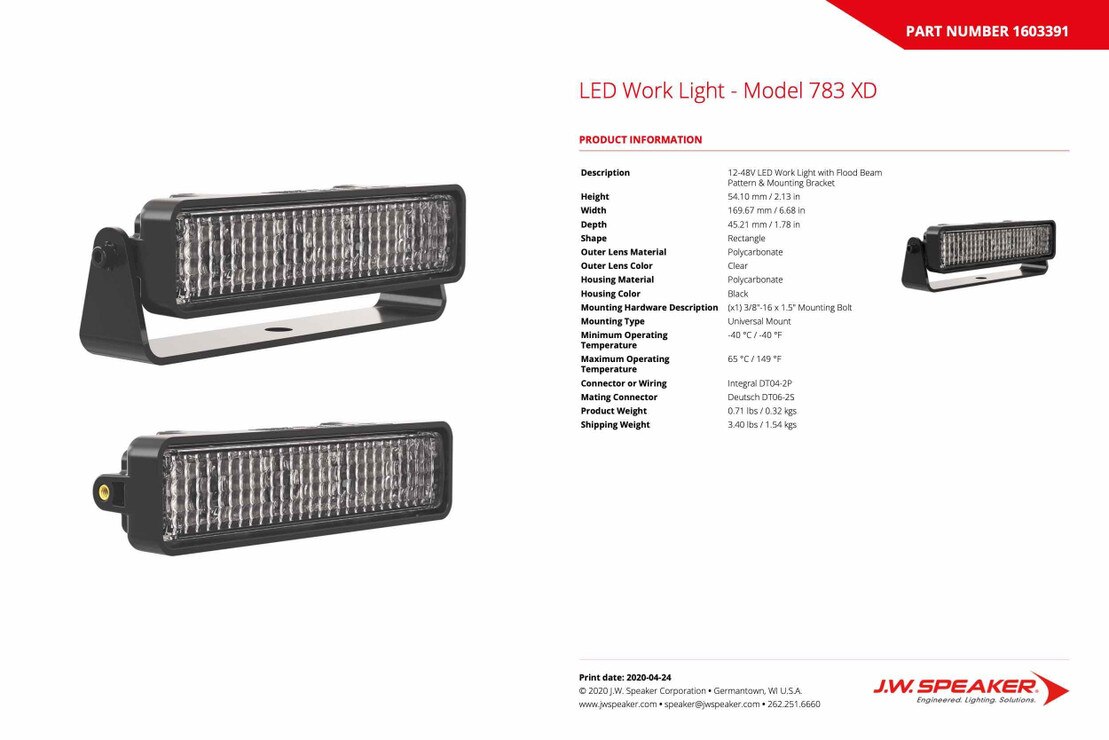

  • Tech Specs

  • Height: 54.10 mm / 2.13 in

  • Width: 169.67 mm / 6.68 in

  • Depth: 45.21 mm / 1.78 in

  • Shape: Rectangle

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Polycarbonate

  • Housing Color: Black

  • Mounting Hardware Description: (x1) 3/8"-16 x 1.5" Mounting Bolt

  • Mounting Type: Universal Mount

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: Integral DT04-2P

  • Mating Connector: Deutsch DT06-2S

  • Product Weight: 0.71 lbs / 0.32 kgs

  • Shipping Weight: 3.40 lbs / 1.54 kgs

  • Input Voltage: 12-48V DC

  • Operating Voltage: 9-60V DC

  • Transient Spike Protection: 330V Peak @ 1 HZ-100 Pulses

  • Red Wire: Positive

  • Black Wire: Negative

  • Current Draw: 1.00A @ 12V DC (Flood)

  • Current Draw: 0.50A @ 24V DC (Flood)

  • Current Draw: 0.30A @ 36V DC (Flood)

  • Current Draw: 0.25A @ 48V DC (Flood)
