5x3" Oval Work Light

JW Speaker Model 770

JW22-TRS

PART #: 1 x 1706241


[ In Stock: 0 pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

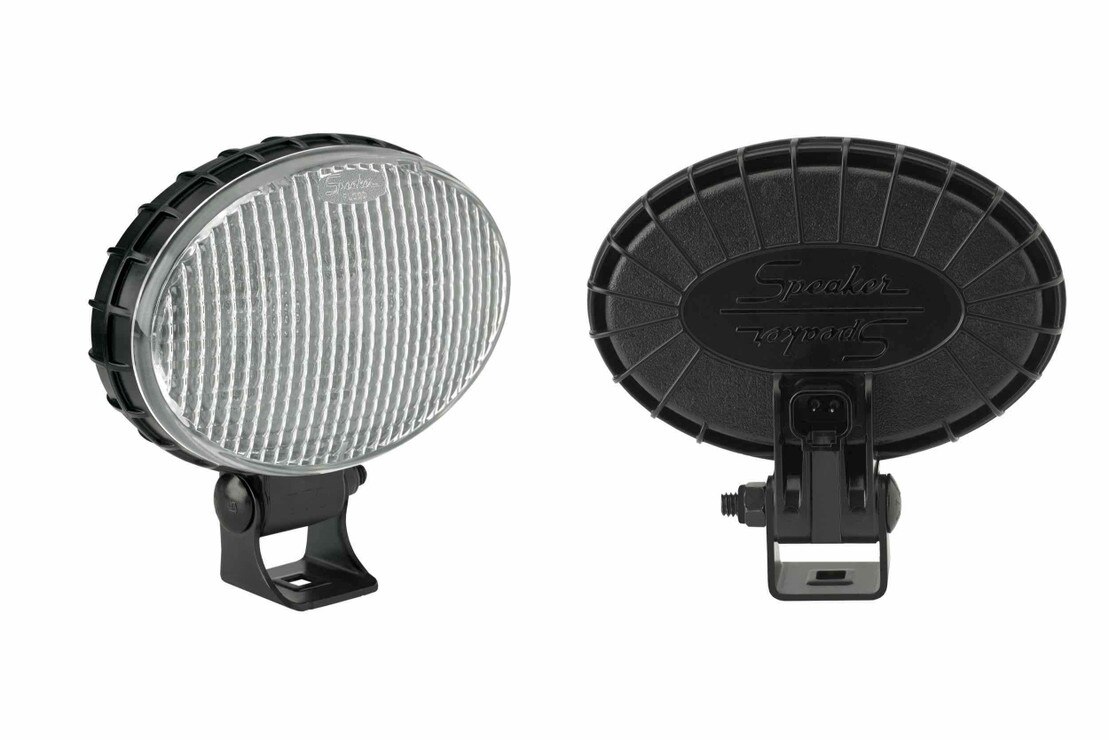

The 770 XD improves on the high-quality electronics and engineered optics of the Model 700, and puts them into a much slimmer package. As with the rest of the XD Series, it features a polycarbonate housing and lens for maximum protection.

Features: A variety of beam patterns available, UV-resistant polycarbonate lens, Universal mount, Vertical oval version available (Model 771 XD).

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 770 LED Oval Work Light

  • PART NUMBER: 1706241

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 1706241: JW Speaker: 770F-12/48V XD Worklamp - Flood Beam

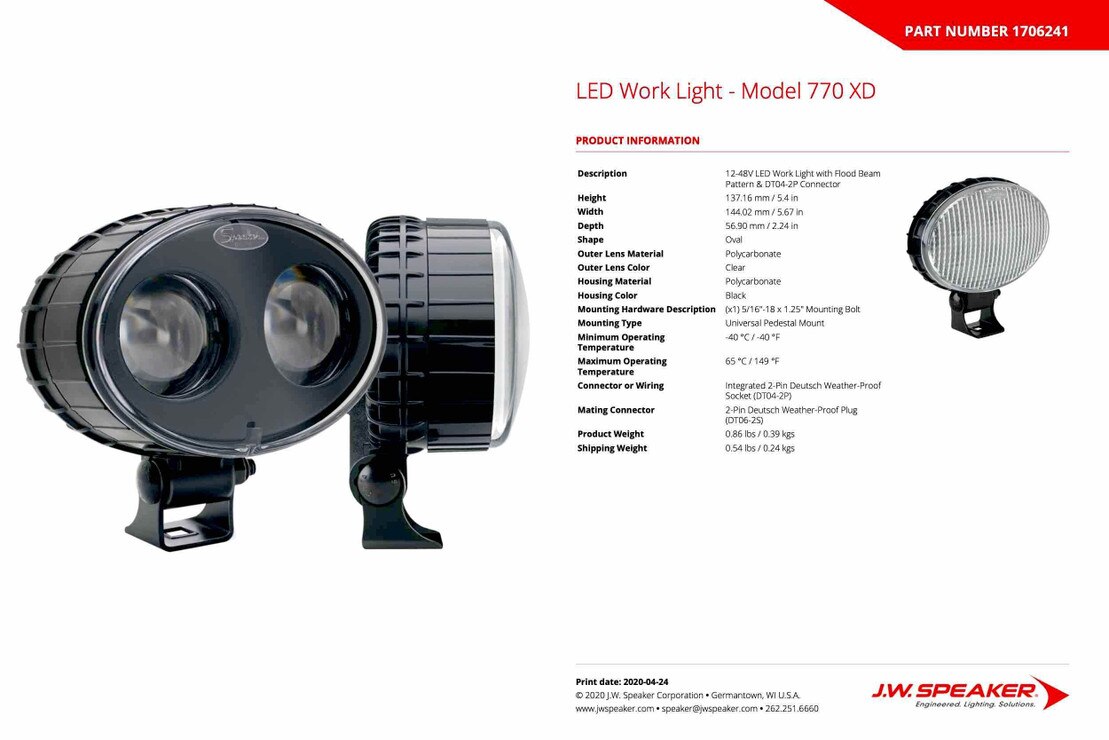

  • Tech Specs

  • Height: 137.16 mm / 5.4 in

  • Width: 144.02 mm / 5.67 in

  • Depth: 56.90 mm / 2.24 in

  • Shape: Oval

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Polycarbonate

  • Housing Color: Black

  • Mounting Hardware Description: (x1) 5/16"-18 x 1.25" Mounting Bolt

  • Mounting Type: Universal Pedestal Mount

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)

  • Mating Connector: 2-Pin Deutsch Weather-Proof Plug (DT06-2S)

  • Product Weight: 0.86 lbs / 0.39 kgs

  • Shipping Weight: 0.54 lbs / 0.24 kgs

  • Input Voltage: 12-48V DC

  • Operating Voltage: 10-55V DC

  • Transient Spike Protection: 330V Peak @ 1 HZ-100 Pulses

  • Red Wire: Positive

  • Black Wire: Negative

  • Current Draw: 1.00A @ 12V DC

  • Current Draw: 0.48A @ 24V DC

  • Current Draw: 0.32A @ 36V DC

  • Current Draw: 0.25A @ 48V DC
