7x3" Round LED Work Light

JW Speaker Model 660

JW18-TRS

PART #: 1 x 548511


[ In Stock: pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

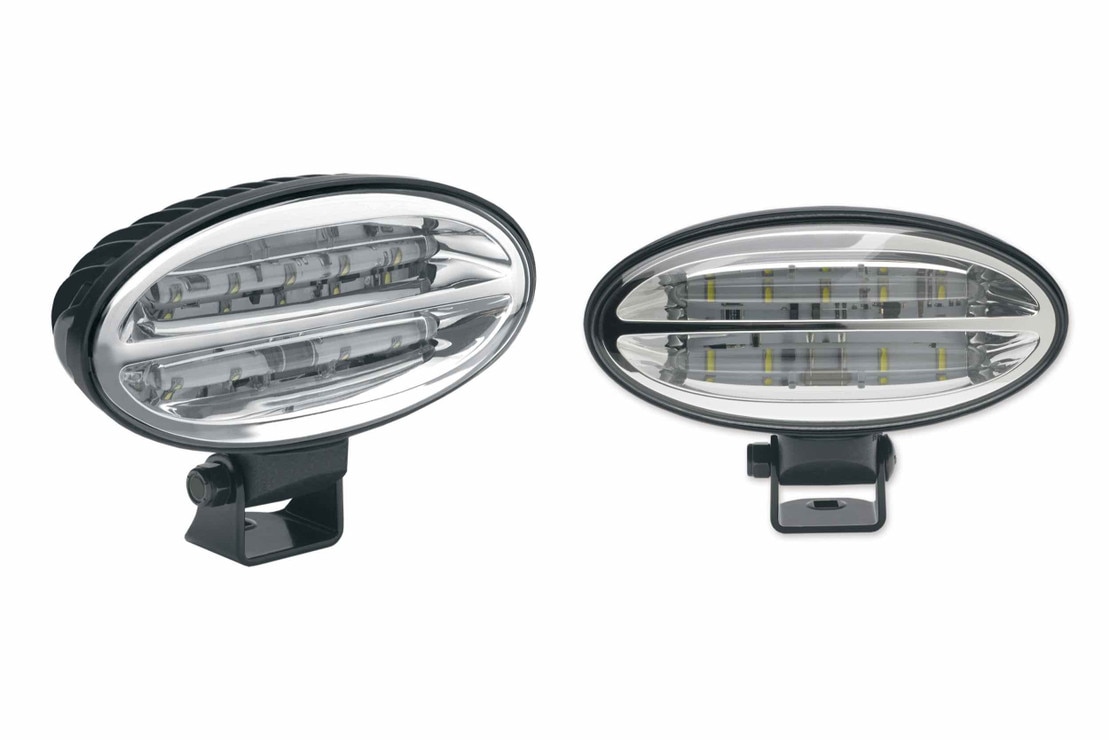

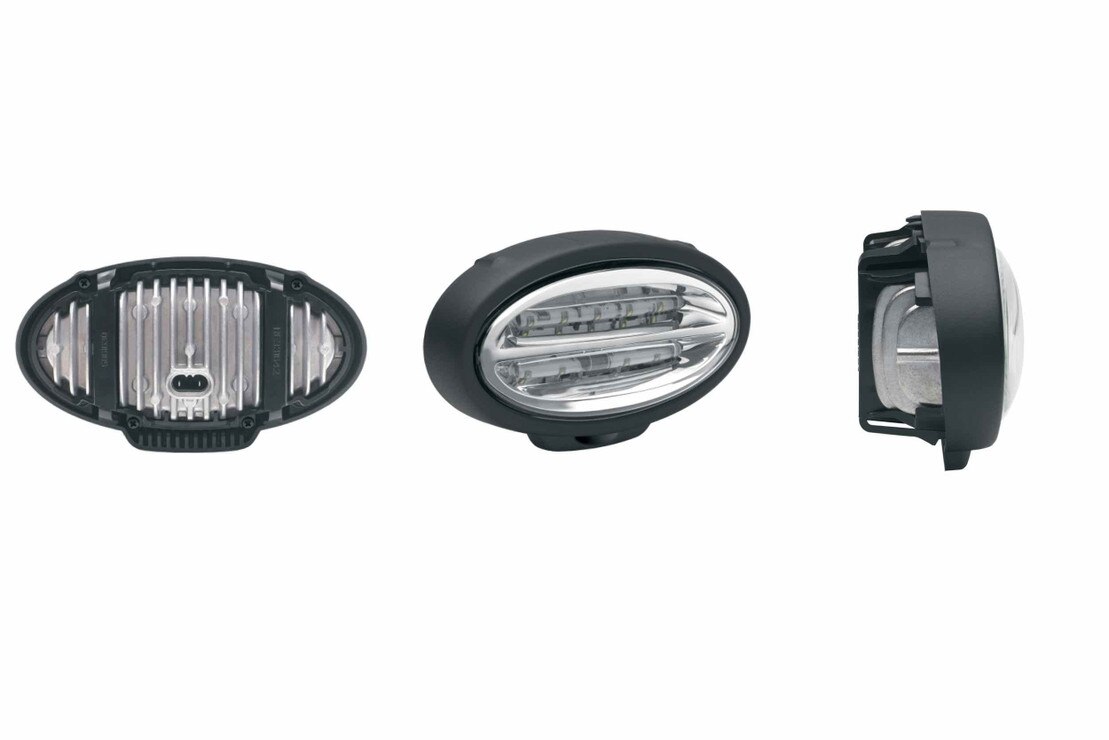

This narrow oval LED work light was designed with agriculture in mind. It is available in a panel or universal pedestal mount, and comes in a DC configuration for use on a wide range of vehicles.

Features: Bright, white LED light, Durable glass lens stands up to harsh environmental conditions, Available in a panel or universal pedestal mount.

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 660 LED Work Light

  • PART NUMBER: 548511 or 548521

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 548511: JW Speaker: 660F-12/24V LED WL Btm Mnt

  • 548521: JW Speaker: 660F-12/24V LED WL Panel Mnt

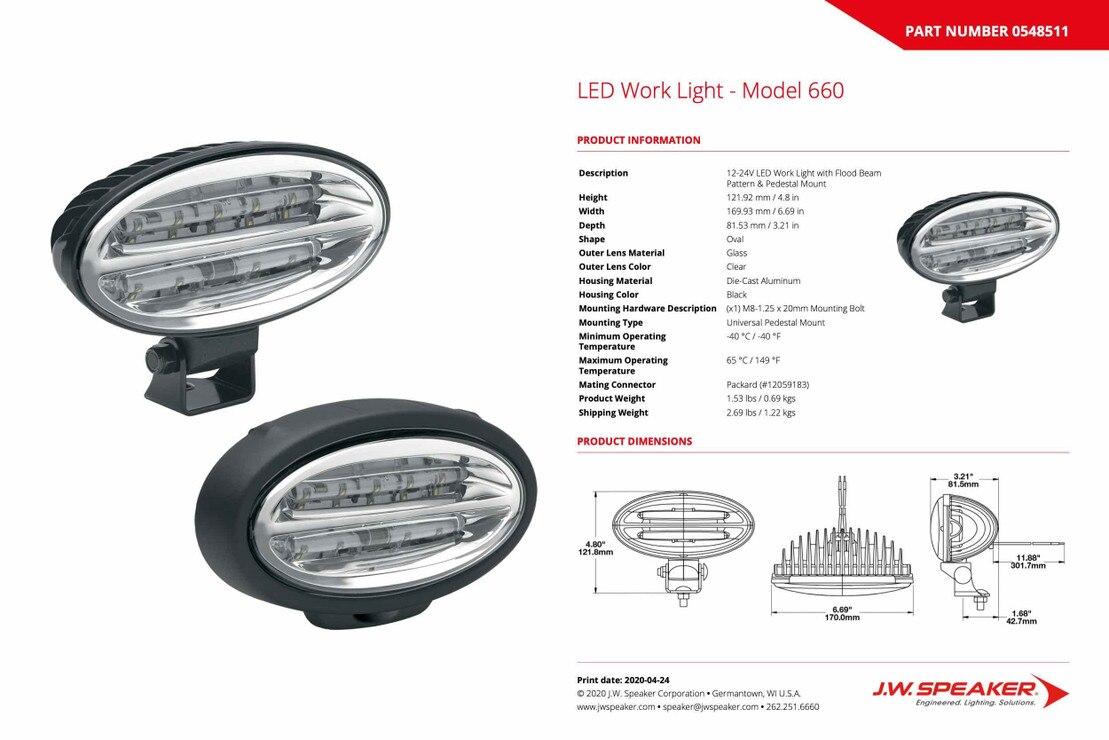

  • Tech Specs

  • Height: 121.92 mm / 4.8 in

  • Width: 169.93 mm / 6.69 in

  • Depth: 81.53 mm / 3.21 in

  • Shape: Oval

  • Outer Lens Material: Glass

  • Outer Lens Color: Clear

  • Housing Material: Die-Cast Aluminum

  • Housing Color: Black

  • Mounting Hardware Description: (x1) M8-1.25 x 20mm Mounting Bolt

  • Mounting Type: Universal Pedestal Mount

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Mating Connector: Packard (#12059183)

  • Product Weight: 1.53 lbs / 0.69 kgs

  • Shipping Weight: 2.69 lbs / 1.22 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 9-28V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses

  • Red Wire: Positive

  • Black Wire: Negative

  • Current Draw: 2.0A @ 12V DC 1.0A @ 24V DC
