Jeep LED Fog Lights

JW Speaker Model 6145 J2


PART #: 1 x 554573

Some products is out of stock and requires a special order from J.W. Speaker. Delivery may take up to 4-8 weeks.

[ In Stock: 0 pieces ]


Product Details

THE RETROFIT SOURCE: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

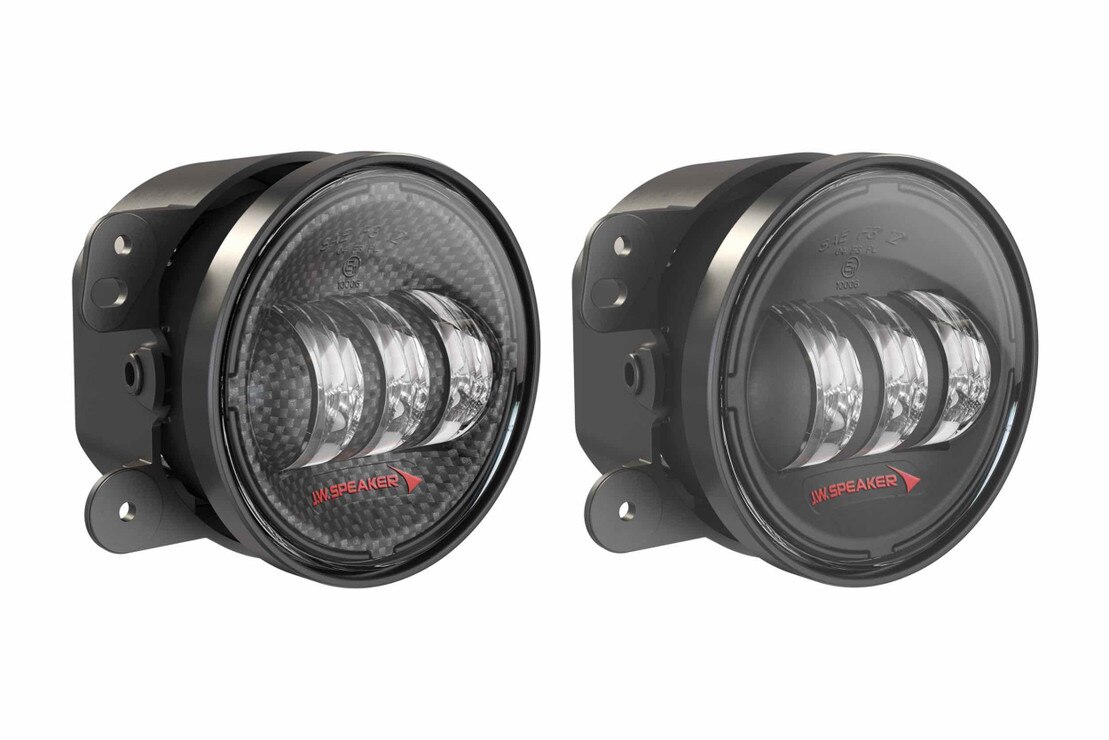

The Model 6145 J2 Series kit offers an upgrade from the existing Model 6145 J Series, providing plug & play installation and offering both a black and new hydro dipped carbon fiber design.

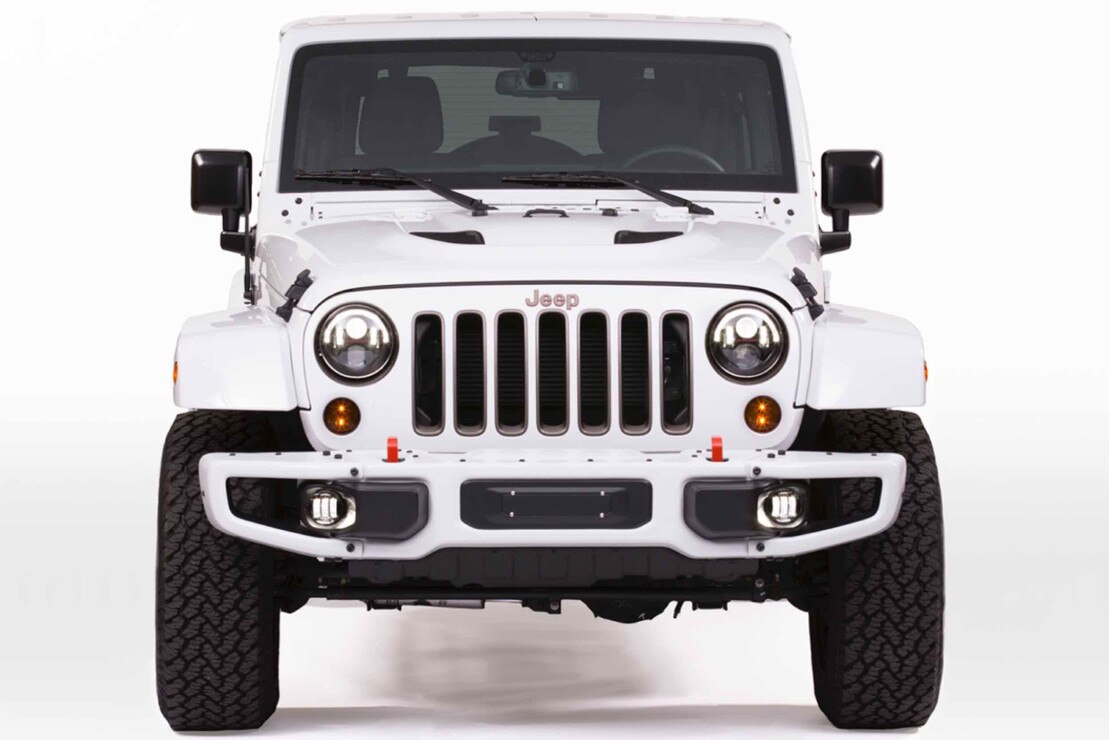

The Model 6145 J2 Series offers off-road led fog lights with easy plug & play installation. These fogs utilize our unique anti-flicker technology to eliminate the flickering commonly associated with pulse width modulation (PWM) signals in 2014 and newer model year Jeeps.

This series, referred to as the J2 Series, offers three new Jeep LED lights: dual-burn off-road headlights, smoked turn signals, and carbon fiber jeep fog light kits, lighting things up for both on and off-road users.

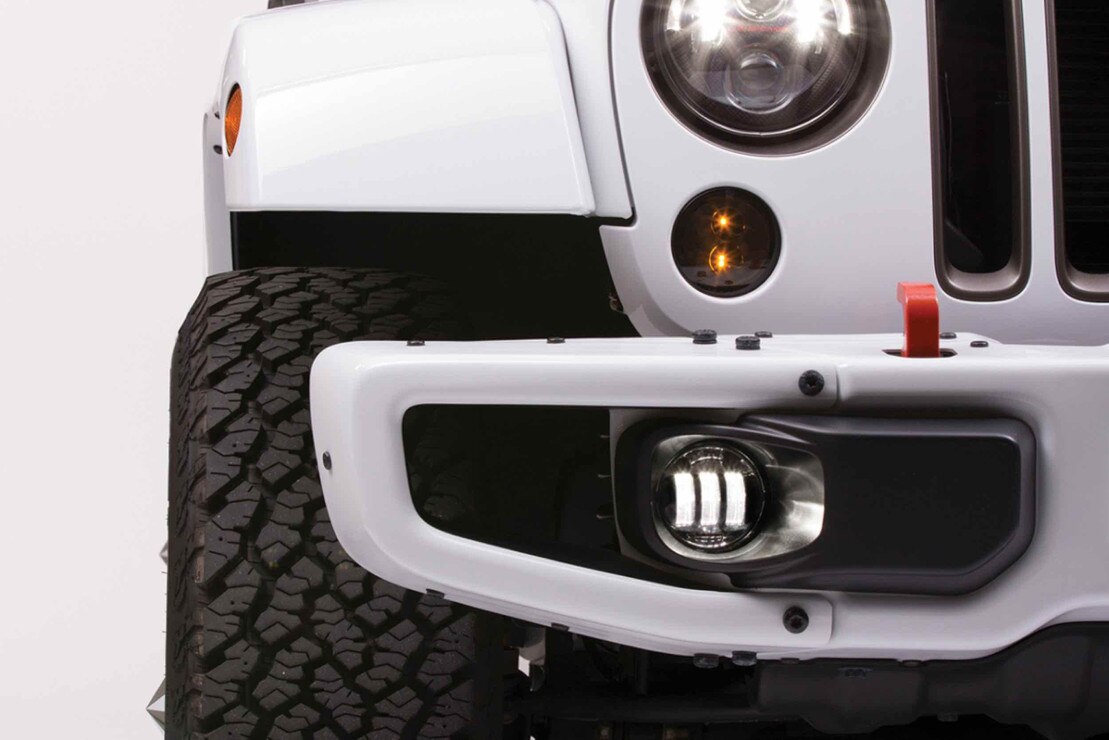

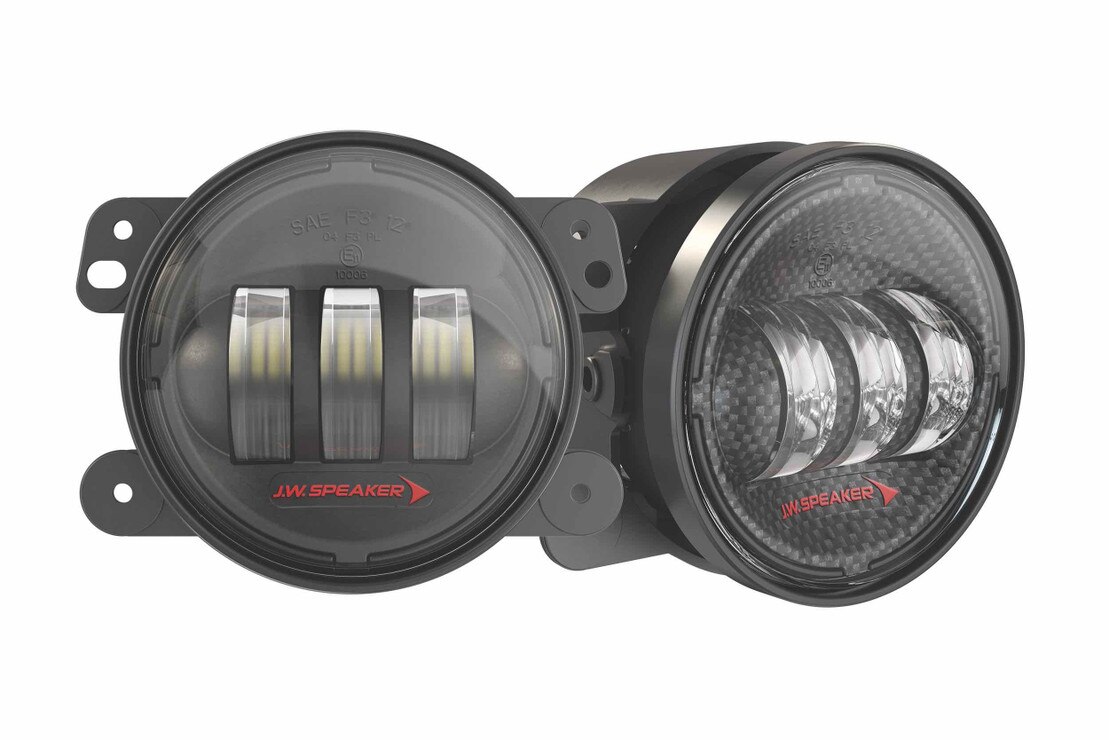

Features: Black bezel or hydro dipped bezel with carbon fiber pattern, Plug & play installation, No anti-flicker harness required, SAE, ECE, and Transport Canada compliant for on-road use, Retrofits stock and aftermarket bumpers with stock mounting configurations, Comes with both standard connector & jumper harness, Requires non-J.W. Speaker aftermarket mounting hardware to install on Jeep JL's, Hard Rock and 10th Anniversary Edition bumpers.

Product Specs

  • What's Included

  • HOUSINGS: 2x JW Speaker 6145J2 Fog Lamps

  • PART NUMBER: 0554413 or 0554573

  • WARRANTY: 5 Years

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

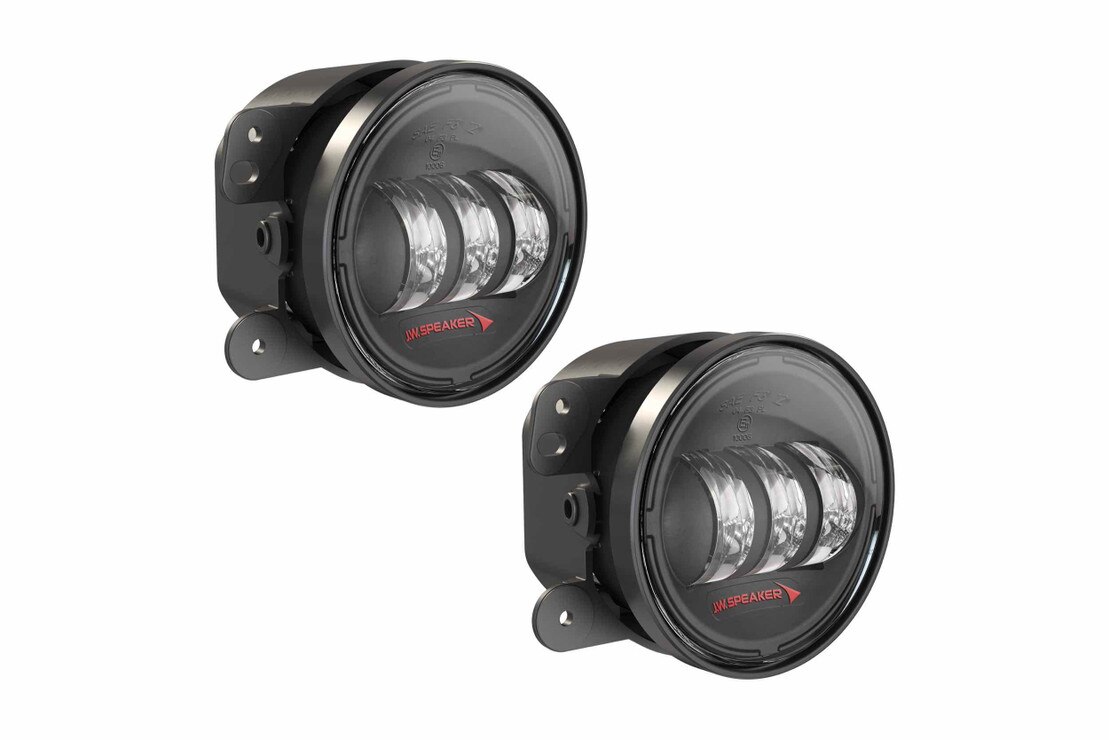

  • 554573: JW Speaker: 6145 J2 BLK W/RED LOGO BEZEL (SET)

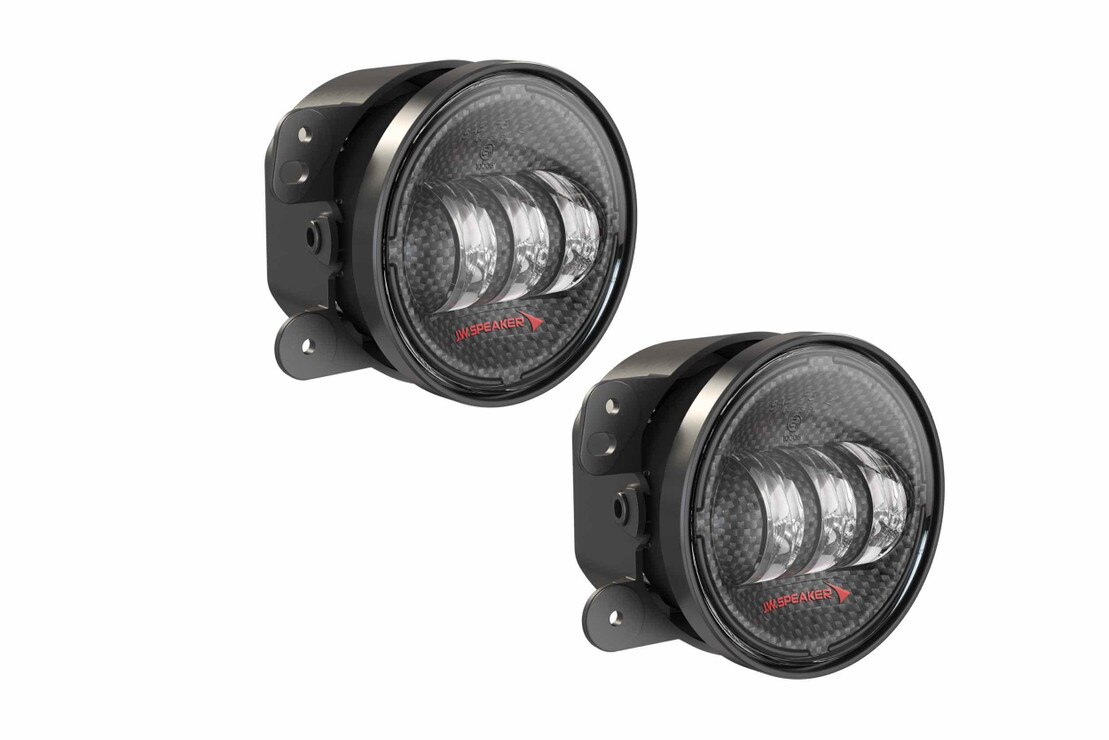

  • 554413: JW Speaker: 6145 J2 CARBON FIBER W/LOGO BEZEL (SET)

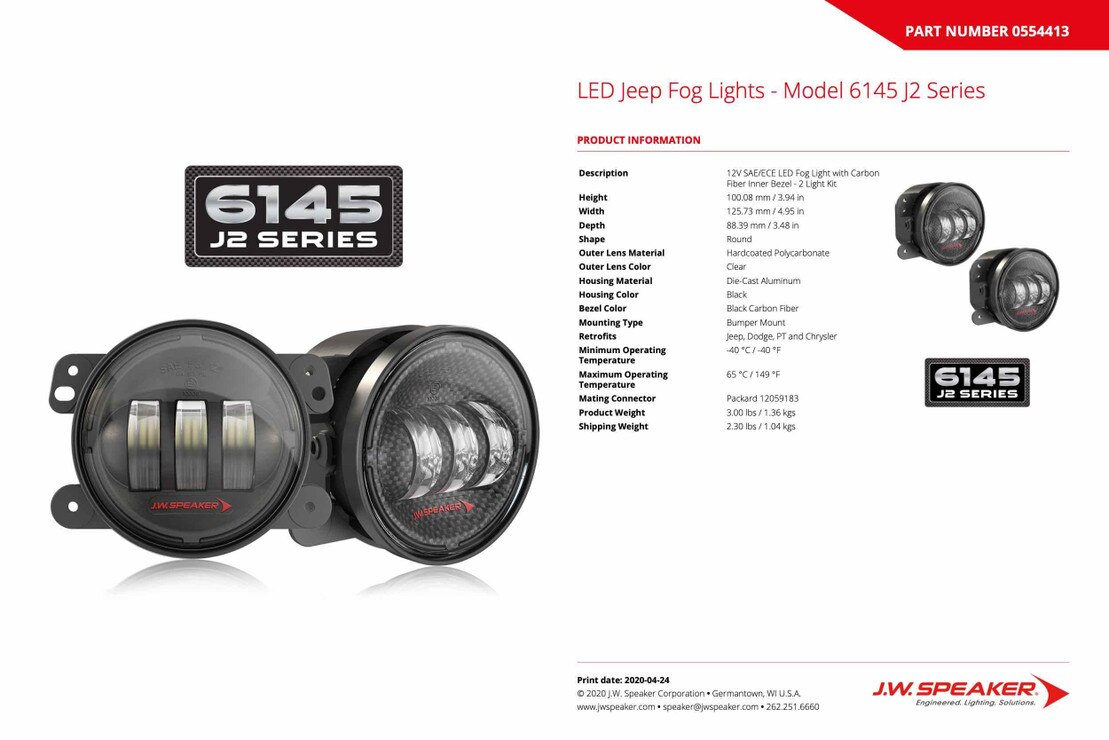

  • Tech Specs

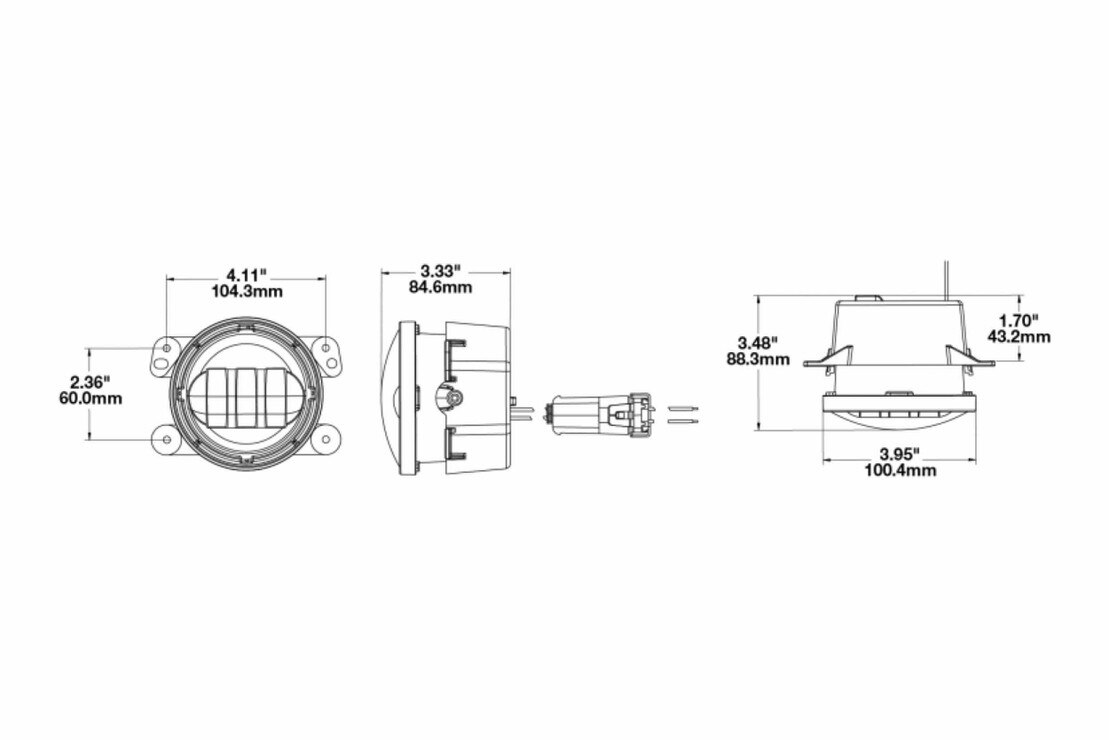

  • Height: 100.08 mm / 3.94 in

  • Width: 125.73 mm / 4.95 in

  • Depth: 88.39 mm / 3.48 in

  • Shape: Round

  • Outer Lens Material: Hardcoated Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Die-Cast Aluminum

  • Housing Color: Black

  • Bezel Color: Black Carbon Fiber

  • Mounting Type: Bumper Mount

  • Retrofits: Jeep, Dodge, PT and Chrysler

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Mating Connector: Packard 12059183

  • Product Weight: 3.00 lbs / 1.36 kgs

  • Shipping Weight: 2.30 lbs / 1.04 kgs

  • Input Voltage: 12V DC Operating Voltage 10-15V DC Red Wire Positive Black Wire Negative Current Draw:::1.60A @ 12V DC
