Bolt-On by Diode Dynamics
Hood-Mount LED Light Bar Kit: Wrangler JL3P-DD30-TRS
[ In Stock: 0 pieces ]

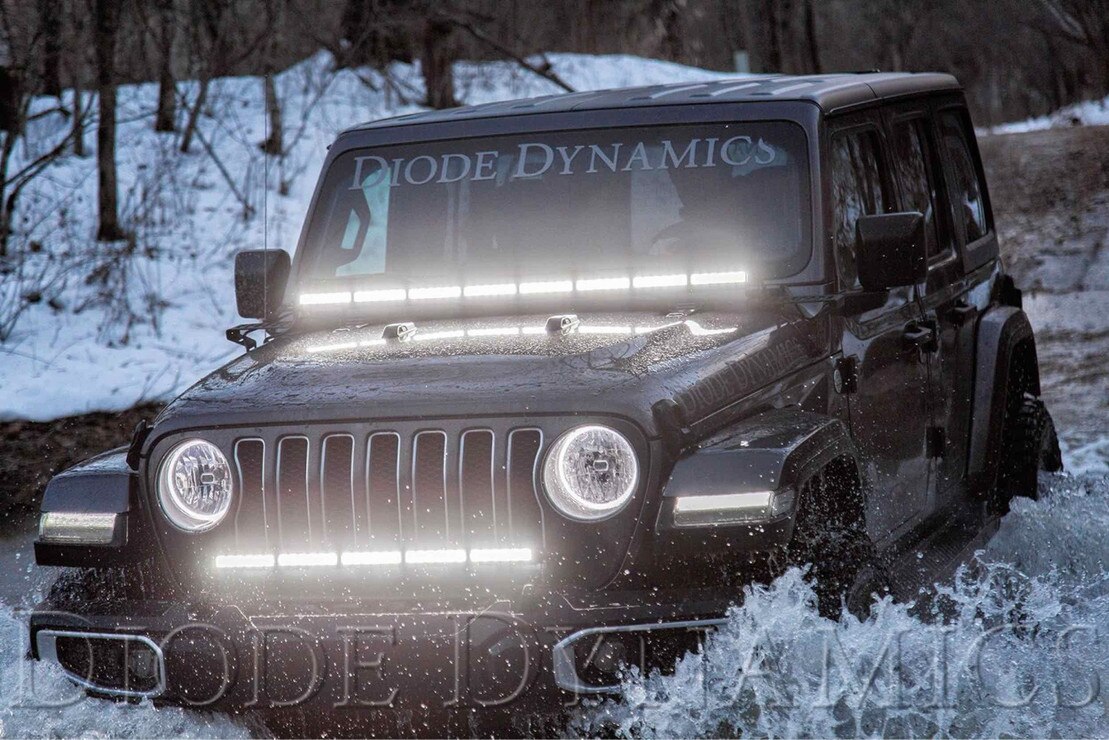

Features: CAD-designed for perfect fitment on 2018+ Jeep JL Wrangler. Allows you to mount one 50" light bar across the hood. Includes OEM-style automotive grade hardware designed specifically for this kit. Designed to eliminate excess wind noise. Utilizes existing mounting points for easy installation - no cutting or drilling required. Highly durable powdercoated steel construction. Control through factory aux switch bank using the included harness.

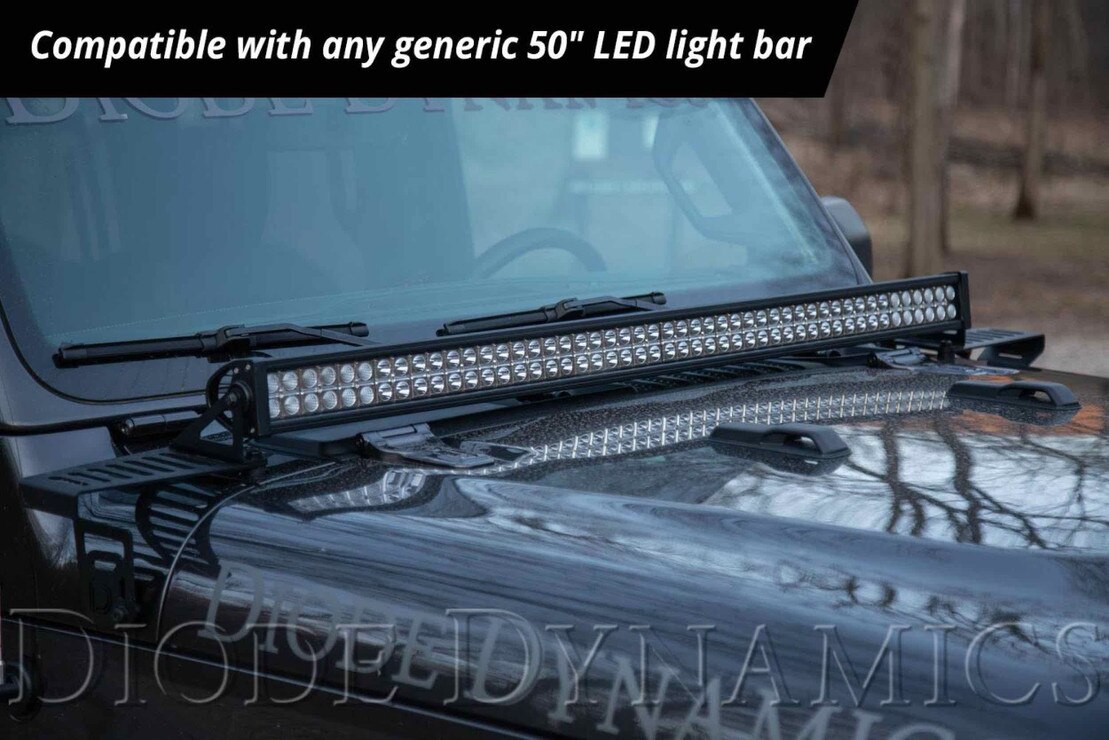

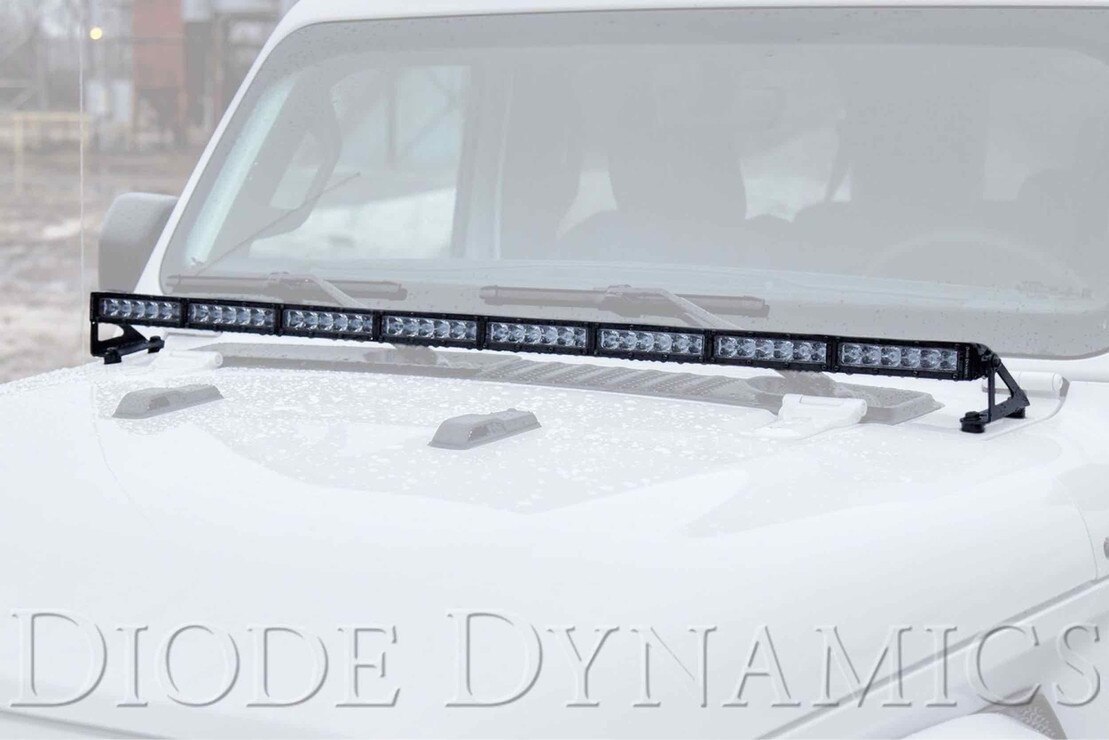

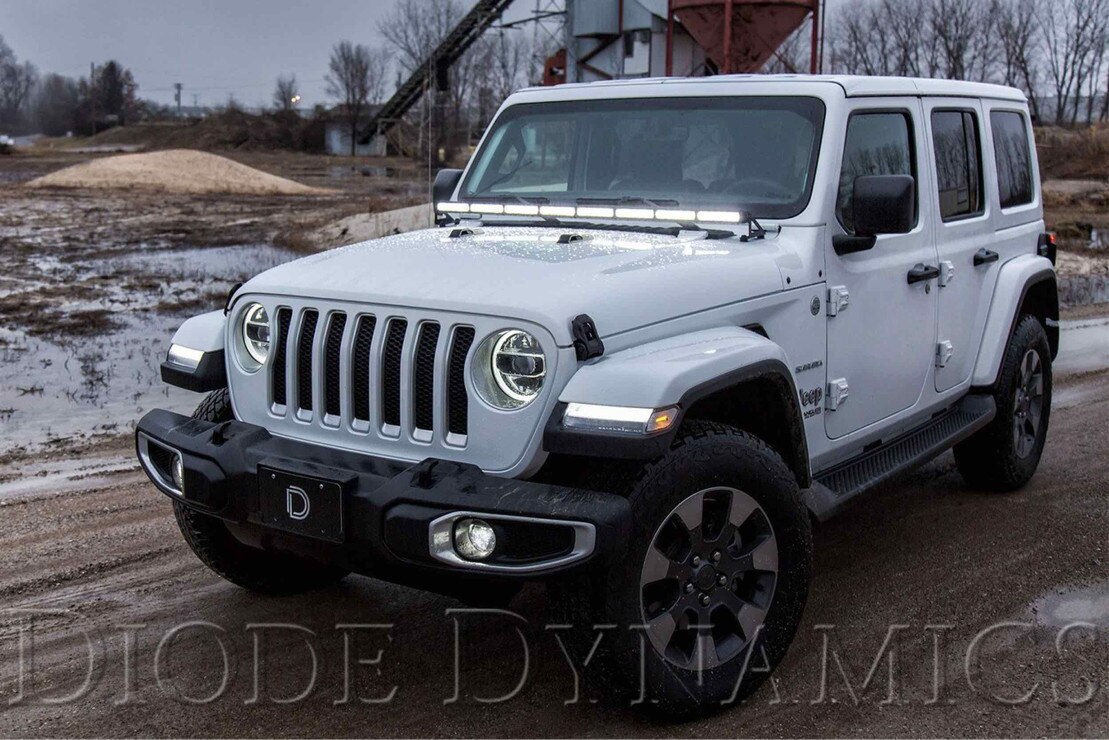

Perfect fitment: The Hood LED Light Bar Kit for the 2018-2019 Jeep Wrangler from Diode Dynamics allows you to easily mount a 50" light bar across the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! When installed along with our fully-customizable JL Wrangler Cowl Mount Brackets, you can easily mount multiple pods on either side of the 50" light bar as well.

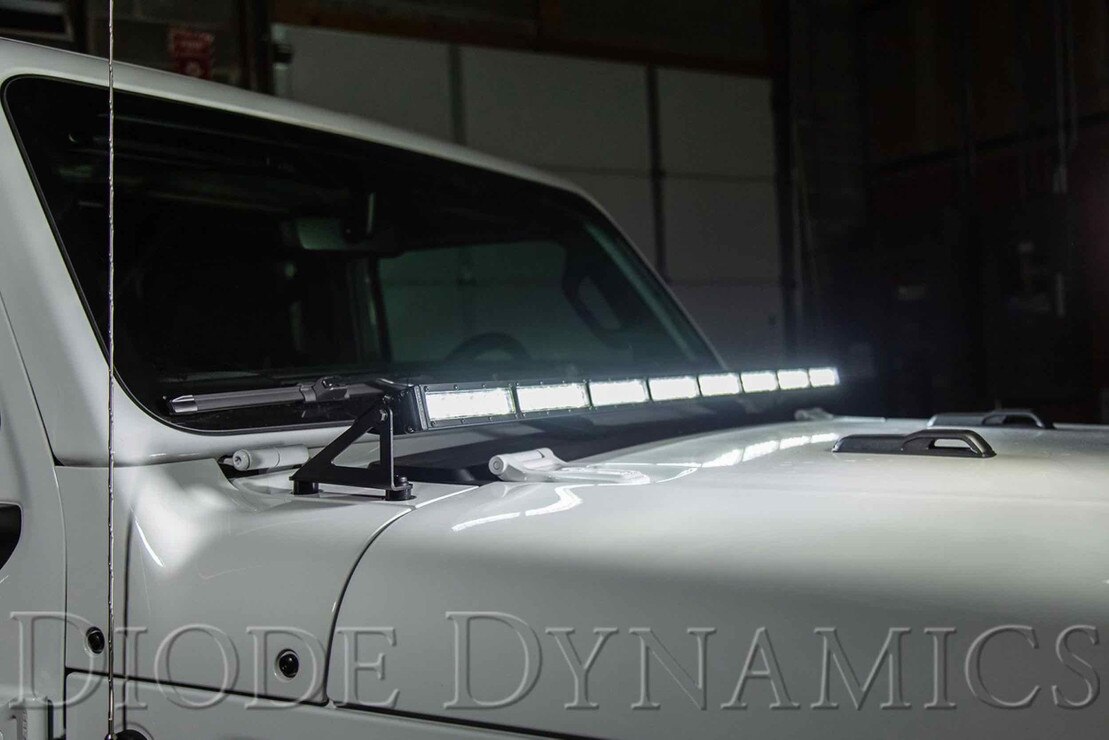

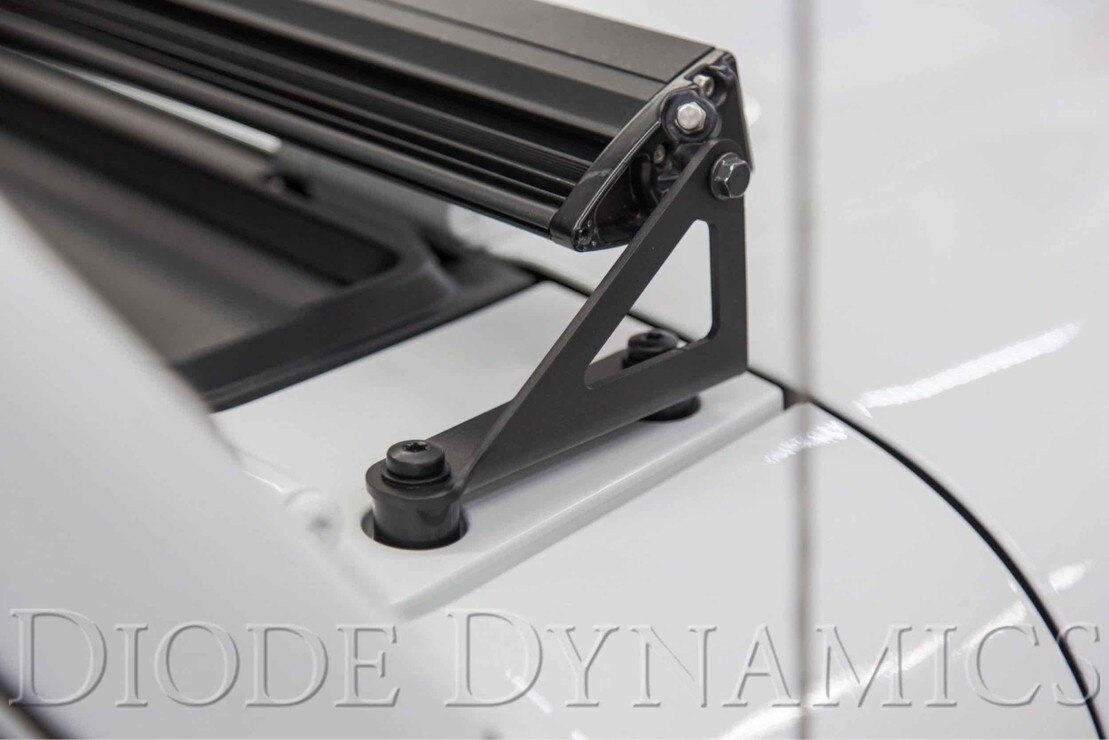

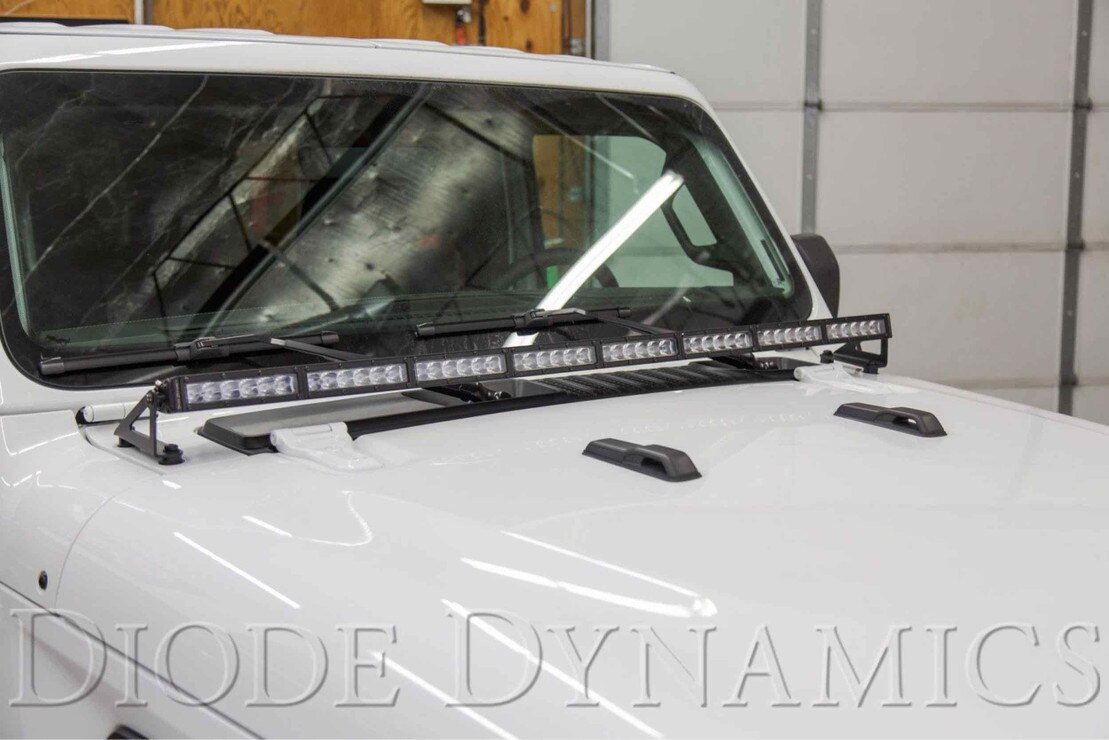

Low profile: These L-shaped brackets were designed in-house specifically for our Stage Series light bar. They were designed to be low profile and won't block visibility while driving or block the wiper nozzles. This also means you won't hear whistling or major wind noise like you may have experienced with other light bar brackets.
Not your average hardware: The hardware included with this kit is OEM-style, automotive grade hardware. This hardware isn't from the hardware store - it was custom designed for this kit with integrated washers and the same OEM finish as the factory hardware. The Delrin spacers are long-lasting and won't wear over time.
Control through aux switch bank: Included with the full light bar kit is our new OEM Auxiliary Switch Dual-Output Wiring Harness. This harness allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy Duty Dual-Output Wiring Harness is also included to mount a switch and connect directly to the battery.
Designed for performance: You may think that you'll get lots of glare from light bouncing off the hood. However, thanks to custom-engineering TIR optics, Diode Dynamics Stage Series LED light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. The Driving optic easily shines right over the hood, even with the low mounting position.

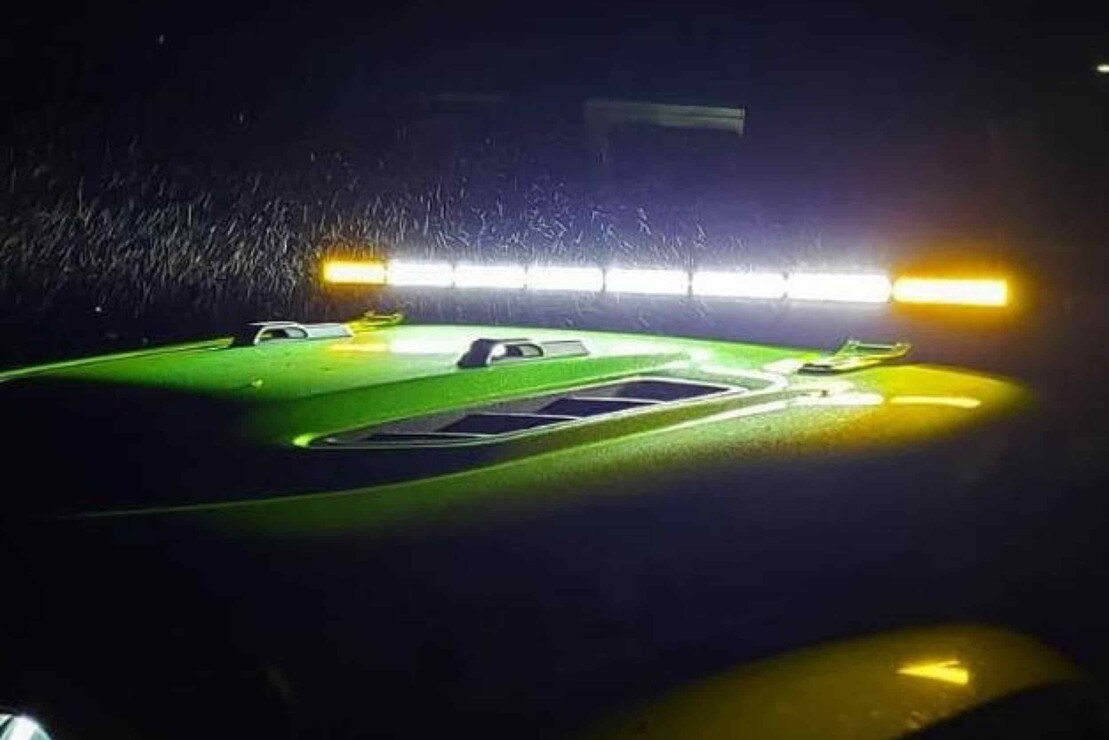

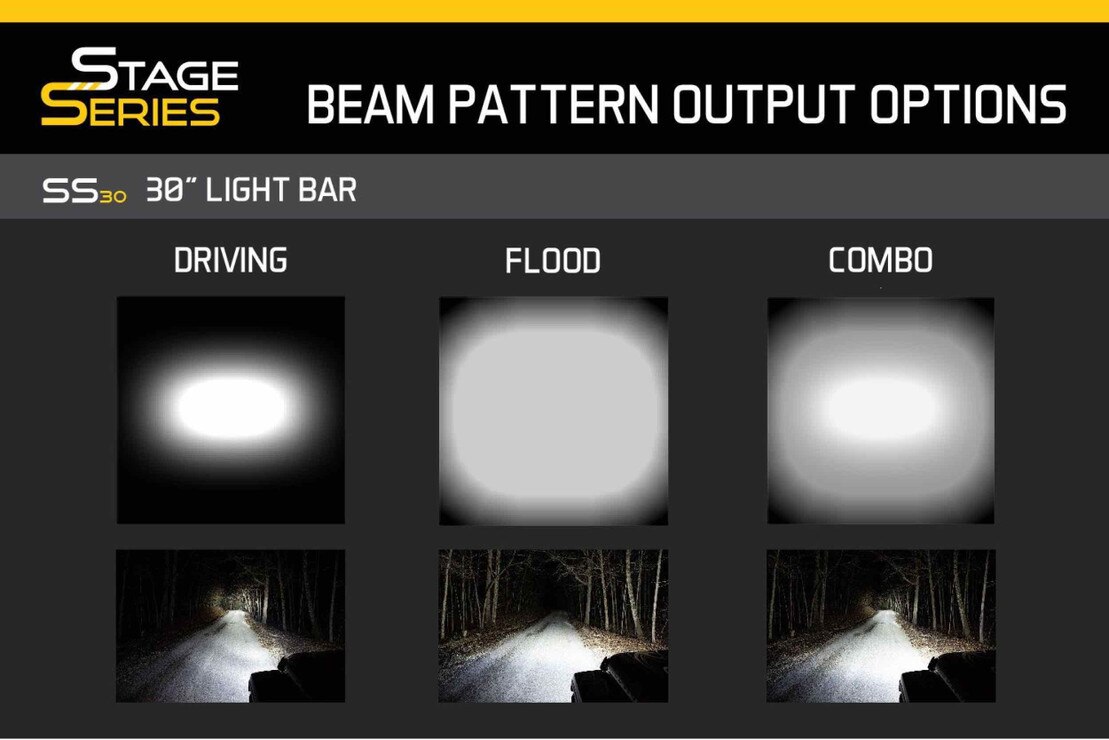

Functional Patterns: All Stage Series beam pattern options were designed with optical simulation model'g, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds. The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite. The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 50" Combo Light Bar features six driving lenses in the middle with two flood lenses on the outer edges.
Made in the USA: If you're a lighting enthusiast who only buys American; Diode Dynamics is a clear winner in that category. One of very few brands in the automotive lighting industry who designs, engineers, and proudly produces their products right here in St. Louis, MO. We've sold their products for many years and are confident you won't be let down in the performance or quality departments. There's no better place to buy Diode Dynamics lighting upgrades for your car or truck.

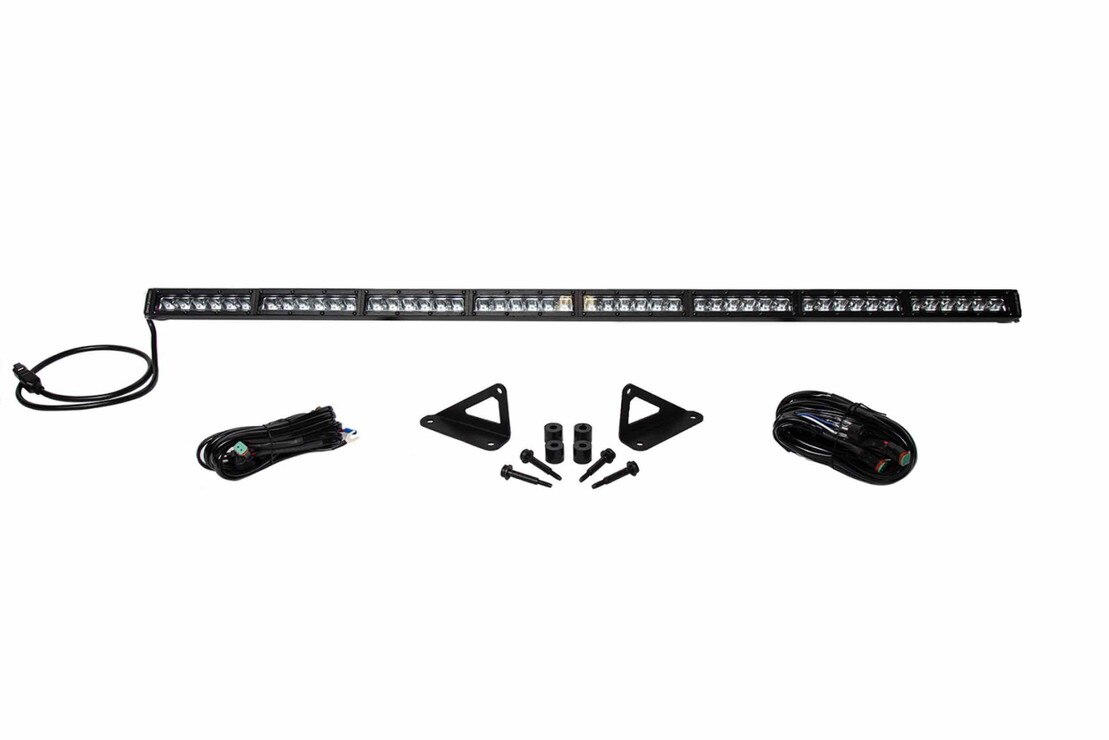

2x: Application-specific hood brackets
1x: SS50 Stage Series 50" Light Bars
1x: OEM Auxillary Switch Dual-Output Harness
1x: Heavy Duty Single-Output Harness
4x: Delrin spacers
4x: OEM-style automotive grade bolts
1x: Installation Guide
Quantity: Pair (Left and Right Side)
Warranty: 3 year warranty
100%: Satisfaction Guarantee
Model: Wrangler (JL)
Years: 2018, 2019, 2020
Electrical Compatibility: No electrical issues (tested and confirmed)
NOTE: This kit is compatible with all Sport, Sport S, Sahara, and Rubicon trim levels.
Color Temp (CCT): 2000K, 6000K
Beam Angle: Driving, 20degx8deg, Combo (Driving and Flood), Flood, 80degx50deg
Power (watts): 259
Operating Voltage: 9-16V
Current (amps @ 13.2V): 18.5
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 49x3x1.63
