Ford Ranger (2019+) Grille-Mount LED System

(0) No Reviews yet

Brand: Baja Designs




PART #: 1 x 447611

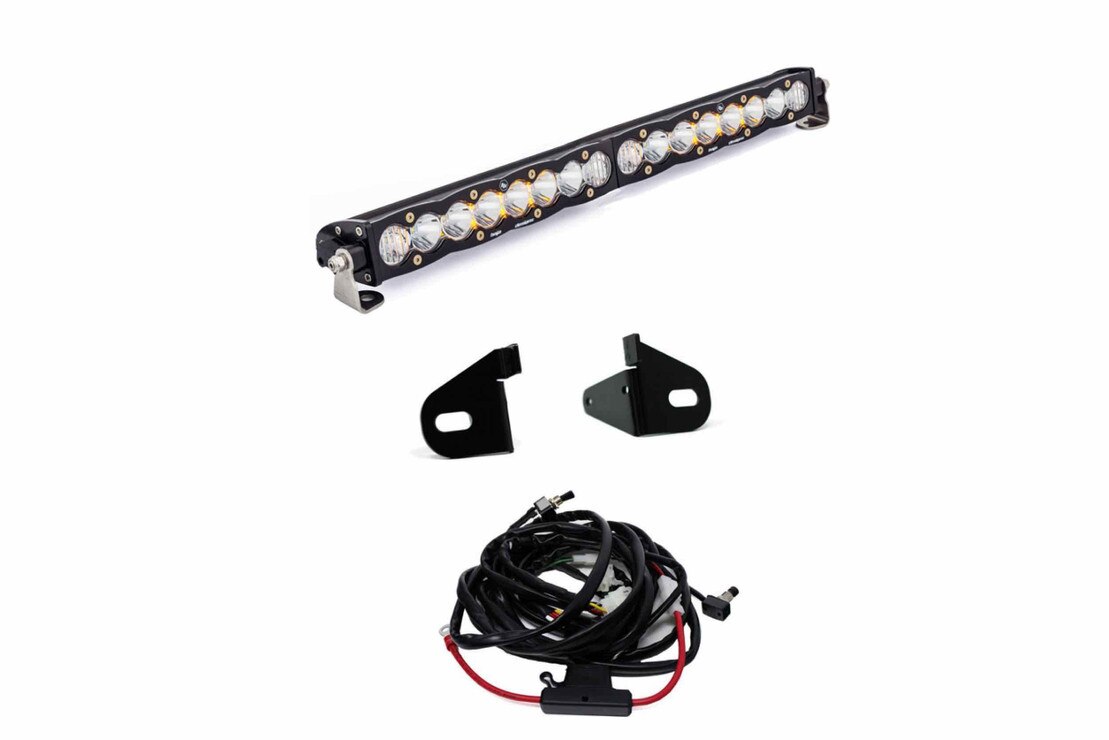

Enhance your Ranger's illumination with the 20-inch S8 lighting kit. Tailored specifically for Ford Ranger models from 2019 to 2022, this kit guarantees unparalleled visibility and safety. With an effortless integration into the lower grille, you're spared from any drilling or additional modifications. However, a heads-up for those with "Active Cruise Control"—some sensor adjustments might be needed. The S8 light bar, with its impressive 12,700 lumens, ensures that both off-road adventures and city drives remain brightly lit. Features such as ClearView provide precise light distribution, while CopperDrive ensures the LEDs are driven at their full potential. With the added advantages of MoistureBlock for water resistance, this kit isn't just about lighting—it's a comprehensive driving solution. Additionally, it comes with a 30-day satisfaction guarantee and a limited lifetime warranty, underscoring its reliability.

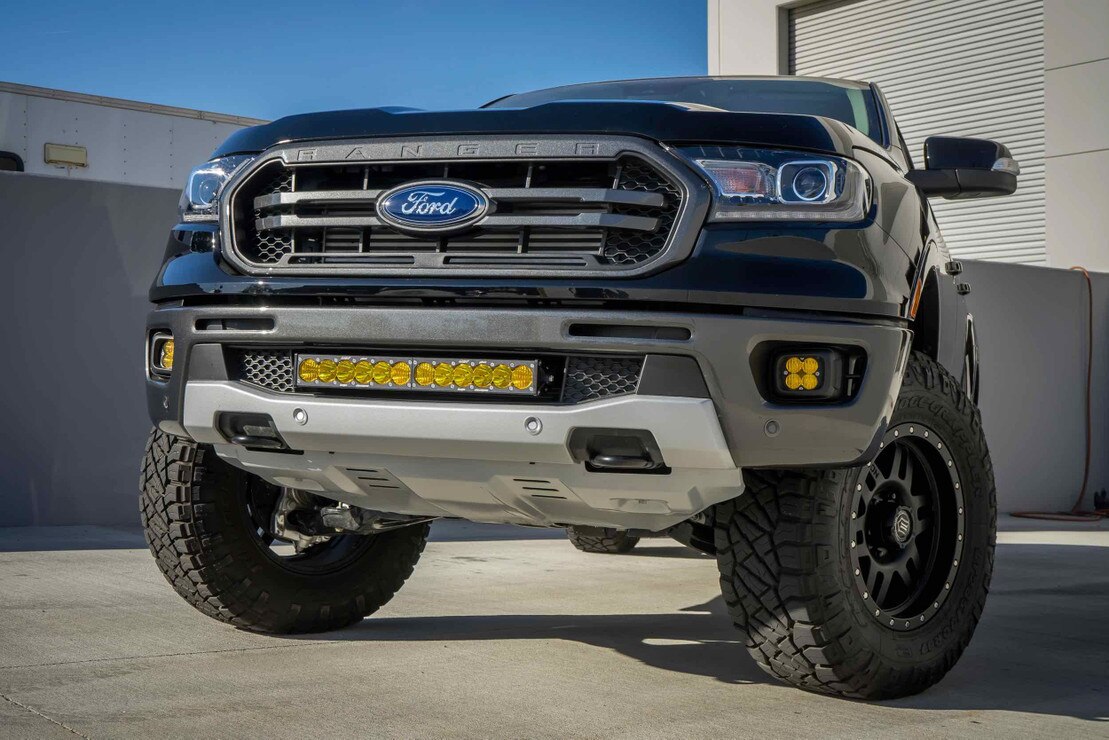

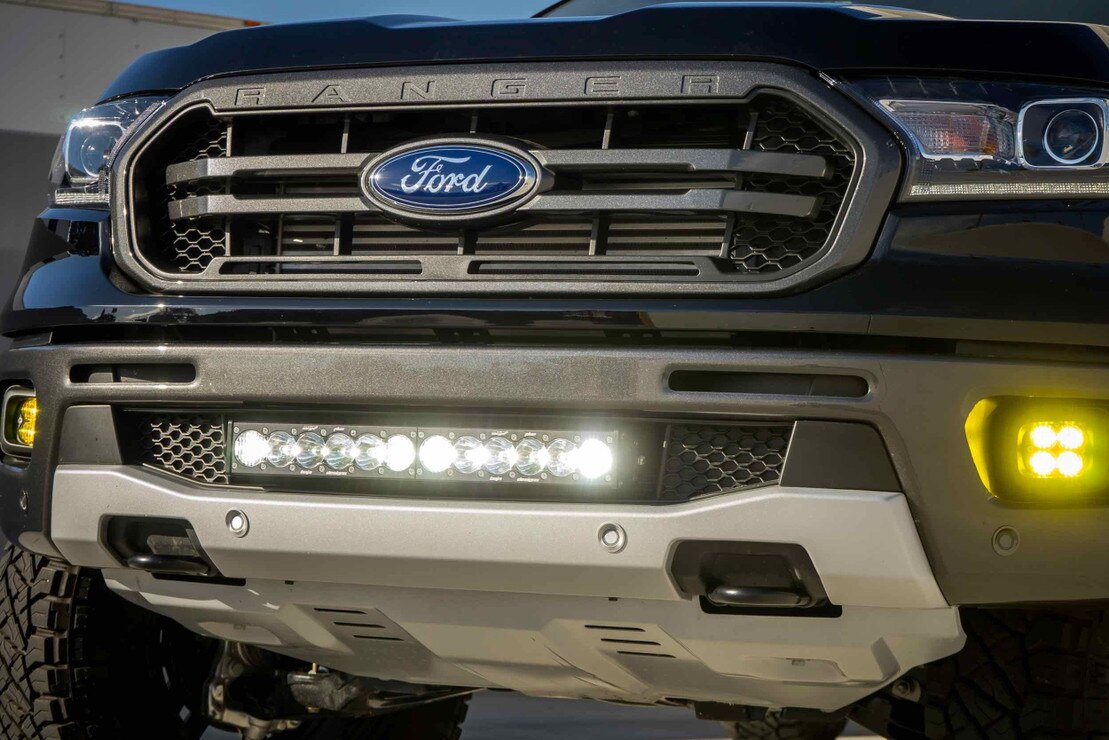

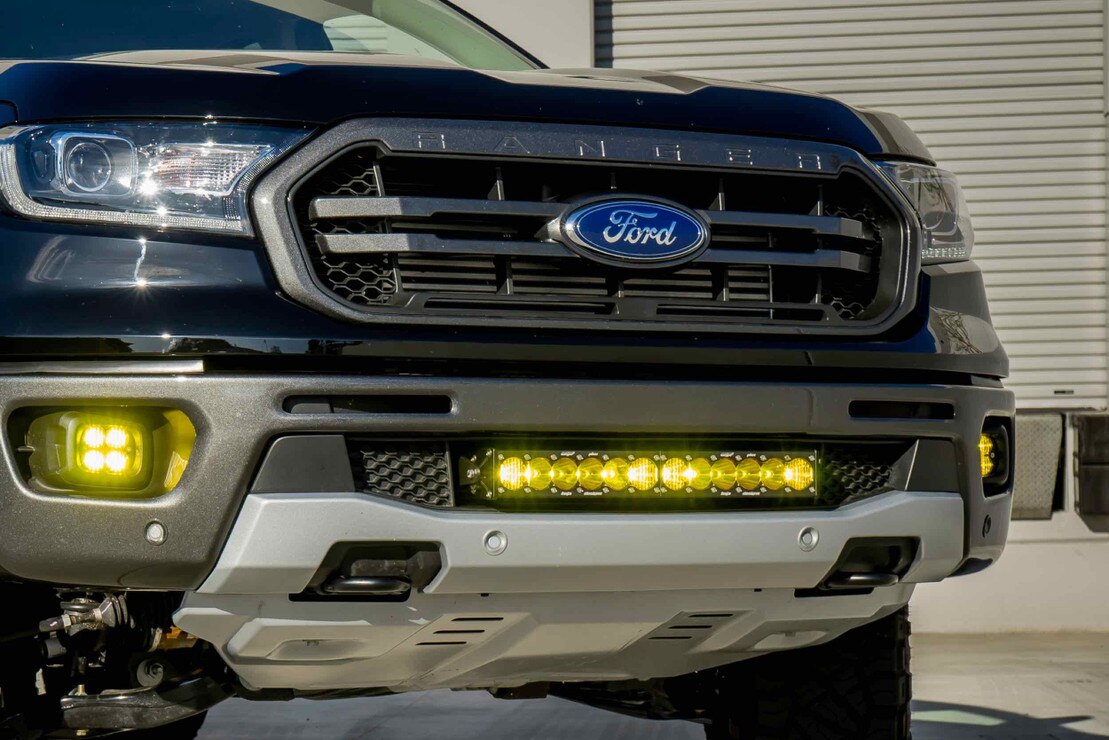

  • Custom Fit The 20-inch S8 kit seamlessly fits into the lower grille of Ford Ranger (2019-2022), with no need for drilling or alterations.
  • Superior Brightness Boasts 12,700 lumens, ensuring maximum clarity for all your travels.
  • Adaptable Design The uService feature allows easy lens and optics replacements, adapting to varied lighting requirements.
  • Durability Assured Exceeds MIL-STD810G standards, IK10 impact resistance, and IP69K waterproofing, making it fit for all terrains and conditions.
  • Advanced Technology Comes equipped with Battery Management Technology (BMT) to negate flickering at low voltages and safeguard vehicle systems.


  • Light Bar: 1x 20in OnX6 LED Light Bar

  • Wiring: 1x Plug and Play Harness

  • Hardware: Mounting Brackets


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 24,920lm (High), 18,460lm (Low)

  • Power: 216w (High), 160w (Low)

  • Current: 16.6A (High), 12.0A (Low)

  • Weight: 7.85lbs

  • Light Color: 5000K (Pure White)

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)


  • 447612: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (30" / OnX6+ Bar)

  • 447611: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (30" / S8 Bar)

  • 447610: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (Squadron Pro)

  • 447609: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (Squadron Sport)


IP69K, IK10, MIL-STD810G

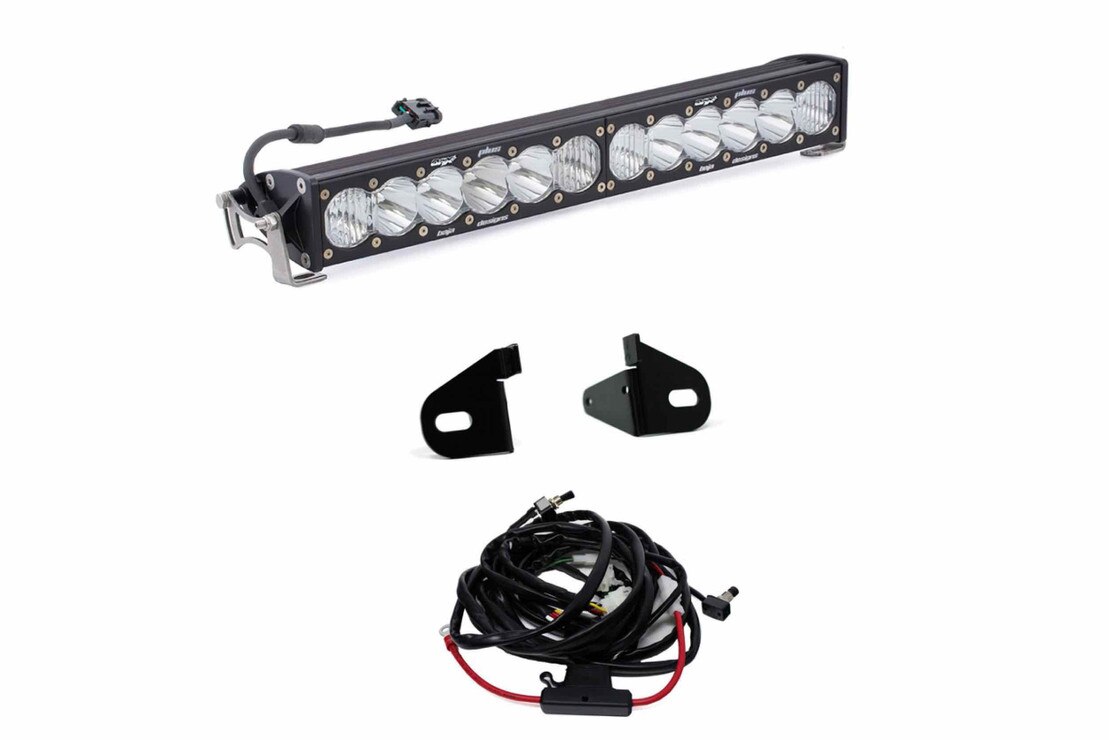

Looking for: the ultimate lighting kit for your Ranger? Look no futher! The Retrofit Source is a proud distributor for Baja Designs, the 20" OnX6+ kit is the kit for you, it includes everthing you need, the light, wiring harness, and mounts. his kit is mounted in the lower grille, and mounting the light doesn't require any drilling or modifications to your vehicle. Note that vehicles equipped with the "Active Cruise Control" will NOT be able to run this kit without removing, or relocating the sensors.

This bar is equipped with BMT: Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes. The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features: uService: So you can replace the Lenses And Optics. ClearView: Gives you all The light, right where you need it most! MoistureBlock means they are Waterproof, Rain Proof, Submersible. And Baja CopperDrive: These are the only LED products on the market driven at 100%! 5000K Daylight - Less Fatigue for you as the driver & Natural Color.

Why buy Baja Designs from TRS? We're not just another reseller on the internet peddling every product line in the automotive aftermarket. We're car enthusiasts with a passion for lighting, and lighting only. We offer the best products from the best brands and if you've got technical questions about the product; our team of lighting experts will actually know the answer. Enter your year/make/model into the buyer's guide on our homepage and see what compatible products we've got in store for you!
