DESCRIPTION
FEATURES & BENEFITS
- Designed & Engineered: By Morimoto in California, the 2Stroke 4.0 is packed with more patented, innovative features than any other bulb on the market today.
- Perfect Focus: The ceramic PCB and Osram HJL LEDs helps illuminate the road more effectively, with zero glare to oncoming traffic.
- Heat Exchanger: Cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months.
- Lifetime Warranty: Designed and built with OE grade materials, these bulbs are designed to last and that's why they are backed with an industry leading lifetime warranty.
WHAT’S INCLUDED

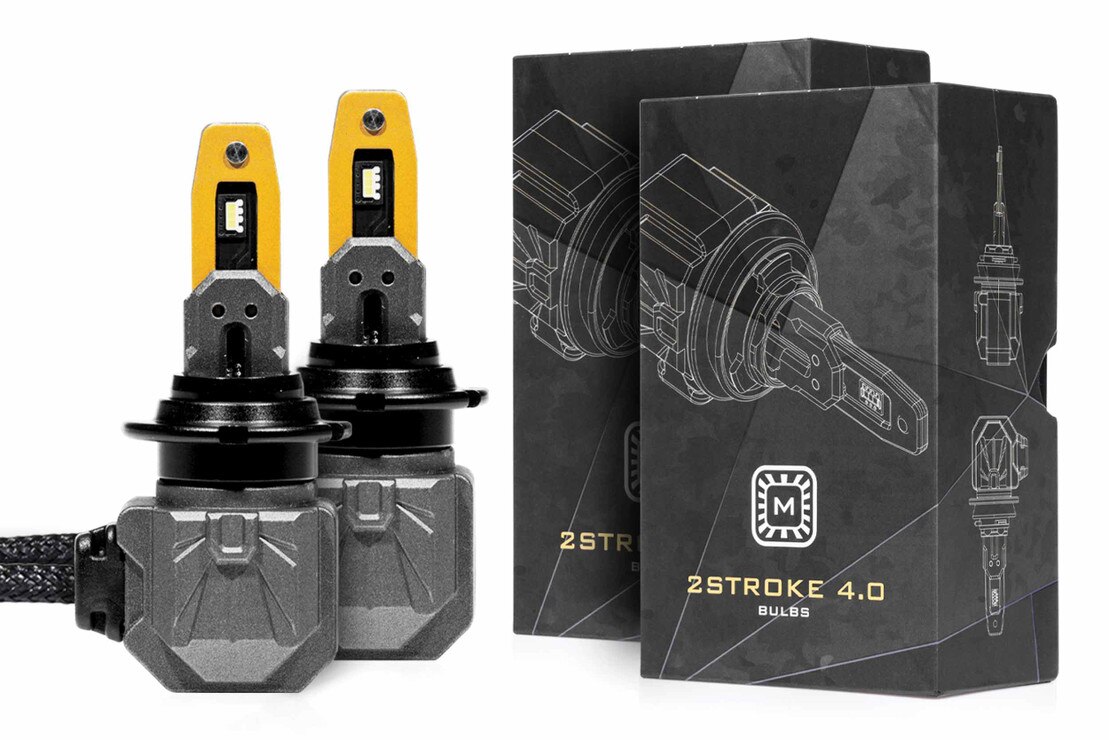

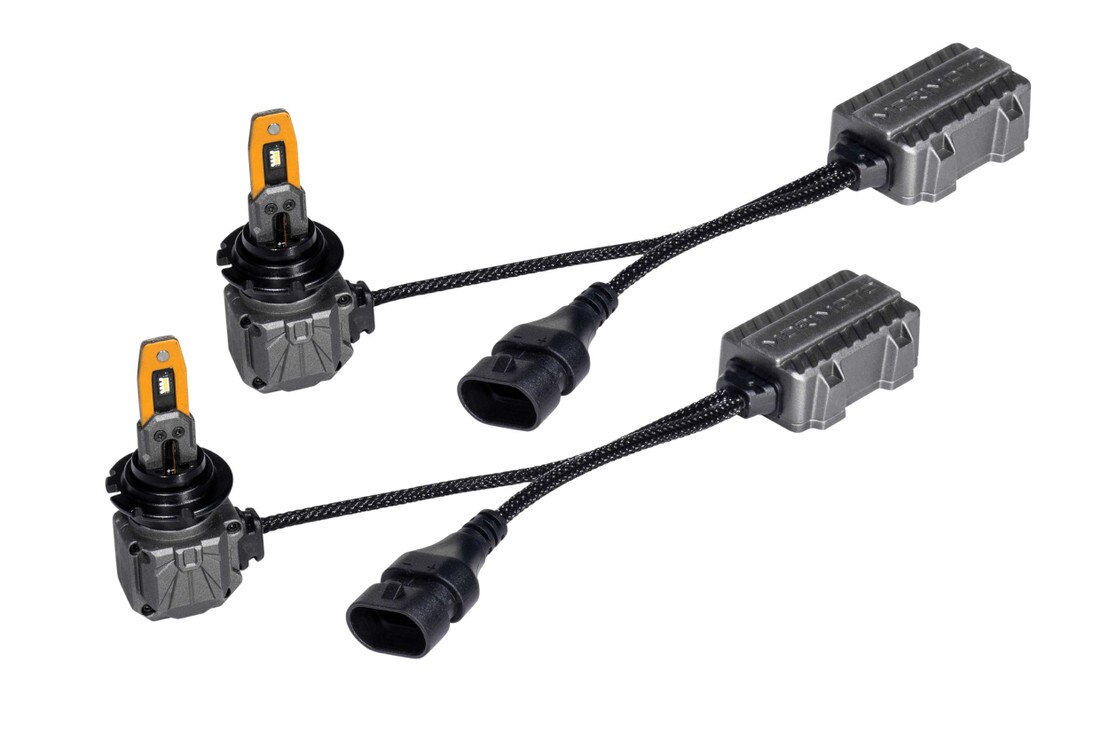

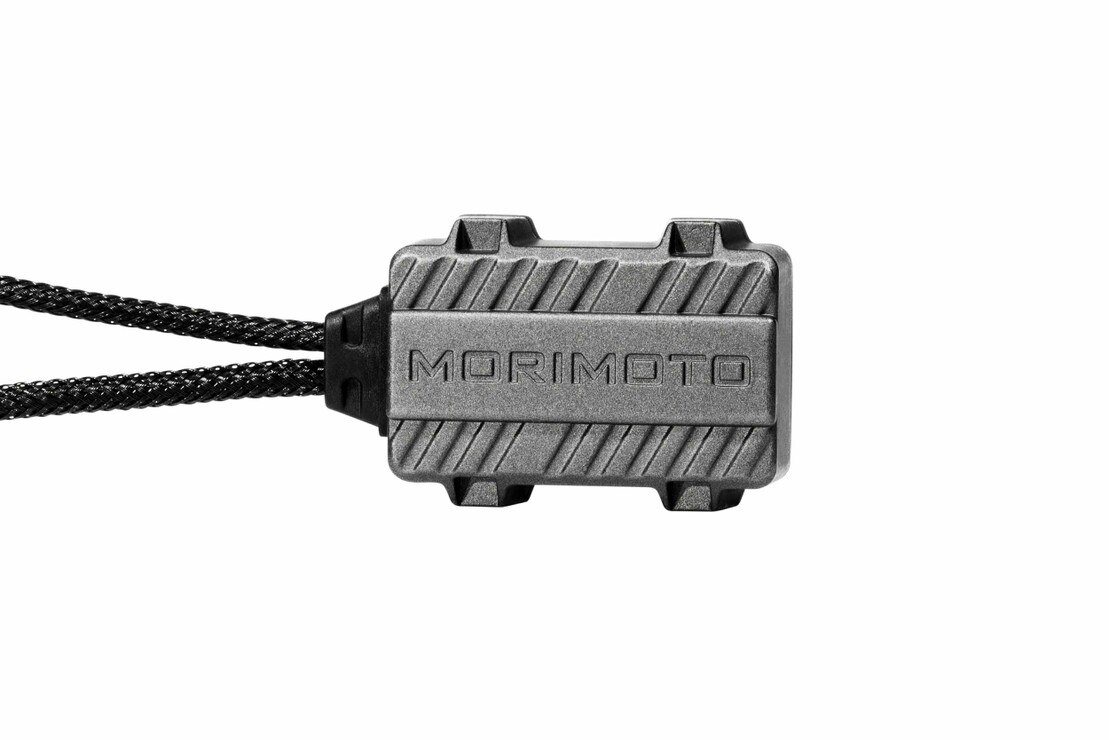

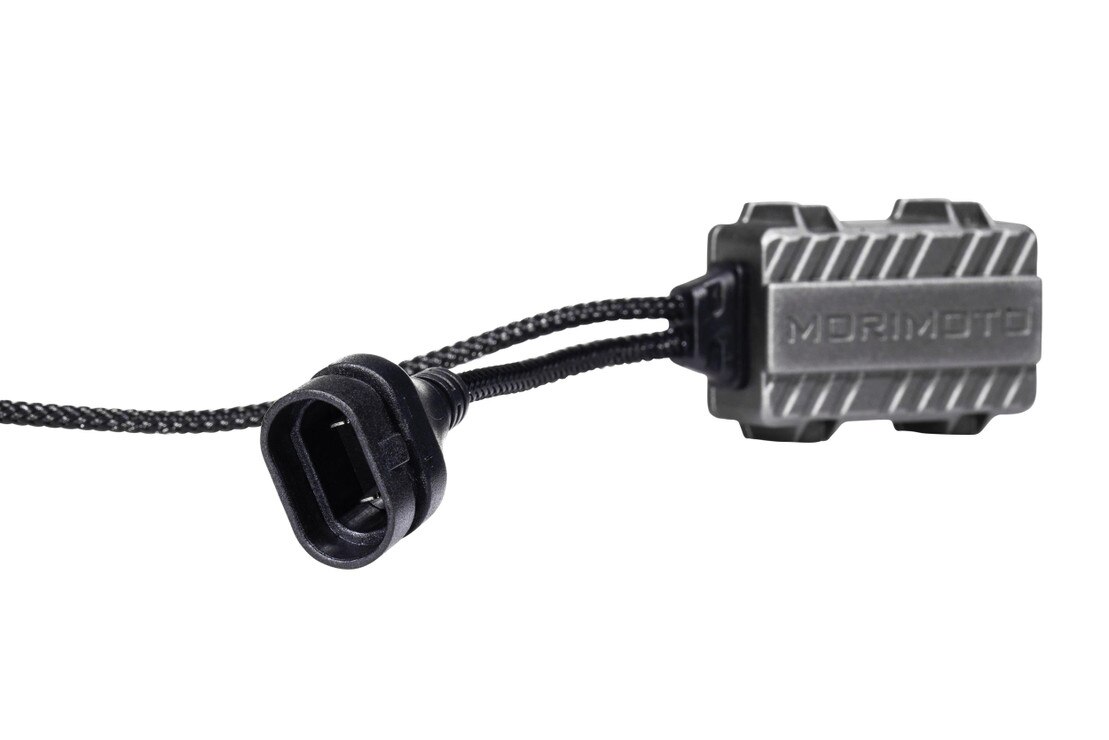

LED Bulbs : 2x (One Pair) D2H 2Stroke 4.0 LED Bulbs w/ Drivers
Warranty : Lifetime Limited
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Luminous Flux : 2,600lm
Power : 18-22.5W
Input Voltage : 9V-16V DC
Material : Electroplated Aluminum
Current : 1.5-1.88A @ 12V DC
Light Source : Osram Oslon Black Flat S 5500K (Pure White)
COMPATIBILITY
BASE/FITMENT : D2H
Do I need PWM / Anti-Flicker Modules? : When using in Fog Lights:::Unlikely.
With low beams that double as Daytime Running Light : Likely.
With high beams that double as Daytime Running Light : Likely.
When the vehicle is late model American (Chrysler, Dodge, Jeep, Ford, GM) : Likely.
NOTE : These bulbs are designed and tested to be OEM fog light replacements to create anti glare fog light beams.
Acura CL : 2001-2003
Acura CSX : 2006-2011
Acura CSX : 2008
Acura ILX : 2013-2015
Acura MDX : 2007-2015
Acura NSX : 2005
Acura RDX : 2007-2015
Acura RL : 2000-2004
Acura RL : 2005-2012
Acura TL : 2000-2003
Acura TL : 2007-2014
Acura TSX : 2010-2014
Acura ZDX : 2010-2013
Alfa Romeo 4C : 2015-2016
Audi A3 : 2006-2008
Audi A3 Quattro : 2006-2008
Audi A4 : 2000-2001
Audi A6 : 2000-2008
Audi A6 Quattro : 2000-2008
Audi A8 Quattro : 2001-2010
Audi Allroad Quattro : 2001-2005
Audi RS6 : 2003-2004
Audi S4 : 2000-2002
Audi S6 : 2001-2011
Audi S8 : 2001-2009
Audi TT : 2000-2006
Audi TT Quattro : 2000-2006
BMW 323i : 2000-2001
BMW 323ti : 2000
BMW 325Ci : 2001-2006
BMW 325i : 2001-2005
BMW 325xi : 2001-2005
BMW 330Ci : 2001-2006
BMW 330i : 2001-2005
BMW 330xi : 2001-2005
BMW 525i : 2001-2005
BMW 530i : 2001-2005
BMW 540i : 2000-2003
BMW 645Ci : 2004-2005
BMW 650Ci : 2006-2007
BMW 650i : 2006-2007
BMW 740i : 1999-2001
BMW 740iL : 1999-2001
BMW 750iL : 2000-2001
BMW 760Li : 2003-2004
BMW 760i : 2004-2005
BMW M3 : 2001-2006
BMW M5 : 2000-2007
BMW X3 : 2004-2006
BMW X5 : 2000-2006
BMW Z4 : 2003-2008
BMW Z8 : 2000-2003
Bugatti Veyron 16.4 : 2006-2012
Cadillac Catera : 2000-2001
Cadillac SRX : 2010-2016
Chrysler Pacifica : 2004-2006
Ford Focus : 2002-2004
Honda CR-Z : 2011-2016
Honda Odyssey : 2011-2016
Honda S2000 : 2000-2009
INFINITI EX35 : 2008-2012
INFINITI EX37 : 2013
INFINITI FX35 : 2003-2012
INFINITI FX37 : 2013
INFINITI FX45 : 2003-2008
INFINITI FX50 : 2009-2013
INFINITI G35 : 2003-2005
INFINITI G35 : 2006-2008
INFINITI G37 : 2008-2013
INFINITI I30 : 2000-2001
INFINITI I35 : 2002-2004
INFINITI JX35 : 2013
INFINITI M35 : 2006-2010
INFINITI M35h : 2012-2013
INFINITI M37 : 2011-2013
INFINITI M45 : 2003-2004
INFINITI M45 : 2006-2010
INFINITI M56 : 2011-2013
INFINITI Q40 : 2015
INFINITI Q45 : 2000-2001
INFINITI Q45 : 2002-2006
INFINITI Q60 : 2014-2015
INFINITI Q70 : 2014
INFINITI QX4 : 2000-2003
INFINITI QX50 : 2014-2016
INFINITI QX56 : 2004-2010
INFINITI QX56 : 2011-2013
INFINITI QX60 : 2014-2016
INFINITI QX70 : 2014-2016
INFINITI QX80 : 2014
Jaguar S-Type : 2003-2008
Jaguar Super V8 : 2005-2009
Jaguar X-Type : 2001-2008
Jaguar XJR : 2004-2009
Jaguar XK8 : 2000-2002
Lamborghini Gallardo : 2004-2008
Lamborghini Murcielago : 2001-2010
Land Rover Range Rover : 2003-2005
Land Rover Range Rover Sport : 2006-2009
Lexus ES300 : 2000-2003
Lexus ES300h : 2013-2015
Lexus ES330 : 2004
Lexus ES330 : 2005-2006
Lexus GS300 : 2000-2004
Lexus GS400 : 2000
Lexus GS430 : 2001-2004
Lexus IS200t : 2016
Lexus IS250 : 2006-2015
Lexus IS300 : 2002-2005
Lexus IS300 : 2016
Lexus IS350 : 2006-2016
Lexus IS F : 2008-2014
Lexus LFA : 2012
Lexus LS400 : 2000
Lexus LS430 : 2002-2003
Lexus LS430 : 2004-2006
Lexus LS460 : 2007-2017
Lexus LS600h : 2008-2012
Lexus LX570 : 2013-2015
Lexus RX300 : 2002-2003
Lexus RX330 : 2004-2006
Lexus RX350 : 2007-2009
Lexus RX350 : 2010-2015
Lexus RX450h : 2010-2015
Lexus SC430 : 2002-2010
Lexus SC430 : 2006-2010
Lincoln Aviator : 2003-2005
Lincoln LS : 2003-2006
Mazda 3 : 2004-2013
Mazda 5 : 2007-2015
Mazda 6 : 2006-2013
Mazda CX-5 : 2013-2015
Mazda CX-7 : 2007-2012
Mazda CX-9 : 2007-2015
Mazda MX-5 Miata : 2006-2015
Mazda RX-8 : 2004-2011
Maybach 57 : 2003-2012
Maybach 62 : 2003-2012
Mercedes-Benz C230 : 2000-2002
Mercedes-Benz C240 : 2001-2002
Mercedes-Benz C32 AMG : 2002
Mercedes-Benz C320 : 2001-2002
Mercedes-Benz CL500 : 1998-2000
Mercedes-Benz CLK320 : 1998-2003
Mercedes-Benz CLK430 : 1999-2002
Mercedes-Benz CLK55 AMG : 2001-2002
Mercedes-Benz E320 : 1996-2002
Mercedes-Benz E430 : 2000-2002
Mercedes-Benz E500 : 2002
Mercedes-Benz E55 AMG : 2000-2002
Mercedes-Benz ML320 : 2000-2001
Mercedes-Benz ML430 : 2000-2001
Mercedes-Benz ML55 AMG : 2000-2001
Mercedes-Benz S430 : 2000-2002
Mercedes-Benz S500 : 1996-2002
Mercedes-Benz S55 AMG : 2001-2002
Mercedes-Benz S600 : 2001-2002
Mercedes-Benz SLK230 : 1998-2003
Mercedes-Benz SLK320 : 2001-2003
Mini Cooper : 2002-2004
Mitsubishi Lancer : 2004-2017
Mitsubishi Montero : 2019
Mitsubishi Montero Sport : 2019
Mitsubishi Outlander : 2010-2015
Mitsubishi Outlander Sport : 2011-2017
Mitsubishi RVR : 2012-2018
Nissan 350Z : 2003-2005
Nissan 370Z : 2009-2018
Nissan Altima : 2002-2009
Nissan GT-R : 2009-2014
Nissan Juke : 2015-2017
Nissan Maxima : 2002-2003
Nissan Murano : 2003-2014
Nissan Quest : 2011-2016
Nissan Rogue : 2008-2013
Porsche 911 : 2000-2012
Porsche Boxster : 2009-2012
Porsche Cayman : 2009-2012
Rolls-Royce Phantom : 2004-2011
Saab 9-3 : 2003-2007
Saab 9-4X : 2011
Scion FR-S : 2015-2016
Subaru BRZ : 2013-2016
Subaru Forester : 2006-2013
Subaru Forester : 2014-2016
Subaru Impreza : 2012-2016
Subaru Legacy : 2015-2019
Subaru Outback : 2015-2019
Subaru WRX : 2013-2014
Subaru WRX STI : 2013-2014
Toyota Avalon : 2005-2007
Toyota Avalon : 2008-2010
Toyota Camry : 2012-2014
Toyota Land Cruiser : 2016
Toyota Prius : 2004-2005
Toyota Prius : 2006-2009
Toyota Sienna : 2004-2010
Toyota Sienna : 2011-2019
Toyota Venza : 2010-2016
Volvo S60 : 2004-2006
Volvo S80 : 2004-2006
Volvo V70 : 2004-2006
Volvo XC70 : 2004-2006
Volvo XC90 : 2003-2006
Part # : 42406, 42406C1, 66450, 9098120029, 90981-20029
Interchange Part Number : 42406, 42406C1, 66450, Philips D4R 42406, Osram D4R 66450, P32d-6
Superseded Part Number : 42406, 42406C1, 66450, 9098120029, 90981-20029
Part # : 85122, 66240, 66040
Interchange Part Number : 85122, 66240, 66040, H83075001
Superseded Part Number : 512285122, Osram D2S 66240, Philips D2S 85122
Part # : 85126, 66050, 66250
Interchange Part Number : Philips D2R 85126, Osram D2R 66250, P32d-3
Superseded Part Number : Philips D2R 85126, Osram D2R 66050
COMPLIANCE
APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
HOMOLOGATION ECE: NO
DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
INSTALLATION DOCUMENTS

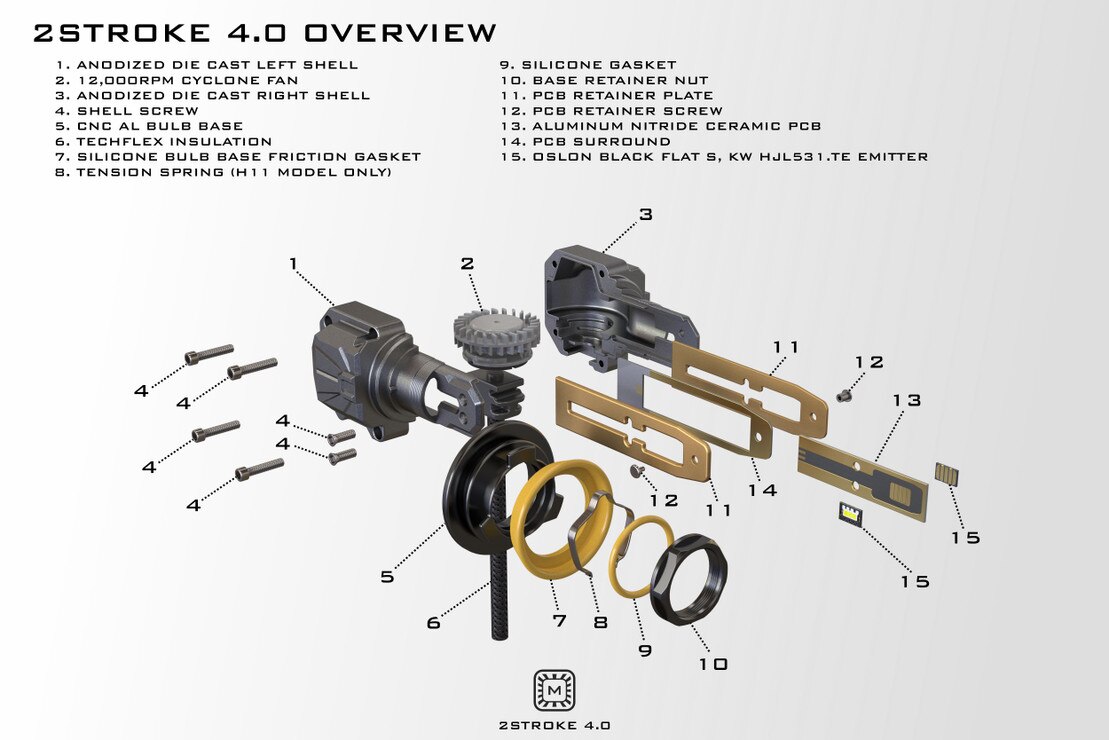

Benchmark: While the rest of the industry has been asleep at the wheel in this category, Morimoto was hard at work developing the successor to the incredible 2Stroke 3.0 LED bulbs. The 4.0 re-creates the original beam pattern from your optics effectively by doing more with less. They will put more light on the road for you as the driver, while creating less glare for oncoming traffic compared to any other LED bulb on the market today. While LED bulbs still aren't DOT approved for use in headlights in the states; foreign markets and fog light users can enjoy the best plug n play LED bulb to date. The 2Stroke 4.0. (Featuring technology patented by Morimoto)

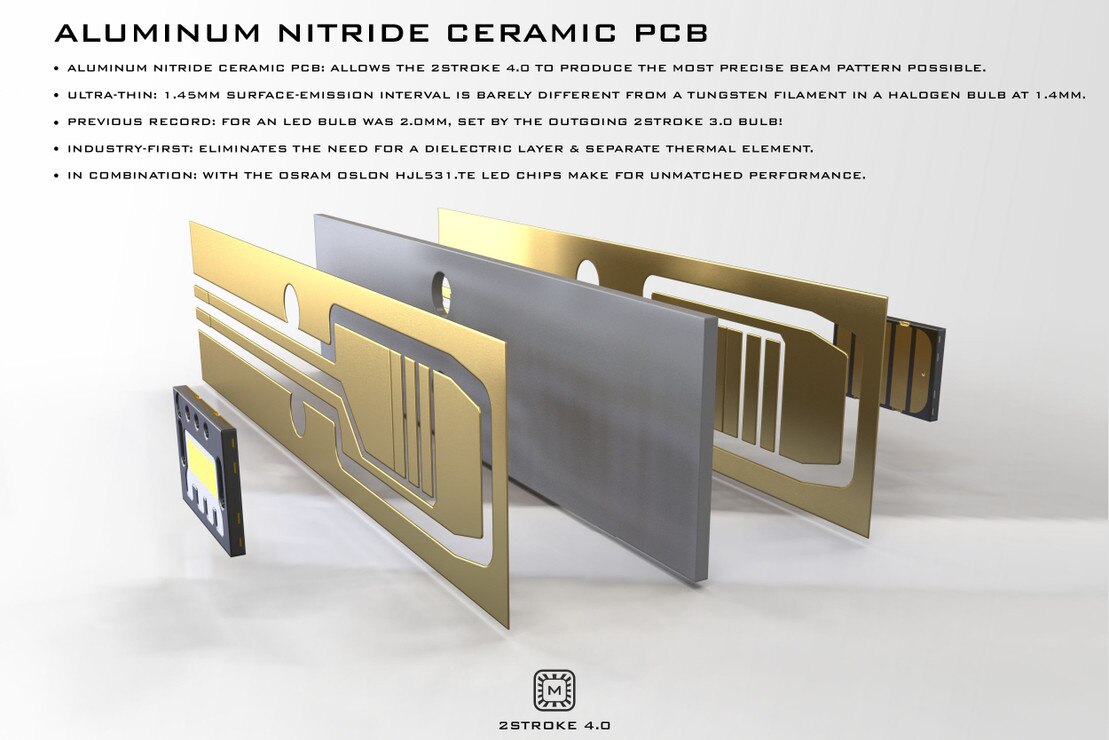

Superior Beam Quality: The advanced Aluminum Nitride Ceramic circuit board in the center of the 2S4 sets allows the bulbs to produce the most precise beam pattern possible, with its 1.45mm surface-emission interval. For reference, the tungsten filament in a halogen bulb is 1.4mm, and the previous record for an LED bulb was 2.0mm, set by the outgoing 2Stroke 3.0 bulb! Using the industry-first ceramic PCB, we have eliminated the need for the dielectric layer and a separate thermal element, which, in combination with the Osram Oslon HJL531.TE LED chips makes for unmatched performance when used in all reflector and projector-based headlights designed for halogen bulbs.
Optimized focal length: Each size in the 2Stroke 4.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HJL531 emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED light bulbs on the market use a 'set it and forget it' reference distance across all sizes in the series, making for sub-optimal focus in most applications... not the case with the 2Stroke series of bulbs.
360 degrees of Rotation: Since no single standard exists across different headlight and fog lights, all bulbs in the 2Stroke 4.0 range are fully adjustable so that you can dial-in the position of the LED chips so that they sit perfectly at the 3 and 9-o-clock positions. On the previous gen bulbs, the gears on the base were prone to slipping when locking it into your headlight, but the new system is immune to that. In summary, setting up the alignment of your bulbs is now easier than ever!

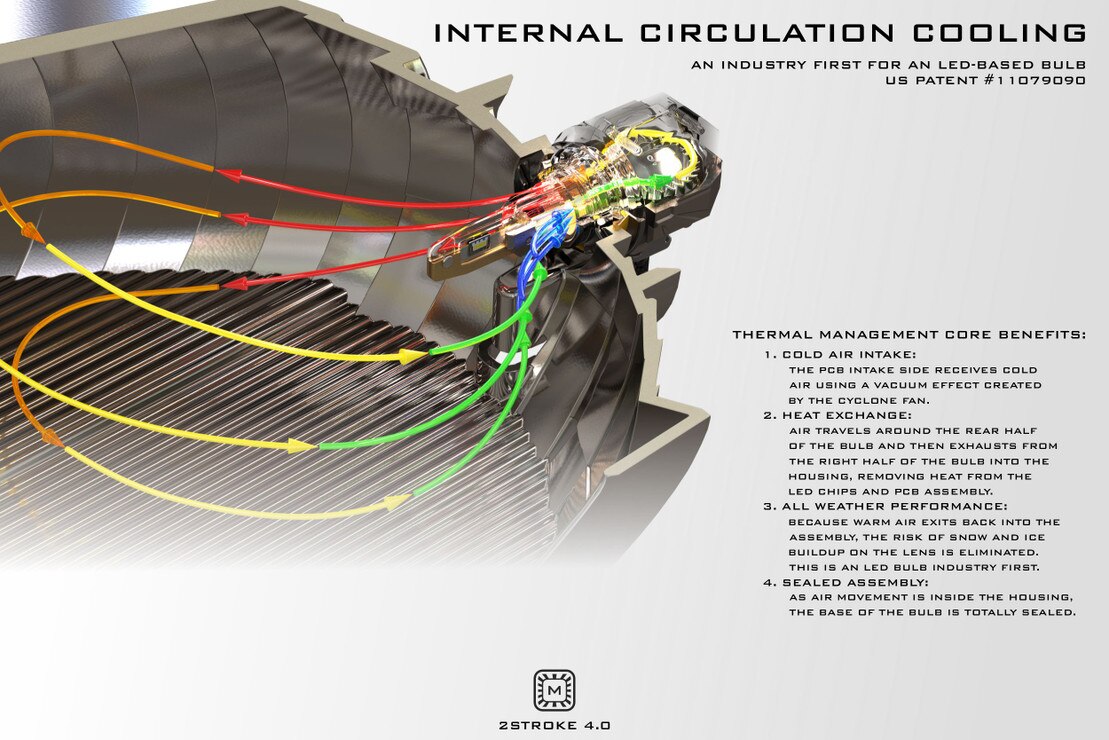

Thermal management: The 2Stroke 4.0 uses an upgraded version of the patented system we first employed on the 3.0 bulbs. This unique cooling system uses a 12,000-rpm dual-layer fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. With even more static pressure than the previous version, the cooling system on the 2Stroke 4.0 maximizes longevity of the bulb, while serving up a bad-weather benefit not found elsewhere.
Unique Drive Logic: The LED drivers are programmed to start up at a conservative 18W, and then ramp-up in power over the first 15 minutes before stabilizing at 22.5W. Unlike every other bulb in the aftermarket which lose output intensity over the first 15 minutes of runtime (as the system heat-soaks), the performance from the 2Stroke 4.0 remains impressive from the moment you pull out of the driveway till the moment you park the car.
Lifetime Warranty: The Morimoto 2Stroke 4.0 bulbs are produced using the latest OE-grade materials, electronics, and LEDs for the automotive industry. The conservative LED drive rates and highly effective thermal management systems make for low operating temperatures. All of this adds up to a bulb that is designed to last, and that' why they are backed with an industry-leading lifetime warranty.
