DESCRIPTION
FEATURES & BENEFITS
- Customizable Lighting Options to mount SS6 Stage Series 6" Light Bars, SS12 Stage Series 12" Light Bars, or up to three generic work lights or pods.
- Street-Legal Suitable for on-road and off-road use, complying with local regulations for driving and fog lights.
- Optimized Performance Stage Series light bars utilize optical simulation modeling to offer a highly-functional beam pattern, optimized through custom-engineered TIR optics.
- Beam Patterns Driving pattern for high-speed visibility and Wide pattern for a broader field of view, ideal for challenging conditions.
- Authentically American Diode Dynamics proudly designs, engineers, and manufactures their products in St. Louis, MO, upholding unparalleled standards of quality and performance.

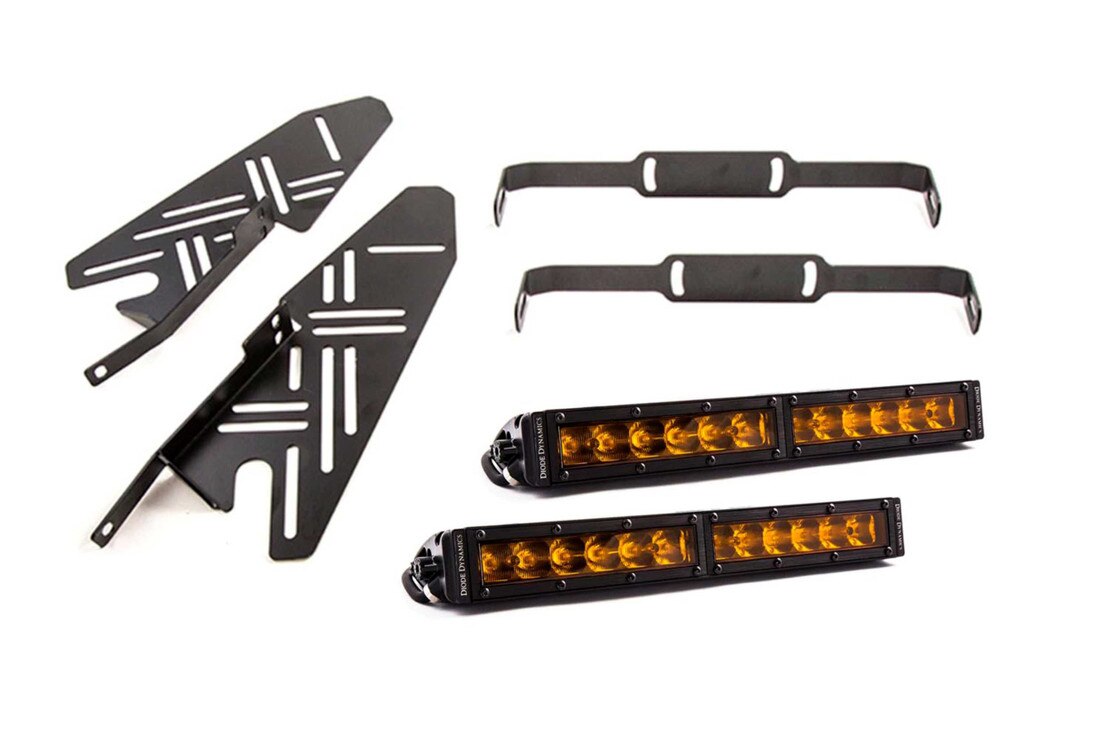

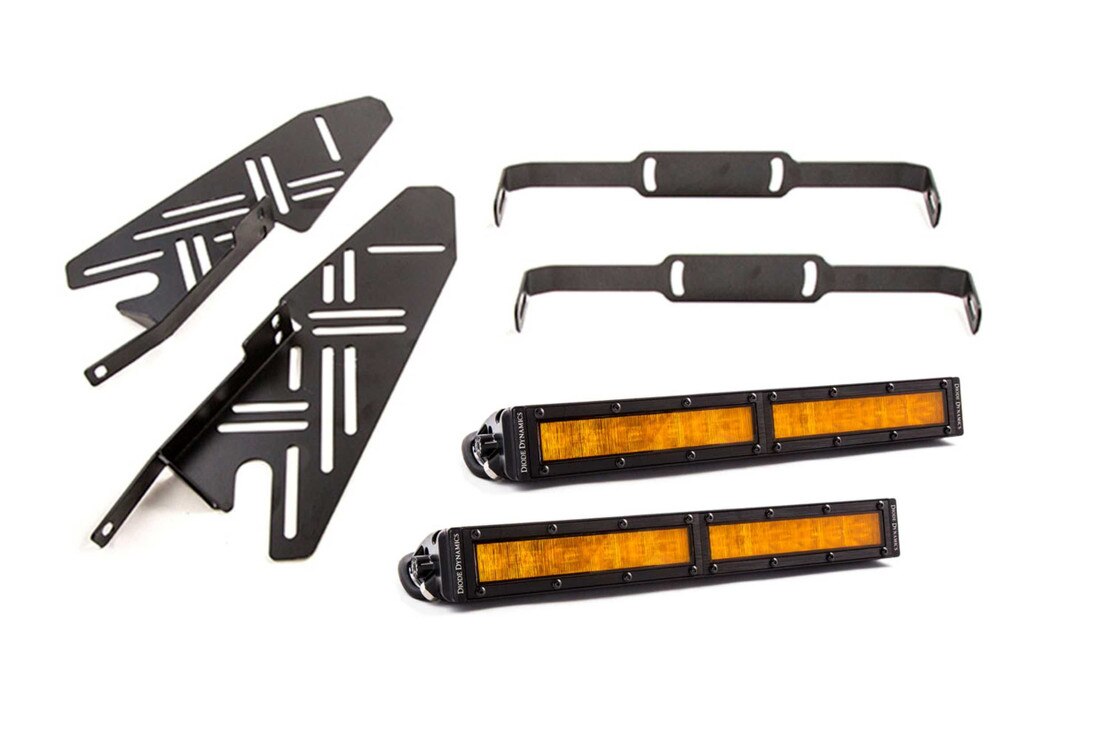

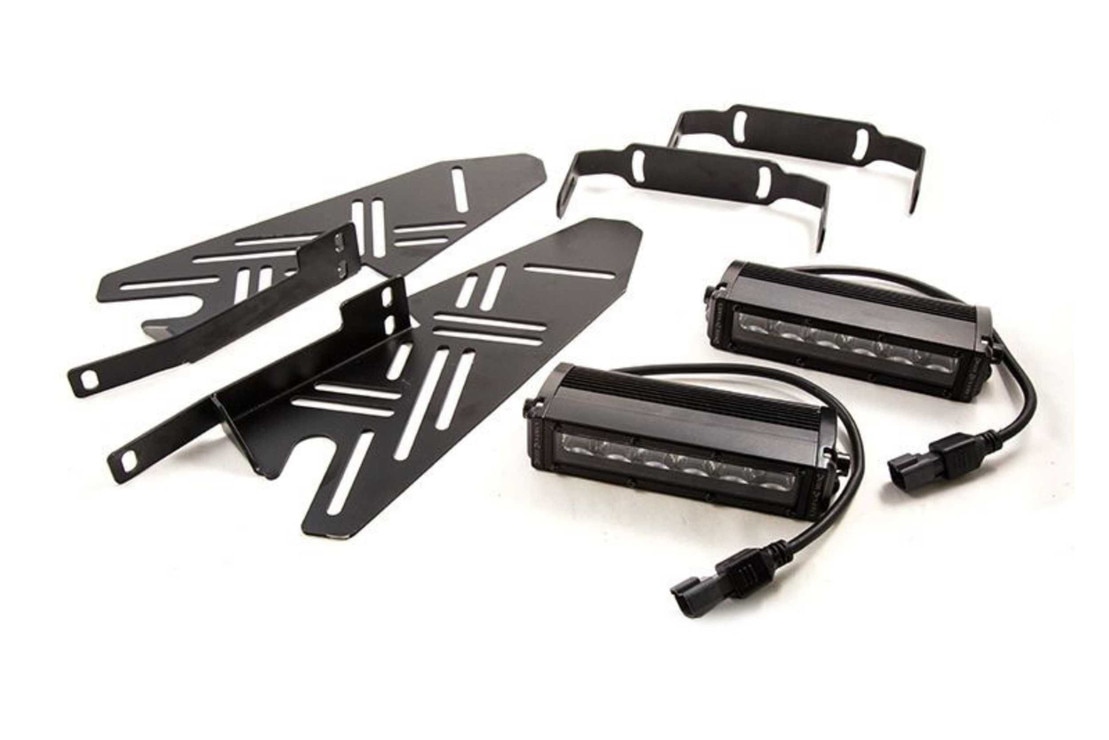

WHAT’S INCLUDED
Light Bars: 2x 6in SS6 or 12in SS12 Stage Series LED Light Bars
Hardware: Brackets, Mounting Hardware
Wiring: 1x Plug and Play Harness
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 2,280lm
Power: 26.6w
Current: 1.9A @ 13.2V DC
Light Color: 6000K (Cool White) or 2000K (Yellow)
Material: Aluminum, Polycarbonate (Lens)
Light Source: Luxeon Z ES
Input: Deutsch DT
COMPATIBILITY
Ford Raptor: 2017-2020

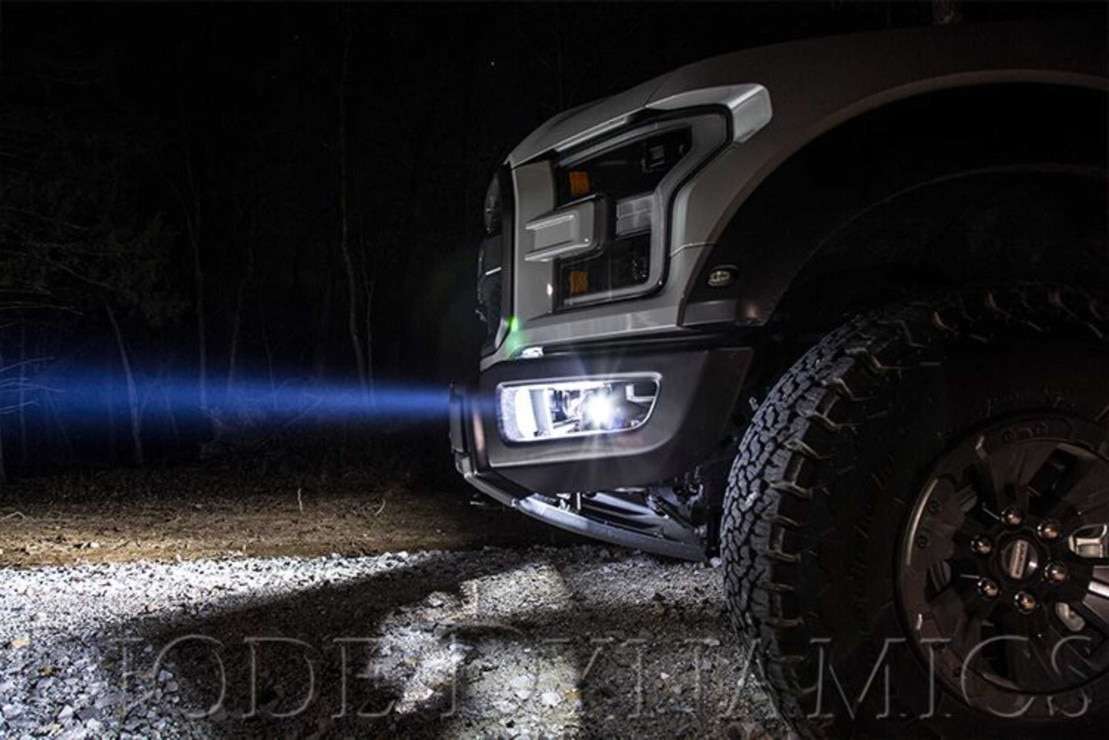

Ford Raptor LED Fog Brackets: Direct fitment on 2017+ Ford Raptor. Street-legal output as Driving lights or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability). Highly durable powdercoated steel construction. Utilizes existing mounting points and hardware for a simple installation. CAD-designed for perfect fitment.
Perfect Fitment: The LED Fog Light Bar Bracket Kit for the 2017+ Ford Raptor from Diode Dynamics allows you to mount auxiliary lighting in the factory bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Choose Your Look: This kit allows you to mount either a pair of SS6 Stage Series 6" Light Bars, a pair of SS12 Stage Series 12" Light Bars, or up to three generic work lights or pods in the bumper openings.
Street Legal Output: This kit isn't just for off road! It is legal for on-road use as driving lights or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

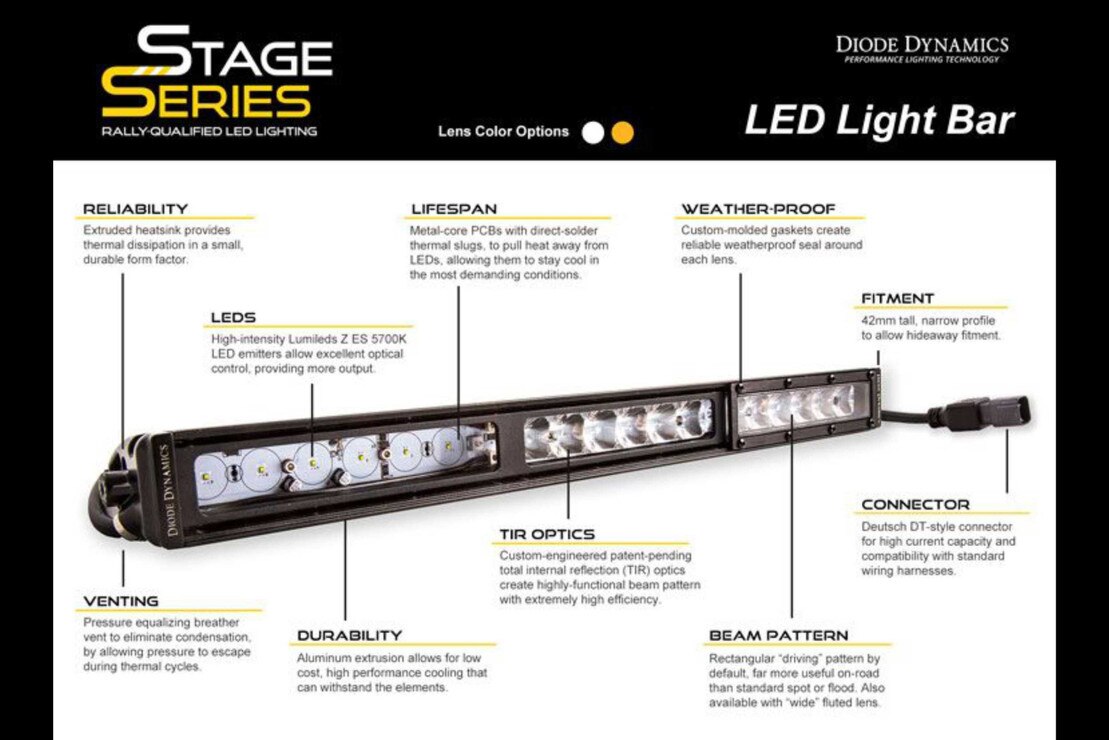

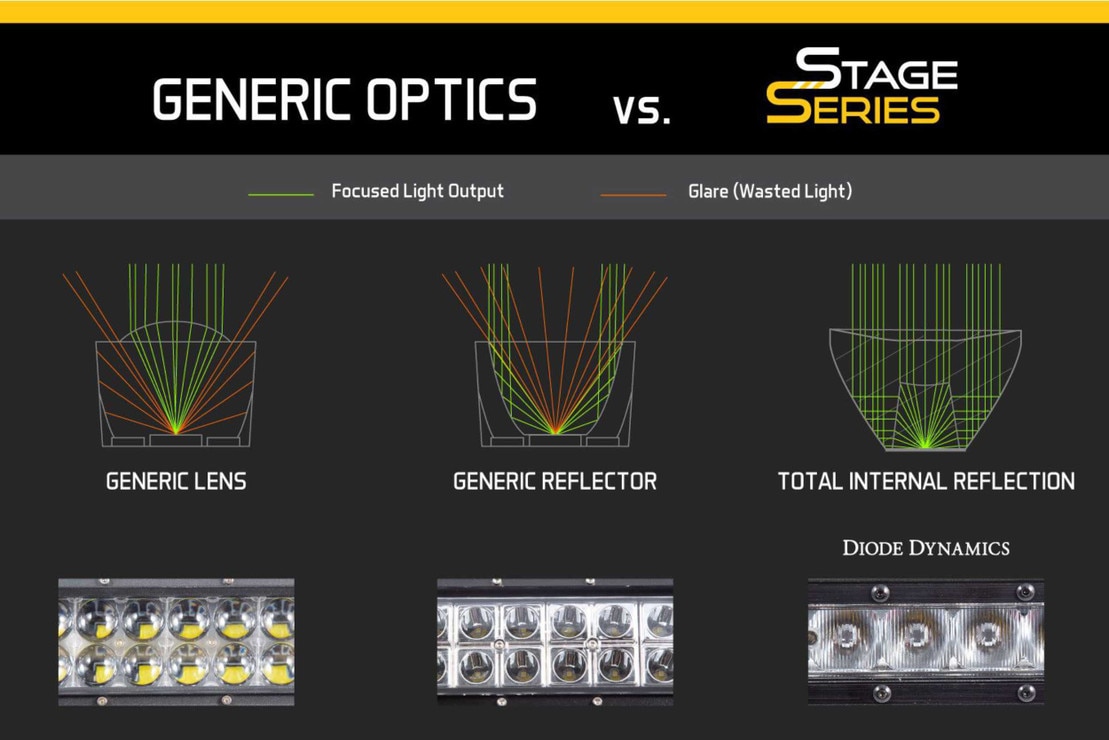

Designed For Performance: Using optical simulation model'g, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.
Functional Patterns: All Stage Series beam pattern options were designed with optical simulation model'g, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds. The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.
Made in the USA: If you're a lighting enthusiast who only buys American; Diode Dynamics is a clear winner in that category. One of very few brands in the automotive lighting industry who designs, engineers, and proudly produces their products right here in St. Louis, MO. We've sold their products for many years and are confident you won't be let down in the performance or quality departments. There's no better place to buy Diode Dynamics lighting upgrades for your car or truck.
