Bolt-On by Diode Dynamics

Bumper-Mount LED Light Bar Kit: Dodge Ram 1500 (13-18)

DD35-TRS

PART #: 1 x DD6012


[ In Stock: pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

2013-2018 Ram Standard LED Driving Kit: Direct fitment on 2013-2018 Dodge Ram Standard. Street-legal output as Driving or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability). Dual output wiring harness included. Highly durable powdercoated steel construction. Utilizes existing mounting points and hardware for a simple installation. CAD-designed for perfect fitment.

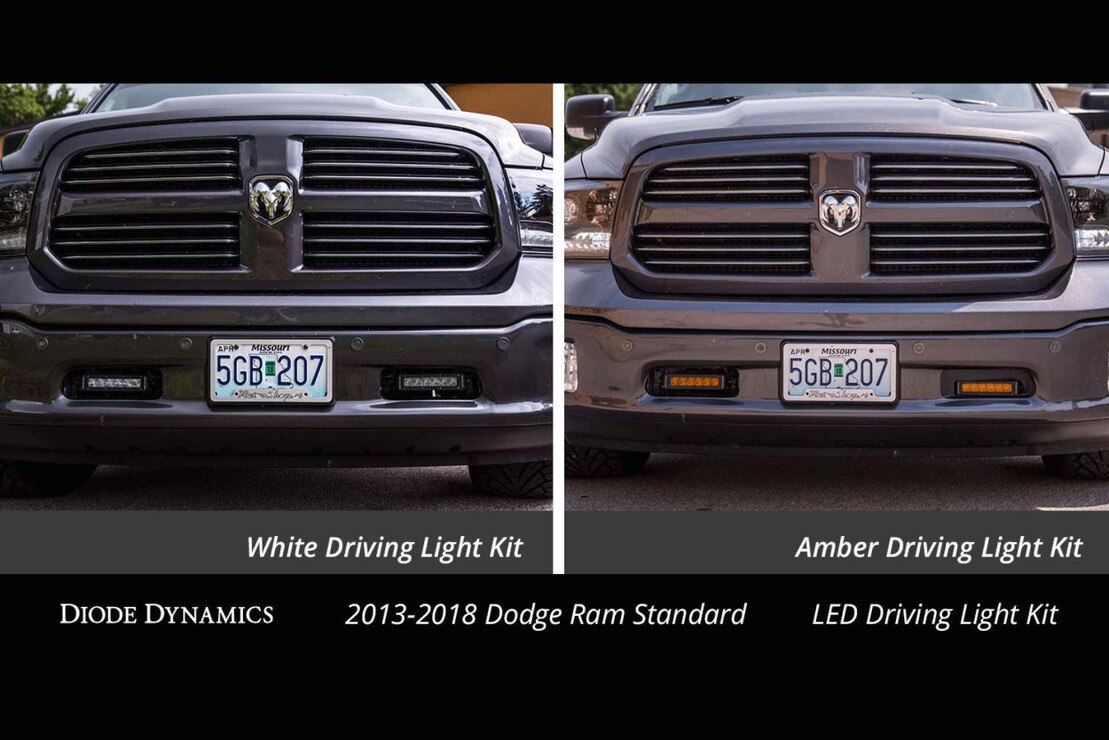

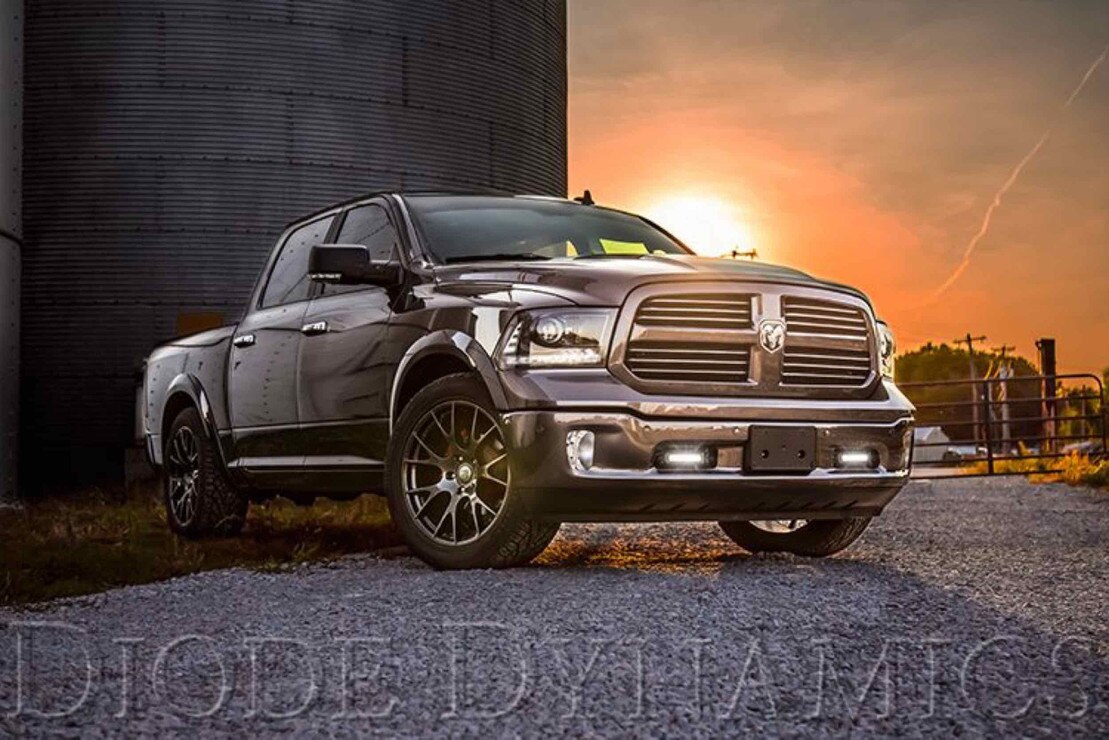

Perfect Fitment: The LED Driving Light Kit for the 2013-2018 Dodge Ram with Standard bumper from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in the bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output: This kit isn't just for off road! It is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

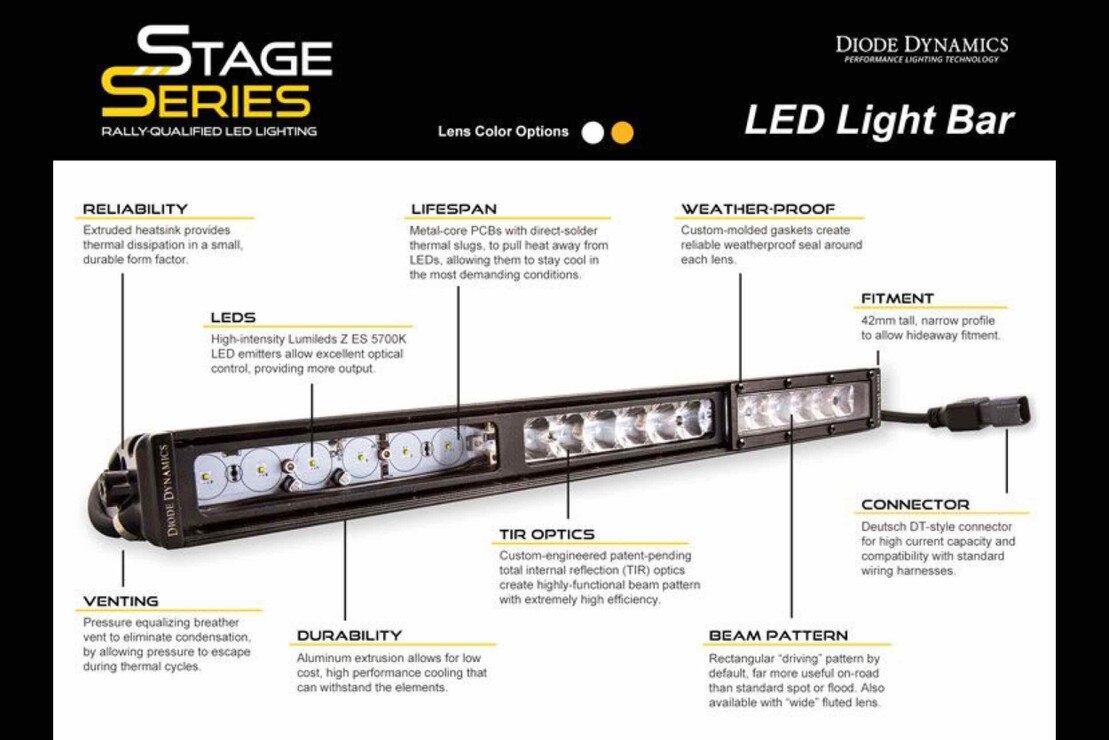

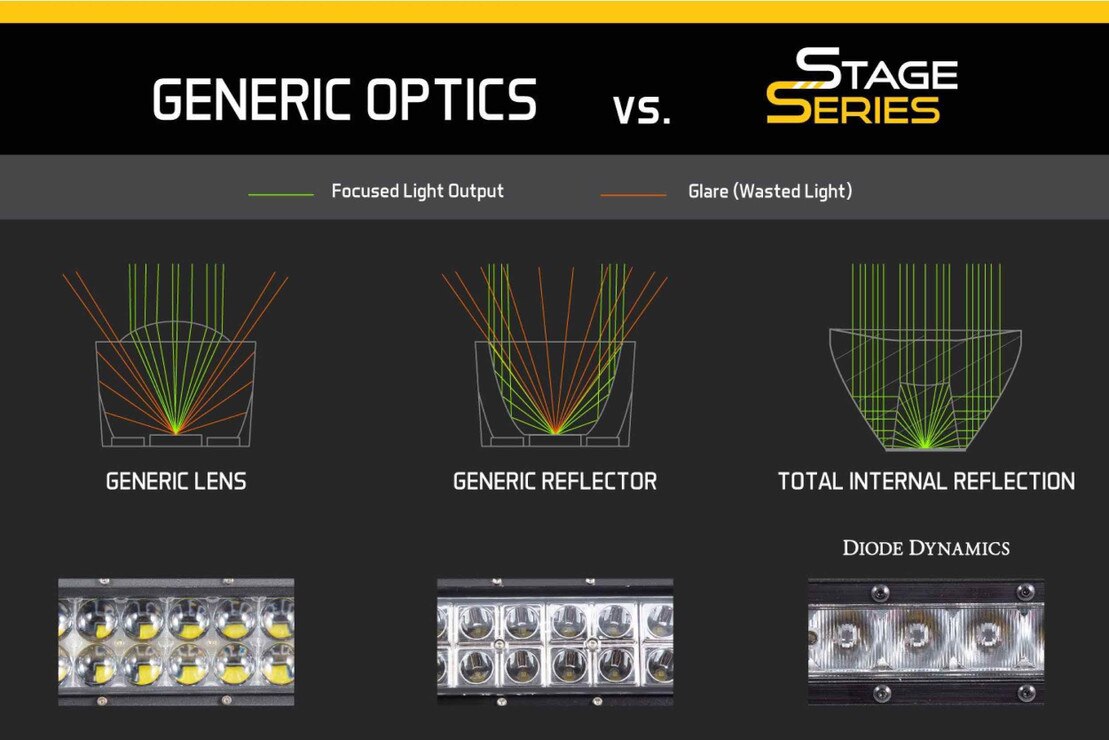

Designed For Performance: Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

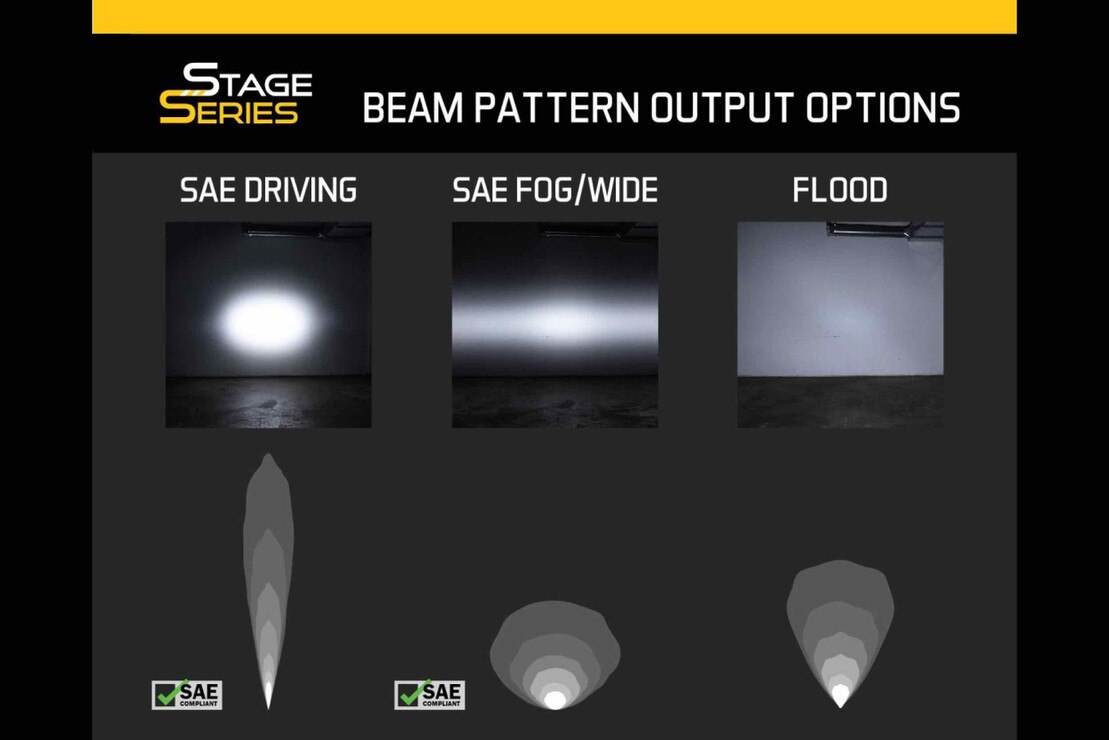

Functional Patterns: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds. The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

Made in the USA: If you're a lighting enthusiast who only buys American; Diode Dynamics is a clear winner in that category. One of very few brands in the automotive lighting industry who designs, engineers, and proudly produces their products right here in St. Louis, MO. We've sold their products for many years and are confident you won't be let down in the performance or quality departments. There's no better place to buy Diode Dynamics lighting upgrades for your car or truck.

Product Specs

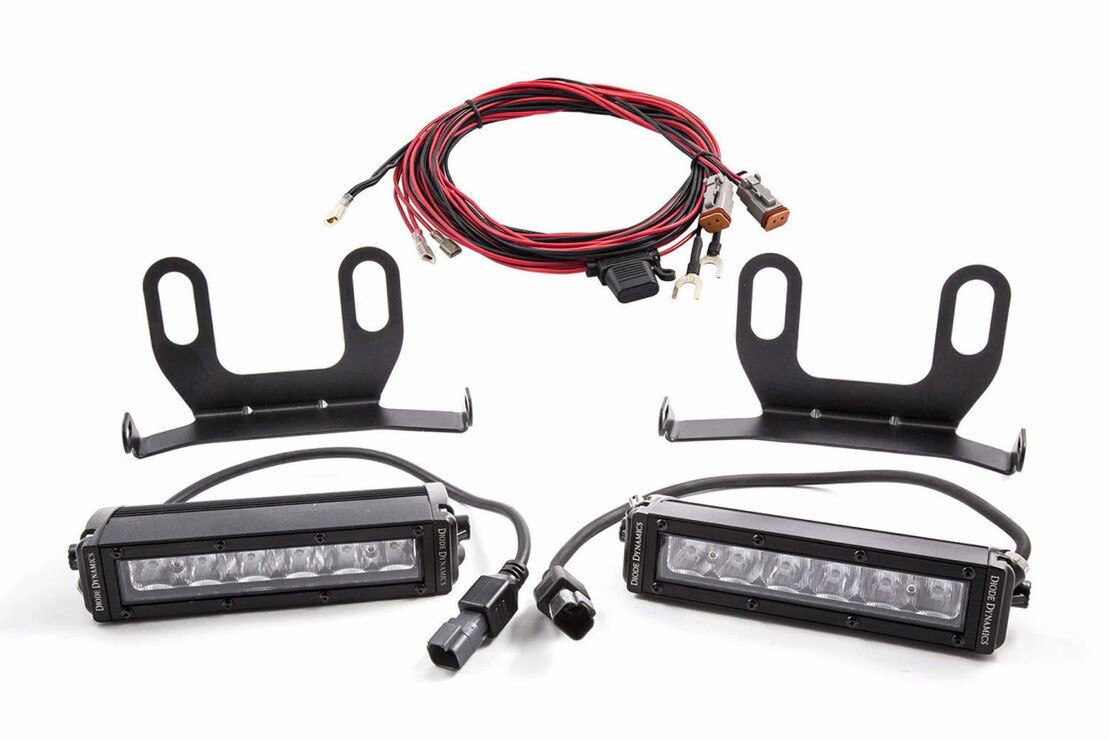

  • What's Included

  • 2x: Application-specific heavy-duty steel brackets for installation on 2013-2018 Ram Standard

  • 2x: SS6 Stage Series 6" Light Bars

  • 1x: Dual Output Harness with toggle switch

  • Hardware: All Necessary Hardware

  • 1x: Installation Guide

  • Quantity: Pair (Left and Right Side)

  • Warranty: 8 year warranty

  • 100%: Satisfaction Guarantee

  • Compatibility

  • Make: Ram

  • Model: 1500/2500/3500

  • Years: 2013, 2014, 2015, 2016, 2017, 2018

  • Electrical Compatibility: No electrical issues (tested and confirmed)

  • NOTE: This kit was designed for the 2013-2018 Ram with the Standard bumper.

  • Tech Specs

  • Measured Lumens: 2280

  • Intensity (cd): 47,000

  • Color Temp (CCT): 2000K, 6000K

  • Beam Angle: Wide, 100degx8deg, Driving, 20degx8deg

  • Power (watts): 26.6

  • Operating Voltage: 9-16V

  • Current (amps @ 13.2V): 1.9

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES

  • Connector(s): Deutsch DT Input

  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink

  • Cooling: Passive, heatsink

  • Intrusion Ratings: IP68 Waterproof

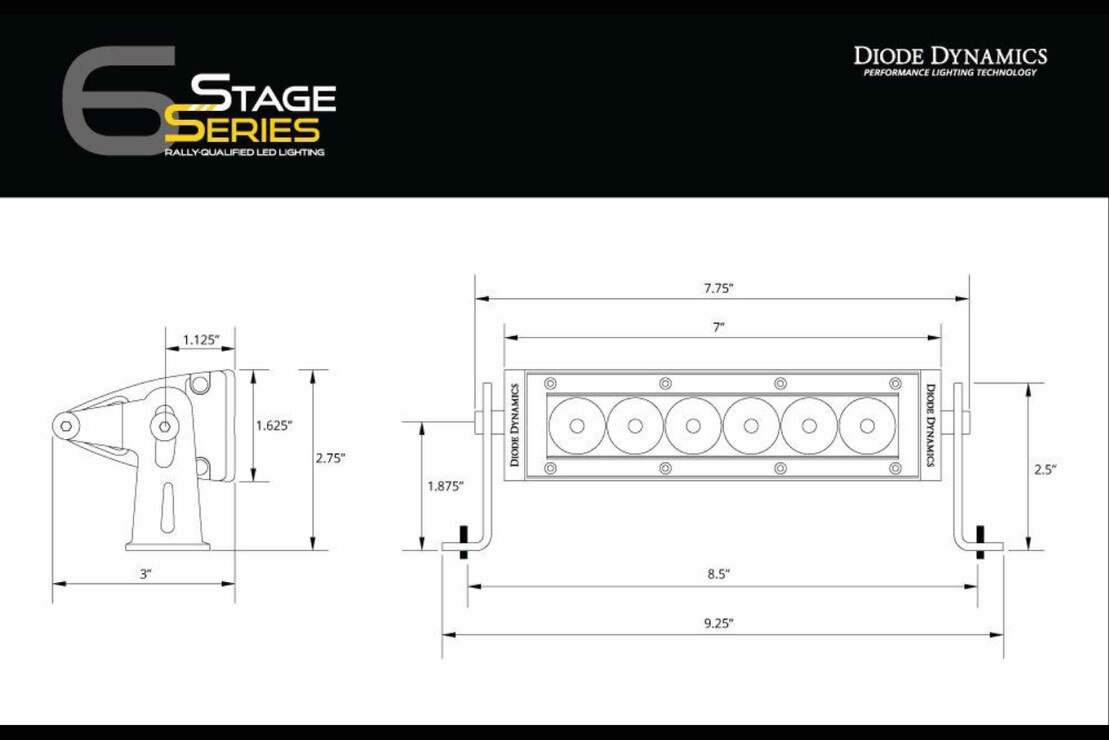

  • Product Dimensions (in): 7x3x1.63
