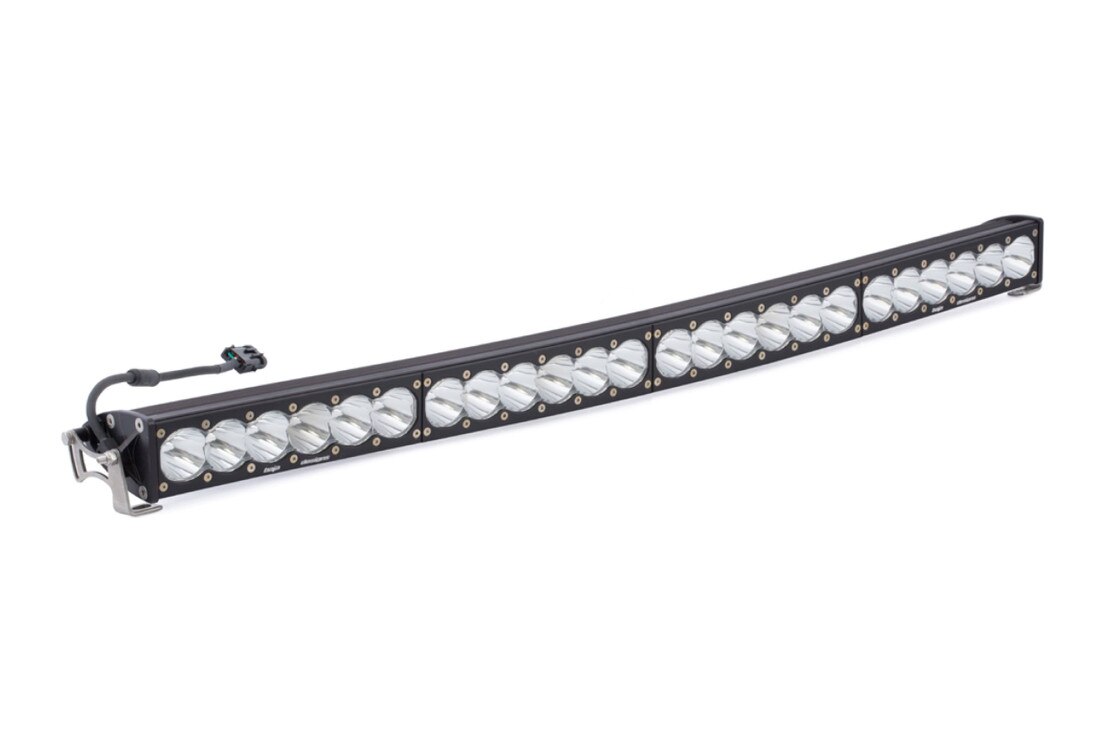

OnX6 LED Light Bar (40in)

(0) No Reviews yet

Brand: Baja Designs




PART #: 1 x 454003


The OnX6+ LED light bar by redefines brightness with an outstanding 38,900 lumens, making it 69% brighter than its predecessors. Exclusively distributed by The Retrofit Source, this LED light bar is enhanced with Baja Designs' signature High-Speed Spot reflector, a feature trusted by their Team Enlightened racers, ensuring unparalleled projection. It seamlessly integrates with aftermarket mounting systems due to its industry-standard sizing. With Battery Management Technology, the OnX6+ promises consistent brilliance and safeguards vehicle systems. Each purchase comes with a 30-Day Satisfaction Guarantee and a Limited Lifetime Warranty, underscoring Baja Designs' commitment to quality.


  • Unmatched Brightness A whopping 38,900 lumens for superior illumination.
  • High-Speed Spot Reflector Optimal light projection trusted by racers.
  • Battery Management Technology Stable lighting and vehicle protection.
  • uService & MoistureBlock Customizable optics with waterproof capabilities.
  • 5000K Daylight Reduces driver fatigue and offers a natural color tone.


  • Light Bar: 1x OnX6 40in LED Light Bar

  • Wiring: 1x Hi-Low Dongle

  • Hardware: Mounting Brackets


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 38,900lm (High), 32,440lm (Low)

  • Power: 346w (High), 290w (Low)

  • Current: 26.8A (High), 22.4A (Low)

  • Weight: 11.45lbs

  • Light Color: 5000K (Pure White)

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)

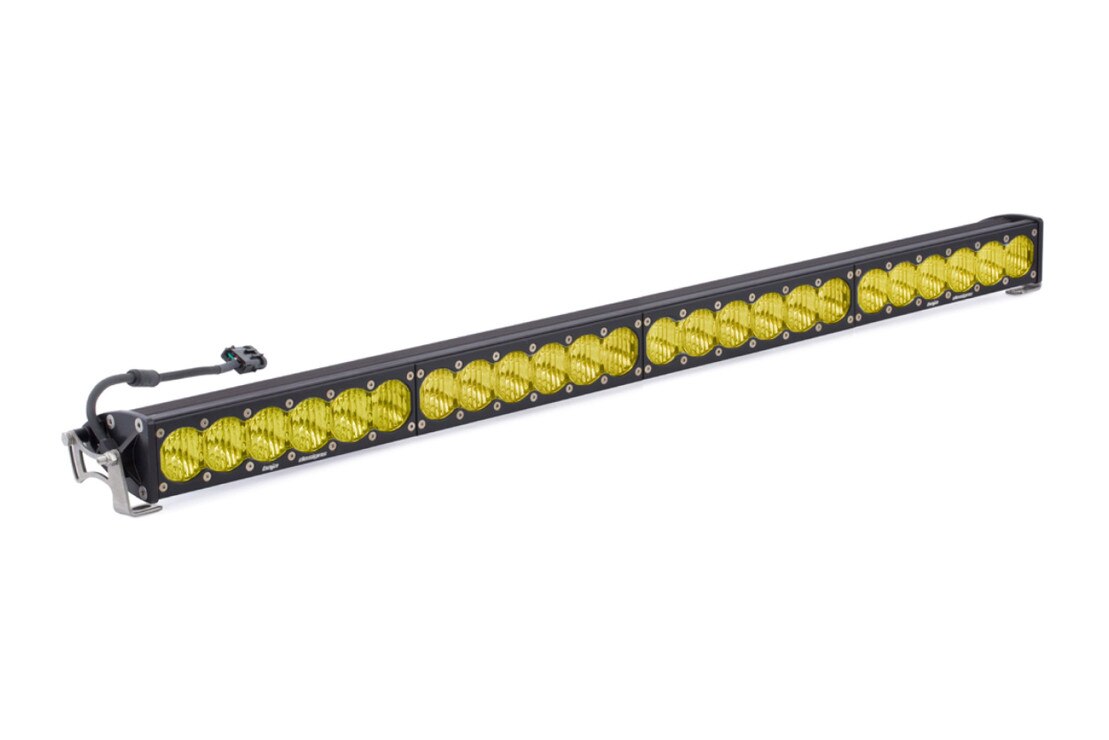

  • 454014: 40" OnX6 LED Light Bar: (Amber / Wide Driving Beam)

  • 524003DC: 40" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern / Arc Series)

  • 464014: 40" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern)

  • 414002: 40" OnX6 LED Light Bar: (White / High Speed Spot Beam / Arc Series - Racer Edition)

  • 524001: 40" OnX6 LED Light Bar: (White / High Speed Spot Beam / Arc Series)

  • 454001: 40" OnX6 LED Light Bar: (White / High Speed Spot Beam)

  • 424003: 40" OnX6 LED Light Bar: (White / Wide Driving Beam / Arc Series - Racer Edition)

  • 524004: 40" OnX6 LED Light Bar: (White / Wide Driving Beam / Arc Series)

  • 454004: 40" OnX6 LED Light Bar: (White / Wide Driving Beam)

  • 454003: 40" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam )

  • 524003: 40" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam / Arc Series)


IP69K, IK10, MIL-STD810G

At an impressive: 38,900 lumens, the brightest just got up to 69% brighter. The Retrofit Source is a proud distributor for Baja Designs, their OnX6+ LED light bar also integrates Baja Designs' trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT:Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes. The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features: uService: So you can replace the Lenses And Optics. ClearView: Gives you all The light, right where you need it most! MoistureBlock means they are Waterproof, Rain Proof, Submersible. And Baja CopperDrive: These are the only LED products on the market driven at 100%! 5000K Daylight - Less Fatigue for you as the driver & Natural Color.

Why buy Baja Designs from TRS? We're not just another reseller on the internet peddling every product line in the automotive aftermarket. We're car enthusiasts with a passion for lighting, and lighting only. We offer the best products from the best brands and if you've got technical questions about the product; our team of lighting experts will actually know the answer. Enter your year/make/model into the buyer's guide on our homepage and see what compatible products we've got in store for you!
