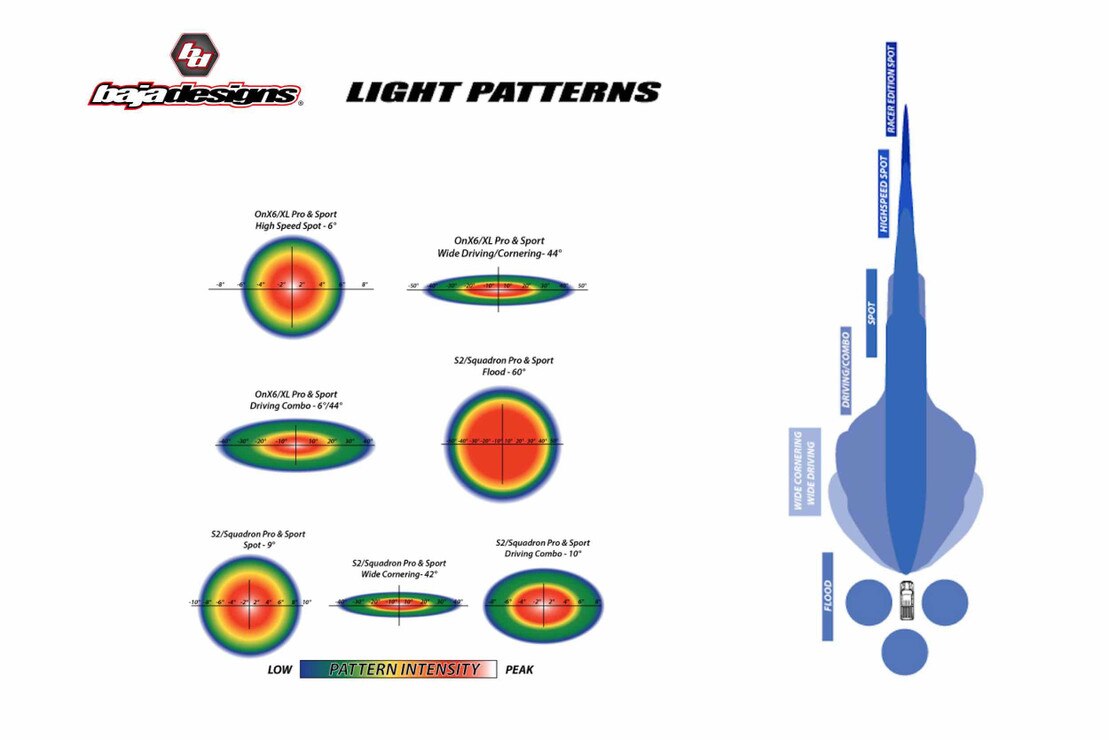

Wide, Driving & Spot Beam Patterns

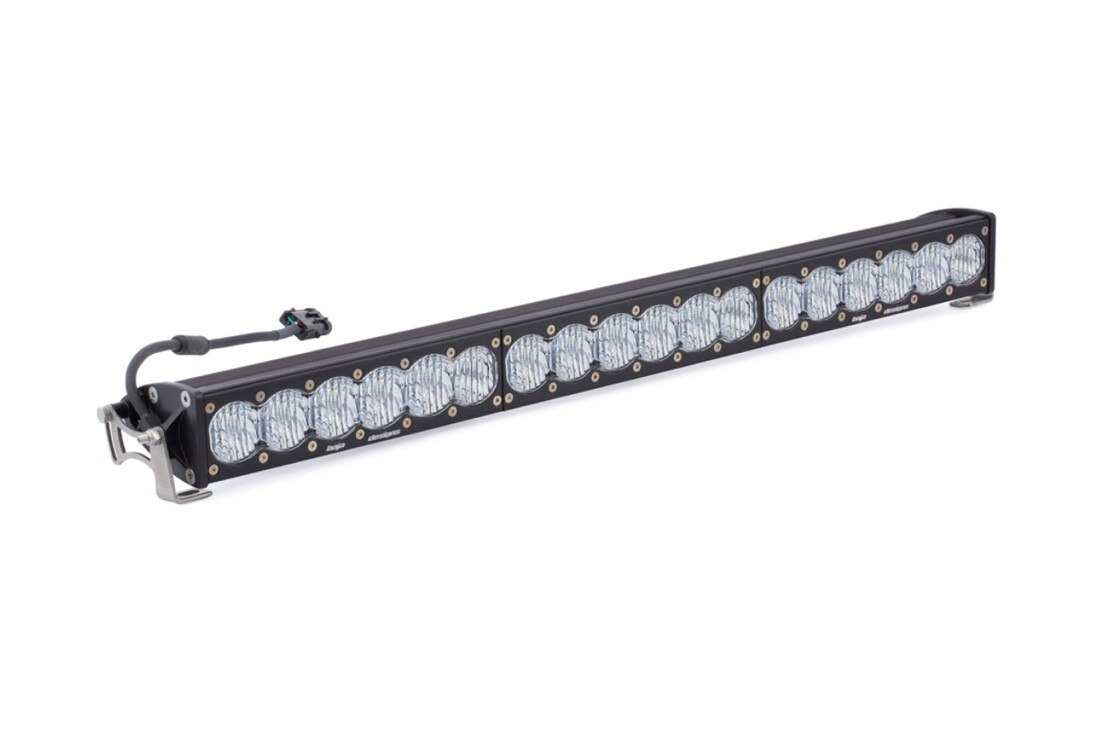

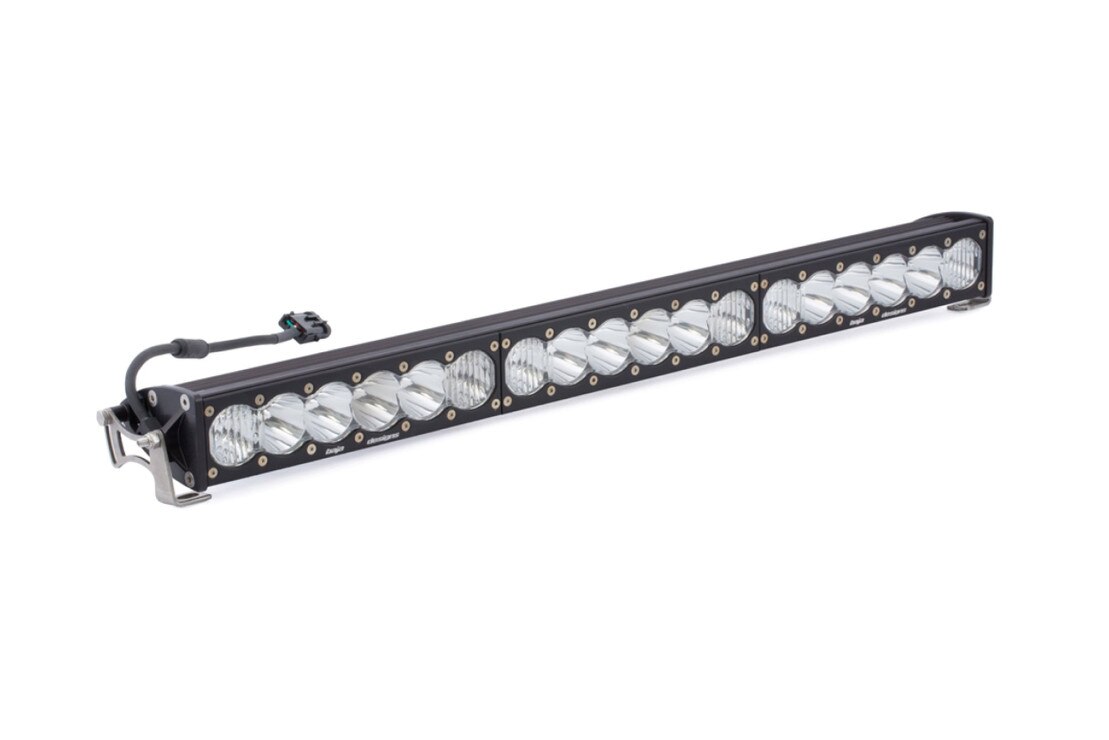

Baja Designs OnX6 LED Light Bar (30in)


PART #: 1 x 453003

[ In Stock: 0 pieces ]


Product Details

The NEW: OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 32,070 lumens, the brightest just got up to 69% brighter. The Retrofit Source is a proud distributor for Baja Designs, their OnX6+ LED light bar also integrates Baja Designs' trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT:Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes. The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features: uService: So you can replace the Lenses And Optics. ClearView: Gives you all The light, right where you need it most! MoistureBlock means they are Waterproof, Rain Proof, Submersible. And Baja CopperDrive: These are the only LED products on the market driven at 100%! 5000K Daylight - Less Fatigue for you as the driver & Natural Color.

Why buy Baja Designs from TRS? We're not just another reseller on the internet peddling every product line in the automotive aftermarket. We're car enthusiasts with a passion for lighting, and lighting only. We offer the best products from the best brands and if you've got technical questions about the product; our team of lighting experts will actually know the answer. Enter your year/make/model into the buyer's guide on our homepage and see what compatible products we've got in store for you!

Product Specs

  • What's Included

  • OnX6+: Arc 30in LED Light Bar

  • Brackets: Mounting Brackets

  • Wiring: Hi-Low Dongle

  • Satisfaction Guarantee: 30 day Money Back Guarantee*

  • Limited Lifetime Warranty: Complete Purchase Protection*

  • Compatibility

  • 453014: 30" OnX6 LED Light Bar: (Amber / Wide Driving Beam)

  • 523003DC: 30" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern / Arc Series)

  • 463014: 30" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern)

  • 413002: 30" OnX6 LED Light Bar: (White / High Speed Spot Beam - Racer Edition)

  • 523001: 30" OnX6 LED Light Bar: (White / High Speed Spot Beam / Arc Series )

  • 453001: 30" OnX6 LED Light Bar: (White / High Speed Spot Beam)

  • 523004: 30" OnX6 LED Light Bar: (White / Wide Driving Beam / Arc Series)

  • 453004: 30" OnX6 LED Light Bar: (White / Wide Driving Beam)

  • 453003: 30" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam )

  • 423003: 30" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam / Arc Series - Racer Edition)

  • 523003: 30" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam / Arc Series)

  • Tech Specs

  • Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs

  • Kelvin: 5000K Daylight : Less Driver Fatigue, Natural Color

  • Wattage/Amps: (High) 278W / 21.7A (Low) 222W / 17.1A

  • Dimensions: 30" x 4.29" x 2.69"

  • Weight: 11.45 lbs

  • LED Life Expectancy: 49,930 Hours

  • Front Lens: Hard Coated Polycarbonate

  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize

  • Bezel: Billet Machined Aluminum

  • Hardware & Bracket Material: Stainless Steel

  • Exceeds: MIL-STD810G (Mil-Spec Testing)

  • Built-In: Overvoltage Protection

  • IP69K: (Waterproof up to 9ft & Pressure Washable)

  • IK10: Compliant (Mechanical Impact Testing)

  • uService: Replaceable Lenses And Optics

  • ClearView: All The Light, Right Where You Need It.

  • MoistureBlock : Waterproof, Rain Proof, Submersible

  • CopperDrive: Only LED Driven At 100%
