Racer and Sport Version

Baja Designs LP9 LED Pods

3P-BD2-TRS

PART #: 1 x 320003


[ In Stock: 0 pieces ]

FREE SHIPPING
RETURNS
DIRECT
EXPERTISE
ENTHUSIASTS
REPUTATION

Product Details

A design: that was inspired by Baja Designs' legendary 8in La Paz HID, The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.The Retrofit Source is a proud distributor for Baja Designs!

The LP9: utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200deg spread of usable light.

The housing: was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

Baja Designs Features: uService: So you can replace the Lenses And Optics. ClearView: Gives you all The light, right where you need it most! MoistureBlock means they are Waterproof, Rain Proof, Submersible. And Baja CopperDrive: These are the only LED products on the market driven at 100%! 5000K Daylight - Less Fatigue for you as the driver & Natural Color.

Why buy Baja Designs from TRS? We're not just another reseller on the internet peddling every product line in the automotive aftermarket. We're car enthusiasts with a passion for lighting, and lighting only. We offer the best products from the best brands and if you've got technical questions about the product; our team of lighting experts will actually know the answer. Enter your year/make/model into the buyer's guide on our homepage and see what compatible products we've got in store for you!

Product Specs

  • What's Included

  • 1x: LP9 Pro LED

  • Satisfaction Guarantee: 30 day Money Back Guarantee*

  • Limited Lifetime Warranty: Complete Purchase Protection*

  • Compatibility

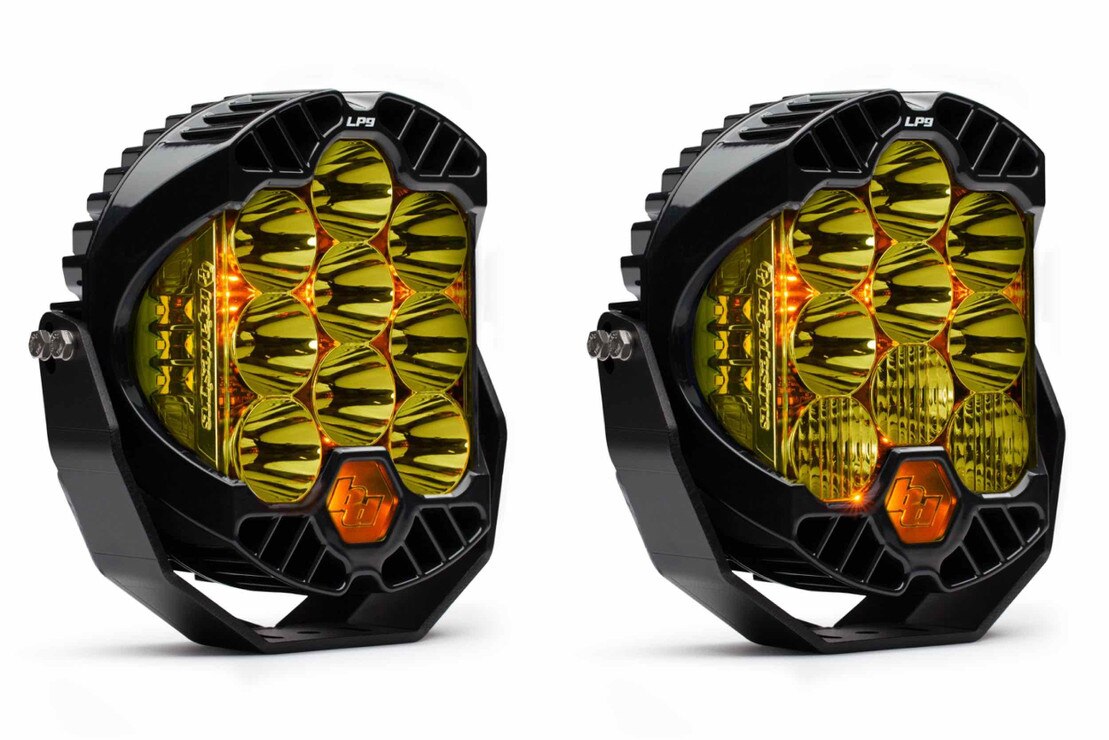

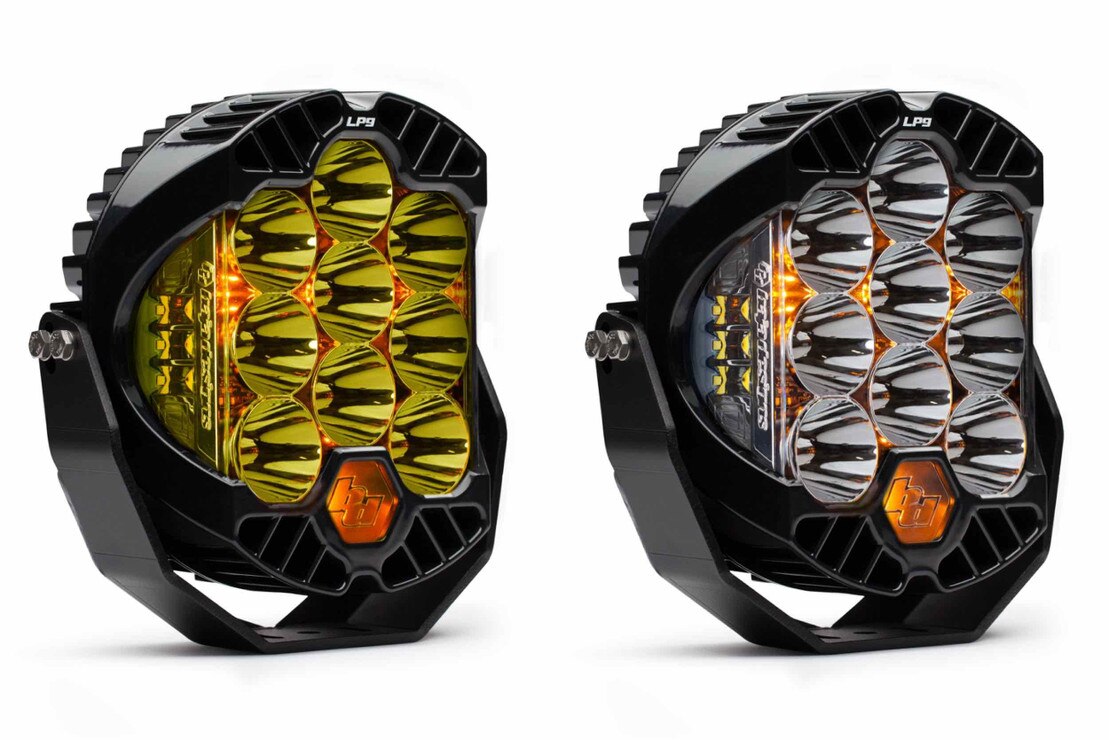

  • 320013: LP9 LED Pod: (Each / Amber / Combo Beam)

  • 320011: LP9 LED Pod: (Each / Amber / High Speed Spot Beam)

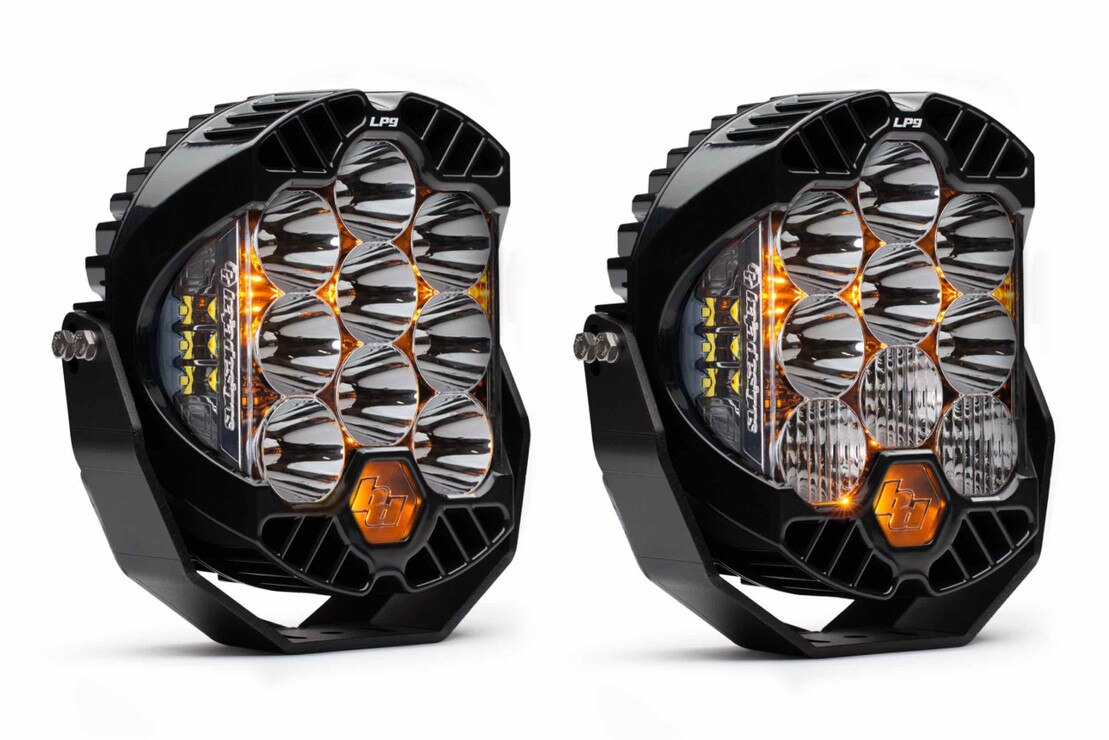

  • 320003: LP9 LED Pod: (Each / White / Combo Beam)

  • 320001: LP9 LED Pod: (Each / White / High Speed Spot Beam)

  • 330011: LP9 Racer Edition LED Pod: (Each / Amber / High Speed Spot Beam)

  • 330001: LP9 Racer Edition LED Pod: (Each / White / High Speed Spot Beam)

  • 350013: LP9 Sport LED Pod: (Each / Amber / Combo Beam)

  • 350011: LP9 Sport LED Pod: (Each / Amber / Spot Beam)

  • 350001: LP9 Sport LED Pod: (Each / White / Spot Beam)

  • Tech Specs

  • Forward Projecting Lumens: 11,025 Utilizing 9 LEDs

  • Forward Projecting Wattage/Amps: 105W / 7.6A

  • 5000K Daylight: Less Driver Fatigue, Natural Color

  • IPT Lumens: 2,280 Utilizing 6 LEDs

  • IPT Wattage/Amps: 21W / 1.52A

  • Backlight Wattage/Amps: 2.8W / 0.2A

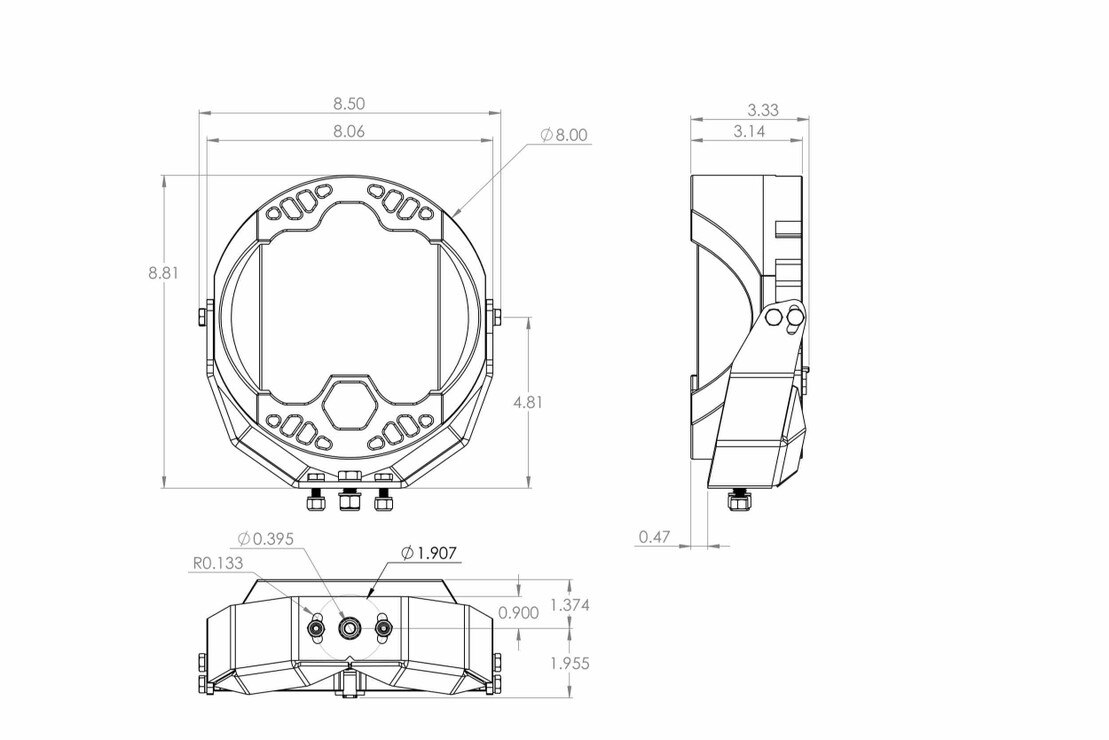

  • Dimensions: 8" Diameter/ 3.25" Depth

  • Weight: 6.5lbs

  • LED Life Expectancy: 49,930 Hours

  • Front Lens: Hardcoated Polycarbonate

  • Housing: Hard Anodized Aluminum

  • Bezel: Aluminum

  • Hardware & Bracket Material: Stainless Steel

  • Exceeds: MIL-STD810G (Mil-Spec Testing)

  • Built-In: Overvoltage Protection

  • IP69K: (Waterproof up to 9ft & Pressure Washable)

  • IK10: Compliant (Mechanical Impact Testing)

  • uService: Replaceable Lenses And Optics

  • ClearView: All The Light, Right Where You Need It.

  • CopperDrive: Only LED Driven At 100%
