Sealed6 Bi-LED Headlight

(0)No Reviews yet
Questions?

Brand: Morimoto

B-ASY-SEALED6-TRS

Videos

$314.00

PRODUCT OPTIONS

Sealed Beam: Sealed6 (5.75in Round)

PART #: 1 x LF269

Easy Return

DESCRIPTION

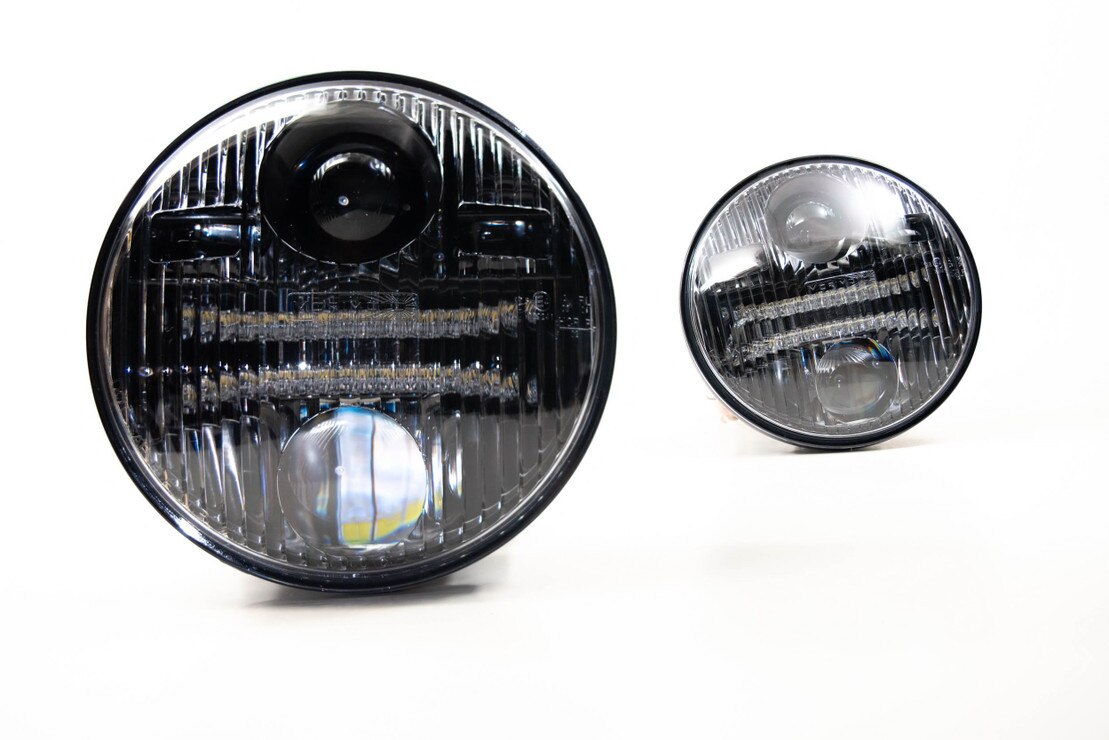

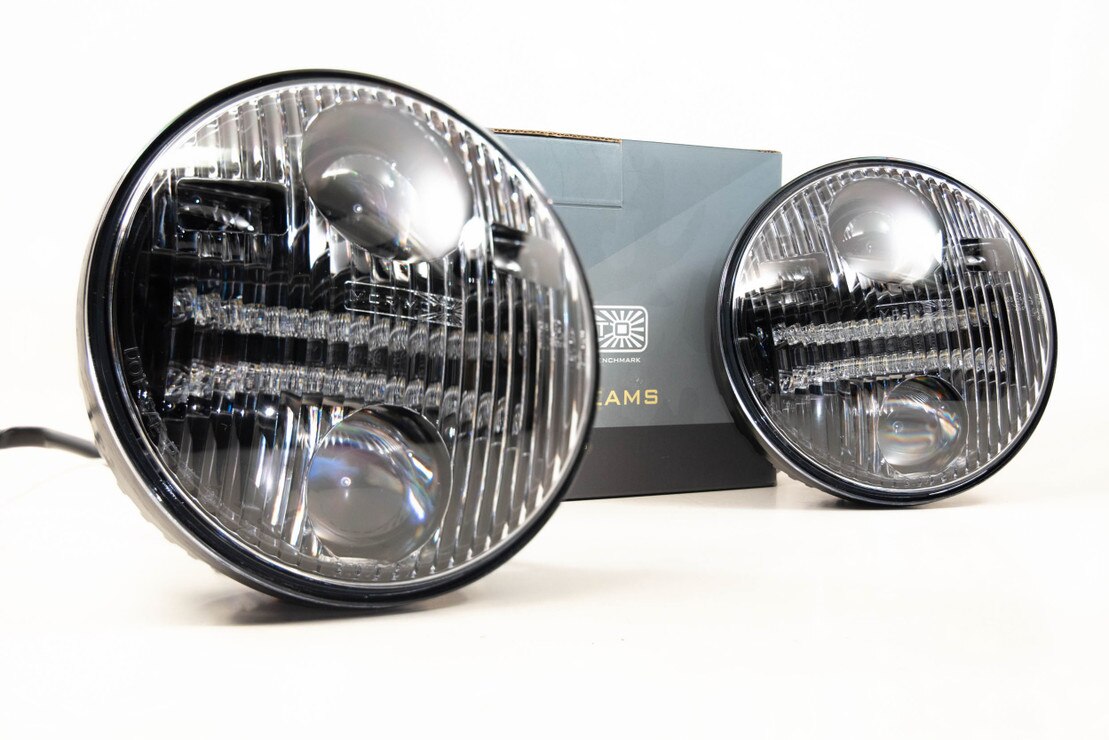

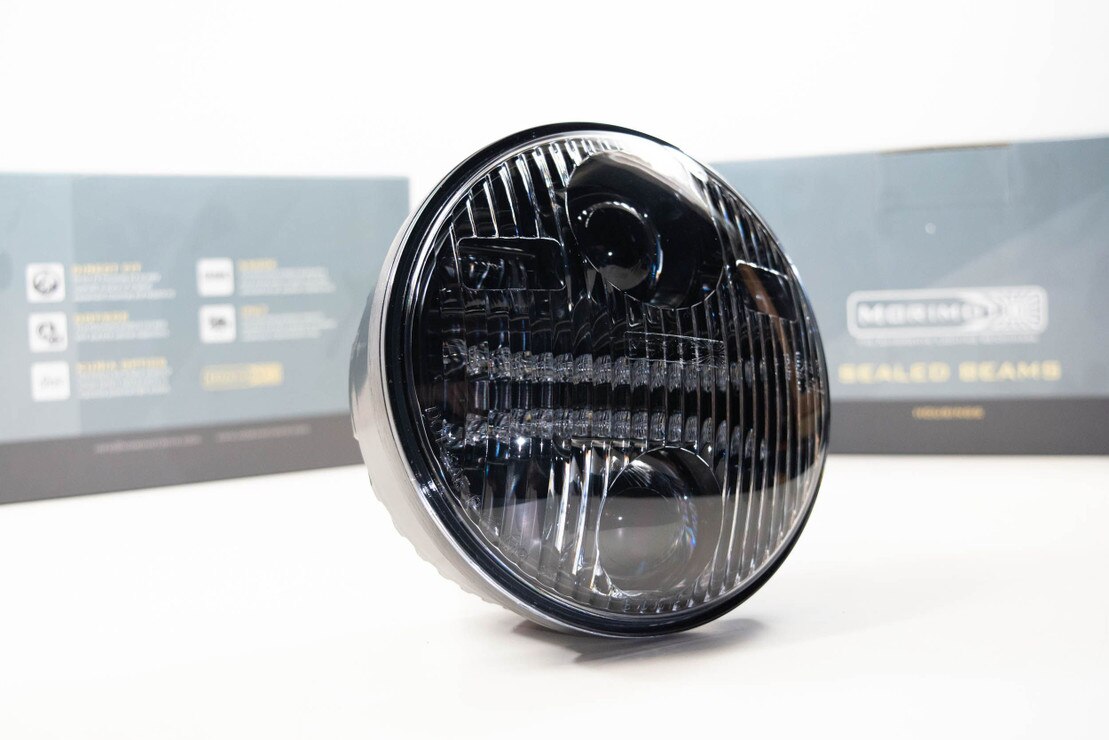

Introducing the Morimoto Sealed6 LED headlights -- a revolutionary addition to the 5.75" round sealed Beam LED market. Morimoto has redefined the game with their all-new, proprietary design that sets them apart from the competition. In low beam mode, these headlights use Nichia NCSW170C Series LEDs paired with Morimoto's advanced Kuria Optic projector lens array to efficiently deliver 2400 lumens with a properly LHD-stepped beam pattern. Switch to high beam, and the Sealed6 shines with an impressive 4300 lumens. Notable for their dual light-pipe DRL setup, these headlights feature both high-intensity white daytime running lights and low-intensity white parking lights. Their exceptional quality is evident in the use of high-quality LEDs from Nichia-Japan and Philips-Lumileds, ensuring longevity and performance. The Sealed6 headlights are designed to replace all 5.75" round headlights, offering full low and high beam functionality. They come with H4 3-pin male inputs, making them plug-and-play compatible with most classic cars and trucks.

FEATURES & BENEFITS

  • Illumination: 2400 lumens (low beam) and 4300 lumens (high beam) for superior visibility.
  • Optics: Kuria Optic projector lens ensures precise beam patterns.
  • DRL Lights: High-intensity daytime running lights and parking lights for safety.
  • Durability: UV-coated lens, robust housing with heat sink for longevity.
  • Easy Install: Plug-and-play H4 3-pin inputs for compatibility.

WHAT’S INCLUDED

  • Headlight : 1x Sealed6 Bi-LED Headlight

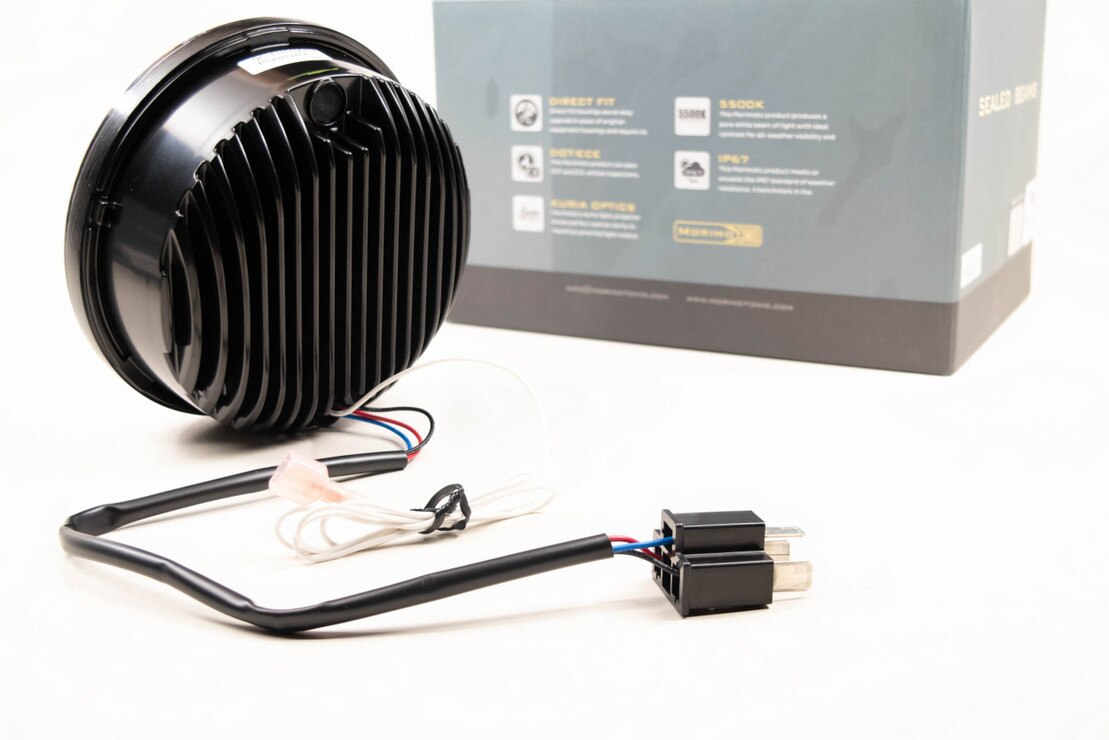

  • Wiring : H4 Male Input, T-Taps for DRL

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Intensity : 2,400lm (Low), 4,300lm (High)

  • Power : 20w (Low), 35w (High)

  • Input : H4, T-Taps for DRL

  • Input Voltage : 9-36V DC

  • Traffic Pattern : LHD Only

  • Material : Aluminum (Housing), Polycarbonate (Lens)

  • Light Source : Nichia NCSW170C 5000K (Pure White), Philips Luxeon 3535L

LINE DRAWINGS

COMPATIBILITY

  • Sealed Beam Standards : H5001, H5006

  • Input Wiring : H4 3-pin (low/high/ground)

  • AMC Ambassador : 1960-1974

  • AMC Classic : 1963

  • AMC Hornet : 1971

  • AMC Matador : 1971-1973

  • Aprilia Dorsoduro 1200 : 2011-2012

  • Aprilia Dorsoduro 750 : 2010-2013

  • Aprilia ETV1000 : 2001-2007

  • Aprilia Mana 850 : 2009-2012

  • Aprilia Pegaso 650 : 1996-2007

  • Aprilia RSV Tuono : 2003

  • Aprilia RSV Tuono R : 2004

  • Aprilia Shiver 750 : 2010-2012

  • Aprilia Tuono 1000 : 2003

  • Aprilia Tuono 1000R : 2004-2011

  • Aprilia Tuono 125 : 2005

  • Aprilia Tuono 50 : 2004-2005

  • Aprilia Tuono R139 : 2007

  • Aprilia Tuono V4R : 2013

  • Audi 100 Series : 1971-1977

  • Audi 5000 : 1978-1979

  • Audi Fox : 1977-1979

  • Austin Marina : 1973-1975

  • BMW 2500 : 1969-1971

  • BMW 318i : 1984-1985

  • BMW 318is : 1991

  • BMW 320i : 1977-1983

  • BMW 325 : 1986-1988

  • BMW 325e : 1984-1987

  • BMW 325es : 1986-1987

  • BMW 325i : 1987-1991

  • BMW 325iX : 1988-1991

  • BMW 325is : 1987-1991

  • BMW 524td : 1985-1986

  • BMW 528e : 1982-1988

  • BMW 528i : 1979-1981

  • BMW 530i : 1975-1978

  • BMW 533i : 1983-1984

  • BMW 535i : 1985-1988

  • BMW 535is : 1988

  • BMW 630CSi : 1977-1978

  • BMW 633CSi : 1978-1984

  • BMW 635CSi : 1985-1989

  • BMW 733i : 1978-1984

  • BMW 735i : 1985-1988

  • BMW 735iL : 1988

  • BMW 750iL : 1988

  • BMW L6 : 1987

  • BMW L7 : 1986-1987

  • BMW M3 : 1988-1991

  • BMW M5 : 1988

  • BMW M6 : 1987-1988

  • Buick Century : 1958

  • Buick Electra : 1959-1975

  • Buick Estate Wagon : 1970-1975

  • Buick Gran Sport : 1966-1967

  • Buick LeSabre : 1959-1975

  • Buick Limited : 1958

  • Buick Opel : 1976-1978

  • Buick Riviera : 1963-1974

  • Buick Roadmaster : 1950-1958

  • Buick Skylark : 1961-1972

  • Buick Special : 1967

  • Cadillac Calais : 1965-1974

  • Cadillac Commercial Chassis : 1968-1974

  • Cadillac DeVille : 1958-1974

  • Cadillac Eldorado : 1958-1974

  • Cadillac Fleetwood : 1965-1974

  • Chevrolet Bel Air : 1958-1981

  • Chevrolet C10 : 1980

  • Chevrolet C20 : 1980

  • Chevrolet C2500 : 1990-1997

  • Chevrolet C3500HD : 1996-2000

  • Chevrolet C50 : 1960-1961

  • Chevrolet Caprice : 1966-1976

  • Chevrolet Chevelle : 1964-1970

  • Chevrolet Citation : 1982-1983

  • Chevrolet Corvette : 1958-1982

  • Chevrolet El Camino : 1959-1970

  • Chevrolet Impala : 1959-1976

  • Chevrolet K20 : 1980

  • Chevrolet K30 : 1980

  • Chevrolet LUV : 1975-1977

  • Chevrolet Malibu : 1981

  • Chevrolet S10 : 1984-1993

  • Chevrolet Sedan Delivery : 1958-1959

  • Chevrolet Suburban : 1958-1959

  • Chevrolet Truck : 1958-1960

  • Chrysler Imperial : 1959-1974

  • Chrysler LeBaron : 1977

  • Chrysler New Yorker : 1973-1981

  • Chrysler Newport : 1965-1977

  • Dodge Challenger : 1970-1974

  • Dodge Charger : 1966-1976

  • Dodge Colt : 1972-1973

  • Dodge Coronet : 1963-1974

  • Dodge Custom : 1960-1961

  • Dodge D100 Pickup : 1958-1959

  • Dodge D200 Pickup : 1958-1959

  • Dodge D300 Pickup : 1958

  • Dodge Dart : 1971

  • Dodge Monaco : 1970-1976

  • Dodge Royal Monaco : 1975-1977

  • Dodge Truck : 1958-1960

  • Dodge W200 Pickup : 1959

  • Dodge W300 Pickup : 1959

  • Ducati 400 : 1997

  • Ducati 750 SS : 1999

  • Ducati 750 Sport : 1990

  • Ducati 900 SS : 2000-2001

  • :

  • Yamaha Vmax 1700 : 2009-2013

  • Interchange Part Number : 4000, 4040, 5.75inch round headlight, H4001, H5001, H5006, 4001, Without Bulbs

  • Manufacturer Part Number : 4000, 5001, 4040, 5.75 Inch Round LED Headlights, H4001, H5001, H5006, M002ZQ

  • MPN : 5.75-H4-20/40W-Y/C-STOCK-H4-G5-S5

  • OE/OEM Part Number : 4000, 4040, H4001, H5001, H5006, 5.75inch round headlight, Without Bulbs

  • Superseded Part Number : 4000, 4040, H4001, H5001, H5006, 4001, 4004, 5.75inch round headlight

COMPLIANCE

DOT, SAE, FMVSS108 Standards

Just when you think: You've done your research and come across every last option in the 5.75 round sealed Beam LED market, these should catch your attention. While it's true there's only so many ways you can package a set of low and high beam LED-based optics into a small round headlight; Morimoto's Sealed6 pulls it off in the most functional and elegant setup possible.


Proprietary: The Morimoto Sealed6 is all-new, all-original from the ground up. Until now, there were basically three distinct products on the market. You have the high-end J.W. Speaker 8630 at the top of the price spectrum. Then there are the cheap J.W. Speaker knock-offs, re-branded by companies A,B, and C...and last but not least you have the options like the Truck-Lite reflector-based 5.75" lights...again, re-branded by company X,Y, and Z. The Morimoto Sealed6 LED headlights are unlike anything else on the market.

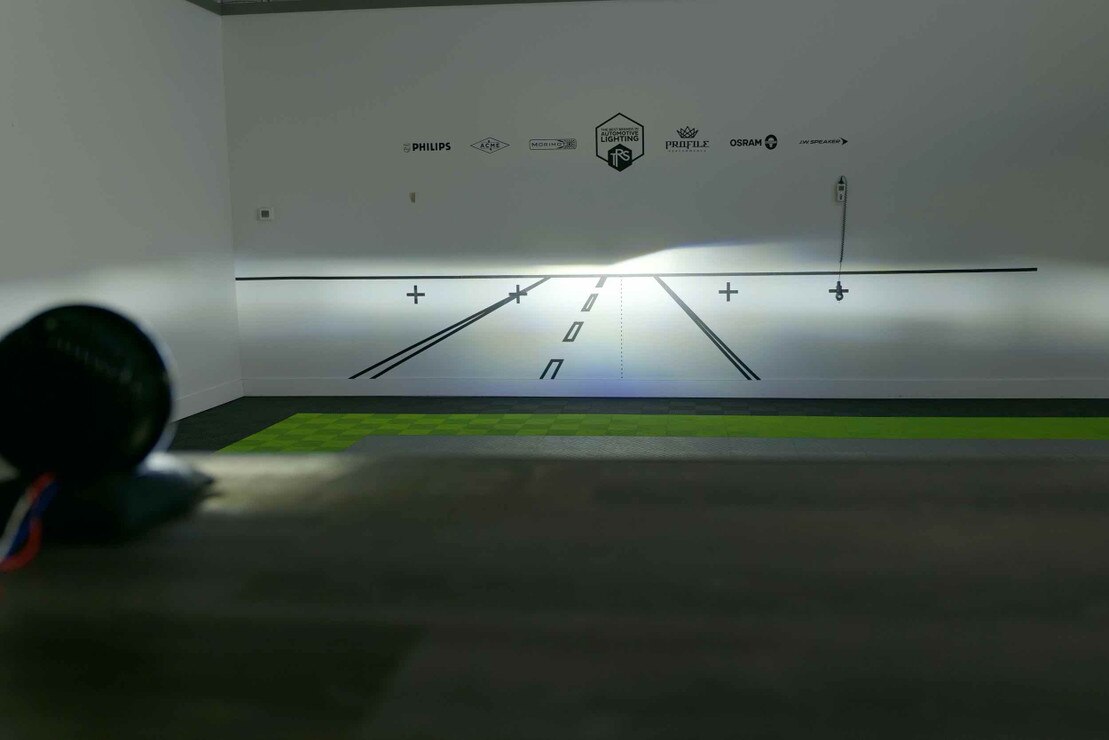

Output: In low beam mode, Nichia NCSW170C Series LED's paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes 2400 lumens on the road in a properly LHD-stepped beam pattern. In high beam mode, the Sealed6 illuminates an extra set of optics, upping the overall output to 4300 mosquito-melting lumens there.

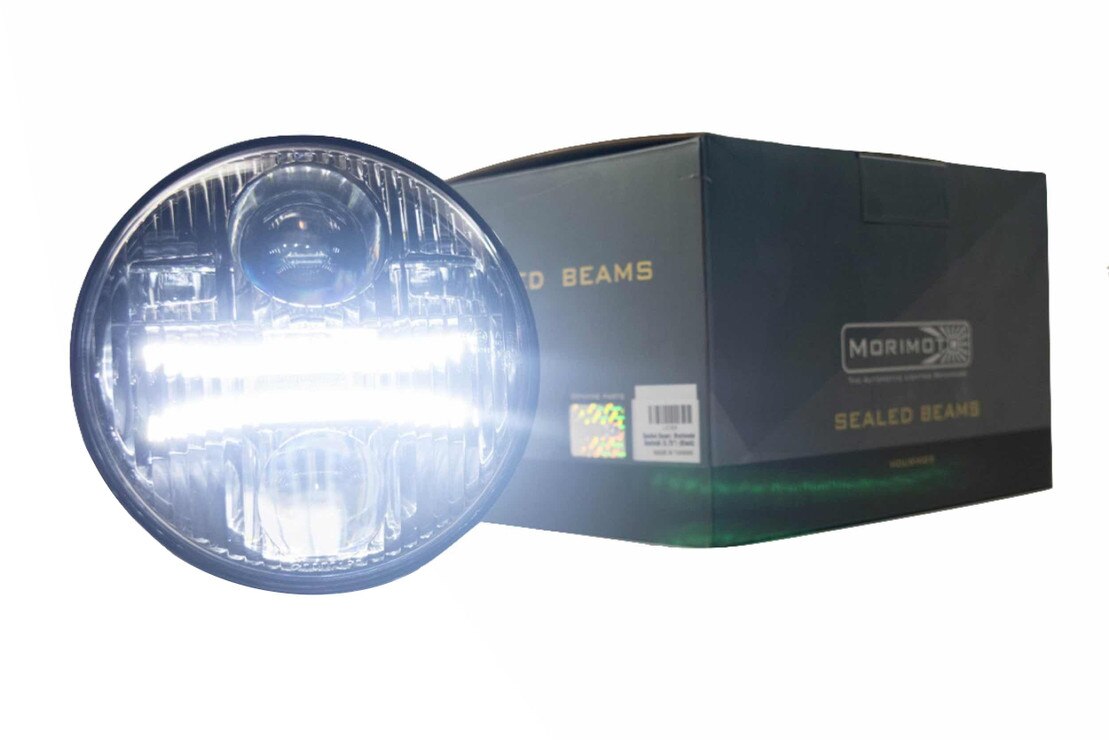

DRL / Switchback: The dual light-pipe DRL setup has both a high-intensity white daytime running light and a low-intensity white parking light. The 2-wire DRL/Signal input makes setup easy. If you don't care for the DRL function though, they do not have to be wired in.


Quality: No expense was spared when designing the Sealed6. The heart of the headlight is powered with high quality LEDs from Nichia-Japan and Philips-Lumileds. These aren't cheap emitters to begin with. Your classic car has already withstood the test of time and the UV-coated polycarbonate lens will take another couple decades worth of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink. A special PWM LED driver resides inside of the headlight to keep the LED's running at their peak intensity, even during prolonged periods of use.


5.75" Standard: Designed to replace all 5.75" round headlights, these are cross compatible with other sizes commonly known as H5001 or H5006. The Sealed6 offers full low and high beam functionality. They come standard with H4 3-pin male inputs and should be plug and play on most classic cars / trucks.
