3Easy Projector Shroud

(0) No Reviews yet
Questions?

Brand: Morimoto

B-SHR-3EASY-TRS

$30.00

PRODUCT OPTIONS

PART #: 2 x S400



Easy Return

DESCRIPTION

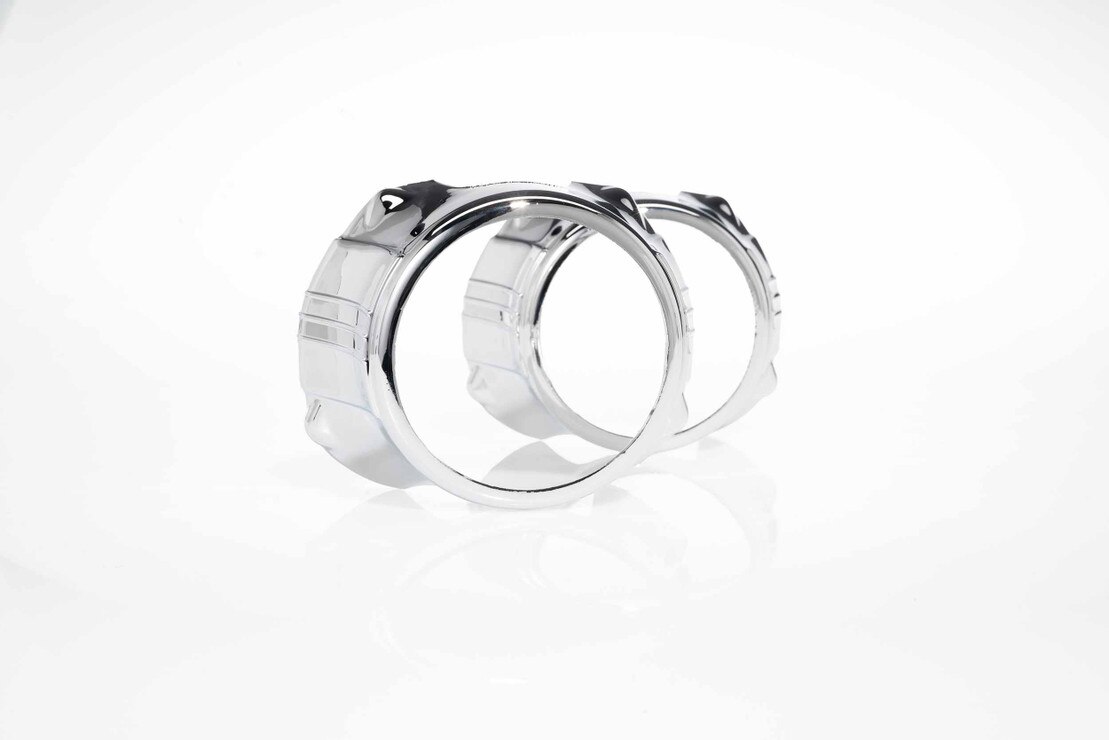

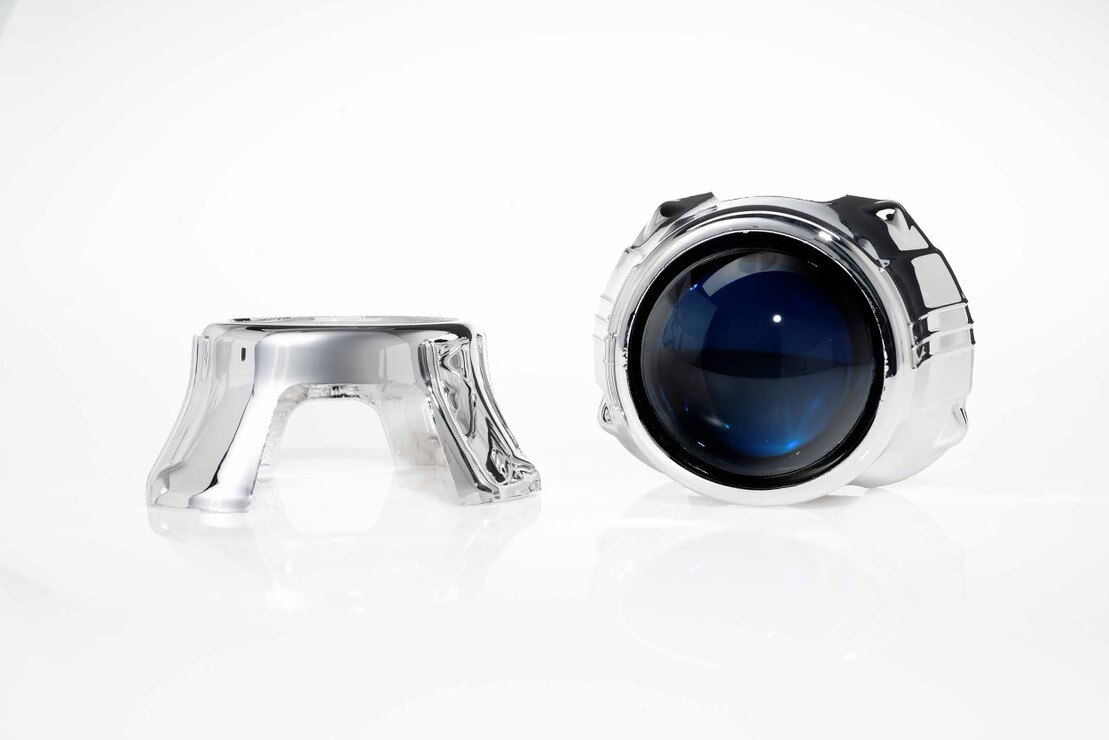

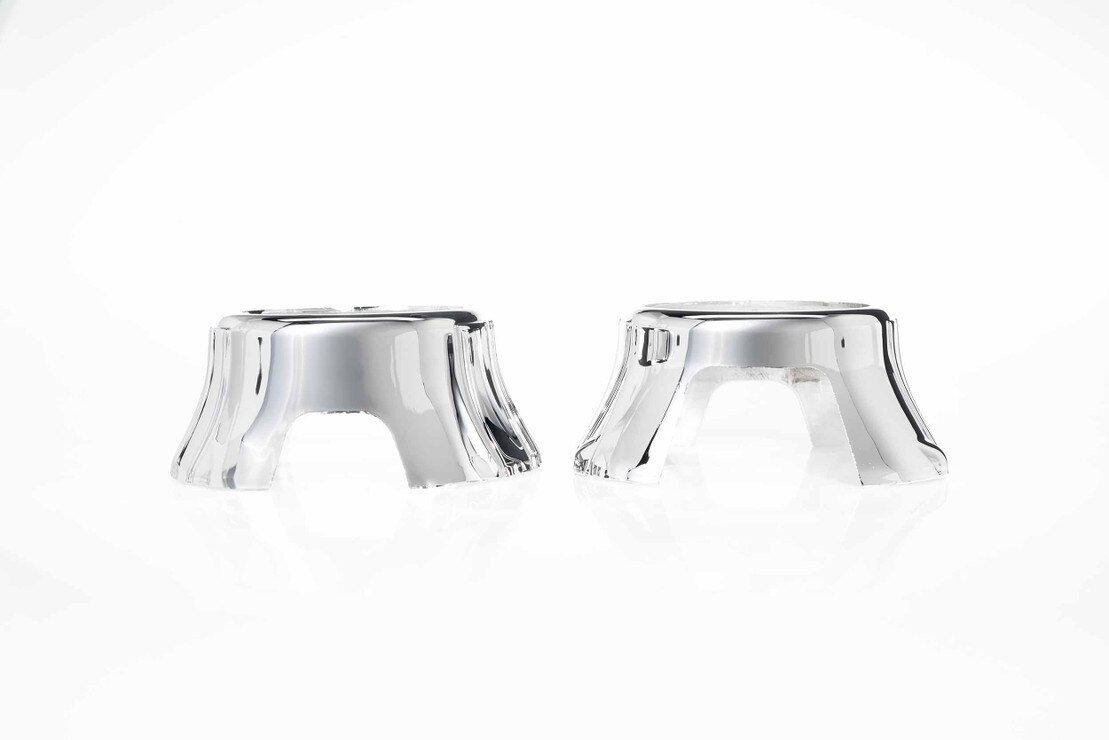

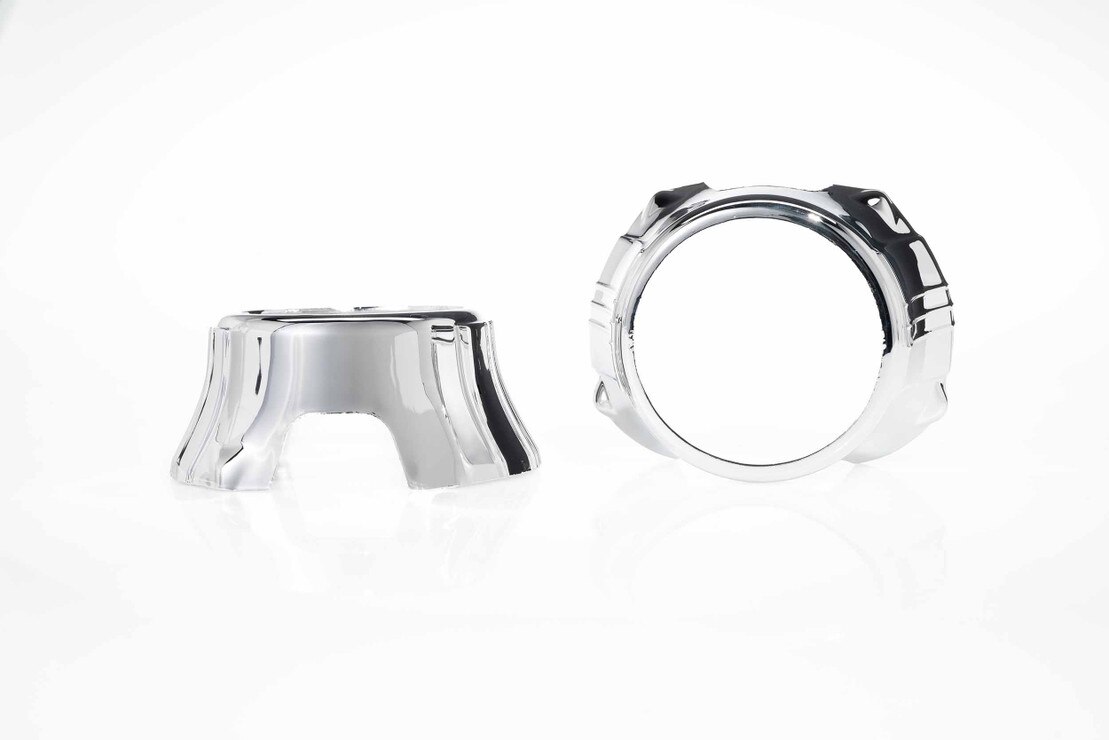

The 3Easy Projector Shrouds offer a minimalist yet highly functional solution for retrofitting projector lenses. With a sleek chrome design lacking in texture or visual distractions, these shrouds prioritize practicality and space efficiency. Specifically tailored for 3-inch projectors, they excel in situations where tight spaces restrict shroud options, such as quad retrofits with limited high beam positions. Designed to snugly fit Morimoto Mini D2S 5.0 Bixenon projectors, they feature a small top vent for airflow and a bottom cutout for Bi-xenon solenoid clearance. Offering hassle-free mounting directly onto D2S 5.0 lens holders, they eliminate the need for centric rings, though they can also accommodate smaller projectors with additional hardware.

FEATURES & BENEFITS

  • Pragmatic Design: Simplistic chrome shroud with a smooth, texture-less surface.
  • Space Efficiency: Fits snugly into tight spaces, perfect for compact installations.
  • Compatible: Specifically designed for 3-inch projectors, ideal for quad retrofits.
  • Easy Installation: Press-fits directly onto the lens holder of Morimoto Mini D2S 5.0 projectors, no centric ring required.
  • Minimalistic Venting: Features a tiny vent on top for airflow and a precise cutout for Bi-xenon solenoids.

WHAT’S INCLUDED

  • Shrouds: 2x (One Pair) 3Easy Projector Shrouds

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

  • Dimensions: 100mm W, 85mm H, 75mm D

  • Halo Sizing: 80mm (Front)

  • Finish: Forever Finish Chrome

COMPATIBILITY

  • Morimoto Projectors: Mini D2S 5.0

  • Other Projectors: G5, EvoXR

  • Lens Diameters: 3in

  • LED Halos: 80mm

  • Mounts with: JB Weld (no centric ring needed)

INSTALLATION DOCUMENTS

3Easy: Let's start with the facts, there is nothing exciting about the design of this shroud. It's chrome. Its smooth. It's got no texture. No visual interest. No vents or holes for halos. It is the most utilitarian shroud known to retrofitting mankind, it's small, fit's in the tightest of spaces, and it's absolutely perfect [for that!]


3 Inch Projectors: If you've made the choice to shove a bigger projector with a 3 inch lens into something like your high beam reflector, and the projector just takes up all the available space to the point where no other shroud will fit, BOOM, that's where these come in handy. 99% of the time, these will be used in quad retrofits where the high beam position is way tight.


Keep it tight: They sit nice and tight on a Morimoto Mini D2S 5.0 Bixenon projector, which is really what they were designed for. There is just a tiny vent on top for air flow, and a cutout on the bottom to just barely let the Bi-xenon solenoid poke through. Otherwise, they'll cover up the entire front half of the projector very well and add minimal extra size to the overall package.


Mounting: These will press-fit directly onto the lens holder of a D2S 5.0 projector, no centric ring needed. You could use a centric ring to mount these on something smaller like a Mini H1, but there's really no point since the Mini Gatling Gun shroud is even smaller.

the internet's If we sell it, then you bet we've put it to the test on our own cars, trucks, and bikes. Need a recommendation on parts for your project? Got a tech question? Wholesale inquiry? Contact Us.
