  • Ford F150 (15-17) Profile Pixel DRL Boards

Ford F150 (15-17) Profile Pixel DRL Boards

(0) No Reviews yet
Questions?

Brand: Profile

B-HLO-DRL15F150-TRS

$26.40

PRODUCT OPTIONS

PART #: 1 x LED311



*Guaranteed Fitment

Items in this Kit are on CLEARANCE!
Clearance Items are Non-Refundable

DESCRIPTION

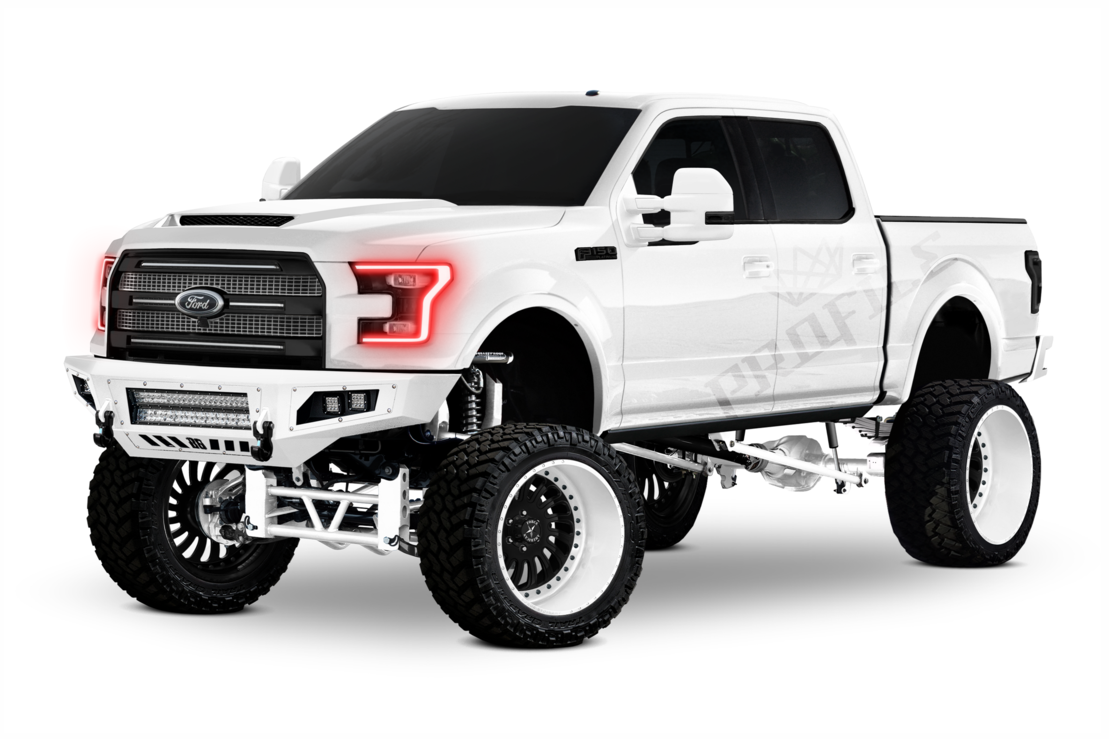

The 2015-2017 Ford F-150 offers an impressive upgrade with the Profile Pixel DRL Boards. These LED DRL boards from Profile Performance are designed to deliver top-notch lighting performance. Equipped with RGBW LEDs, they provide a range of colors, including clear neutral white and pure amber, and can be controlled via an app. Notably, these boards feature a switchback function for modern turn signals, seamlessly transitioning between RGB/white mode and amber LEDs. They maintain OEM functionality, serving as direct replacements for original boards while adding RGB and turn signal capabilities. With TechFlex mesh wiring and anodized aluminum housing, they ensure reliability and a sleek appearance. Installation may require professional assistance, and users can enhance control with the optional Morimoto XBT RGBW Controller, boasting a user-friendly app and independent channel control. Upgrade your Ford F-150's lighting with Profile Pixel DRL Boards for improved visibility and style.

FEATURES & BENEFITS

  • RGBW LEDs: Powerful LEDs offer clear white and customizable colors.
  • Switchback Signals: Integrated turn signals for enhanced style.
  • OEM Compatibility: Direct replacements with added functions.
  • Sleek Design: TechFlex wiring, matte black housing.
  • Remote Control: Morimoto XBT for precise customization.

WHAT’S INCLUDED

  • DRL Boards: 1x Set 15-17 F-150 Profile Pixel RGBW DRL Boards

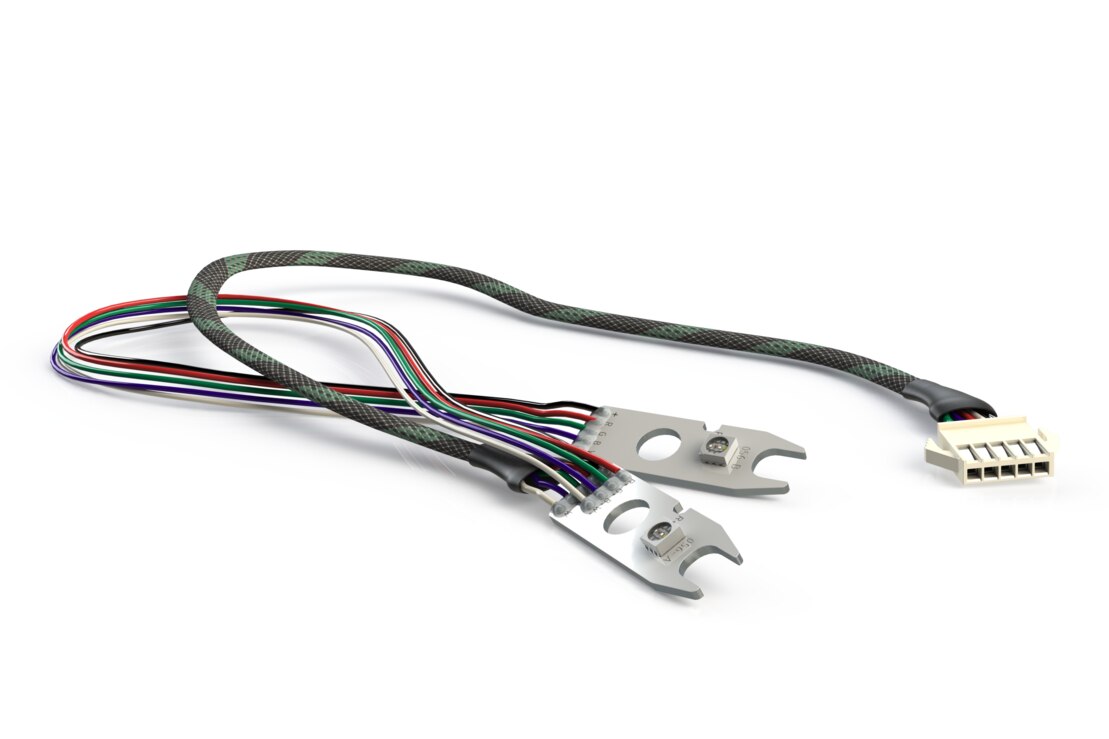

  • Wiring: 2x Pixel Drivers, Sub-Harness w/ Factory Connections

  • Optional Controller: 1x Morimoto XBT Bluetooth RGBW Controller

WARRANTY INFORMATION

This Profile product includes a 3 Year limited warranty, serviced and supported by the Profile team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us. Refunds Not Accepted.

TECHNICAL SPECIFICATIONS

  • Functions: White, Amber, RGB

  • Signal: Switchback (interrupts white or RGB)

  • Material: Aluminum (PCB), Anodized Aluminum (Driver), Hard Epoxy Potting

  • Note: Advanced Installation (Headlights must be opened)

COMPATIBILITY

  • Ford F-150: 2015-2017 (w/ OEM LEDs)

  • Controller: XBT Bluetooth RGBW (Required)

INSTALLATION DOCUMENTS

Profile Performance: The automotive aftermarket's best name in LED Lighting and when it comes to upgraded LED DRL Boards, their new tech and it's features make it a no brainer! Fact is that while the rest of the industry is busy sticking their name on a generic or standing still with the same-old same-old; Profile is working hand-in-hand with the industry's experts to produce products with the performance and features that we all expect. Our customers are loving the new Pixel DRL Boards that they're cranking out, and here's why!

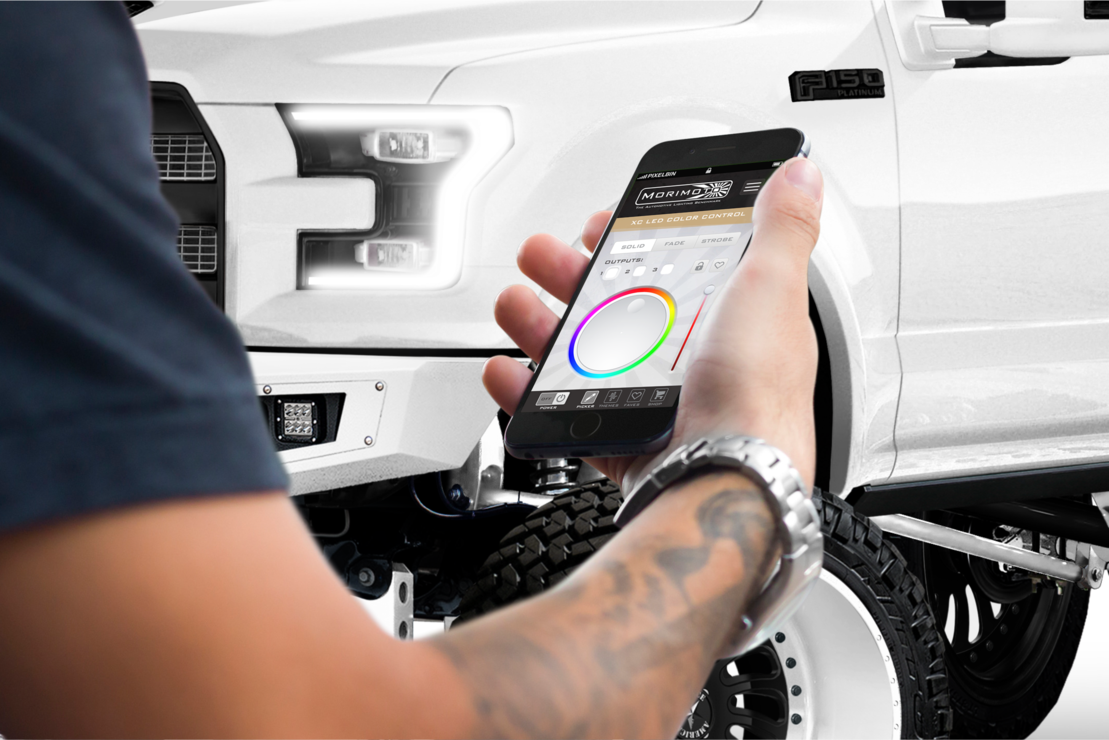

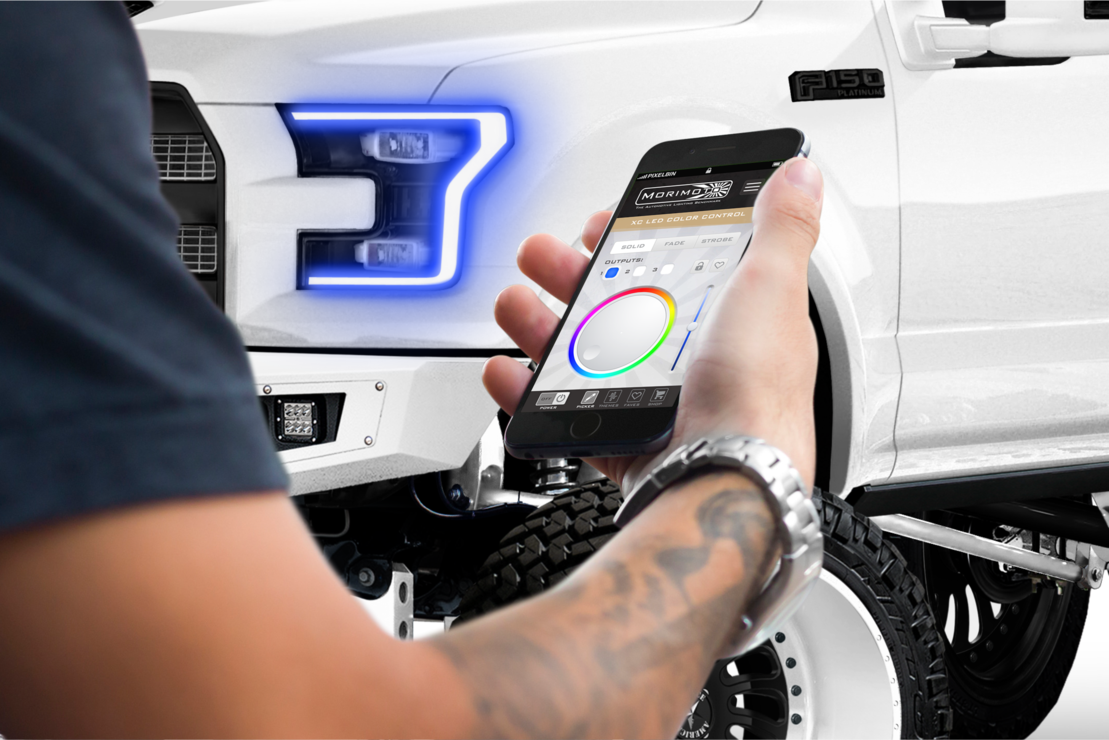

RGBWA: With their powerful RGBW LEDs, The Profile Pixel IS DRL boards are capable of producing an amazingly clear neutral white, a pure amber, and every other color in the spectrum for that matter.. Reds, blues, greens, teals, purples, pinks...you name it! The system is designed to run in white mode until you activate the RGB system through your app controller, at which point you can tune their color exactly to your liking. Turn the RGB system off, and they'll automatically default back to white to keep you street legal. All that aside, and these things are just plain bright...easily outshining the factory LED setup. Pixel = Perfection!

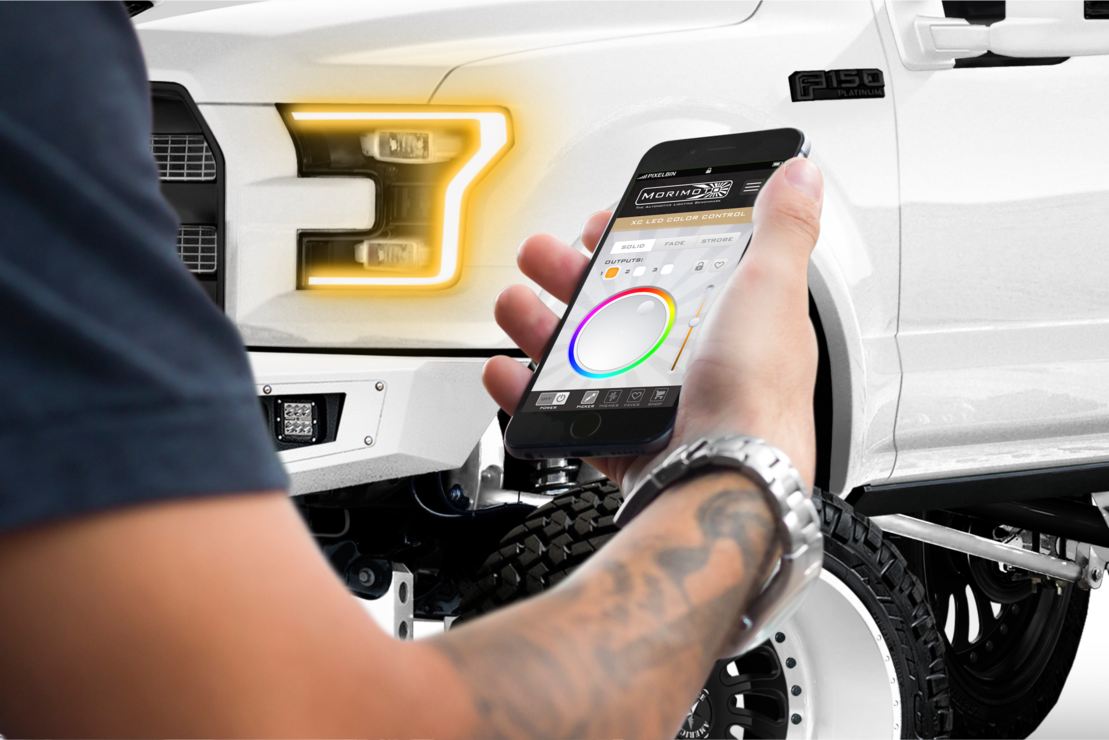

Switchback: Profile's specially designed drivers have a separate input wire for your turn signal circuit. When triggered, the LED driver will automatically interrupt the RGB/white mode and flash the integrated amber LED chips for a modern switchback turn signal in your DRL position. When the turn signal stops, the RGB or white mode will automatically return to its previous setting. Functional


OEM Functionality: All Pixel LED DRLs are 100% direct swaps in place of the original boards, and even though they also add a full RGB and turn signal function - they will also retain the factory low/high intensity white daytime running light functionality too. All wiring is lined with TechFlex mesh for an OEM-like appearance and reliability. The LED drivers are housed inside an aluminum housing that's been anodized with an attractive matte black finish and laser engraved with the Profile Pixel graphics.


Installation: Are the Pixel DRL boards just too good to be true? No, not really. But lets be real, you have to take the headlights off your vehicle, open them up (which often times isn't so easy), and then carefully take them apart and re-assemble the internals to finish the install. Is it rocket science? No. But if you're not so handy or simply impatient, we do recommend professional installation.


Remote Control: First-time users will need to purchase an optional RGBW Controller. The Morimoto XBT is required for the Pixel DRL boards, has a killer Iphone/Android Bluetooth app, and three channels, which can be controlled independently.
