DESCRIPTION
FEATURES & BENEFITS
- Instant Brightness: Experience full brightness in just 9 seconds with Smart PWM Slim Ballast.
- Sleek Design: Compact 3.5" x 2.75" ballast size for easy mounting.
- CANBUS Integration: Seamlessly compatible with advanced vehicle lighting systems.
- Proprietary ASIC Controller: Ensures optimal performance, longer lifespan, and Mini LED Fog Light Bulbsmal flicker.
- Trusted Quality: Elevate your driving experience with GTR Lighting's superior HID kits.

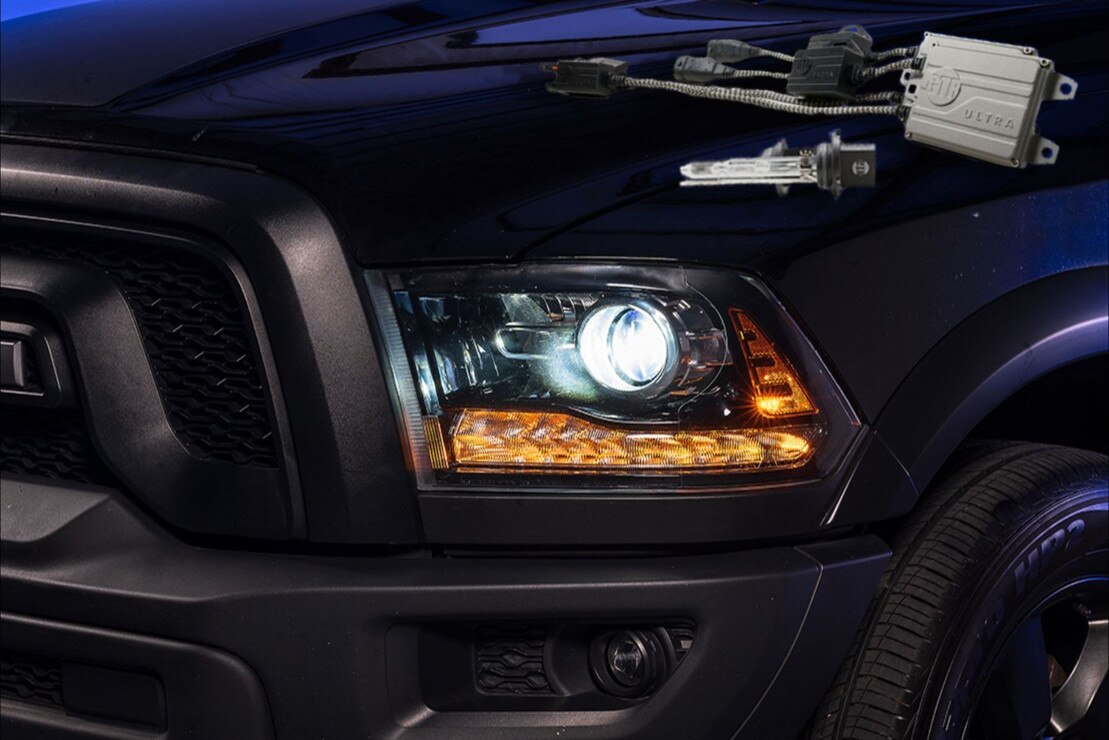

WHAT’S INCLUDED
BULBS : 2x (One Pair)
BALLASTS : 2x (One Pair)
Mopar-Specific Harness : 2015 Only
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Power Input Voltage : 9-16V DC
Output Power : 35W or 55W
Input Current : 4.4A @ Startup @ 14V DC
Operating Temperature : -40C to +85C
Lifespan : 2,500 Hours
Ballast Dimensions : 3.5in x 2.75in x 0.5in
Cord Length : 13in
Wiring Input : Universal Female Socket (9006 Bulb Style/ P22D base)
Wiring Output : Universal AMP style,1 male,1 female
COMPATIBILITY
Dodge Ram : 2013-2018
Housings : Designed for, and confirmed to fit, stock Projector housings
2009-2018 Dodge Ram HID Low Beam Kit: It is a relatively easy install although a little time-consuming. Must remove the front grill along with some plastic panels in the engine bay and wheel well by removing several screws and plastic fasteners. Installing the HID system does require either cutting holes into the factory dust covers or the use of the RAM dust cap covers that you can find on our website to allow all the wires to come through.
SOLD AS A COMPLETE 35W HID KIT:
The GTR Lighting fifth generation Smart PWM HID conversion kit: is one of the only kits on the market that allows for a proper CANBUS integration installation on the 2009+ Dodge Ram! This kit comes with GTR Lighting Smart PWM Slim HID ballasts that feature CANBUS and PWM integration required to make the HID fog lights work with 2009 - 2018 trucks that come equipped with the "Adaptive Lighting" technology feature.
Super Fast Start-Up Ballast: Are you sick of a slow ballast warm-up time? The GTR Lighting fifth generation Smart PWM Slim Ballast has an instant startup like new OEM ballasts of only 0.1s with full brightness reached at 9s.
Slim Design: This ballast is barely larger than a stack of credit cards. 3.5" long, 2.75" wid(more...)
