DESCRIPTION
FEATURES & BENEFITS
- Enhanced Visibility: Upgrade your GMC Sierra's reverse lighting with high-performance LED bulbs.
- Tested Design: Designed and tested for 2007-2013 models for reliable performance.
- Impressive Brightness: Produces 1000 Lumen output, outshining halogen bulbs.
- Easy Installation: Plug-and-play design for instant enhanced reversing visibility.
- TRS Tested Assurance: Backed by our TRS Tested assurance for seamless fit and performance.
WHAT’S INCLUDED

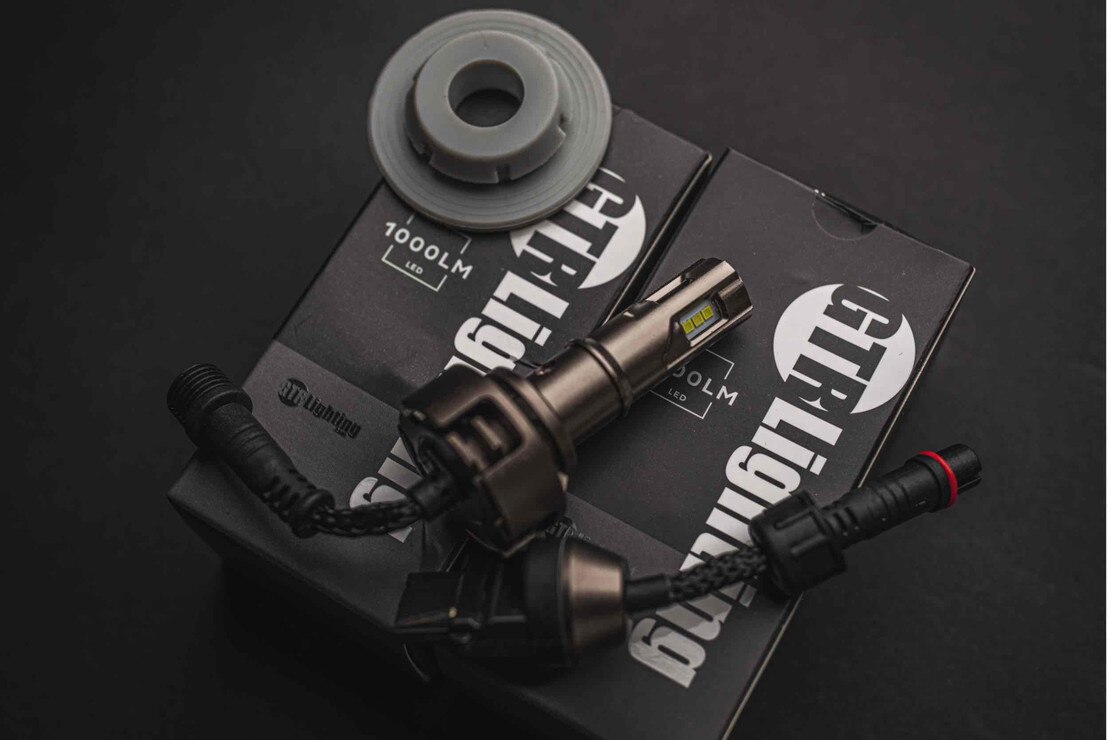

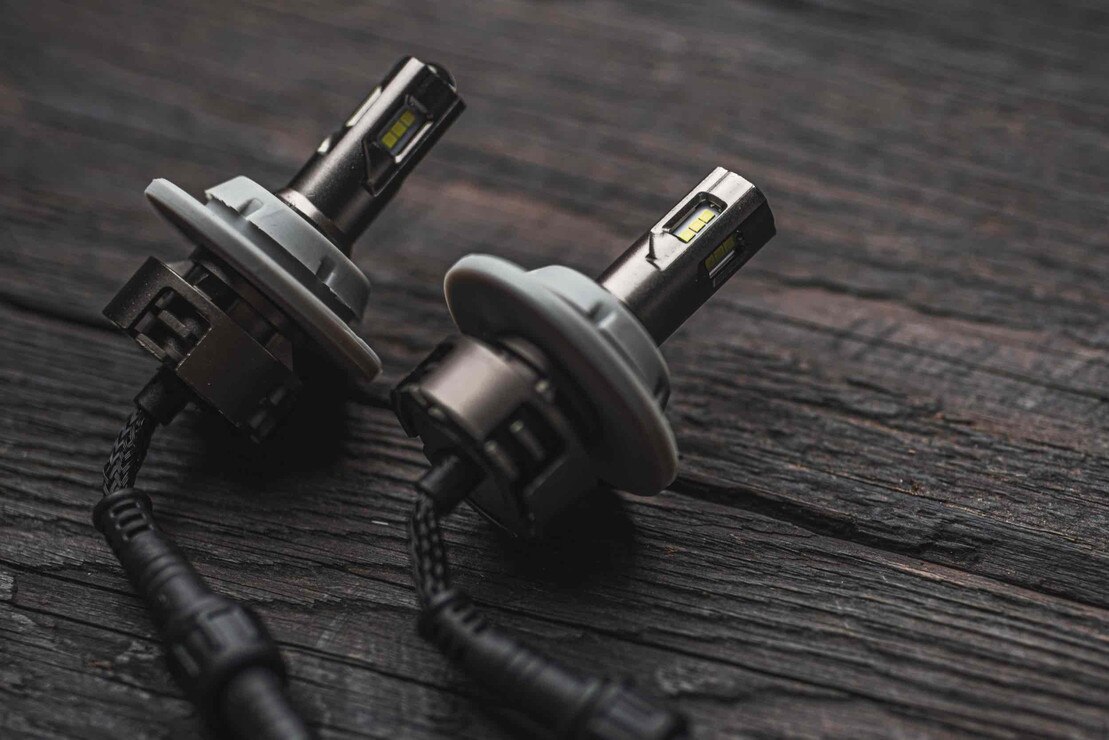

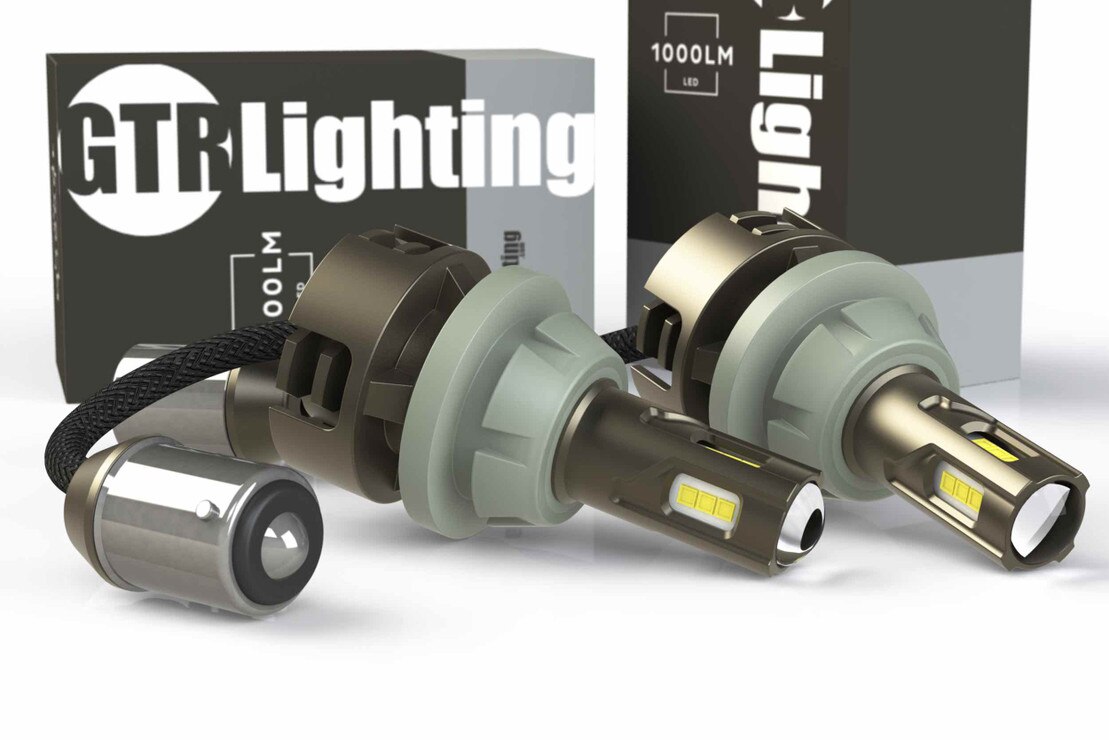

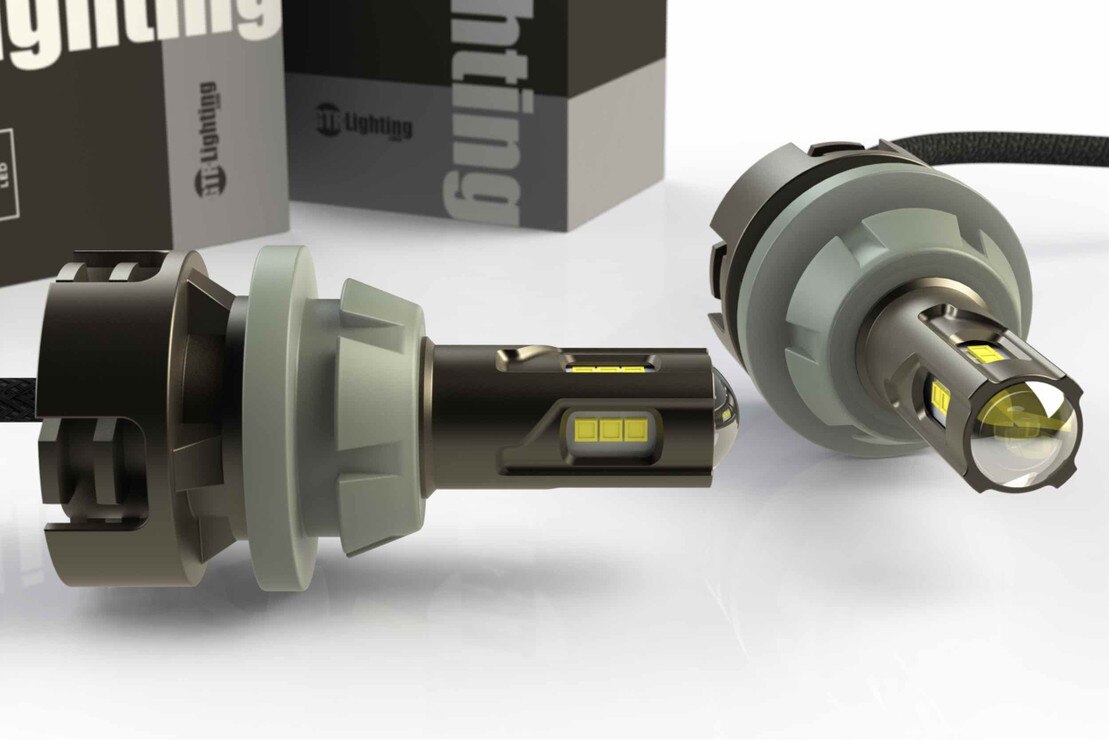

BULBS : 2x (One Pair) 3156 GTR Lighting Ultra Series Reverse Light Bulbs (Click For Details)
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Construction : CNC / Anodized Aluminum
LED Chips : 15x CSP 1919
Effective Lumens : 1200 (each)
Voltage : 9-24V
Power : 12W
Output : 980mA
COMPATIBILITY
GMC Sierra : 2007-2013
Housings : Designed for, and confirmed to fit, Stock Housings
2007-2013 GMC Sierra LED Reverse Light Bulbs: Looking for upgraded LED Reverse Light Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our TRS Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At The Retrofit Source, we do 2007-2013 GMC Sierra LED lighting upgrades better!
2007-2013 GMC Sierra LED Reverse Light Bulb Upgrade - 1000 Lumen:
These bulbs: labeled "3156" and will fit any 3056, 4157, 3057 bulbs style housings. They will fit any housing (DRL, fog light, reverse light, etc...) that is sized between 23mm - 29mm in opening diameter. These LED reverse light bulbs will fit other applications, but in order to get maximum brightness they are slightly overdriven. This means that if they are used constantly for longer periods of time they may burn out and fail prematurely. Please keep this in mind when deciding how to use them. A standard 55w halogen headlight produces as much as 1,200 Lumen of light, and these LED bulbs produce 1,000 Lumen of light per bulb! These are incredibly bright! These bulbs work in any CANBUS application where the reverse bulbs are monitored - you will not get a Bulb Out Warning, or flickering, when used in any reverse light application on any vehicle. Plug and play, convenient and easy install method.
How to install:Remove backup light bulb socket from tail light. Remove old incandescent light bulb. Plug in new High Output LED reverse light bulb wiring into old bulb socket. Gently insert green rubber grommet of new LED bulb into opening in tail light housing for reverse light. Push/twist new bulb gently until fully seated in tail light housing. Test function before re-assembly.
TRS Tested: Here at The Retrofit Source, we've spent the time to install and test all TRS Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. TRS Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!
