  • 19-24 Ram SS5 Bumper Lights

19-24 Ram SS5 Bumper Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD136-TRS

$859.95

PRODUCT OPTIONS

PART #: 1 x DD7615



DESCRIPTION

Features: Bolt-on fitment compatible with 2019-2024 Ram 1500. Ultra-high intensity with custom-engineered TIR optics. Selectable backlight color with eight color options. Torture-tested heavy-duty construction. Assembled in USA.

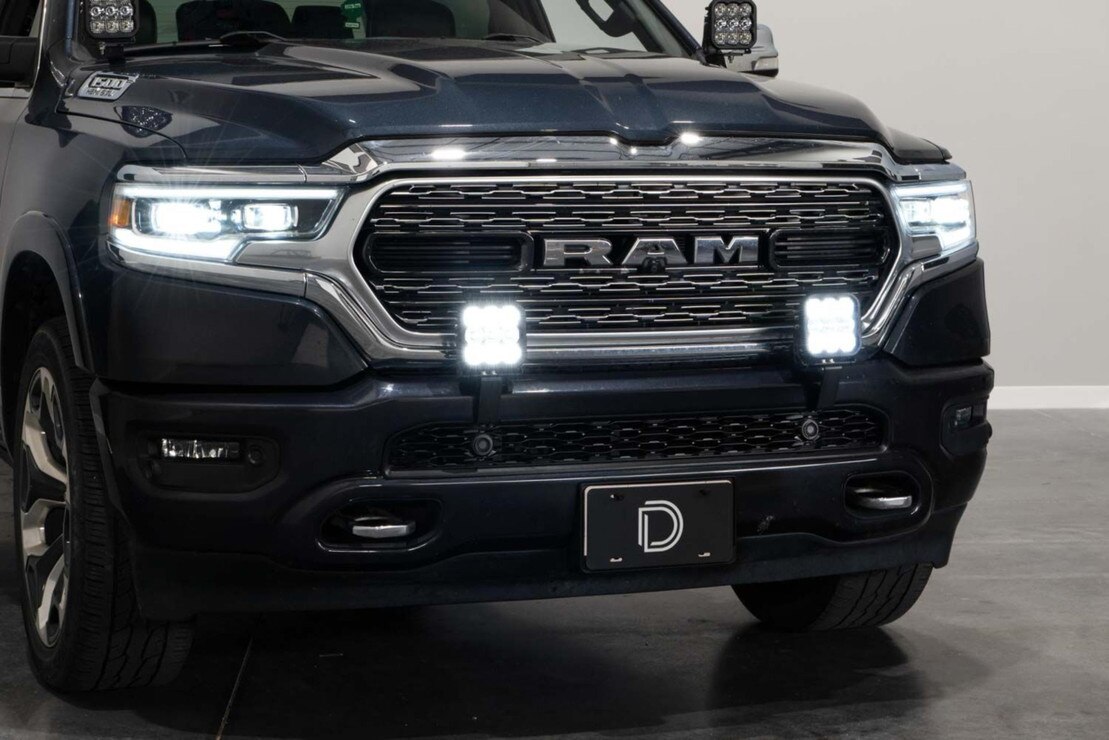

Perfect Fitment: The Bumper LED Pod Light Kit compatible with Ram 1500 2019-2024 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.

Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

Selectable Backlight: The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

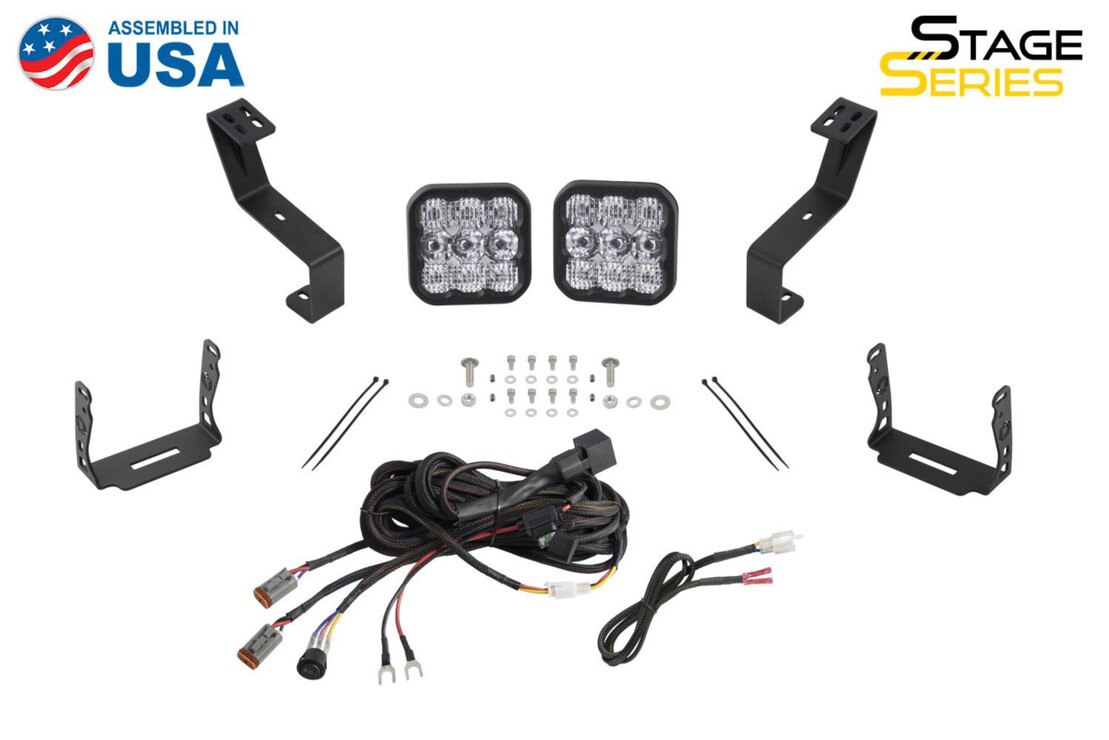

WHAT’S INCLUDED

  • Brackets : One (1) Pair

  • Optional Light Pods : 2x SS5 Pods

WARRANTY INFORMATION

This product is covered by a Lifetime limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Note : These specifications are per pod / each!

  • Intensity (Combo White Sport) : 81,600cd

  • Intensity (Combo Yellow Sport) : 75,700cd

  • Intensity (Combo White Pro) : 58,500cd

  • Intensity (Combo Yellow Pro) : 75,000cd

  • Raw Lumens (Combo White Sport) : 4,800lm

  • Raw Lumens (Combo Yellow Sport) : 9,700lm

  • Raw Lumens (Combo White Pro) : 4,800lm

  • Raw Lumens (Combo Yellow Pro) : 8,900lm

  • Main Beam Power (watts) : Sport - 40w, Pro - 90w

  • Backlight Power (watts) : White - 3.17w, Yellow - 3.07w

  • Main Beam Current (amps @ 12.8V) : Sport White - 2.75, Sport Yellow - 2.8, Pro - 6

  • Backlight Current (amps @ 12.8V) : White - 0.25, Yellow - 0.24

  • Color Temp (CCT) : 3000K, 6000K

  • Beam Angle : Combo (Driving and Flood)

  • Operating Voltage : 9-16V

  • Polarity : Polarity Specific

  • Operating Temperature : -40C to 85C (-40F to 185F)

  • LED Emitter : Luxeon Z ES, Cree XP-L HI

  • Connector(s) : Deutsch DT Input

  • Driver Features : Constant Current

  • Materials : Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling : Passive, Pin-Fin heatsink

  • Intrusion Ratings : IP69K Waterproof, High Pressure

COMPATIBILITY

  • Dodge Ram 1500 : 2019-2024

  • DD7612P : SS5 Bumper Bracket Kit

  • DD7615 : SS5 Bumper LED Pod Light Kit Pro White Combo

  • DD7619 : SS5 Bumper LED Pod Light Kit Pro White Driving

  • DD7616 : SS5 Bumper LED Pod Light Kit Pro Yellow Combo

  • DD7620 : SS5 Bumper LED Pod Light Kit Pro Yellow Driving

  • DD7613 : SS5 Bumper LED Pod Light Kit Sport White Combo

  • DD7617 : SS5 Bumper LED Pod Light Kit Sport White Driving

  • DD7614 : SS5 Bumper LED Pod Light Kit Sport Yellow Combo

  • DD7618 : SS5 Bumper LED Pod Light Kit Sport Yellow Driving
