17-20 Ford Raptor SS5 Bumper Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD138-TRS

$799.95

PRODUCT OPTIONS

PART #: 1 x DD7348



Save 15% on Diode Dynamics products with code DIODE15 at checkout!

DESCRIPTION

Features: Bolt-on fitment compatible with 2017-2020 Ford Raptor. Ultra-high intensity with custom-engineered TIR optics. Selectable backlight color with eight color options. Torture-tested heavy-duty construction. Assembled in USA.

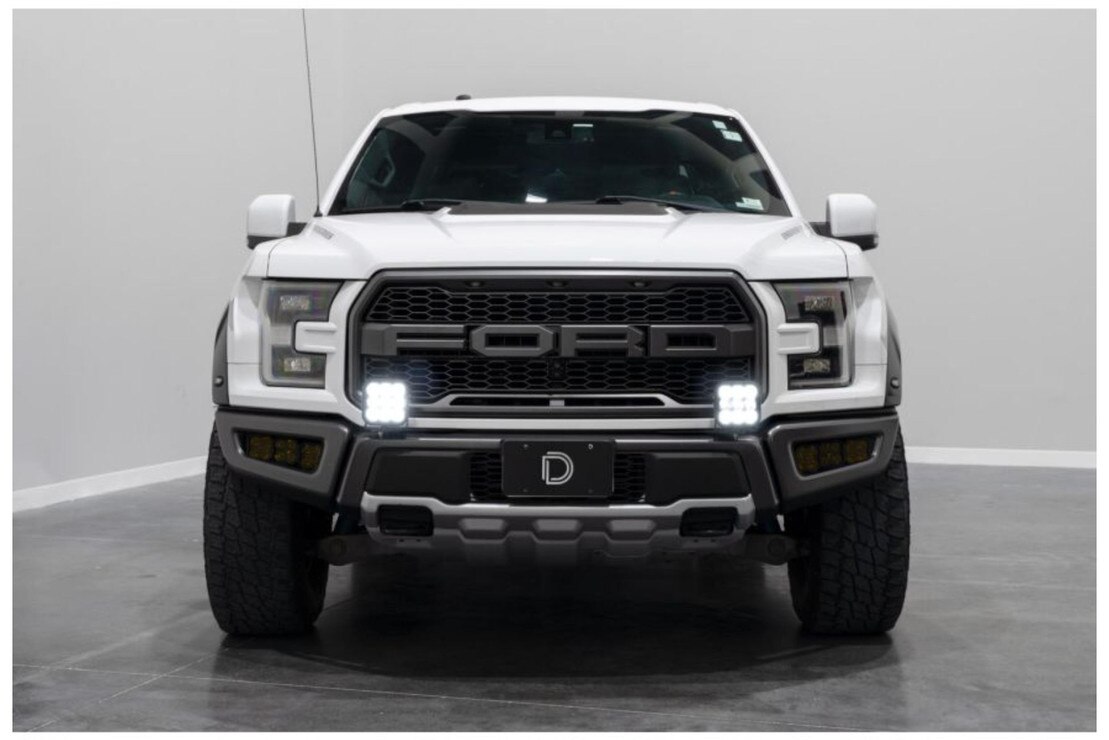

Perfect Fitment: The Bumper LED Pod Light Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.

Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

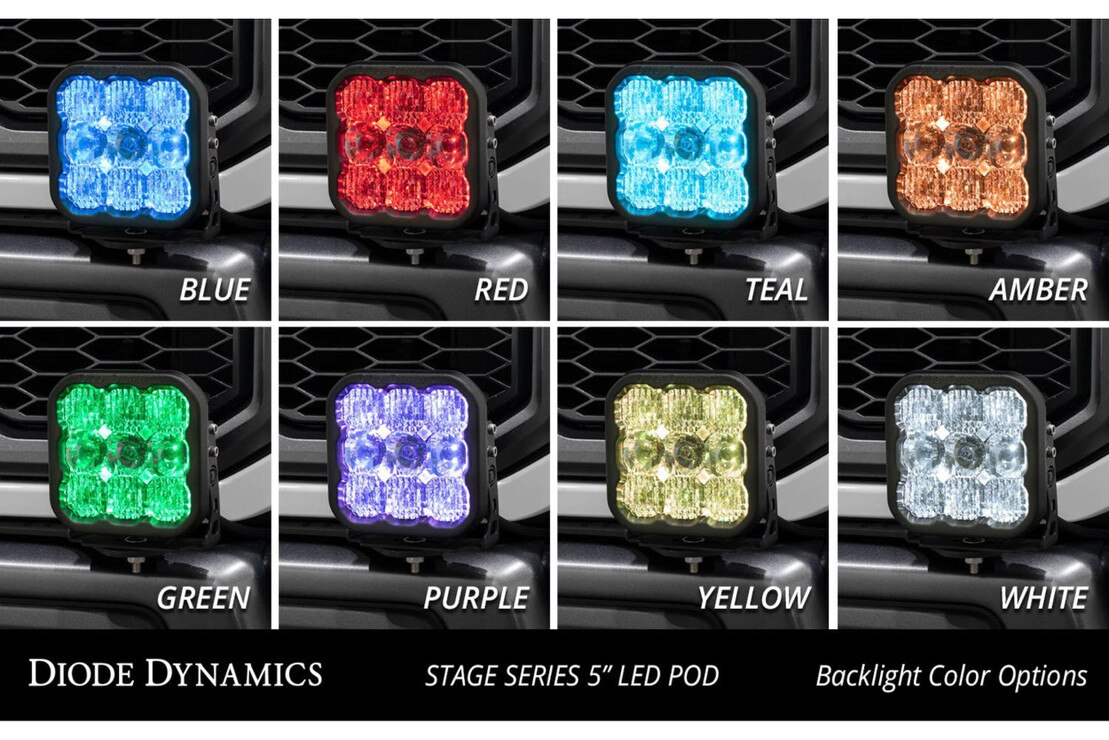

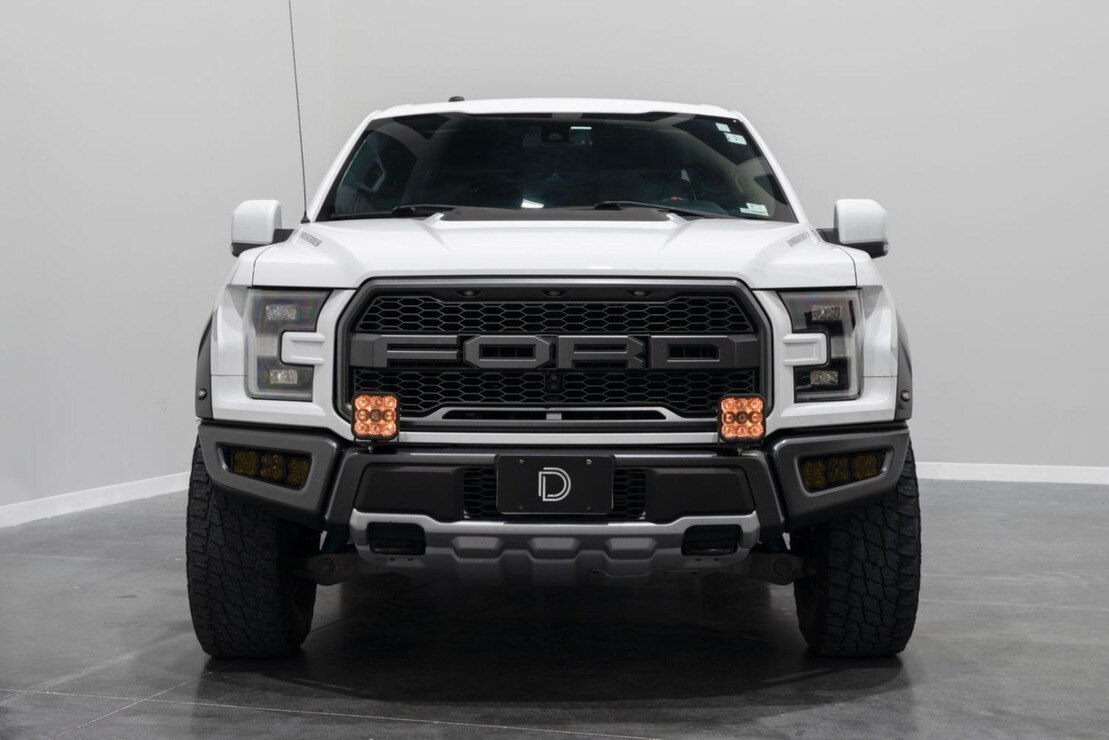

Selectable Backlight: The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.NOTE: The existing mounting points must be drilled out larger in order to secure the bracket.

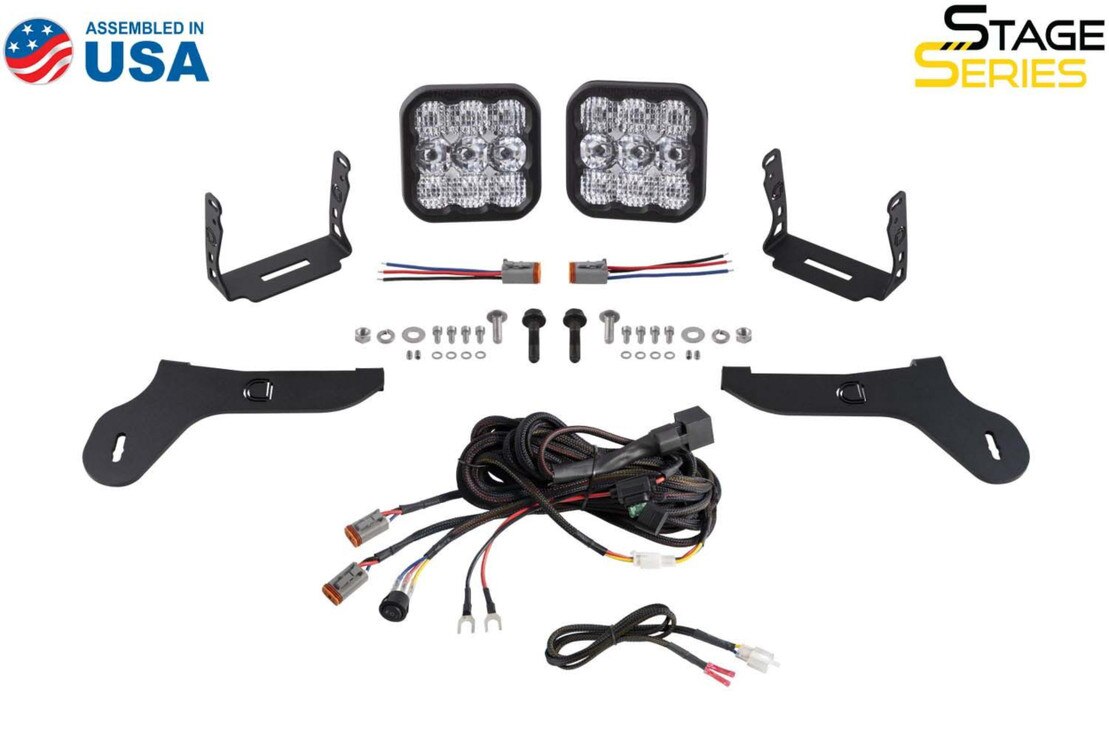

WHAT’S INCLUDED

  • Brackets: One (1) Pair

  • Optional Light Pods: 2x SS5 Pods

WARRANTY INFORMATION

This product is covered by a Lifetime limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (Combo White Sport): 81,600cd

  • Intensity (Combo Yellow Sport): 75,700cd

  • Intensity (Combo White Pro): 58,500cd

  • Intensity (Combo Yellow Pro): 75,000cd

  • Raw Lumens (Combo White Sport): 4,800lm

  • Raw Lumens (Combo Yellow Sport): 9,700lm

  • Raw Lumens (Combo White Pro): 4,800lm

  • Raw Lumens (Combo Yellow Pro): 8,900lm

  • Main Beam Power (watts): Sport - 40w, Pro - 90w

  • Backlight Power (watts): White - 3.17w, Yellow - 3.07w

  • Main Beam Current (amps @ 12.8V): Sport White - 2.75, Sport Yellow - 2.8, Pro - 6

  • Backlight Current (amps @ 12.8V): White - 0.25, Yellow - 0.24

  • Color Temp (CCT): 3000K, 6000K

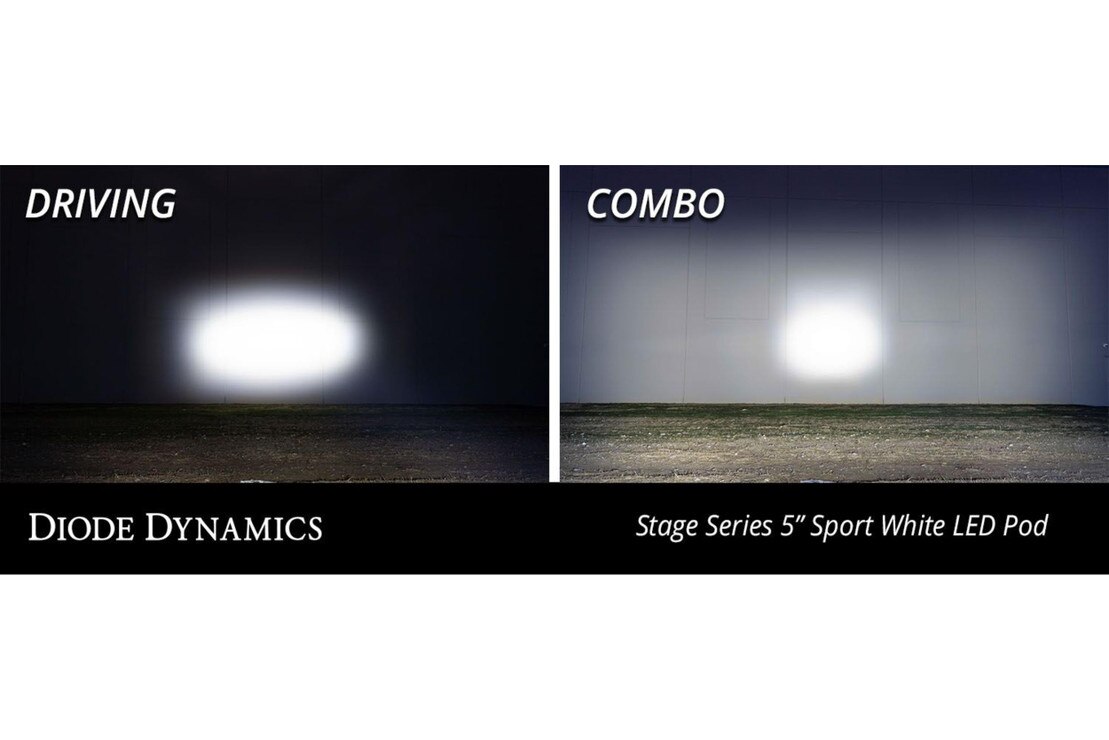

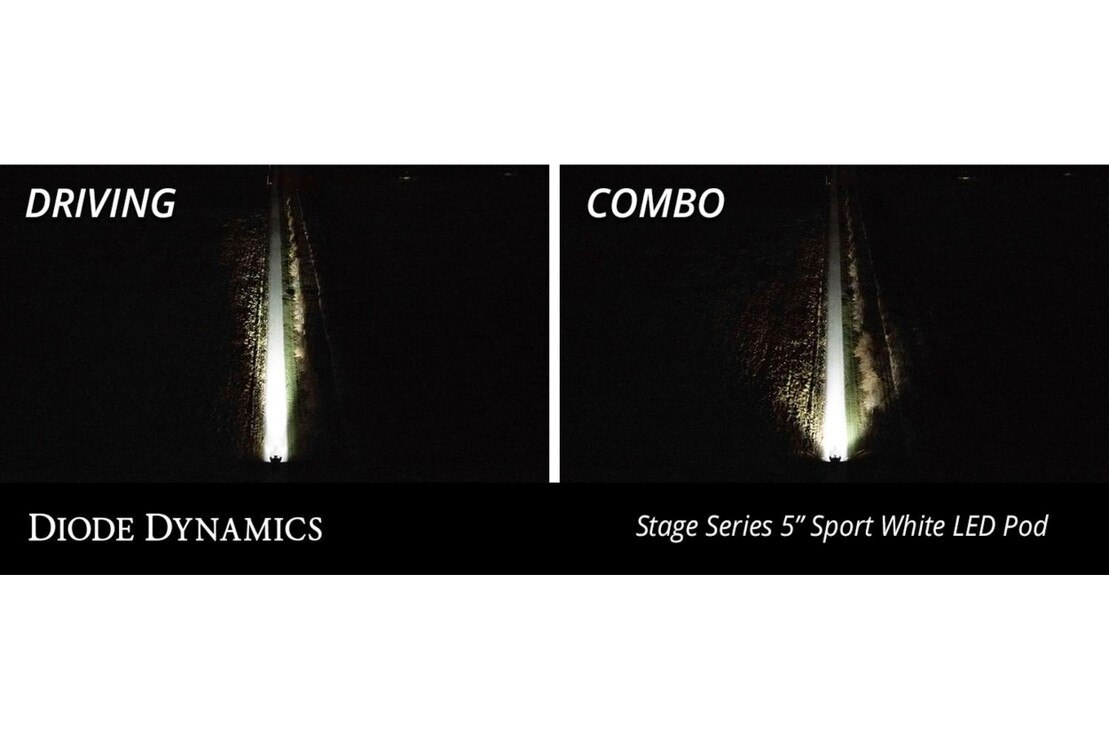

  • Beam Angle: Combo (Driving and Flood)

  • Operating Voltage: 9-16V

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES, Cree XP-L HI

  • Connector(s): Deutsch DT Input

  • Driver Features: Constant Current

  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin heatsink

  • Intrusion Ratings: IP69K Waterproof, High Pressure

COMPATIBILITY

  • Ford Raptor: 2017-2020

  • DD7343P: SS5 Bumper Bracket Kit

  • DD7348: SS5 Bumper LED Pod Light Kit Pro White Combo

  • DD7350: SS5 Bumper LED Pod Light Kit Pro White Driving

  • DD7349: SS5 Bumper LED Pod Light Kit Pro Yellow Combo

  • DD7351: SS5 Bumper LED Pod Light Kit Pro Yellow Driving

  • DD7344: SS5 Bumper LED Pod Light Kit Sport White Combo

  • DD7346: SS5 Bumper LED Pod Light Kit Sport White Driving

  • DD7345: SS5 Bumper LED Pod Light Kit Sport Yellow Combo

  • DD7347: SS5 Bumper LED Pod Light Kit Sport Yellow Driving
