Honda Civic (2016+) Profile Pixel DRL Boards

(0) No Reviews yet
Questions?

Brand: Profile

B-HLO-DRL16CIV-TRS

$152.00

PRODUCT OPTIONS

PART #: 1 x LED329



*Guaranteed Fitment


*Delivery times are estimated, NOT guaranteed. Every effort will be made to ship as soon as possible!

DESCRIPTION

The Profile Pixel DRL Boards for the 2016+ Honda Civic are a cutting-edge upgrade for your vehicle's LED lighting system. These boards are designed by Profile Performance, a renowned name in the automotive aftermarket industry. Featuring powerful RGBW LEDs, they can emit a wide range of colors, including a clear neutral white and pure amber. The RGB system is easily controlled via an app controller, ensuring customization to your liking while maintaining street legality. The boards also offer switchback functionality, seamlessly integrating turn signals. Moreover, they retain the factory low/high-intensity white daytime running light function and come with an attractive matte black finish aluminum housing. Installation may require professional assistance, and a separate RGBW Controller, like the Morimoto XBT, is recommended for remote control. Upgrade your vehicle's lighting with the Profile Pixel DRL Boards for enhanced performance and style.

FEATURES & BENEFITS

  • RGBW LEDs: Customizable colors, including white and amber.
  • Switchback Function: Modern turn signals in DRL position.
  • OEM Compatible: Direct swaps with factory lights.
  • Durable Housing: Anodized matte black aluminum.
  • Remote Control: Smartphone app and three channels with Morimoto XBT controller (sold separately).

WHAT’S INCLUDED

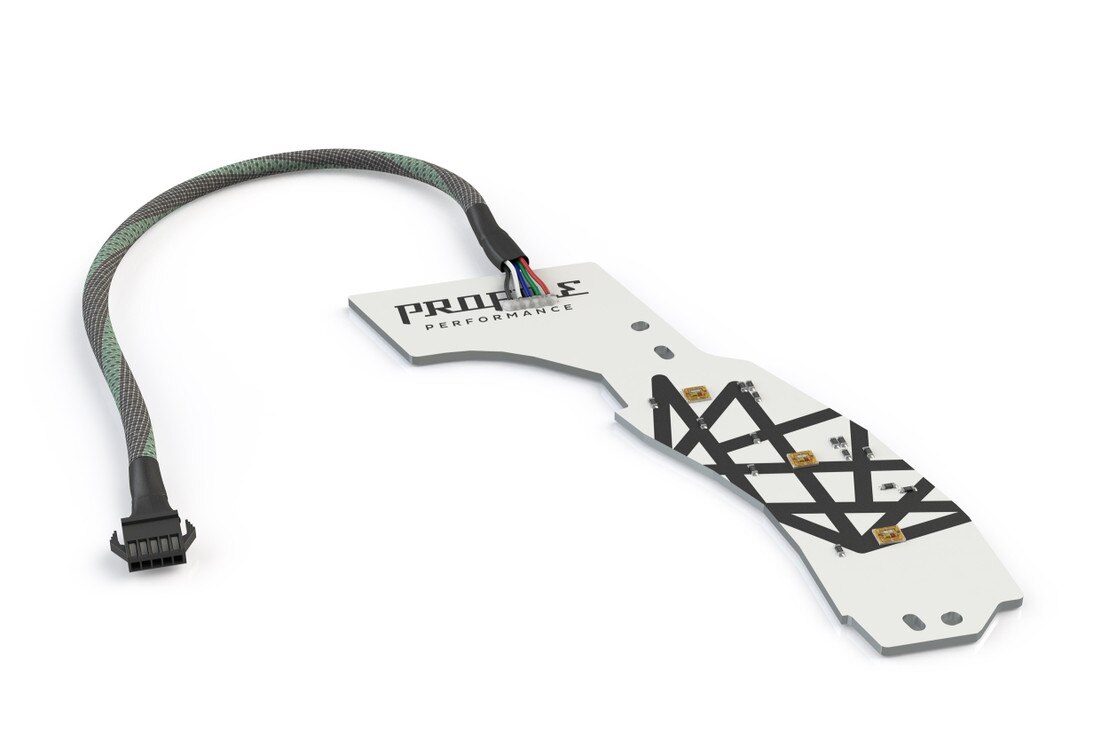

  • DRL Boards: 1x Set 16+ Civic Profile Pixel RGBW DRL Boards

  • Wiring: 2x Pixel Drivers, Sub-Harness w/ Factory Connections

  • Optional Controller: 1x Morimoto XBT Bluetooth RGBW Controller

WARRANTY INFORMATION

This Profile product includes a 3 Year limited warranty, serviced and supported by the Profile team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us. Refunds Not Accepted.

TECHNICAL SPECIFICATIONS

  • Functions: White, Amber, RGB

  • Signal: Switchback (interrupts white or RGB)

  • Material: Aluminum (PCB), Anodized Aluminum (Driver), Hard Epoxy Potting

  • Note: Advanced Installation (Headlights must be opened)

COMPATIBILITY

  • Honda Civic: 2016-2021

  • Controller: XBT Bluetooth RGBW (Required)

INSTALLATION DOCUMENTS

Profile Performance: The automotive aftermarket's best name in LED Lighting and when it comes to upgraded LED DRL Boards, their new tech and it's features make it a no brainer! Fact is that while the rest of the industry is busy sticking their name on a generic or standing still with the same-old same-old; Profile is working hand-in-hand with the industry's experts to produce products with the performance and features that we all expect. Our customers are loving the new Pixel DRL Boards that they're cranking out, and here's why!


RGBWA: With their powerful RGBW LEDs, The Profile Pixel Civic DRL boards are capable of producing an amazingly clear neutral white, a pure amber, and every other color in the spectrum for that matter.. Reds, blues, greens, teals, purples, pinks...you name it! The system is designed to run in white mode until you activate the RGB system through your app controller, at which point you can tune their color exactly to your liking. Turn the RGB system off, and they'll automatically default back to white to keep you street legal. All that aside, and these things are just plain bright...easily outshining the factory LED setup. Pixel = Perfection!


Switchback: Profile's specially designed drivers have a separate input wire for your turn signal circuit. When triggered, the LED driver will automatically interrupt the RGB/white mode and flash the integrated amber LED chips for a modern switchback turn signal in your DRL position. When the turn signal stops, the RGB or white mode will automatically return to its previous setting. Functional


OEM Functionality: All Pixel LED DRLs are 100% direct swaps in place of the original boards, and even though they also add a full RGB and turn signal function - they will also retain the factory low/high intensity white daytime running light functionality too. All wiring is lined with TechFlex mesh for an OEM-like appearance and reliability. The LED drivers are housed inside an aluminum housing that's been anodized with an attractive matte black finish and laser engraved with the Profile Pixel graphics.


Installation: Are the Pixel DRL boards just too good to be true? No, not really. But lets be real, you have to take the headlights off your vehicle, open them up (which often times isn't so easy), and then carefully take them apart and re-assemble the internals to finish the install. Is it rocket science? No. But if you're not so handy or simply impatient, we do recommend professional installation.


Remote Control: First-time users will need to purchase an optional RGBW Controller. The Morimoto XBT is required for the Pixel DRL boards, has a killer Iphone/Android Bluetooth app, and three channels, which can be controlled independently.
