DESCRIPTION

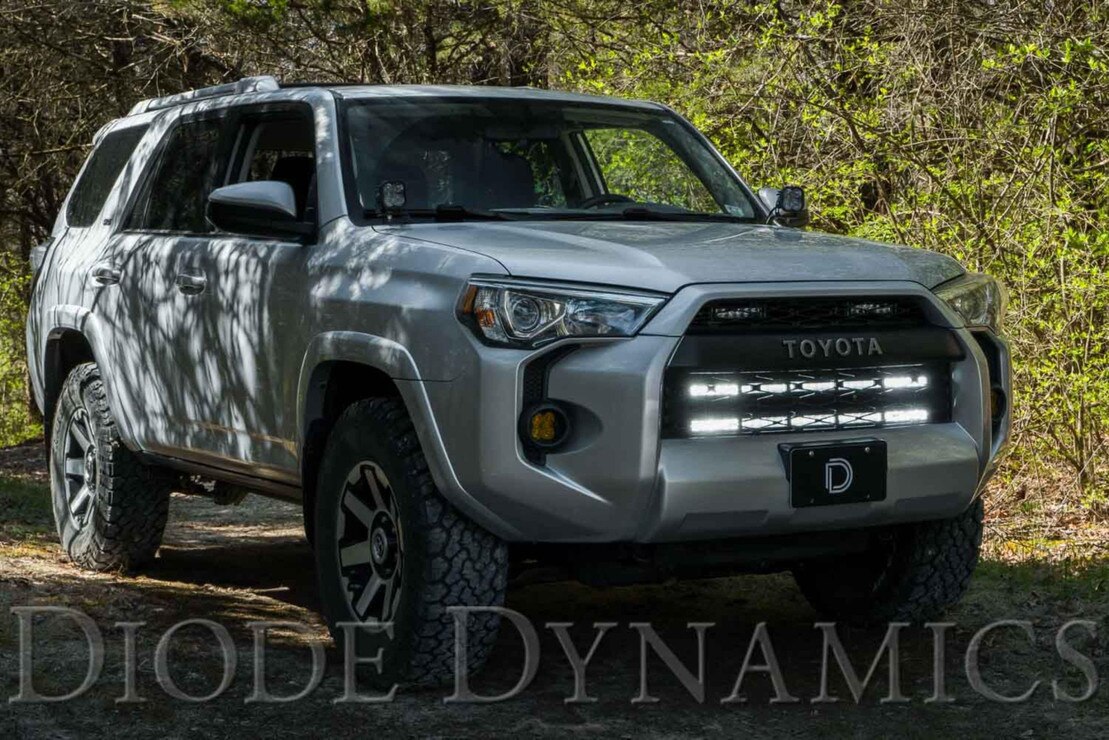

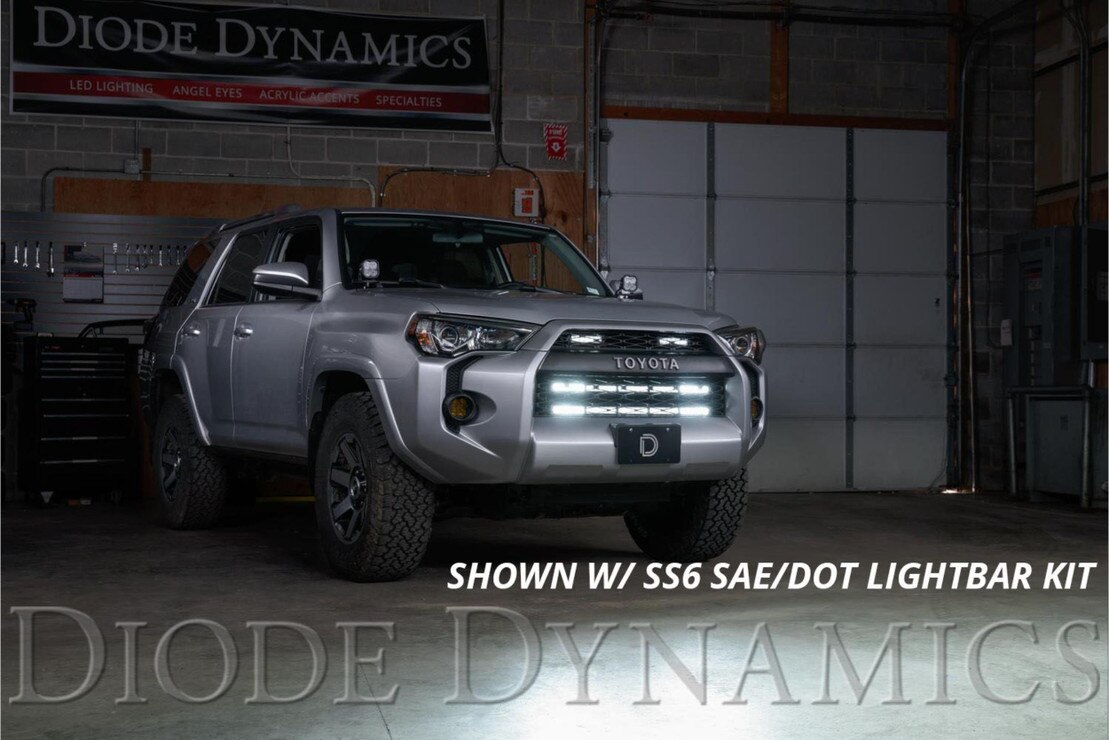

Features: Direct fitment compatible with 2014-2019 Toyota 4Runner. Allows you to mount one or two 30in light bar(s) in the lower grille opening. CAD-designed for perfect fitment and OEM-like appearance. Utilizes existing mounting points for easy installation - no cutting or drilling required.

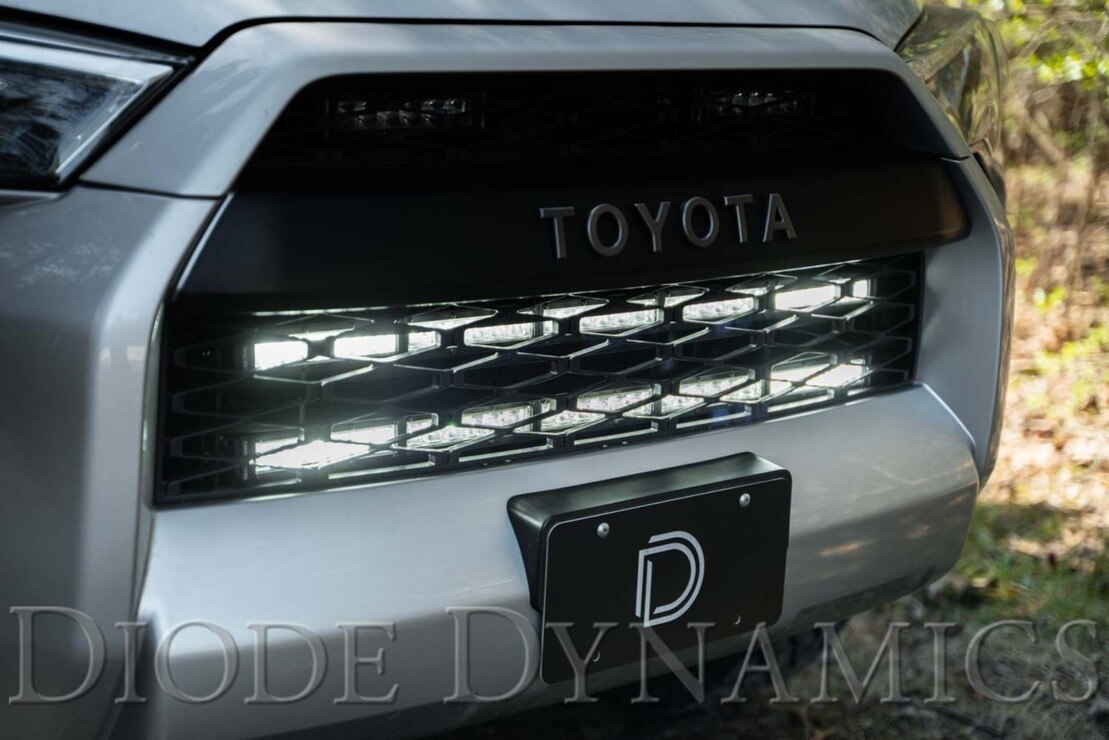

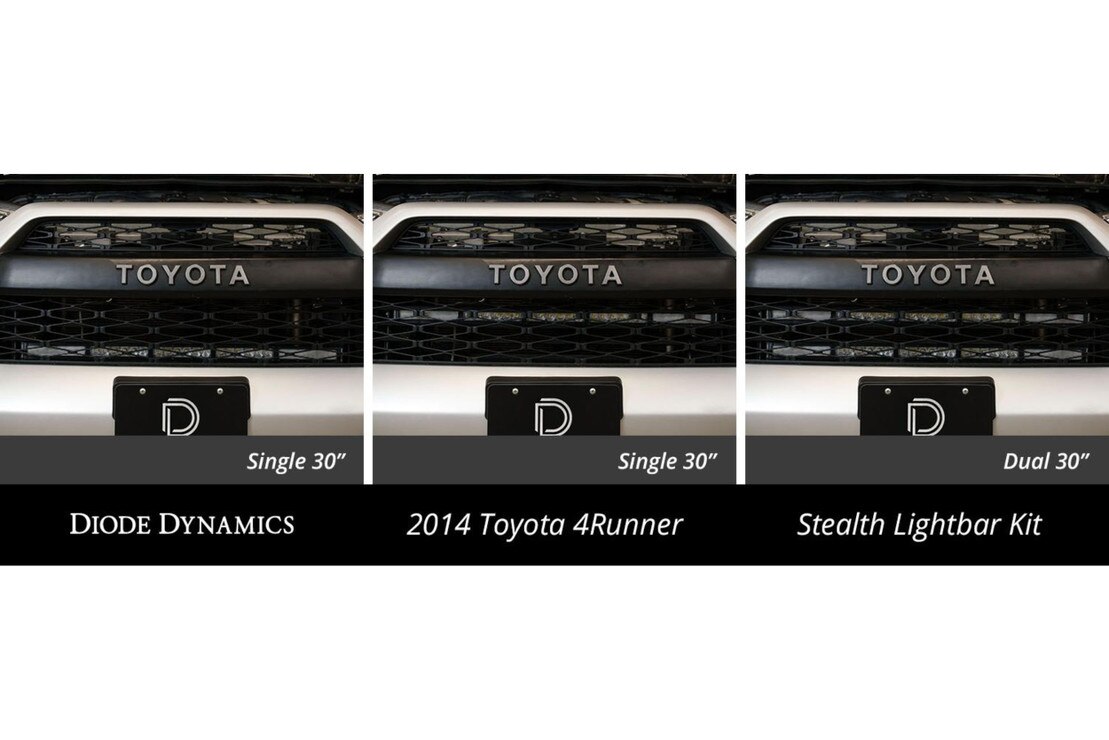

Perfect Fitment: The Stealth LED Lightbar Kit compatible with Toyota 4Runner 2014-2019 from Diode Dynamics allows you to mount either a single SS30 Stage Series 30in LED Light Bar or dual Stage Series 30in LED Light Bars in the lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

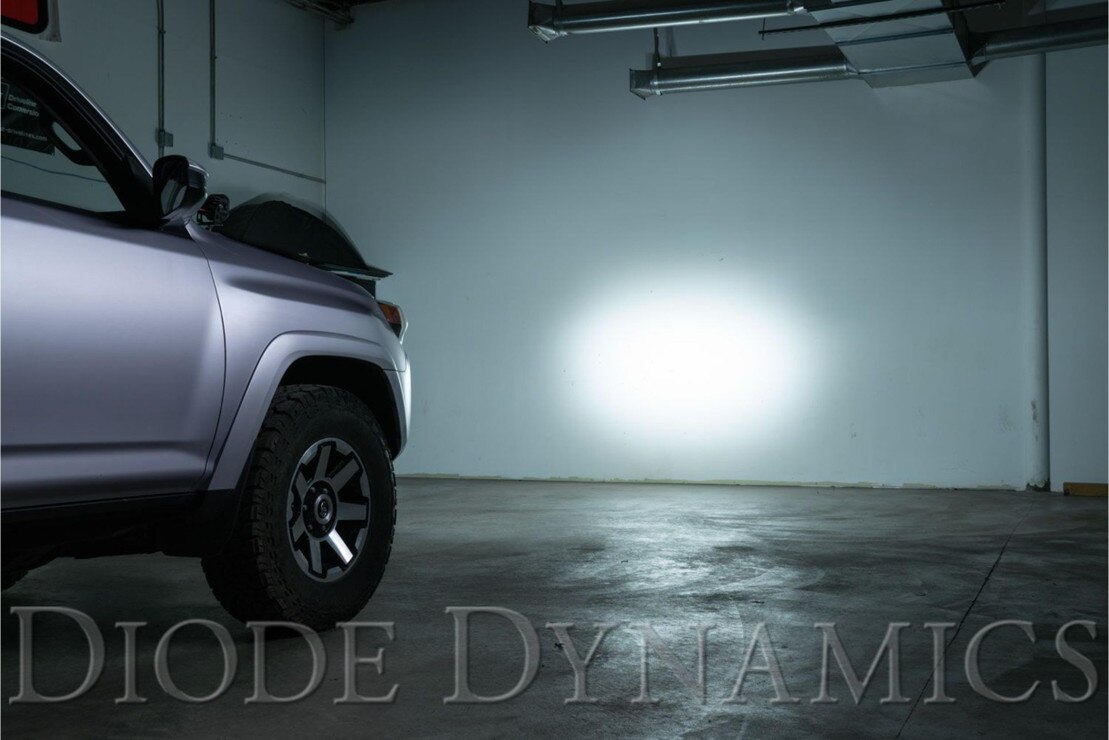

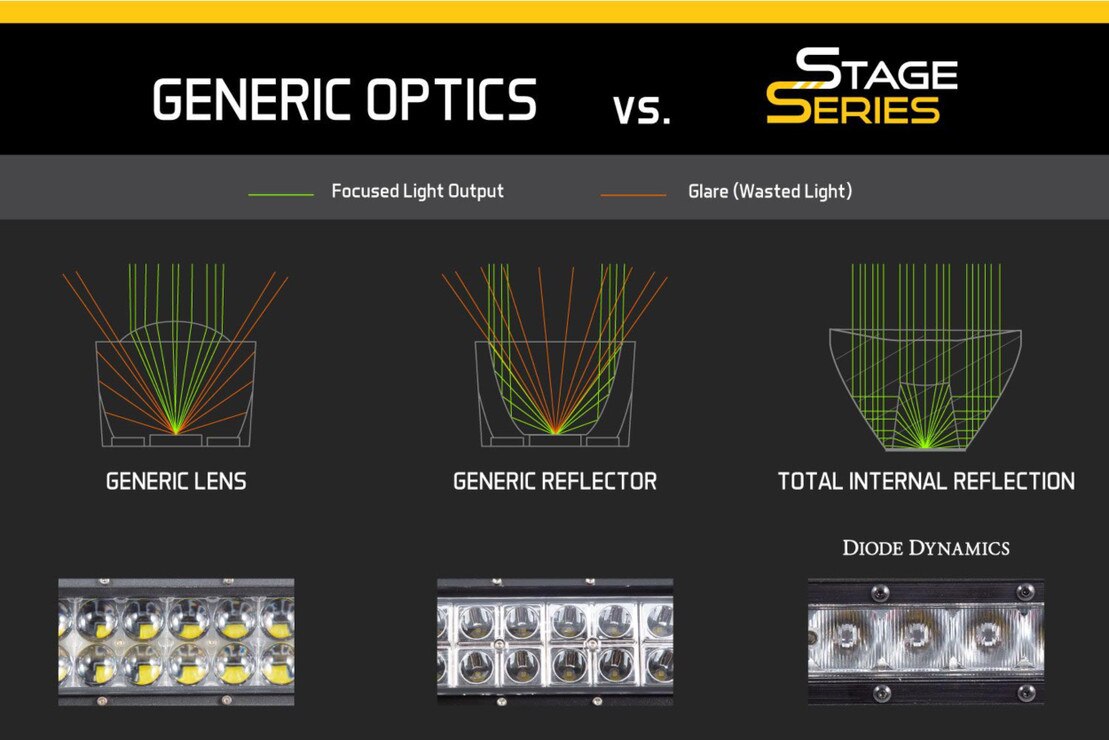

Designed For Performance: Using optical simulation modeling Diode Dynamics Stage Series LED light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern much more focused than older LEDs on the market.

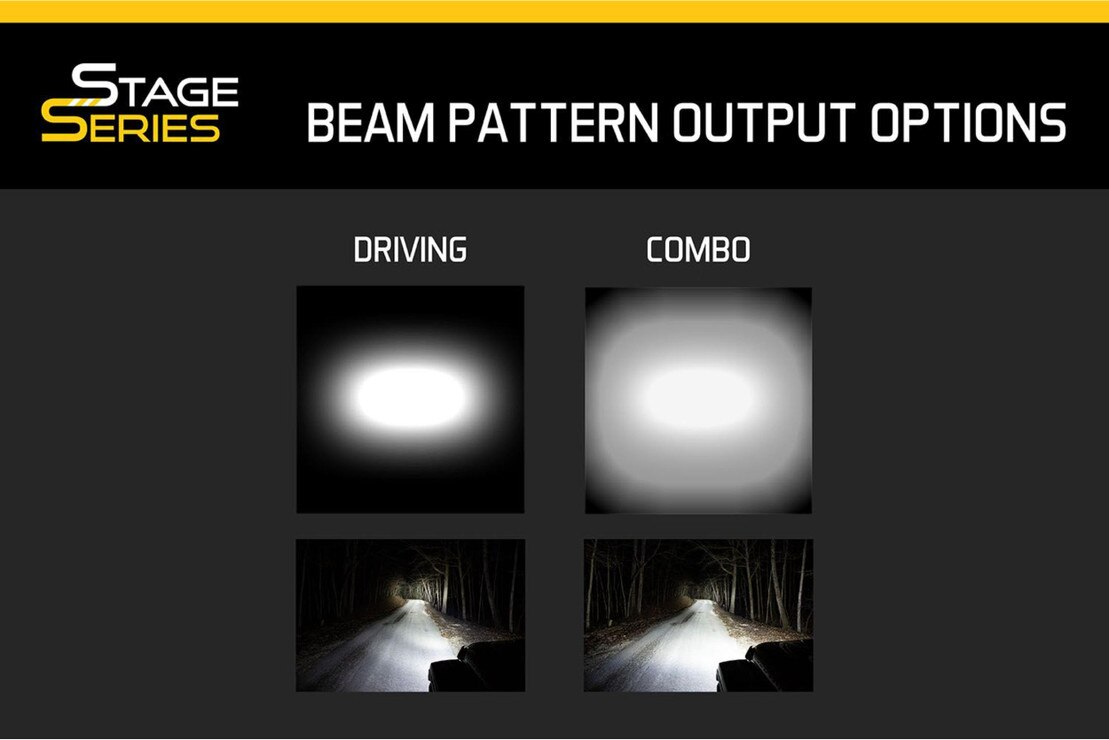

Functional Patterns: All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are there is a Stage Series optic for you!

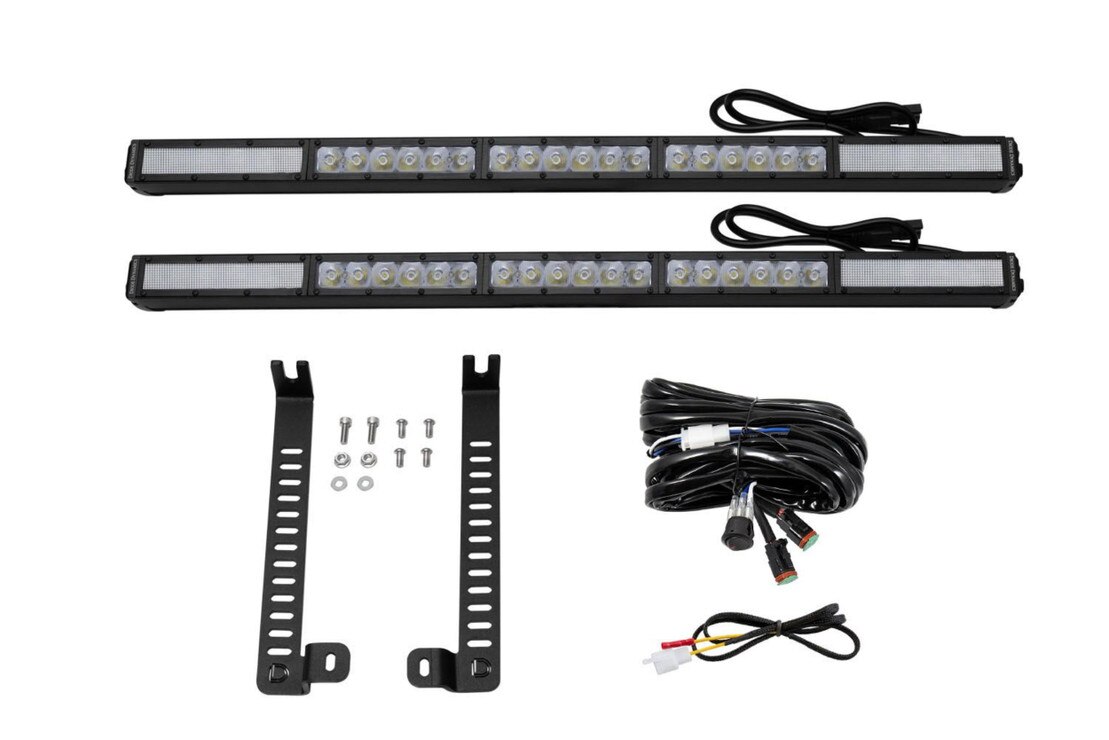

WHAT’S INCLUDED

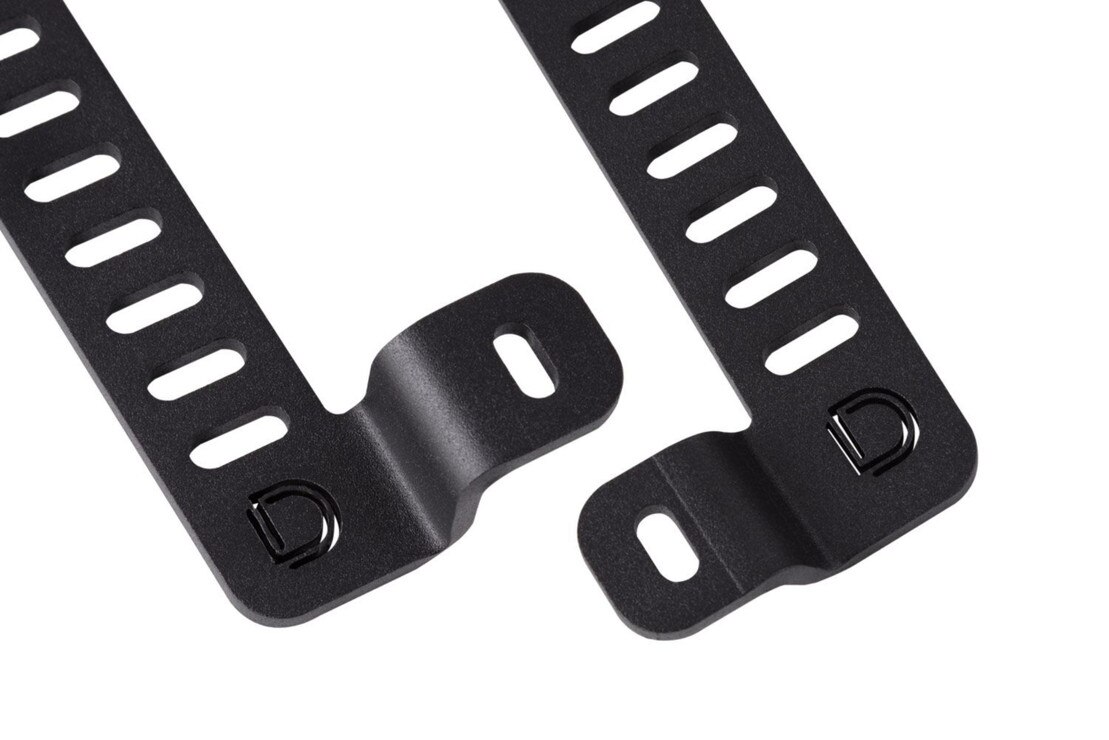

Brackets : One (1) Pair
Optional Light Bars : 1x or 2x SS30 Light Bars
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note : These specifications are per pod / each!
Intensity (White Driving) : 275,000cd
Intensity (White Combo) : 217,000cd
Intensity (Amber Driving) : 165,000cd
Intensity (Amber Combo) : 113,800cd
Raw Lumens (White) : 11,400lm
Raw Lumens (Amber) : 5,700lm
Color Temp (CCT) : 2000K, 6000K
Beam Angle : Driving, 20 x 8, Combo (Driving and Flood)
Power (watts) : 137.2
Operating Voltage : 9-24V
Current (amps @ 14V) : 9.8
Polarity : Polarity Specific
Operating Temperature : -40C to 85C (-40F to 185F)
LED Emitter : Luxeon Z ES
Connector(s) : Deutsch DT Input
Materials : Aluminum PCB
Cooling : Passive, heatsink
COMPATIBILITY
Toyota 4Runner : 2014-2019
DD6765 : SS30 Dual Stealth Lightbar Kit Amber Combo
DD6767 : SS30 Dual Stealth Lightbar Kit Amber Driving
DD6764 : SS30 Dual Stealth Lightbar Kit White Combo
DD6766 : SS30 Dual Stealth Lightbar Kit White Driving
DD6761 : SS30 Single Stealth Lightbar Kit Amber Combo
DD6763 : SS30 Single Stealth Lightbar Kit Amber Driving
DD6760 : SS30 Single Stealth Lightbar Kit White Combo
DD6762 : SS30 Single Stealth Lightbar Kit White Driving
DD6759P : SS30 Stealth Lightbar Brackets
