DESCRIPTION
Features: Bolt-on fitment compatible with 2007-2018 Jeep JK Wrangler. Ultra-high intensity with custom-engineered TIR optics. Brilliant amber (Pod kits) or Selectable (Crosslink kits) backlight color for additional accent. Torture-tested heavy-duty construction. Control through factory aux switch bank using the included harness. Assembled in USA.

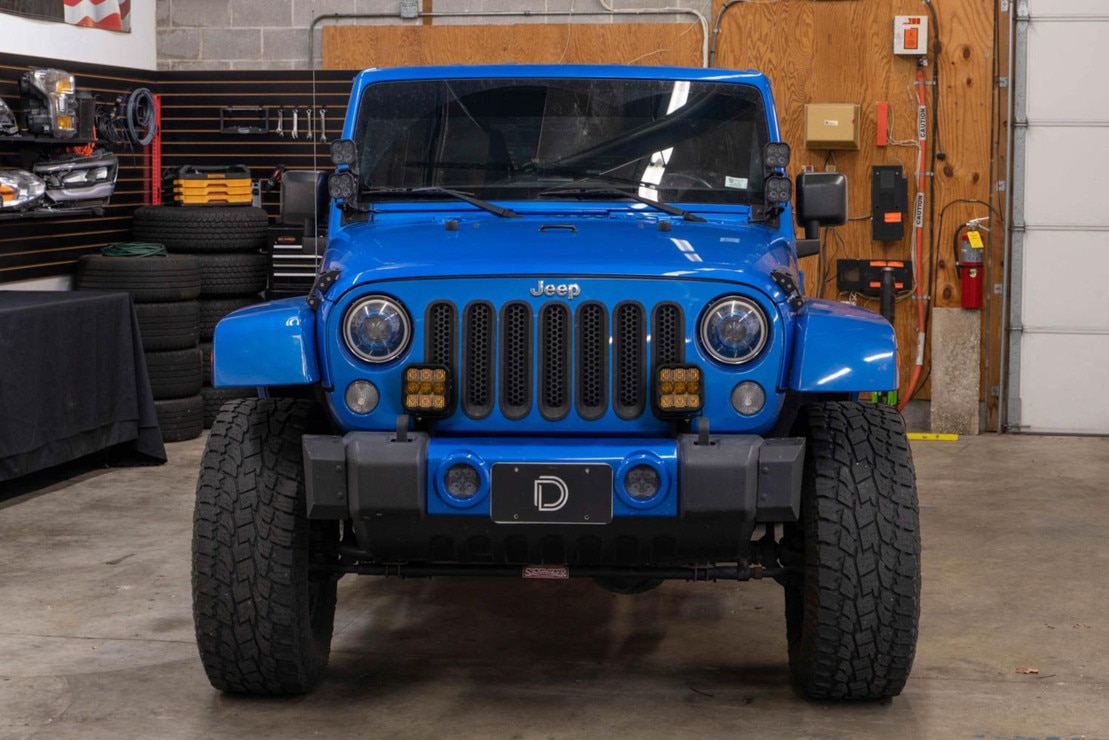

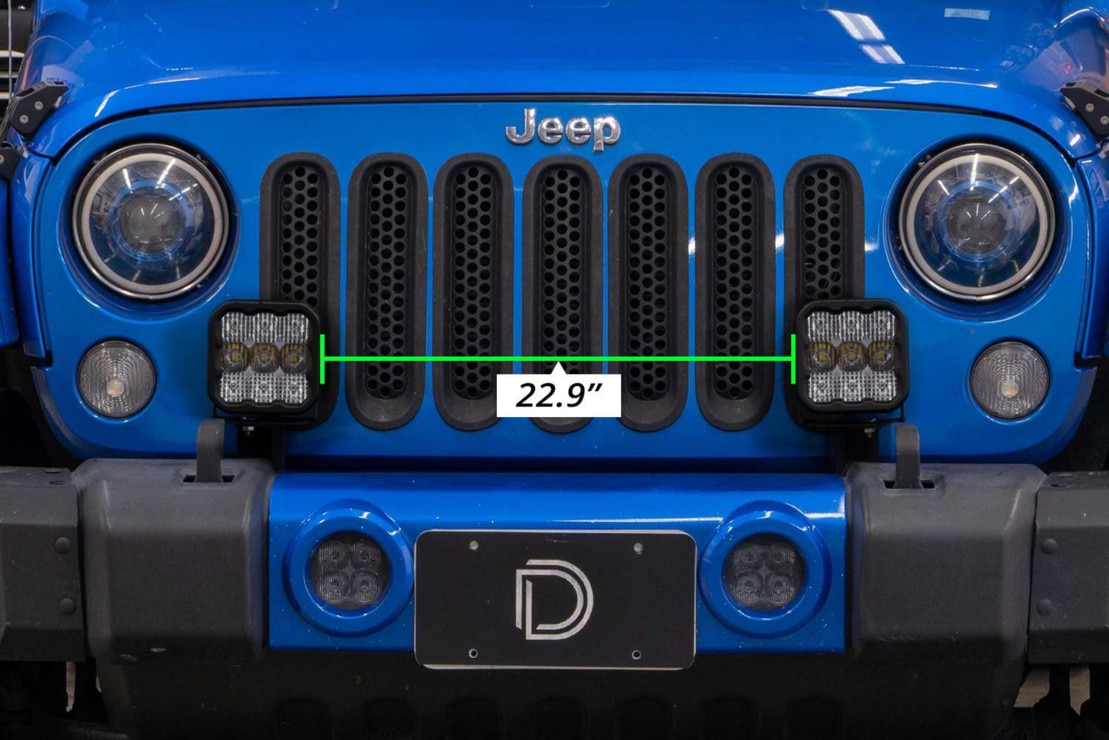

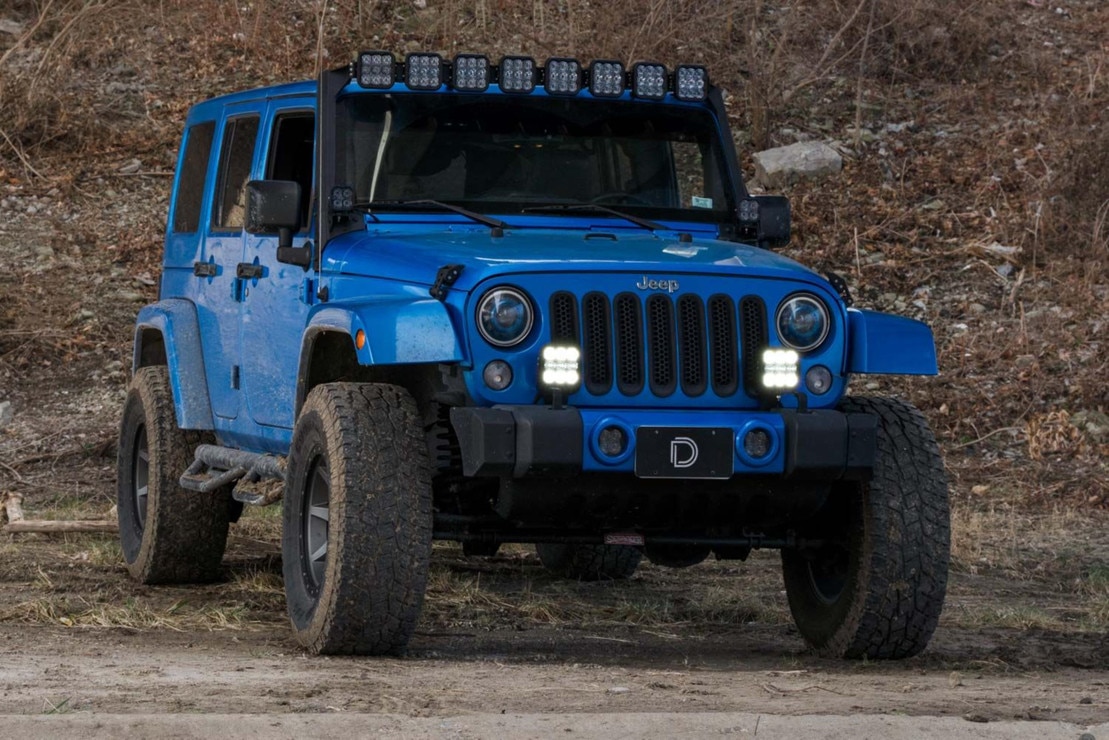

Perfect Fitment: The Bumper LED Pod Light Kit compatible with Jeep JK Wrangler 2007-2018 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points. No cutting or drilling required!

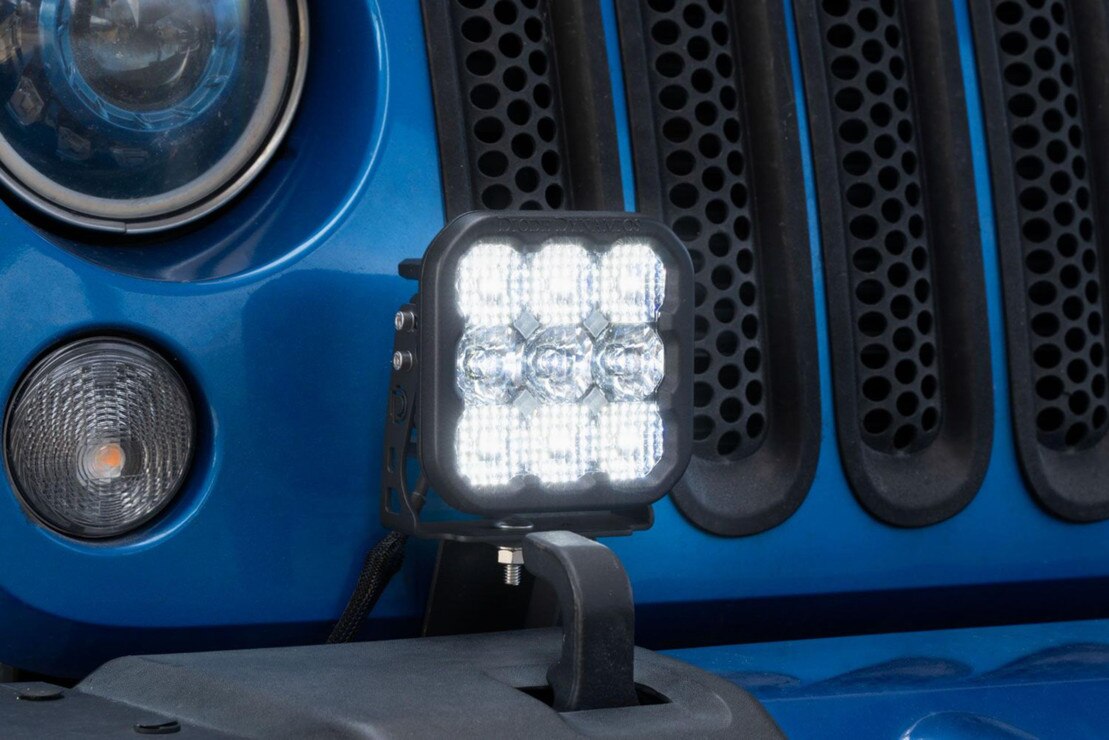

Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market these auxiliary lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Selectable Backlight: The Stage Series 5 LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

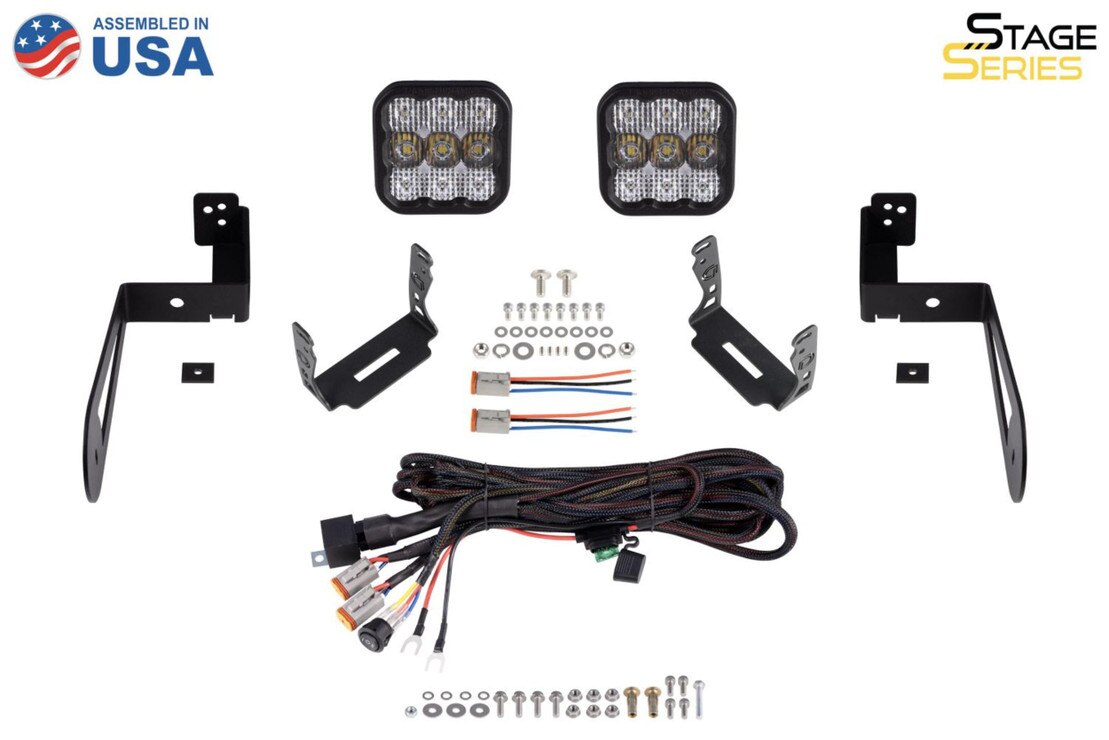

WHAT’S INCLUDED
Brackets : One (1) Pair
Optional Light Pods : 2x SS5 Pods
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note : These specifications are per pod / each!
Intensity (Combo White Sport) : 81,600cd
Intensity (Combo Yellow Sport) : 75,700cd
Intensity (Combo White Pro) : 58,500cd
Intensity (Combo Yellow Pro) : 75,000cd
Raw Lumens (Combo White Sport) : 4,800lm
Raw Lumens (Combo Yellow Sport) : 9,700lm
Raw Lumens (Combo White Pro) : 4,800lm
Raw Lumens (Combo Yellow Pro) : 8,900lm
Main Beam Power (watts) : Sport - 40w, Pro - 90w
Backlight Power (watts) : White - 3.17w, Yellow - 3.07w
Main Beam Current (amps @ 12.8V) : Sport White - 2.75, Sport Yellow - 2.8, Pro - 6
Backlight Current (amps @ 12.8V) : White - 0.25, Yellow - 0.24
Color Temp (CCT) : 3000K, 6000K

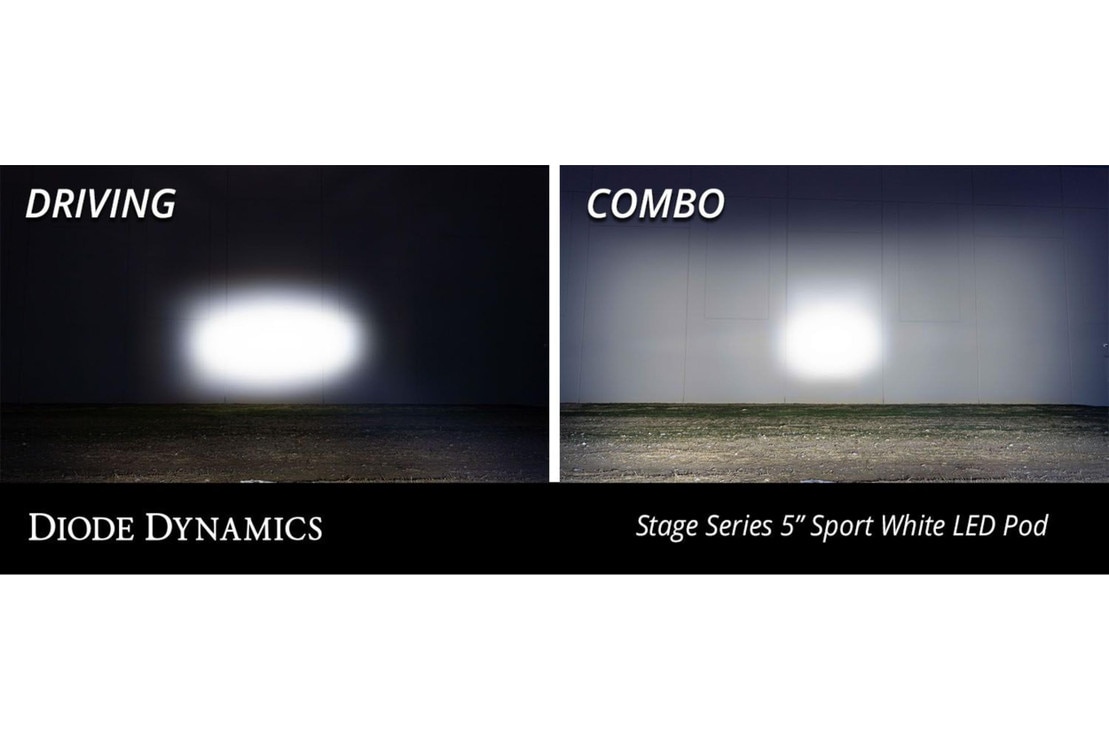

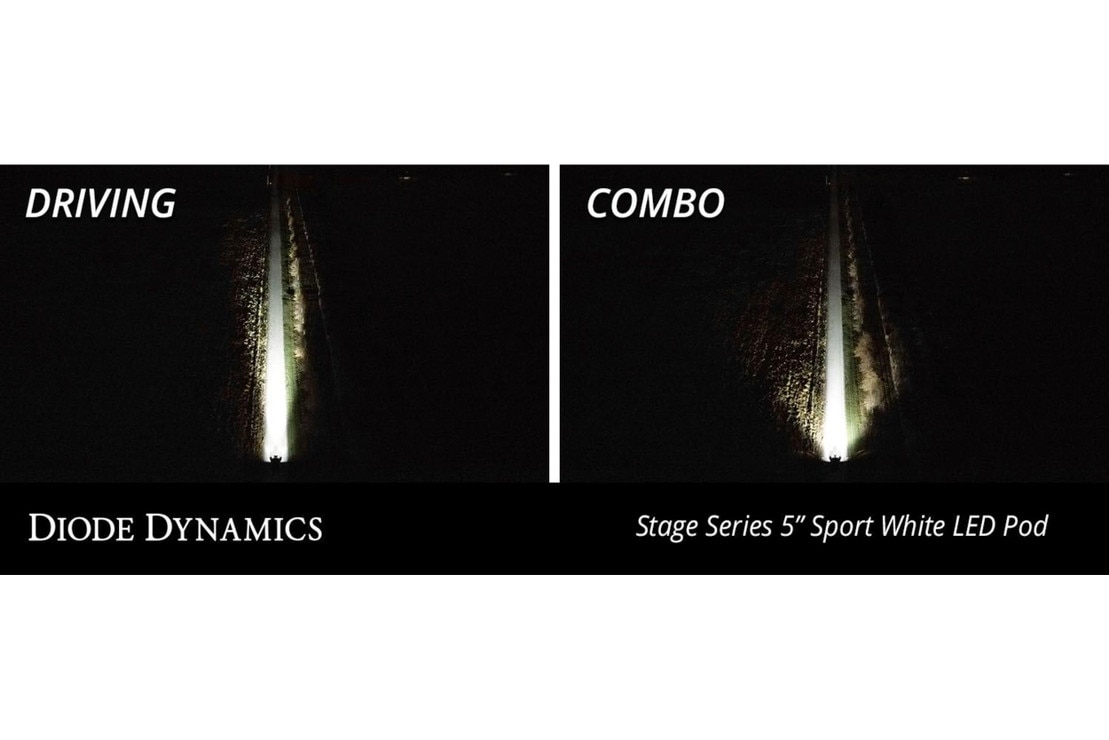

Beam Angle : Combo (Driving and Flood)
Operating Voltage : 9-16V
Polarity : Polarity Specific
Operating Temperature : -40C to 85C (-40F to 185F)
LED Emitter : Luxeon Z ES, Cree XP-L HI
Connector(s) : Deutsch DT Input
Driver Features : Constant Current
Materials : Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling : Passive, Pin-Fin heatsink
Intrusion Ratings : IP69K Waterproof, High Pressure
COMPATIBILITY
Jeep Wrangler : 2008-2018 Wrangler JK
DD7275 : SS5 CrossLink Kit Pro Combo
DD7277 : SS5 CrossLink Kit Pro Driving
DD7274 : SS5 CrossLink Kit Sport Combo
DD7276 : SS5 CrossLink Kit Sport Driving
DD7285 : SS5 Pod Kit Pro Yellow Combo
DD7287 : SS5 Pod Kit Pro Yellow Driving
DD7284 : SS5 Pod Kit Sport Yellow Combo
DD7286 : SS5 Pod Kit Sport Yellow Driving
DD7282P : Stage Series Bumper Bracket Kit
